Driving Economically..................................394
Driving in Special Conditions...................395
Driving Through Shallow Water..............396
Floor Mats......................................................397
Crash and Breakdown
Information
Roadside Assistance..................................399
High Voltage Battery Vehicle Precautions- Plug-In Hybrid Electric Vehicle (PHEV)......................................................................400
Switching the Hazard Flashers On and Off.......................................................................401
Jump Starting the Vehicle.........................402
Post-Crash Alert System...........................405
Post Impact Braking...................................405
Automatic Crash Shutoff...........................406
Transporting the Vehicle...........................406
Fail-Safe Cooling.........................................407
Towing Your Vehicle
Towing Your Vehicle Precautions...........409
Recreationally Towing Your Vehicle -Plug-In Hybrid Electric Vehicle (PHEV)......................................................................409
Recreationally Towing Your Vehicle -Gasoline, AWD.........................................410
Recreationally Towing Your Vehicle -Gasoline, FWD..........................................410
Emergency Towing - Plug-In HybridElectric Vehicle (PHEV)...........................410
Emergency Towing - Gasoline...................411
Towing Your Vehicle – Troubleshooting........................................................................411
Fuses
Fuse Precautions..........................................412
Under Hood Fuse Box................................412
Body Control Module Fuse Box...............421
Identifying Fuse Types...............................425
Fuses – Troubleshooting..........................425
Maintenance
Maintenance Precautions.........................426
Opening and Closing the Hood..............426
Under Hood Overview - 2.0L EcoBoost™......................................................................428
Under Hood Overview - 2.5L, Plug-InHybrid Electric Vehicle (PHEV)............430
Engine Oil......................................................432
Engine Air Filter...........................................434
Coolant...........................................................437
Changing the Fuel Filter.............................441
Drive Belt Routing Overview - 2.0LEcoBoost™.................................................442
12V Battery....................................................442
12V Battery – Troubleshooting................446
Adjusting the Headlamps..........................448
Exterior Bulbs...............................................450
Interior Bulbs................................................450
Maintenance Videos..................................450
Vehicle Care
Cleaning Products.......................................451
Cleaning the Exterior.................................452
Cleaning the Interior...................................454
Repairing Minor Paint Damage................456
Waxing Your Vehicle...................................456
13
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMTable of Contents

Fuel pump reset
Fuse compartment
Hazard flashers
Headlamp high beams
Headlamps on
Heated rear window
Hill descent control
Horn control
Interior luggage compartmentrelease
Jack
Keep out of reach of children
Lighting control
Low fuel level
Low tire pressure warning
Maintain correct fluid level
Malfunction Indicator Lamp (MIL)
Note operating instructions
Panic alarm
Parking aid
Parking lamps
Passenger airbag activated
Passenger airbag deactivated
Power steering fluid
Power windows front/rear
Power window lockout
Requires registered technician
Safety alert
See Owner's Manual
See Service Manual
Side airbag
24
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMSymbols Glossary E139214 E75790 E67019 E270968 E163171 E270945 E139231 E161353 E139232 E139229 E67028 E72343 E139213 E71341 E270849 E270850 E139216 E139225 E231159 E65963 E72021 E231158

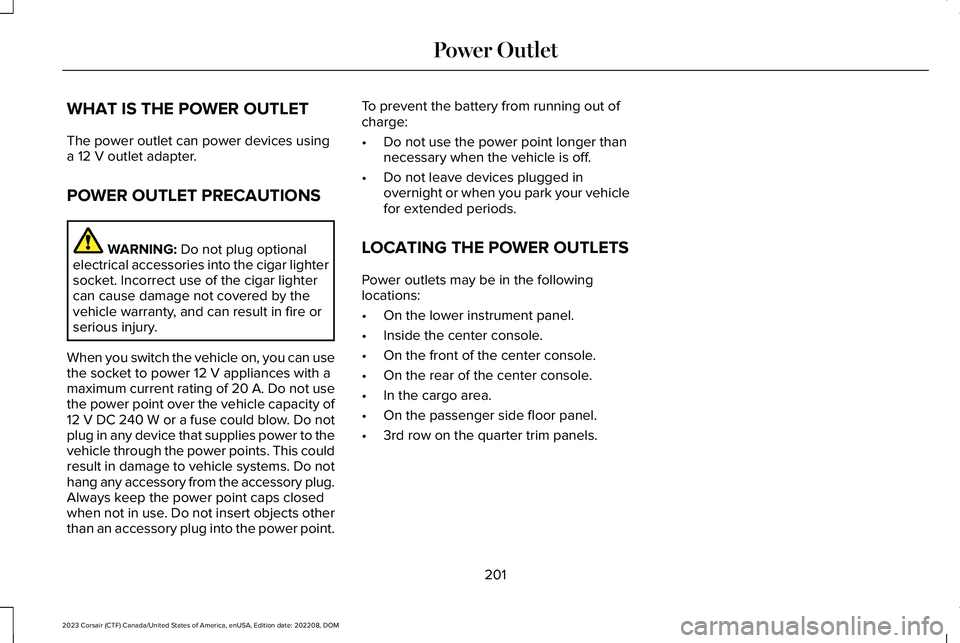

WHAT IS THE POWER OUTLET
The power outlet can power devices usinga 12 V outlet adapter.
POWER OUTLET PRECAUTIONS
WARNING: Do not plug optionalelectrical accessories into the cigar lightersocket. Incorrect use of the cigar lightercan cause damage not covered by thevehicle warranty, and can result in fire orserious injury.
When you switch the vehicle on, you can usethe socket to power 12 V appliances with amaximum current rating of 20 A. Do not usethe power point over the vehicle capacity of12 V DC 240 W or a fuse could blow. Do notplug in any device that supplies power to thevehicle through the power points. This couldresult in damage to vehicle systems. Do nothang any accessory from the accessory plug.Always keep the power point caps closedwhen not in use. Do not insert objects otherthan an accessory plug into the power point.
To prevent the battery from running out ofcharge:
•Do not use the power point longer thannecessary when the vehicle is off.
•Do not leave devices plugged inovernight or when you park your vehiclefor extended periods.
LOCATING THE POWER OUTLETS
Power outlets may be in the followinglocations:
•On the lower instrument panel.
•Inside the center console.
•On the front of the center console.
•On the rear of the center console.
•In the cargo area.
•On the passenger side floor panel.
•3rd row on the quarter trim panels.
201
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMPower Outlet

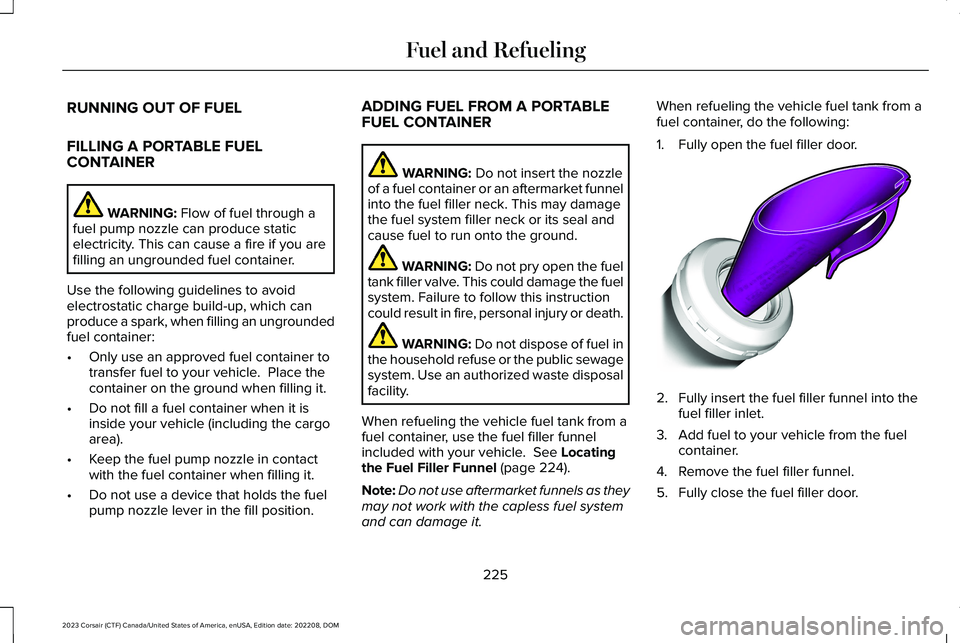

RUNNING OUT OF FUEL
FILLING A PORTABLE FUELCONTAINER
WARNING: Flow of fuel through afuel pump nozzle can produce staticelectricity. This can cause a fire if you arefilling an ungrounded fuel container.
Use the following guidelines to avoidelectrostatic charge build-up, which canproduce a spark, when filling an ungroundedfuel container:
•Only use an approved fuel container totransfer fuel to your vehicle. Place thecontainer on the ground when filling it.
•Do not fill a fuel container when it isinside your vehicle (including the cargoarea).
•Keep the fuel pump nozzle in contactwith the fuel container when filling it.
•Do not use a device that holds the fuelpump nozzle lever in the fill position.
ADDING FUEL FROM A PORTABLEFUEL CONTAINER
WARNING: Do not insert the nozzleof a fuel container or an aftermarket funnelinto the fuel filler neck. This may damagethe fuel system filler neck or its seal andcause fuel to run onto the ground.
WARNING: Do not pry open the fueltank filler valve. This could damage the fuelsystem. Failure to follow this instructioncould result in fire, personal injury or death.
WARNING: Do not dispose of fuel inthe household refuse or the public sewagesystem. Use an authorized waste disposalfacility.
When refueling the vehicle fuel tank from afuel container, use the fuel filler funnelincluded with your vehicle. See Locatingthe Fuel Filler Funnel (page 224).
Note:Do not use aftermarket funnels as theymay not work with the capless fuel systemand can damage it.
When refueling the vehicle fuel tank from afuel container, do the following:
1.Fully open the fuel filler door.
2.Fully insert the fuel filler funnel into thefuel filler inlet.
3.Add fuel to your vehicle from the fuelcontainer.
4.Remove the fuel filler funnel.
5.Fully close the fuel filler door.
225
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuel and RefuelingE157452

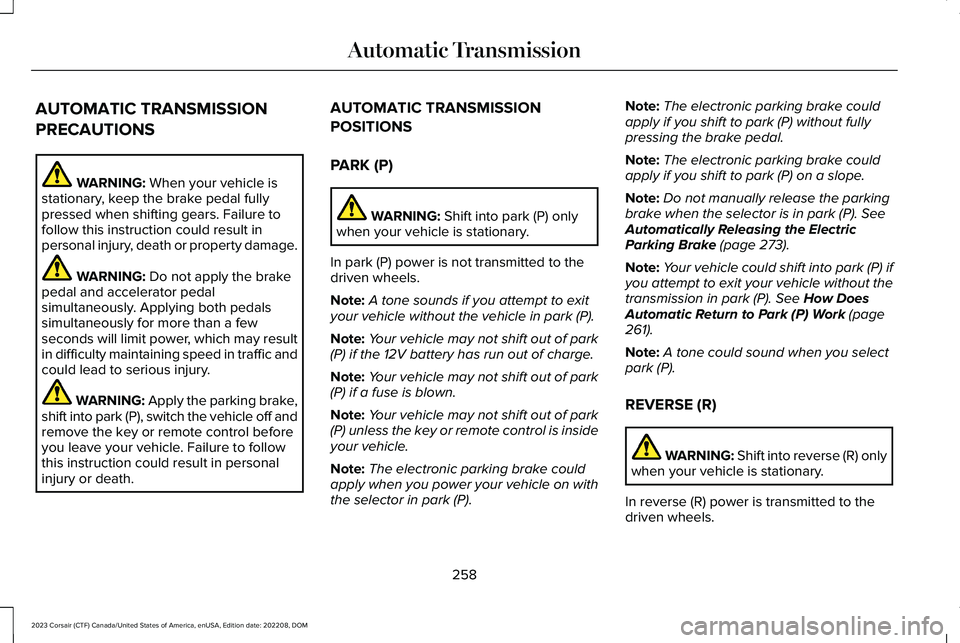

AUTOMATIC TRANSMISSION
PRECAUTIONS
WARNING: When your vehicle isstationary, keep the brake pedal fullypressed when shifting gears. Failure tofollow this instruction could result inpersonal injury, death or property damage.
WARNING: Do not apply the brakepedal and accelerator pedalsimultaneously. Applying both pedalssimultaneously for more than a fewseconds will limit power, which may resultin difficulty maintaining speed in traffic andcould lead to serious injury.
WARNING: Apply the parking brake,shift into park (P), switch the vehicle off andremove the key or remote control beforeyou leave your vehicle. Failure to followthis instruction could result in personalinjury or death.
AUTOMATIC TRANSMISSION
POSITIONS
PARK (P)
WARNING: Shift into park (P) onlywhen your vehicle is stationary.
In park (P) power is not transmitted to thedriven wheels.
Note:A tone sounds if you attempt to exityour vehicle without the vehicle in park (P).
Note:Your vehicle may not shift out of park(P) if the 12V battery has run out of charge.
Note:Your vehicle may not shift out of park(P) if a fuse is blown.
Note:Your vehicle may not shift out of park(P) unless the key or remote control is insideyour vehicle.
Note:The electronic parking brake couldapply when you power your vehicle on withthe selector in park (P).
Note:The electronic parking brake couldapply if you shift to park (P) without fullypressing the brake pedal.
Note:The electronic parking brake couldapply if you shift to park (P) on a slope.
Note:Do not manually release the parkingbrake when the selector is in park (P). SeeAutomatically Releasing the ElectricParking Brake (page 273).
Note:Your vehicle could shift into park (P) ifyou attempt to exit your vehicle without thetransmission in park (P). See How DoesAutomatic Return to Park (P) Work (page261).
Note:A tone could sound when you selectpark (P).
REVERSE (R)
WARNING: Shift into reverse (R) onlywhen your vehicle is stationary.
In reverse (R) power is transmitted to thedriven wheels.
258
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMAutomatic Transmission

FUSE PRECAUTIONS
WARNING: Always disconnect thebattery before servicing high current fuses.
WARNING: To reduce risk ofelectrical shock, always replace the coverto the power distribution box beforereconnecting the battery or refilling fluidreservoirs.
WARNING: Always replace a fusewith one that has the specified amperagerating. Using a fuse with a higheramperage rating can cause severe wiredamage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOOD FUSEBOX
ACCESSING THE UNDER HOOD FUSEBOX
1.Pull the latch toward you and remove thetop cover.
412
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFusesE334436 E253688

2.Pull the connector lever upward.
3.Pull the connector upward to remove it.4.Pull both latches toward you and removethe fuse box.
5.Turn the fuse box over and open the lid.
413
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFusesE25368923 E253693

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
414
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuses E292669
