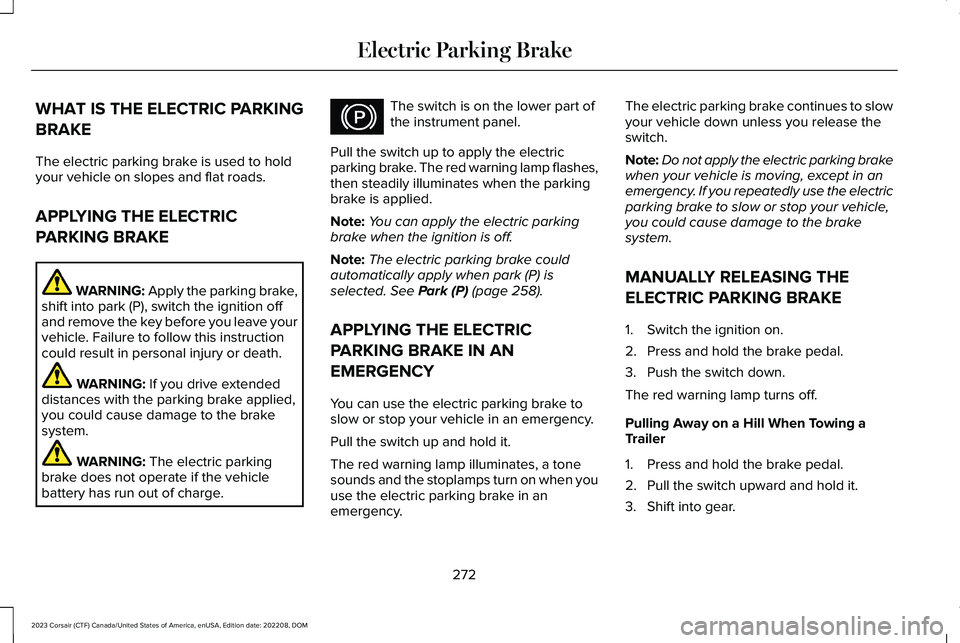

WHAT IS THE ELECTRIC PARKING
BRAKE
The electric parking brake is used to holdyour vehicle on slopes and flat roads.
APPLYING THE ELECTRIC
PARKING BRAKE
WARNING: Apply the parking brake,shift into park (P), switch the ignition offand remove the key before you leave yourvehicle. Failure to follow this instructioncould result in personal injury or death.
WARNING: If you drive extendeddistances with the parking brake applied,you could cause damage to the brakesystem.
WARNING: The electric parkingbrake does not operate if the vehiclebattery has run out of charge.
The switch is on the lower part ofthe instrument panel.
Pull the switch up to apply the electricparking brake. The red warning lamp flashes,then steadily illuminates when the parkingbrake is applied.
Note:You can apply the electric parkingbrake when the ignition is off.
Note:The electric parking brake couldautomatically apply when park (P) isselected. See Park (P) (page 258).
APPLYING THE ELECTRIC
PARKING BRAKE IN AN
EMERGENCY
You can use the electric parking brake toslow or stop your vehicle in an emergency.
Pull the switch up and hold it.
The red warning lamp illuminates, a tonesounds and the stoplamps turn on when youuse the electric parking brake in anemergency.
The electric parking brake continues to slowyour vehicle down unless you release theswitch.
Note:Do not apply the electric parking brakewhen your vehicle is moving, except in anemergency. If you repeatedly use the electricparking brake to slow or stop your vehicle,you could cause damage to the brakesystem.
MANUALLY RELEASING THE
ELECTRIC PARKING BRAKE
1.Switch the ignition on.
2.Press and hold the brake pedal.
3.Push the switch down.
The red warning lamp turns off.
Pulling Away on a Hill When Towing aTrailer
1.Press and hold the brake pedal.
2.Pull the switch upward and hold it.
3.Shift into gear.
272
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMElectric Parking BrakeE267156

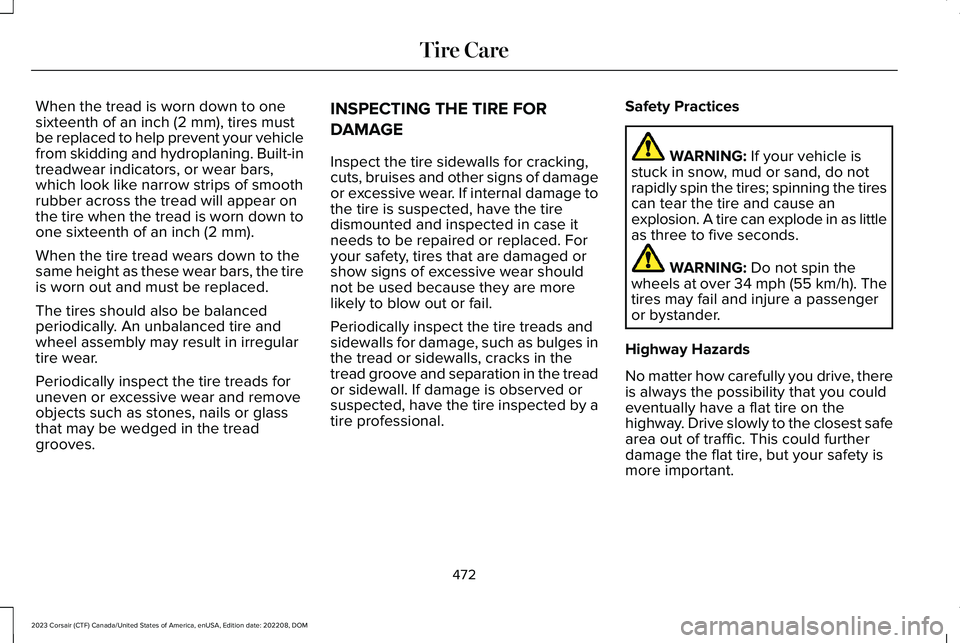

When the tread is worn down to onesixteenth of an inch (2 mm), tires mustbe replaced to help prevent your vehiclefrom skidding and hydroplaning. Built-intreadwear indicators, or wear bars,which look like narrow strips of smoothrubber across the tread will appear onthe tire when the tread is worn down toone sixteenth of an inch (2 mm).
When the tire tread wears down to thesame height as these wear bars, the tireis worn out and must be replaced.
The tires should also be balancedperiodically. An unbalanced tire andwheel assembly may result in irregulartire wear.
Periodically inspect the tire treads foruneven or excessive wear and remove
objects such as stones, nails or glassthat may be wedged in the treadgrooves.
INSPECTING THE TIRE FOR
DAMAGE
Inspect the tire sidewalls for cracking,cuts, bruises and other signs of damageor excessive wear. If internal damage tothe tire is suspected, have the tiredismounted and inspected in case itneeds to be repaired or replaced. Foryour safety, tires that are damaged orshow signs of excessive wear shouldnot be used because they are morelikely to blow out or fail.
Periodically inspect the tire treads andsidewalls for damage, such as bulges inthe tread or sidewalls, cracks in thetread groove and separation in the treador sidewall. If damage is observed orsuspected, have the tire inspected by atire professional.
Safety Practices
WARNING: If your vehicle isstuck in snow, mud or sand, do notrapidly spin the tires; spinning the tirescan tear the tire and cause anexplosion. A tire can explode in as littleas three to five seconds.
WARNING: Do not spin thewheels at over 34 mph (55 km/h). Thetires may fail and injure a passengeror bystander.
Highway Hazards
No matter how carefully you drive, thereis always the possibility that you could
eventually have a flat tire on thehighway. Drive slowly to the closest safearea out of traffic. This could furtherdamage the flat tire, but your safety ismore important.
472
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMTire Care

WHAT IS THE TIRE SEALANT AND
INFLATOR KIT
The kit consists of an air compressor tore-inflate the tire and a canister of sealingcompound that effectively seals mostpunctures. This kit provides a temporary tirerepair allowing you to drive your vehicle upto 120 mi (200 km) at a maximum speed of50 mph (80 km/h) to reach a tire servicelocation.
Note:The temporary mobility kit containsenough sealant compound in the canisterfor one tire repair only. See an authorizeddealer for replacement sealant canisters.
TIRE SEALANT AND INFLATOR KIT
PRECAUTIONS
WARNING: Failure to follow theseguidelines could result in an increased riskof loss of vehicle control, injury or death.
WARNING: Do not run the enginewhen operating the air compressor unlessthe vehicle is outdoors or in awell-ventilated area.
Note:Do not use the kit if a tire has becomeseverely damaged. Only punctures locatedwithin the tire tread can be sealed with thekit.
Do not attempt to repair punctures largerthan 0.24 in (6 mm) or damage to the tire'ssidewall. The tire may not completely seal.
•Drive carefully and avoid abrupt steeringmaneuvers.
•Periodically monitor tire inflation pressurein the affected tire; if the tire is losingpressure, have the vehicle towed.
•Read the information in the Tips for Useof the Kit section to make sure safeoperation of the kit and your vehicle.
After sealant use, the tire pressuremonitoring system sensor and valve stem onthe wheel must be replaced by an authorizeddealer.
LOCATING THE TIRE SEALANT
AND INFLATOR KIT
The kit is located under the load floor in therear of the vehicle.
475
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMTire Sealant and Inflator Kit - Plug-In Hybrid Electric Vehicle (PHEV)

Engine Specifications - 2.0LEcoBoost™....................................................495Engine Specifications - 2.5L, Plug-In HybridElectric Vehicle (PHEV)............................496Entering a Parallel Parking Space...........306Entering a Perpendicular ParkingSpace............................................................306Environment......................................................31Evasive Steering Assist...............................368Evasive Steering Assist Limitations...............369Switching Evasive Steering Assist On andOff......................................................................369What Is Evasive Steering Assist......................368
EV Coach.........................................................156Event Data........................................................28Exiting a Parking Space..............................307Export Unique Options...............................652Extending the Remote StartDuration........................................................166Exterior Bulbs................................................450Exterior Bulb Specification Chart...................450
Exterior Lamps...............................................120Exterior Lamp Indicators.....................................121Exterior Lamps On Audible Warning...............121Switching the Daytime Running Lamps Onand Off...............................................................120Switching Welcome Lighting On and Off.......121Using the Turn Signal Lamps...........................120
Exterior Lighting Control..............................118Exterior Lighting.............................................118Adaptive Front Lighting.....................................125Adaptive Front Lighting –Troubleshooting..............................................127Autolamps..............................................................119Automatic High Beam Control..........................121Automatic High Beam Control –Troubleshooting..............................................124Exterior Lamps.....................................................120Headlamps.............................................................118Headlamps – Troubleshooting.........................119
Exterior Mirrors...............................................134Auto-Dimming Exterior Mirror..........................135
F
Fail-Safe Cooling..........................................407Driving When Fail-Safe Mode IsActivated..........................................................407Fail-Safe Cooling Indicators............................408How Does Fail-Safe Cooling Work................407What Is Fail-Safe Cooling.................................407
Fastening the Seatbelts................................57Federal Highway AdministrationRegulation....................................................621Flat TireSee: Changing a Flat Tire.................................487
Floor Mats.......................................................397Folding the Exterior Mirrors........................134Ford Power-UpSee: Software Update Settings......................554See: Vehicle Software Updates......................554
Front Exterior...................................................38Front Parking Aid.........................................295Front Parking Aid Audible Warnings.............296Front Parking Aid Limitations..........................295Locating the Front Parking Aid Sensors......295What is the Front Parking Aid.........................295
Front Passenger Sensing System..............69Front Passenger Sensing SystemIndicators............................................................72Front Passenger Sensing SystemPrecautions........................................................72How Does the Front Passenger SensingSystem Work.....................................................69What Is the Front Passenger SensingSystem................................................................69
Front Seat Precautions................................178Front Seats......................................................178Heated Seats........................................................183Massage Seats.....................................................182Power Seats..........................................................179Ventilated Seats...................................................184
Fuel and Refueling.......................................223Fuel and Refueling – Troubleshooting..........231
