2023 LINCOLN AVIATOR fuse

Protected Component Fuse Rating Fuse or Relay Number
Front blower motor relay. 40A 13
Transmission oil pump. 15A 14
A/C compressor variable clutch.
Engine mounts.
Auxiliary pumps.
Windshield and rear window washer pump relay power. 15A 16
Charge status indicator. 5A 17
Starter motor. 30A 18
Headlamp leveling motors. 10A 21
Adaptive headlamps.
Electric power assisted steering module. 10A 22
Anti-lock brake system module with integrated park brake. 10A 23
Powertrain control module. 10A 24
Hybrid powertrain control module.
Air quality sensor. 10A 25
Particulate matter sensor.
360 degree camera with park aid.
Rear view camera.
Blind spot information system.
Adaptive cruise control module.
385
Fuses

Protected Component Fuse Rating Fuse or Relay Number
Transmission control module. 15A 26
Anti-lock brake system valves with integrated park brake. 40A 28
Anti-lock brake system pump with integrated park brake. 60A 29
Driver seat module. 30A 30
Passenger seat module. 30A 31
Not used (spare). 20A 32
Rear cargo area power point. 20A 33
Main console bin power point. 20A 34
Not used (spare). 20A 35
Power inverter. 40A 36
Climate controlled seat module. 30A 38
Power liftgate module. 30A 41
Trailer brake control module. 30A 42
Body control module. 60A 43
Brake on and off switch. 10A 44
Battery charger control module. 15A 46
386
Fuses

Protected Component Fuse Rating Fuse or Relay Number
Heated backlite. 40A 50
Heated steering wheel. 20A 54
Trailer tow park lamps. 20A 55
Trailer tow battery charge. 30A 57
Trailer tow backup lamps. 10A 58
Multi-contour seat module. 15A 61
Headlamp washer pump. 15A 62
Four-wheel drive module. 40A 64
Front window wiper motor. 30A 69
Rear window wiper motor. 15A 71
Air suspension module. 20A 72
Driver door module. 30A 73
Not used. — 78
Not used. — 79
Left-hand front electronic door. 20A 80
Right-hand front electronic door. 20A 82
387
Fuses

Protected Component Fuse Rating Fuse or Relay Number
Rear blower motor. 20A 88
Trailer tow lighting module. 20A 91
Integrated spark control. 15A 95
Not used (spare). 15A 96
Electric A/C. 10A 97
High voltage positive temperature coefficient heater.
Traction battery coolant proportional valve. 10A 98
Not used (spare). 50A 103
Not used (spare). 50A 104
Not used (spare). 40A 105
Not used (spare). 40A 106
Not used (spare). 40A 107
Not used (spare). 20A 108
Passenger door module. 30A 109
Body control module voltage quality monitor feed. 30A 111
Left-hand rear electronic door. 20A 112
388
Fuses

Protected Component Fuse Rating Fuse or Relay Number
Air suspension compressor. 50A 114
Amplifier. 20A 115
Not used (spare). 5A 116
Second row heated seats. 30A 118
Port fuel injectors. 15A 120
Rain sensor. 5A 124
USB smart charger 1. 5A 125
Amplifier. 20A 127
Illuminated badge. 15A 128
Power folding seat module. 40A 131
Left-hand heated wiper blade. 15A 133
Right-hand heated wiper blade.
Family entertainment system. 10A 134
Right-hand rear electronic door. 20A 136
USB smart charger 2. 5A 139
Traffic cam. 5A 142
389
Fuses

Protected Component Fuse Rating Fuse or Relay Number
Battery electronic control module. 15A 146
Left-hand headlamp module. 30A 148
Right-hand headlamp module. 30A 149
Not used (spare). 40A 150
Transmission control module. 25A 155
DC/DC converter. 15A 159
Not used (spare). 10A 160
Low voltage service disconnect. 20A 168
Coolant pump. 10A 169
Traction battery coolant pump. 10A 170
Pedestrian sounder.
Center console blower. 10A 177
Note: Spare fuse amperage may vary.

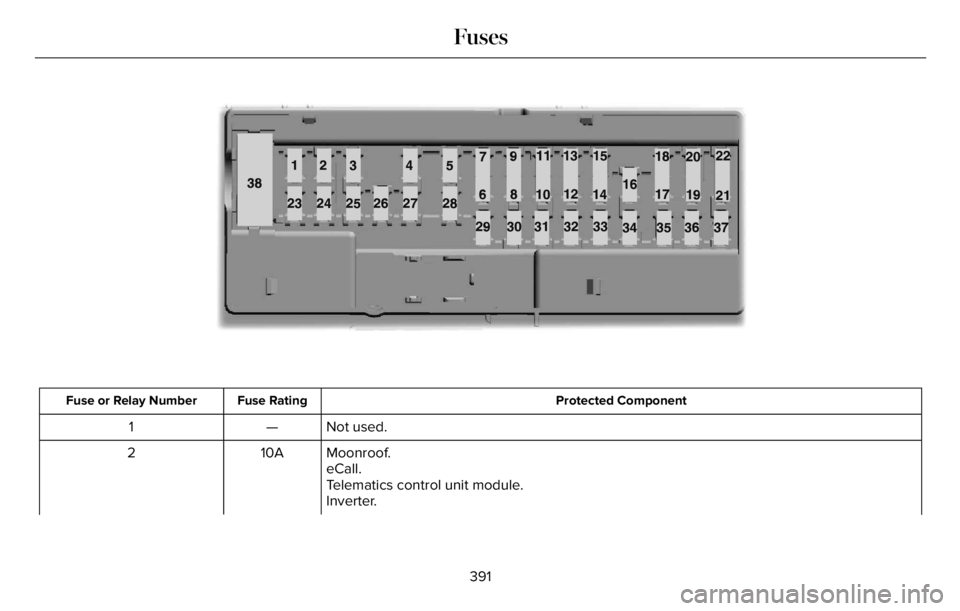

Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering column.Note:It may be easier to access the fuse
panel if you remove the finish trim piece.
390
Fuses

598E145984
Protected Component Fuse Rating Fuse or Relay Number
Not used. — 1
Moonroof. 10A 2
eCall.
Telematics control unit module.
Inverter.
391
Fuses

Protected Component Fuse Rating Fuse or Relay Number
Driver door switch pack.
Memory seat switch. 7.5A 3
Wireless accessory charger module.
Seat switches.
Not used (spare). 20A 4
Not used. — 5
Not used (spare). 10A 6
Smart data link connector power. 10A 7
Telematics control unit module. 5A 8
Hands-free liftgate actuation module.
Power liftgate module.
Combined sensor module. 5A 9
Keypad switch.
Rear climate control.
Not used. — 10
Not used. — 11
Remote climate control module. 7.5A 12
Gear shift module.
Steering column control module. 7.5A 13
392
Fuses
