2023 KIA SPORTAGE PHEV Navigation System Quick Reference Guide

1-13
a a Displays the specified user profile image. To display the user profile settings screen, press
the user image or name.
b b Displays the date and time.
c c Displays weather, and other information.
d d Displays Radio/Media information.
e e If you press the vehicle image, the Electric Vehicle screen appears.

A
The screen may differ depending on the vehicle model and specifications.

A
To display the map screen, press the map area.
Editing the widgets on the Home screen (Type1)
You can edit the types and positions of the widgets to display on the Home screen.
1 At the upper left of the Home screen, press Menu >
Edit Home
Widgets.
2 Perform any of the following methods:
 To change the widget type, press and hold the desired widget on List of widgets
and then drag it to Widget area.
To change the listed order for widgets, press and hold a widget on Widget area and
then drag it to the desired position.
ab
a a List of widgets
b b Widget area

A
The screen may differ depending on the vehicle model and specifications.

A
To initialize the types and positions of widgets, press Reset.

1-14
Editing the icons on the Home screen (Type1)
You can see the icon list on the Home screen and change the locations for icons.
1 At the upper left of the Home screen, press Menu >
Edit Home Icons.
2 To change the location of an icon, press and hold, and drag the icon to
the desired position.

A
The screen may differ depending on the vehicle model and specifications.

A
To initialize the positions of icons, press Reset.
Editing the icons on the Home screen (Type2)
You can see the icon list on the All screen and change the locations for icons.
1 At the upper left of the All Menus screen, press >
Edit Home Icons.
2 To change the location of an icon, press and hold, and drag the icon to
the desired position.

A
The screen may differ depending on the vehicle model and specifications.

A
To initialize the positions of icons, press Reset.

1-15
Accessing the All Menus screen
You can see All Menus on the Home screen.
Press and gently swipe the Home screen to the left as shown below.
The All Menus screen appears. You can see the list of all functions of the system.
AThe screen may differ depending on the vehicle model and specifications.
Using the split screen (if equipped)
You can set to display various information such as map, Radio/Media info, driving info, and
clock on the split system screen.
Opening the split screen
Press the split screen button.
The split screen appears on the right.

A
To open split screens, press Split Screen on the menu at the top of the screen.

1-16
Editing the split screen
You can change information on the split screen.
Press and hold, and then drag the split screen up or down to select the
desired information item.
Closing the split screen
Press the split screen button when the split screen is open.

A
To close split screens, press Split Screen on the menu at the top of the screen.

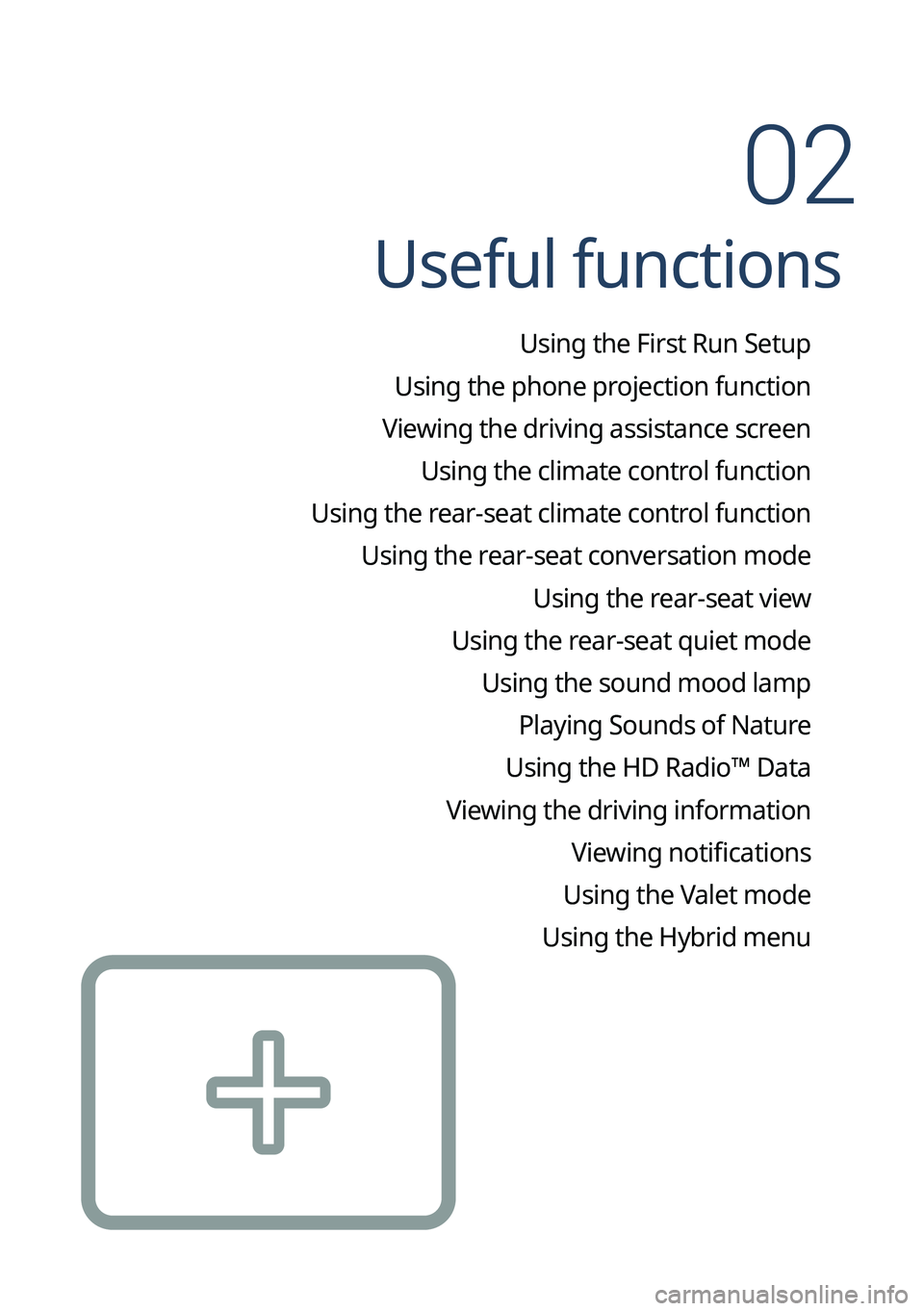

Useful functions
Using the First Run Setup
Using the phone projection function
Viewing the driving assistance screen Using the climate control function
Using the rear-seat climate control function Using the rear-seat conversation mode Using the rear-seat view
Using the rear-seat quiet mode Using the sound mood lamp Playing Sounds of Nature
Using the HD Radio™ Data
Viewing the driving information Viewing notifications
Using the Valet mode
Using the Hybrid menu
02

2-2
Using the First Run Setup
You can configure the system settings for each driver when multiple people are using the
vehicle.
In First Run Setup, you can configure the values to display on the screen such as user name,
language, and map display method.
1 When a safety warning message appears, read it, select the driver
image, and then press Confirm.

A
When you log in as guest, you cannot configure the profile settings. To set a different
profile, select another user.

A
You can register up to 2 users.
2 When the First Run Setup screen appears, press Start.

A
To use the default settings without changing the environment, press Skip.
3 Set the language to display on the screen and then press Next.

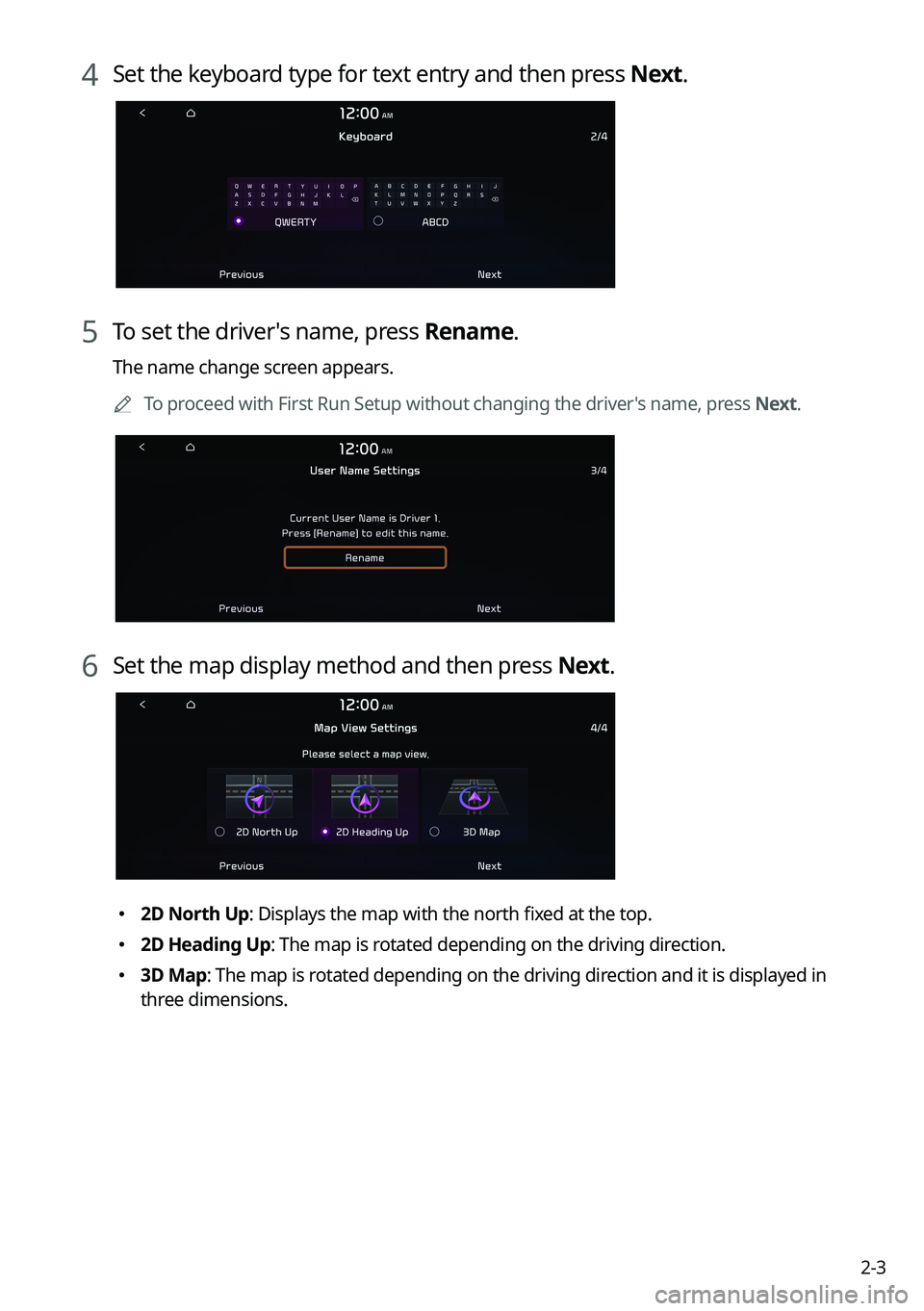

2-3
4 Set the keyboard type for text entry and then press Next.
5 To set the driver's name, press Rename.
The name change screen appears.
A
To proceed with First Run Setup without changing the driver's name, press Next.
6 Set the map display method and then press Next.
2D North Up: Displays the map with the north fixed at the top.
2D Heading Up: The map is rotated depending on the driving direction.
3D Map: The map is rotated depending on the driving direction and it is displayed in
three dimensions.

2-4
7 When the First Run Setup screen appears, press OK.
Displays the Home screen.
ATo set the detailed user information and operation environment, press Profile
Settings.
Using the phone projection function
When you connect an Android smartphone or iPhone to the vehicle with a USB cable, you can
run and control Apps on the phone through the widescreen using its user-friendly interface.
ÝWarning
Do not adjust or set up any phone settings while driving. You may lose your steering control
which could cause an accident and severe bodily injuries.
