2023 INFINITI QX50 Owners Manual

FRONT-DOOR POCKETSSEATBACK POCKETS
The seatback pockets may be located on the
back of the driver’s and/or passenger’s seats.
The pockets can be used to store maps.
WARNING
To ensure proper operation of the driver’s
and/or front passenger's INFINITI Ad-
vanced Air Bag System (if so equipped),
please observe the following items:
• Do not allow a passenger in the rear seat
to push or pull on the seatback pocket or
head restraint/head rest.
• Do not place heavy loads heavier than
9.1 lbs. (4 kg) on the seatback, head
restraint/head rest or in the seatback
pocket.
LIC3834LIC1328
STORAGE
Instruments and controls2-61

STORAGE TRAYS
WARNING
Do not place sharp objects in the trays to
help prevent injury in an accident or sudden
stop.
GLOVE BOX
Open the glove box by pulling the handle. Use
the master key when locking
O1or unlocking
O2the glove box.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a sud-
den stop.
CONSOLE BOX
To open the console box, press down on the
latch. The latch will release.
To close, push the lid down until the lock
latches.
LIC2214
Rear armrest
LIC3902LIC3836
2-62Instruments and controls

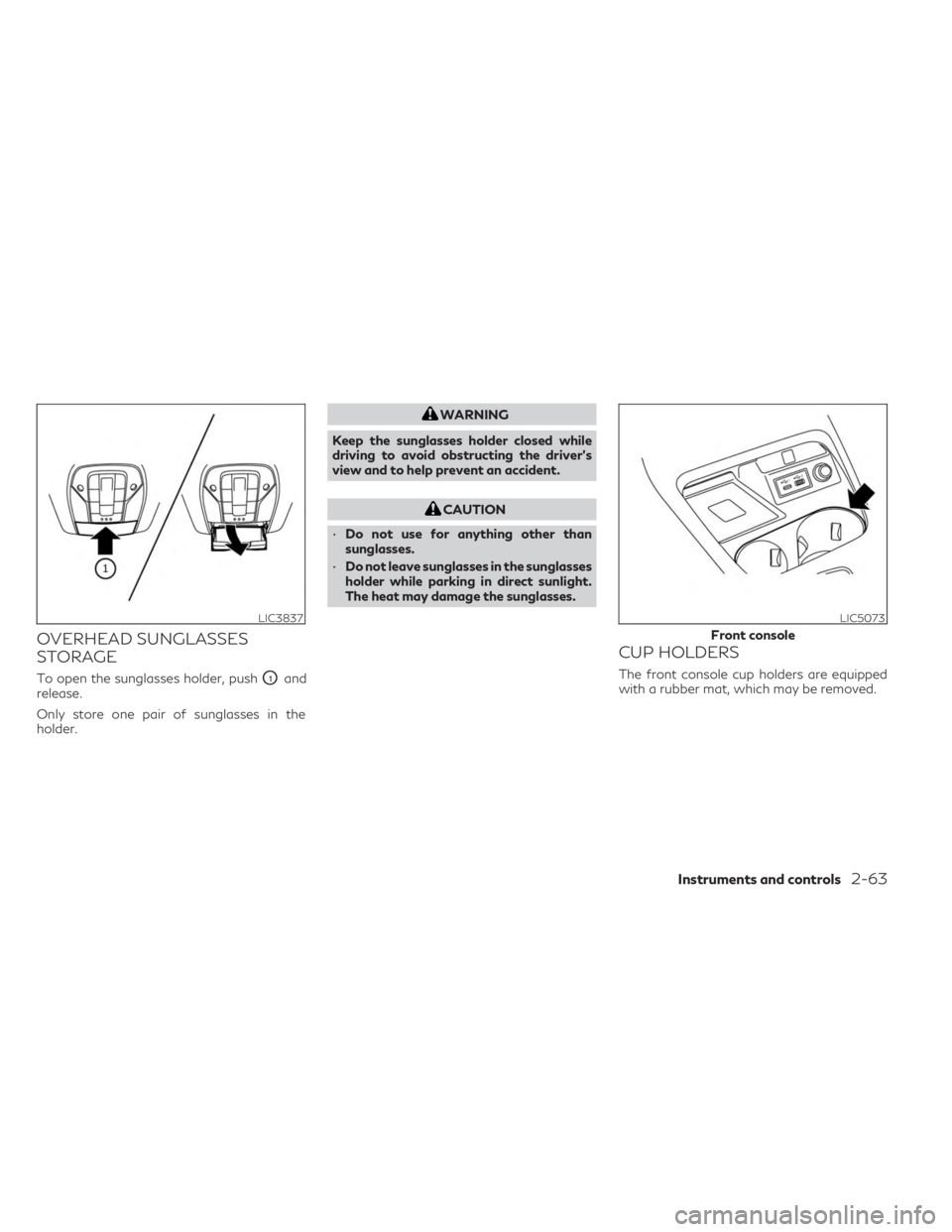

OVERHEAD SUNGLASSES
STORAGE
To open the sunglasses holder, pushO1and
release.
Only store one pair of sunglasses in the
holder.
WARNING
Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.
CAUTION
• Do not use for anything other than
sunglasses.
• Do not leave sunglasses in the sunglasses
holder while parking in direct sunlight.
The heat may damage the sunglasses.
CUP HOLDERS
The front console cup holders are equipped
with a rubber mat, which may be removed.
LIC3837LIC5073
Front console
Instruments and controls2-63

CAUTION
• Do not recline the rear seatback when
you use the cup holders on the rear arm-
rest. Doing so may cause the beverages
to spill over, and if they are hot, they may
scald the passengers.
• Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it can
scald you or your passenger.
• Use only soft cups in the cup holder. Hard
objects can injure you in an accident.CAUTION
• Do not use bottle holder for any other
objects that could be thrown about in the
vehicle and possibly injure people during
sudden braking or an accident.
• Do not use bottle holder for open liquid
containers.
LIC2212
Rear
LIC3839
Bottle holder — front
LIC3840
Bottle holder — rear
2-64Instruments and controls

CARGO AREA STORAGE BIN
To access the floor storage area, pull up on
the handle
O1to lift the luggage board.
LUGGAGE HOOKS
When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 6.5 lbs. (29 N) to a single
hook.
The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.
The luggage hooks can be used to secure
cargo with ropes or other types of straps.
WARNING
• Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
• Use suitable ropes and hooks to secure
cargo.
• Never allow anyone to ride in the lug-
gage area. It is extremely dangerous to
ride in a cargo area inside of a vehicle. In a
collision, people riding in these areas are
more likely to be seriously injured or
killed.
• Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts.
• The child restraint top tether strap may
be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.
• Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
LIC2244LIC4172
Instruments and controls2-65

COAT HOOKS
The coat hooks, located on the rear assist
grips, may be used to store coats and other
articles of clothing.
CAUTION
Do not apply a total load of more than 7.3
lbs. (3.3 kg) to the side pillar coat hook or
33 lbs. (15 kg) to the rear assist grip coat
hook.
ROOF RACK (if so equipped)
WARNING
• Always install the crossbars onto the
roof side rails before loading cargo of
any kind. Loading cargo directly onto the
roof side rails or the vehicle’s roof may
cause vehicle damage.
• Roof rack cross bars should be evenly
distributed.
• Do not exceed maximum roof rack cross-
bars load capacity and always distribute
the load uniformly. •
Heavy loading of the crossbars has the
potential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.
•
Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal injury.
•Drive extra carefully when the vehicle is
loaded at or near the cargo carrying ca-
pacity, especially if the significant portion
of that load is carried on the crossbars.
CAUTION
• Use care when placing or removing items
from the roof rack. If you cannot com-
fortably lift the items onto the roof rack
from the ground, use a ladder or a stool.
Do not apply any load directly to the roof side
rails
OA. CrossbarsOBmust be installed be-
fore applying load/cargo/luggage to the
roof of the vehicle.
LIC4173LIC4202
2-66Instruments and controls

INFINITI accessory crossbars may be avail-
able through an INFINITI retailer. It is recom-
mended that you visit an INFINITI retailer for
additional information.
The service load capacity for the roof side
rails is 165 lbs. (74 kg.), however do not ex-
ceed the crossbars load capacity.
Be careful that your vehicle does not exceed
the Gross Vehicle Weight Rating (GVWR) or
its Gross Axle Weight Rating (GAWR front
and rear).
For additional information regarding GVWR
and GAWR, refer to:
• F.M.V.S.S. or C.M.V.S.S. certification label(located on the driver’s door pillar).Installing crossbars (if so equipped)
WARNING
• It is recommended that you have the roof
rack crossbars installed by an INFINITI
retailer.
• Make sure the moonroof (if so equipped)
is in the closed position during the instal-
lation process.
• Protect the painted area on the vehicle’s
roof under the crossbars by placing a
piece of cloth under the cross bars to pre-
vent scratch damage.
• Do not load the crossbars more than the
rated load capacity and always distrib-
ute the load uniformly.
The roof rack crossbars may be installed or
removed. Use an L shaped allen key to install
and remove the crossbars. 1. Manually remove the protective covers
from the roof side rails.
LIC3890
Instruments and controls2-67

2. Using an allen key, unturn the screw to
remove the plastic cover.3. Use an allen key to loosen the clamp screw. 4. Open the clamp approximately two inches
to minimize potential scratching of the roof
side rails.
LIC4561LIC4593LIC3893
2-68Instruments and controls
