2023 HYUNDAI TUCSON HYBRID lights

Instrument Cluster4-12
Regenerative brake warning
light
(yellow)
This warning light illuminates:
When the regenerative brake does not
oper
ate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
If this occurs, drive safely and have
the vehicle inspected by an authorized
HYUNDAI dealer.
The operation of the brake pedal may
be more difficult than normal and the
braking distance may increase.
Anti-lock Brake System (ABS)
warning light
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The ABS warning light illuminates for about 3 seconds and then goes
off.

[ Whenever there is a malfunction with
the ABS.
Note that the hydraulic braking
system will still be operational even
if there is a malfunction with the
ABS. If the ABS warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Electronic Brake Force
Distribution (EBD) system
warning light
When the ABS warning and
Parking Brake warning lights are on
simultaneously, it may indicate a
problem with the Electronic Brake Force
Distribution system.
If both the ABS warning light and the
Parking Brake warning light remain
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
WARNING
Electronic Brake Force Distribution
(EBD) System Warning Light
When both ABS and Parking Brake
warning lights are on, the brake
system will not work normally and you
may experience an unexpected and
dangerous situation during sudden
braking.
If this occurs, avoid high speed driving
and abrupt braking.
Have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.

04
4-13
Information - Electronic Brake Force Distribution (EBD)
system warning light
When the ABS warning light is on or both
ABS and Parking Brake warning lights
are on, the speedometer, odometer, or
tripmeter may not work. Also, the EPS
warning light may illuminate and the
steering effort may increase or decrease.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
Electric Power Steering (EPS)
warning light
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The electric power steering Warning light illuminates for about 3 seconds
and then goes off.

[ Whenever there is a malfunction with
the EPS.
If the EPS warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Malfunction Indicator Lamp
(MIL)
This indicator light illuminates:

[When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.

- The malfunction indicator light
illuminates for about 3 seconds and
then goes off.

[ Whenever there is a malfunction with
either the emission control system or
the engine or the vehicle powertrain.
If the MIL warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.

[ If the enhanced engine protection
system becomes activated due to lack
of engine oil, engine power will be
limited. If such condition continues
repeatedly, the Malfunction Indicator
Lamp will illuminate.
NOTICE

[Driving with the Malfunction
Indicator Lamp (MIL) on may cause
damage to the emission control
system which could affect drivability
and/or fuel economy.

[ If the enhanced engine protection
system becomes activated due to
lack of engine oil, engine power
will be limited. If such condition
continues repeatedly, the
Malfunction Indicator Lamp will
illuminate.

Instrument Cluster4-22
Turn signal indicator light
This indicator light blinks:
When you operate the turn signal
indica
tor stalk.
If any of the following occur, there may
be a malfunction with the turn signal
system.
- The turn signal indicator light
illuminates but does not blink

- The turn signal indicator light blinks
rapidly

- The turn signal indicator light does not
illuminate at all
If any of these conditions occur, have
the vehicle inspected by an authorized
HYUNDAI dealer.
High beam indicator light
This indicator light illuminates:

[ When the headligh
ts are on and in the
high beam position

[ When the turn signal lever is pulled
into the Flash-to-Pass position.
Low beam indicator light
This indicator light illuminates:
When the headlights are on.
Light ON indicator light
This indicator light illuminates:
When the tail lights or headlights are on.
High Beam Assist indicator
light
This indicator light illuminates:
When the high-beam is on with the light
s

witch in the AUTO position.

[ [White] When High Beam Assist is
ready to operate.

[ [Green] When High Beam Assist is
operating.
If your vehicle detects oncoming or
preceding vehicles, High Beam Assist
will switch the high beam to low beam
automatically.
For more details, refer to “High Beam
Assist (HBA)” section in chapter 5.
Cruise indicator light
This indicator light illuminates:
When the cruise control system is
enabled.
F

or more details, refer to "Cruise
Control (CC)" in chapter 7.

Instrument Cluster4-26

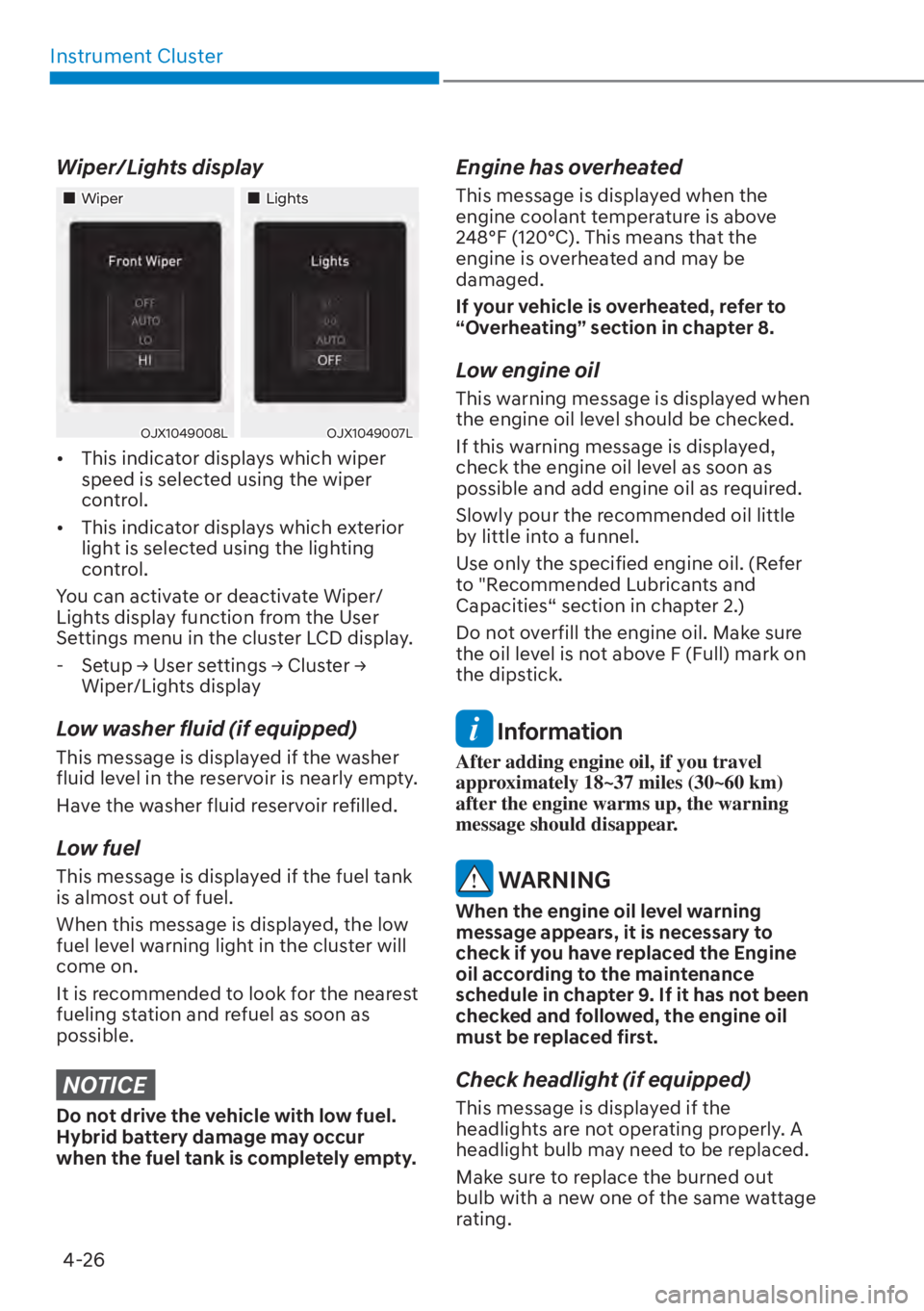

Wiper/Lights display
„Wiper „Lights
OJX1049008LOJX1049007L

[This indicator displays which wiper
speed is selected using the wiper
control.

[ This indicator displays which exterior
light is selected using the lighting
control.
You can activate or deactivate Wiper/
Lights display function from the User
Settings menu in the cluster LCD display. - 6HWXS

04
4-39

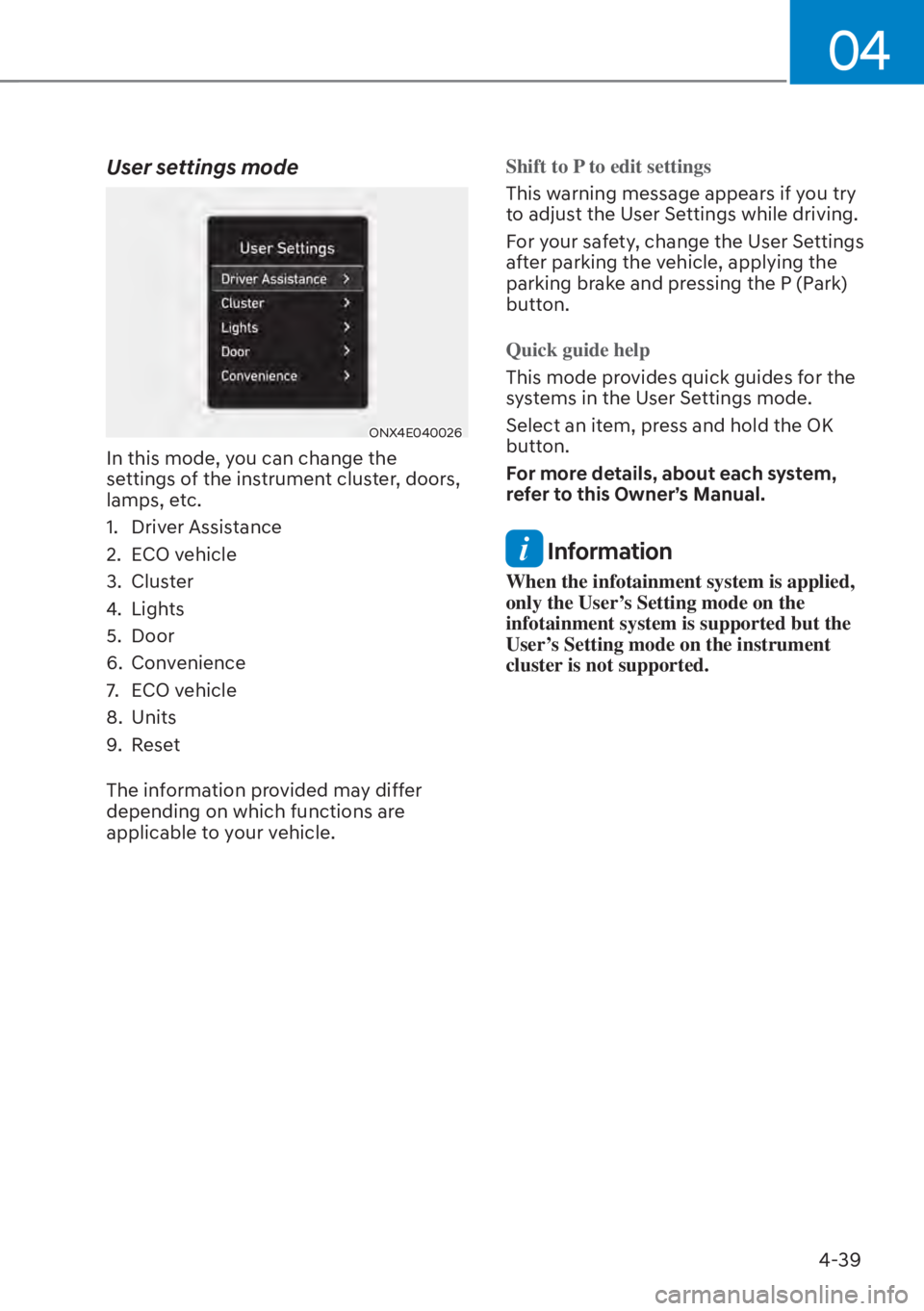

User settings mode
ONX4E040026
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver Assistance
2. ECO vehicle
3. Cluster
4. Lights
5. Door
6. Convenience
7. ECO vehicle
8. Units
9. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.Shift to P to edit settings
This warning message appears if you try
t

o adjust the User Settings while driving.
For your safety, change the User Settings
after parking the vehicle, applying the
parking brake and pressing the P (Park)
button.
Quick guide help
This mode provides quick guides for the
s
ystems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details, about each system,
refer to this Owner’s Manual.
Information
When the infotainment system is applied,
only the User’s Setting mode on the
infotainment system is supported but the
User’s Setting mode on the instrument
cluster is not supported.

Instrument Cluster4-42
3. Cluster
Items Explanation
Reset fuel
economy

[ At vehicle start

[ After refueling

[ Manually
To reset the fuel economy displayed.
Wiper/Lights DisplayTo activate or deactivate the Wiper/ Light mode.
When activated, the LCD display shows the selected Wiper/Light mode
whenever you changed the mode.
Traffic Signs To set the traffic signs displayed.
Cluster Voice Guidance Volume To adjust the cluster voice guidance volume.
Icy Road Warning To activate or deactivate the icy road warning.
Theme
Selection You can select the theme of the cluster.

[
Type A Cluster : Theme A / Theme B / Theme C

[ Type B Cluster : Link to Drive Mode /CLASSIC A/CLASSIC B/CLASSIC C/
CUBE
4. Lights
Items Explanation
Illumination T
o adjust the illumination level.

[ Level 1~20
One Touch
Turn Signal
[
Off : The one touch turn signal function will be deactivated.

[ 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7 times when
the turn signal lever is moved slightly.
For more details, refer to “Lighting” in chapter 5.
Ambient Light
Brightness
(if equipped)
[
Off

[ Level 1/2/3/4
Ambient
Light Color
(if equipped)
[
Polar White/Moon White/Ice Blue/Ocean Blue/Jade Green/Orchid Green/
Freesia Yellow/ Sunrise Red/Aurora Purple/Lightening Violet
Headlight Delay To activate or deactivate the headlight delay function.
For more details, refer to "Lighting" in chapter 5.
High Beam Assist To activate or deactivate High Beam Assist function.
For more details, refer to "High Beam Assist (HBA)" in chapter 5.

à The information provided may differ depending on which functions are applicable
to your vehicle.

Instrument Cluster4-58
ONX4E040028

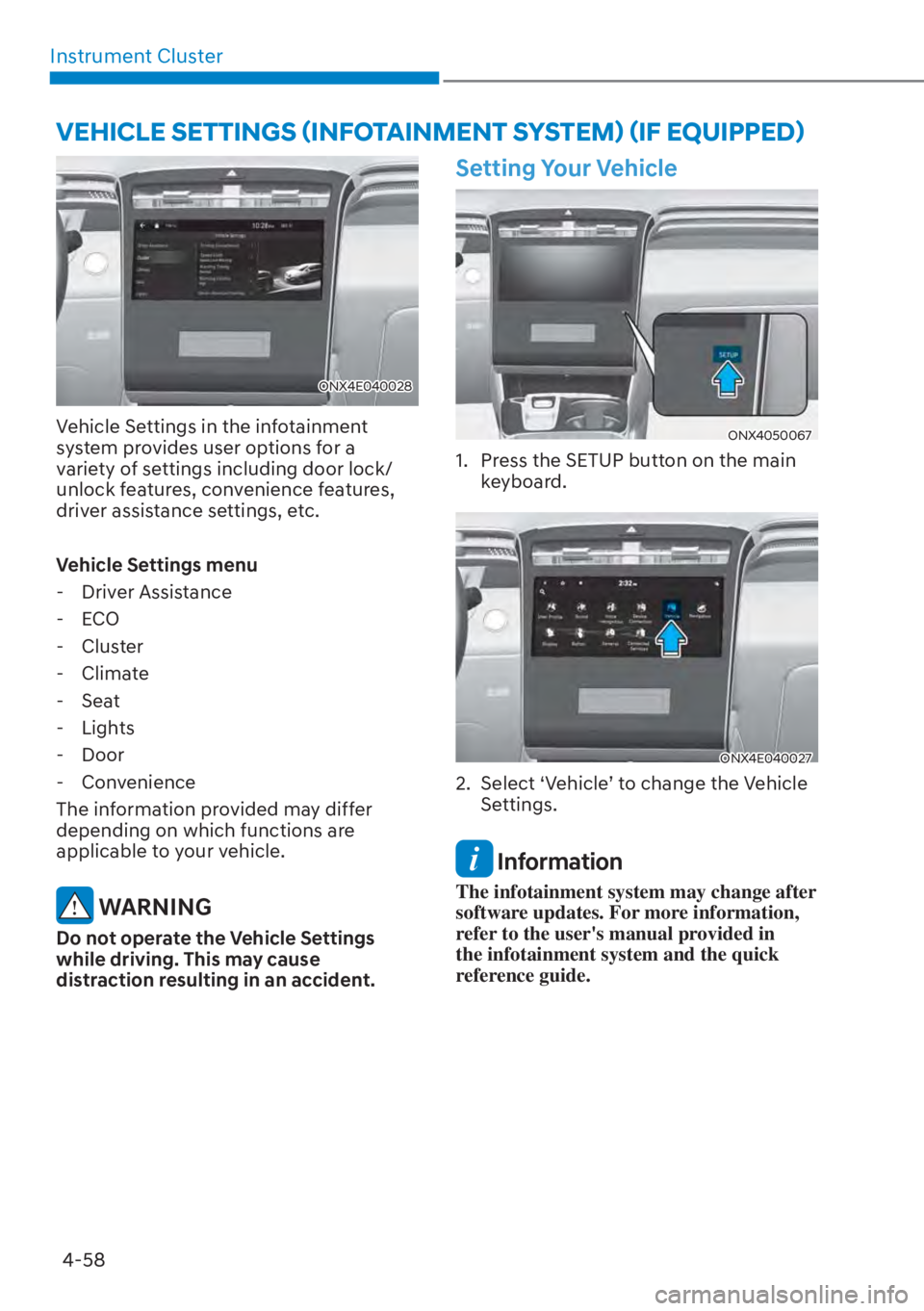

Vehicle Settings in the infotainment
system provides user options for a
variety of settings including door lock/
unlock features, convenience features,
driver assistance settings, etc.
Vehicle Settings menu - Driver Assistance

-ECO
- Cluster
- Climate
- Seat

- Lights
- Door
- Convenience
The information provided may differ
depending on which functions are
applicable to your vehicle.
WARNING
Do not operate the Vehicle Settings
while driving. This may cause
distraction resulting in an accident.
Setting Your Vehicle
ONX4050067
1. Press the SETUP button on the main keyboard.
ONX4E040027
2. Select ‘Vehicle’ to change the Vehicle Settings.
Information
The infotainment system may change after
software updates. For more information,
refer to the user's manual provided in
the infotainment system and the quick
reference guide.
9(+,&/(6(77,1*6

5
Exterior Features ........................................................................\
..................... 5-66Hood ....................................................................\
....................................................... 5-66
Liftgate ......................................................................\
................................................ .. 5-67
Power Liftgate ........................................................................\
................................... 5-69
Smart Liftgate ........................................................................\
..................................... 5-75
Fuel Filler Door (Hybrid vehicle) ........................................................................\
........ 5-77
Fuel Filler Door (Plug-in hybrid vehicle) ................................................................... 5-79
Lighting ...............................................................\
............................................. 5-84Exterior Lights ........................................................................\
................................... 5-84
High Beam Assist (HBA) ........................................................................\
......... 5-88High Beam Assist Settings ........................................................................\
................ 5-88
High Beam Assist Operation ........................................................................\
............. 5-89
High Beam Assist Malfunction and Limitations ...................................................... 5-90
Interior Lights ........................................................................\
........................... 5-91Interior Lamp AUTO OFF ........................................................................\
.................... 5-91
Front lamps ........................................................................\
......................................... 5-91
Rear Lamps ........................................................................\
.........................................5-92
Vanity Mirror Lamp ........................................................................\
.............................5-92
Glove Box Lamp ........................................................................\
.................................5-93
Luggage Compartment Lamp ........................................................................\
...........5-93
Welcome System ........................................................................\
............................... 5-94
Wipers and Washers ........................................................................\
............... 5-95Windshield Wipers ........................................................................\
.............................5-95
Front Windshield Washers ........................................................................\
................. 5-97
Rear Window Wiper and Washer ........................................................................\
..... 5-98
Automatic Climate Control System ............................................................... 5-99Automatic Heating and Air Conditioning ............................................................... 5-100
Manual Heating and Air Conditioning ..................................................................... 5-101
Multi Air Mode ........................................................................\
.................................. 5-108
System Operation ........................................................................\
............................. 5-109
System Maintenance ........................................................................\
......................... 5-111
Windshield Defrosting and Defogging ..........................................................5-113Automatic Climate Control System......................................................................\
.... 5-113
Auto Defogging System on Models with Automatic Temperature Control ........... 5-114
Rear Window Defroster........................................................................\
..................... 5-115
