2023 HYUNDAI SONATA Owners Manual

2-6
Vehicle Information and Reporting Safety Defects
The actual shape may differ from the illustration.ODN8A011003C
1. Inside door handle .................................5-17
2. Seat position memory system * ..........5-24
3. Side view mirror control switch ...........5-40
4. Central door lock switch .......................5-18
5. Power window switches ......................5-43
6. Power window lock button ..................5-45
7. Steering wheel tilt/telescopic lever ....5-28
8. Steering wheel ....................................... 5-279.
Instrument panel illumination control
switch ...................................................... 4-4
10. Lane Keeping Assist system button * ..................................... 6-71
11. Trunk release button .............................5-51
12. ESC OFF button .................................... 6-39
13. EPB (Electronic Parking Brake) .............6-31
14. Hood release lever ................................5-50
* : if equipped

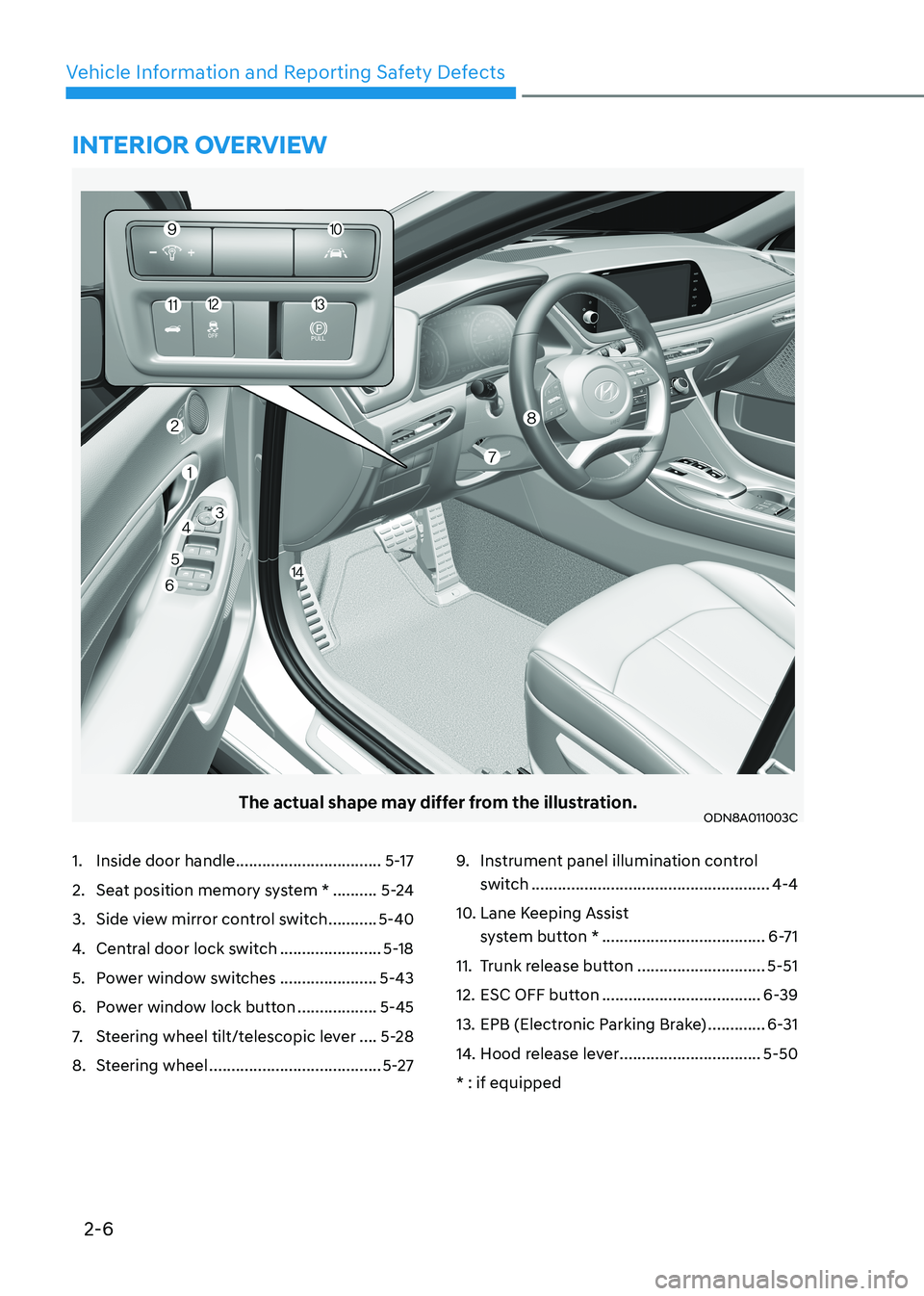

intErior ovErviEw

2-7
02
The actual shape may differ from the illustration.ODN8019005
1. Instrument cluster ..................................4-2
2. Driver’s front air bag .............................3-39
3. Key ignition switch/ ................................6-6
Engine Start/Stop button .......................6-9
4. Audio / Video / Navigation system * ...5-141
5. Hazard warning flasher switch ..............7-2
6. Manual climate control system/ .........5-105
Automatic climate control system ......5-114
7. Passenger’s front air bag .....................3-39
8. Glove box .............................................. 5-131
9. Transmission shift button .....................6-1310. Reverse Parking Distance Warning/
....5-82
Forward/Reverse Parking Distance
Warning system button * .....................5-86
11. Surround View Monitor system button * .................................................. 5-75
12. Drive mode integrated control system *.................................... 6-45
13. AUTO HOLD .......................................... 6-34
14. Remote Smart Parking Assist (RSPA) system button * .................................... 5-95
* : if equipped
instrumEnt PanEl ovErviEw

2-8
Vehicle Information and Reporting Safety Defects

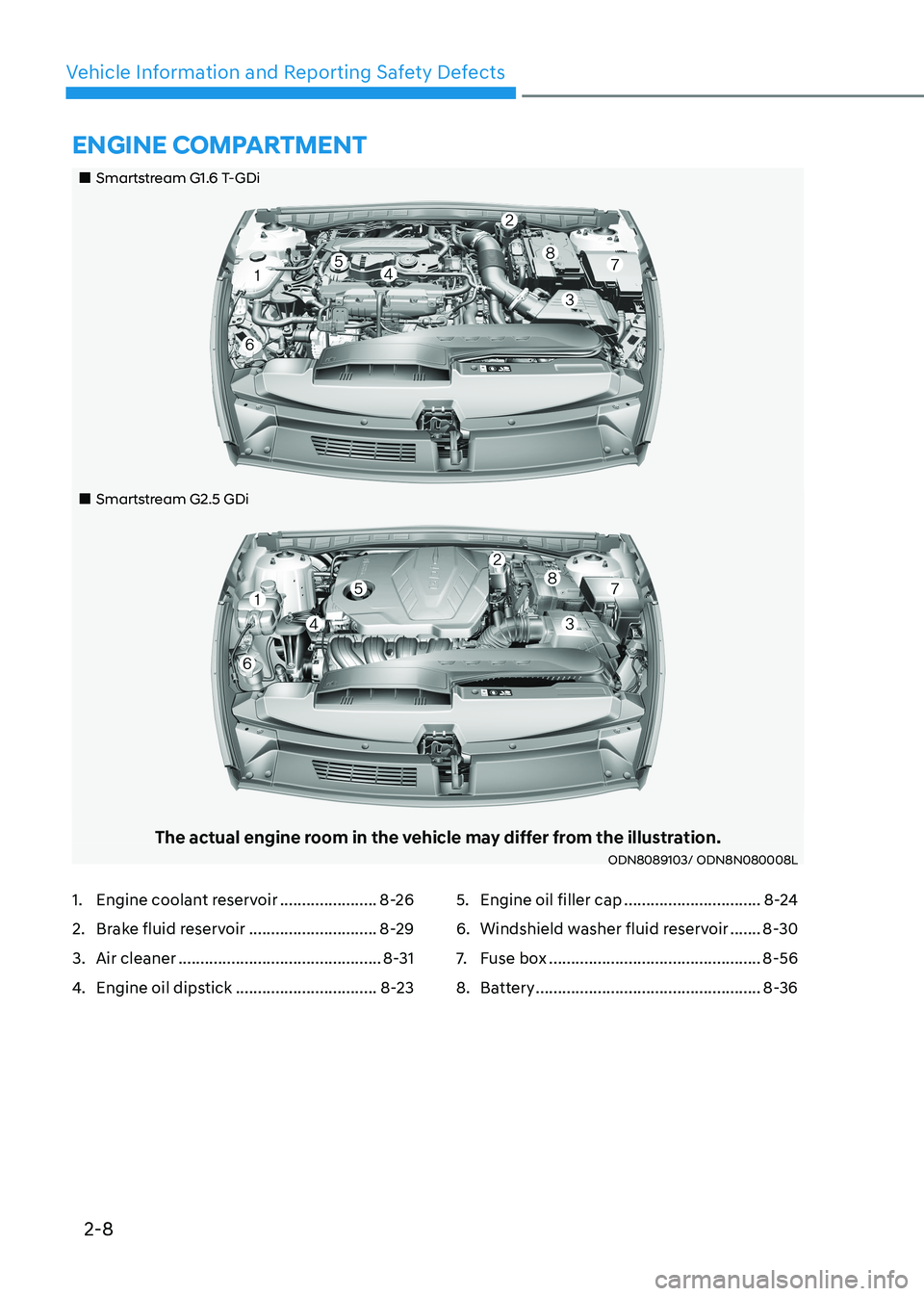

„„Smartstream G1.6 T-GDi
„„Smartstream G2.5 GDi
The actual engine room in the vehicle may differ from the illustration.ODN8089103/ ODN8N080008L
EnginE ComPartmEnt
1. Engine coolant reservoir ......................8-26
2. Brake fluid reservoir .............................8-29
3. Air cleaner .............................................. 8-31
4. Engine oil dipstick ................................ 8-235. Engine oil filler cap
...............................8-24
6. Windshield washer fluid reservoir .......8-30
7. Fuse box ................................................ 8-56
8. Battery ................................................... 8-36

2-9
02

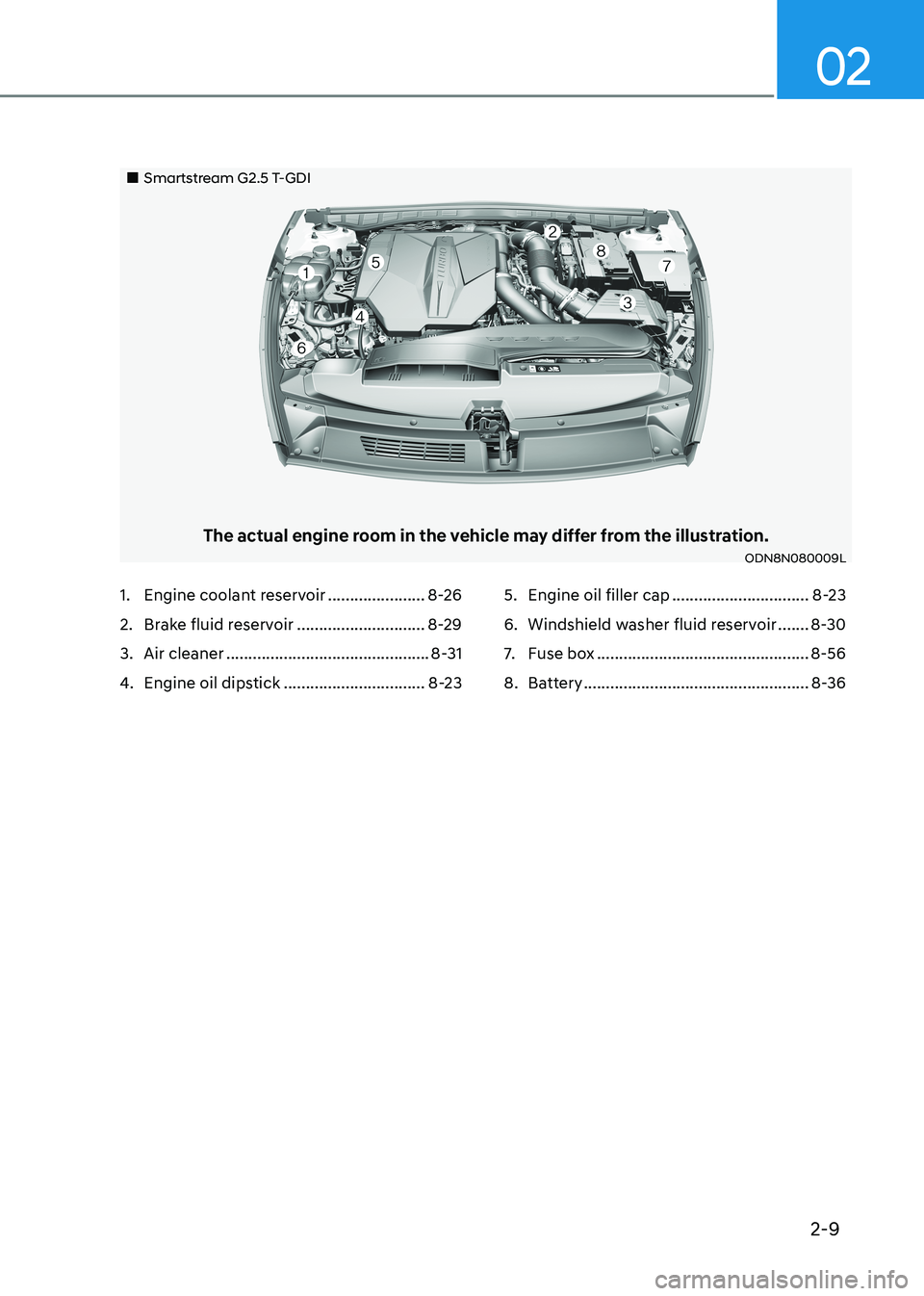

„„Smartstream G2.5 T-GDI
The actual engine room in the vehicle may differ from the illustration.ODN8N080009L
1. Engine coolant reservoir ......................8-26
2. Brake fluid reservoir .............................8-29
3. Air cleaner .............................................. 8-31
4. Engine oil dipstick ................................ 8-235. Engine oil filler cap
...............................8-23
6. Windshield washer fluid reservoir .......8-30
7. Fuse box ................................................ 8-56
8. Battery ................................................... 8-36

Vehicle Information and Reporting Safety Defects
2-10

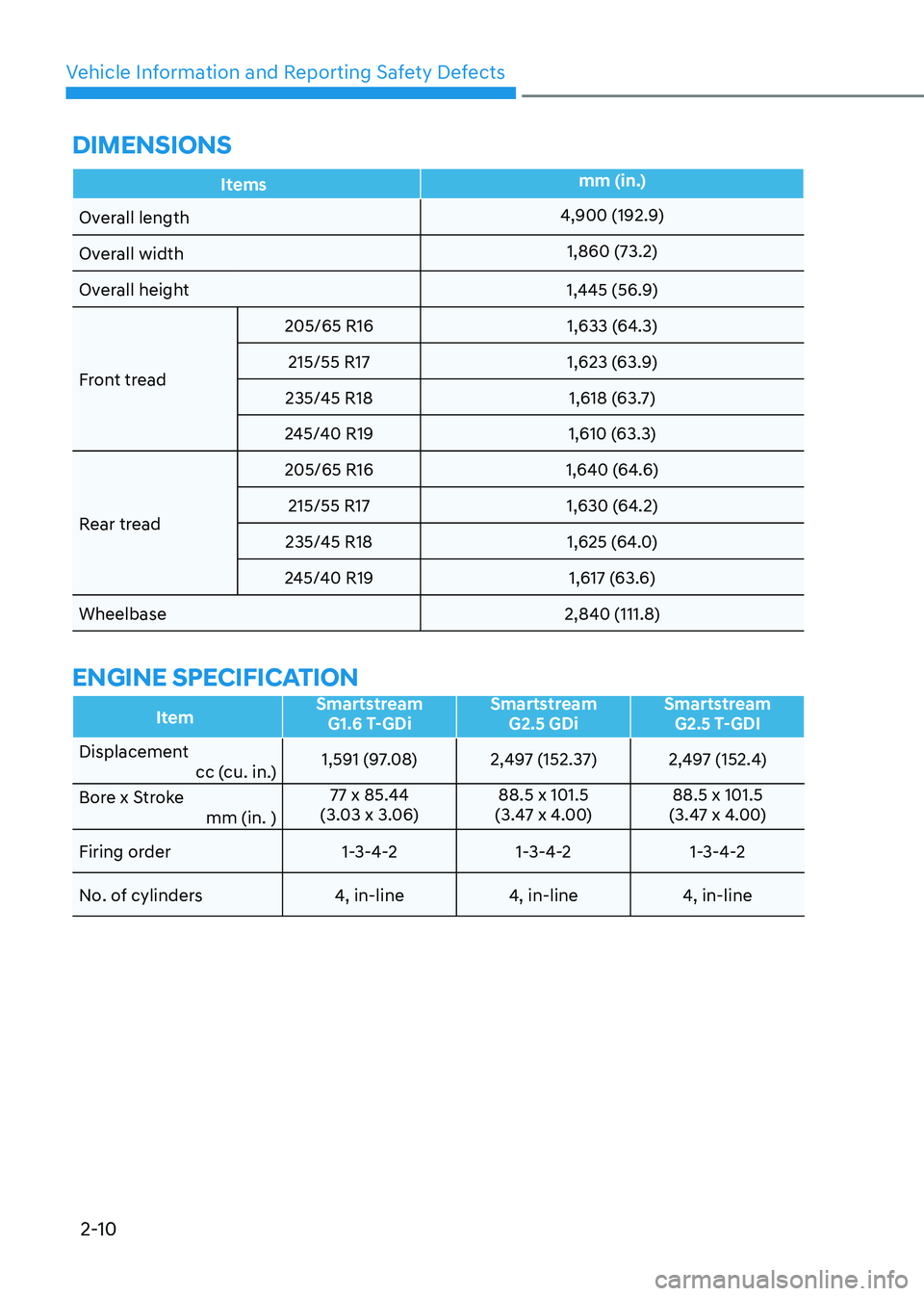

DimEnsions
Itemsmm (in.)
Overall length
4,900 (192.9)
Overall width 1,860 (73.2)
Overall height 1,445 (56.9)
Front tread 205/65 R16 1,633 (64.3)
215/55 R17 1,623 (63.9)
235/45 R18 1,618 (63.7)
245/40 R19 1,610 (63.3)
Rear tread 205/65 R16 1,640 (64.6)
215/55 R17 1,630 (64.2)
235/45 R18 1,625 (64.0)
245/40 R19 1,617 (63.6)
Wheelbase 2,840 (111.8)
EnginE sPECifiCation
ItemSmartstream
G1.6 T-GDi Smartstream
G2.5 GDi Smartstream
G2.5 T-GDI
Displacement cc (cu. in.) 1,591 (97.08) 2,497 (152.37) 2,497 (152.4)
Bore x Stroke mm (in. )77 x 85.44
(3.03 x 3.06) 88.5 x 101.5
(3.47 x 4.00) 88.5 x 101.5
(3.47 x 4.00)
Firing order 1-3-4-2 1-3-4-2 1-3-4-2
No. of cylinders 4, in-line 4, in-line 4, in-line

02
2-11
BulB wattagE
Light bulbBulb type Wattage
FrontHeadlamp (High/Low) LED LED
Daytime running lamp (DRL)/ Position lamp LED LED
Turn signal lamp LED LED
Side repeater lamp (Outside mirror) LED LED
Rear Stop lamp
Bulb type PY21W 21
LED type LED LED
Tail lamp LED LED
Turn signal lamp LED LED
Reverse lamp W16W 16
High mounted stop lamp LED LED License plate lamp W5W 5
Interior Map lamp
Type A WEDGE 10
Type B LED LED
Personal lamp (if equipped) LED LED Room lamp (if equipped) FESTOON 10 Vanity mirror lamp FESTOON 5
Luggage compartment lamp FESTOON 5

Vehicle Information and Reporting Safety Defects
2-12

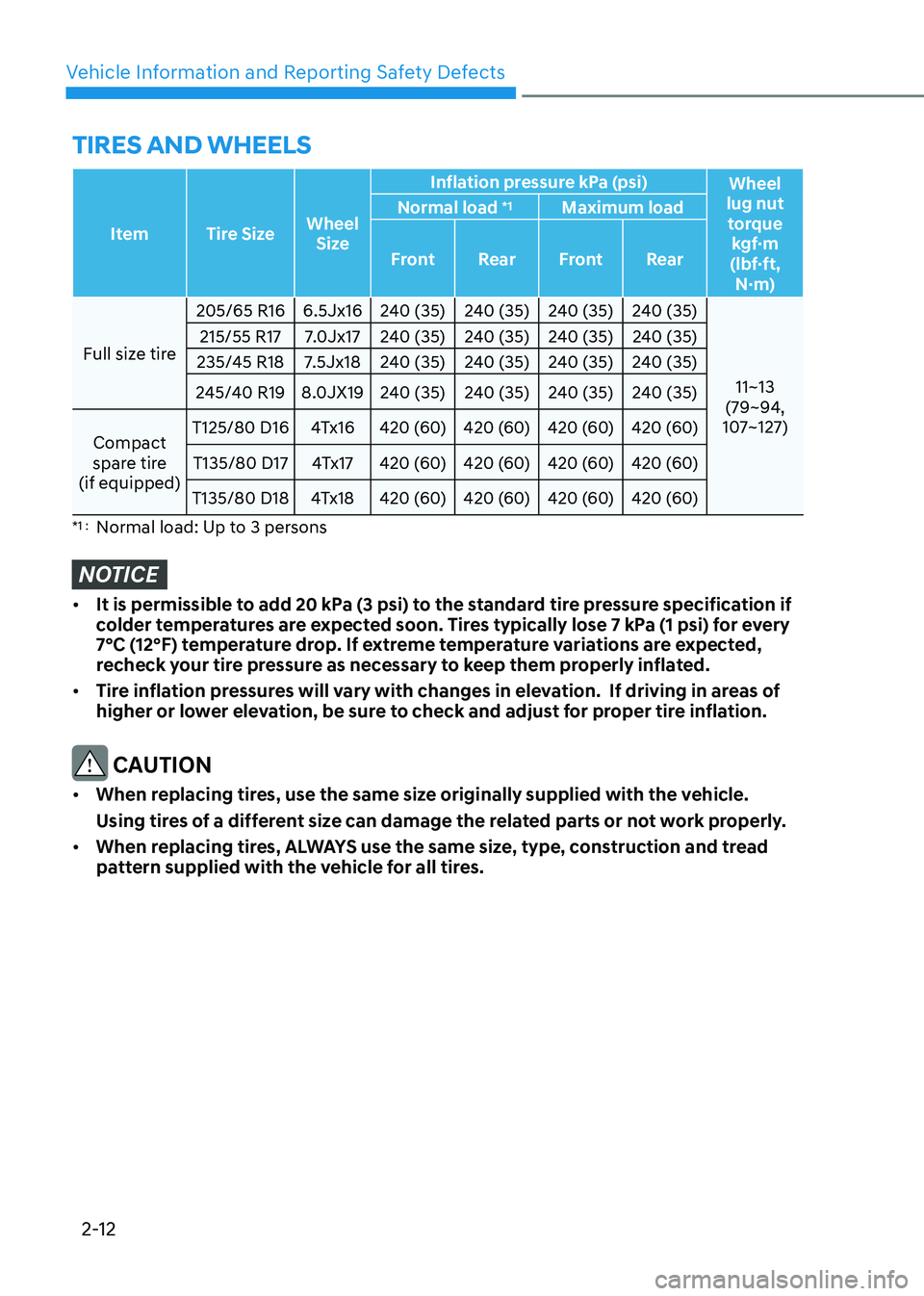

tirEs anD whEEls
Item Tire SizeWheel
Size Inflation pressure kPa (psi)
Wheel
lug nut torque kgf·m
(lbf·ft, N·m)
Normal load
*1
Maximum load
Front RearFront Rear
Full size tire 205/65 R16 6.5Jx16 240 (35) 240 (35) 240 (35) 240 (35)
11~13
(79~94,
107~127)
215/55 R17 7.0Jx17 240 (35) 240 (35) 240 (35) 240 (35)
235/45 R18 7.5Jx18 240 (35) 240 (35) 240 (35) 240 (35)
245/40 R19 8.0JX19 240 (35) 240 (35) 240 (35) 240 (35)
Compact
spare tire
(if equipped) T125/80 D16 4Tx16 420 (60) 420 (60) 420 (60) 420 (60)
T135/80 D17 4Tx17 420 (60) 420 (60) 420 (60) 420 (60)
T135/80 D18 4Tx18 420 (60) 420 (60) 420 (60) 420 (60)
*1 : Normal load: Up to 3 persons
NOTICE
• It is permissible to add 20 kPa (3 psi) to the standard tire pressure specification if
colder temperatures are expected soon. Tires typically lose 7 kPa (1 psi) for every
7°C (12°F) temperature drop. If extreme temperature variations are expected,
recheck your tire pressure as necessary to keep them properly inflated.
• Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION
• When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
• When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.

02
2-13

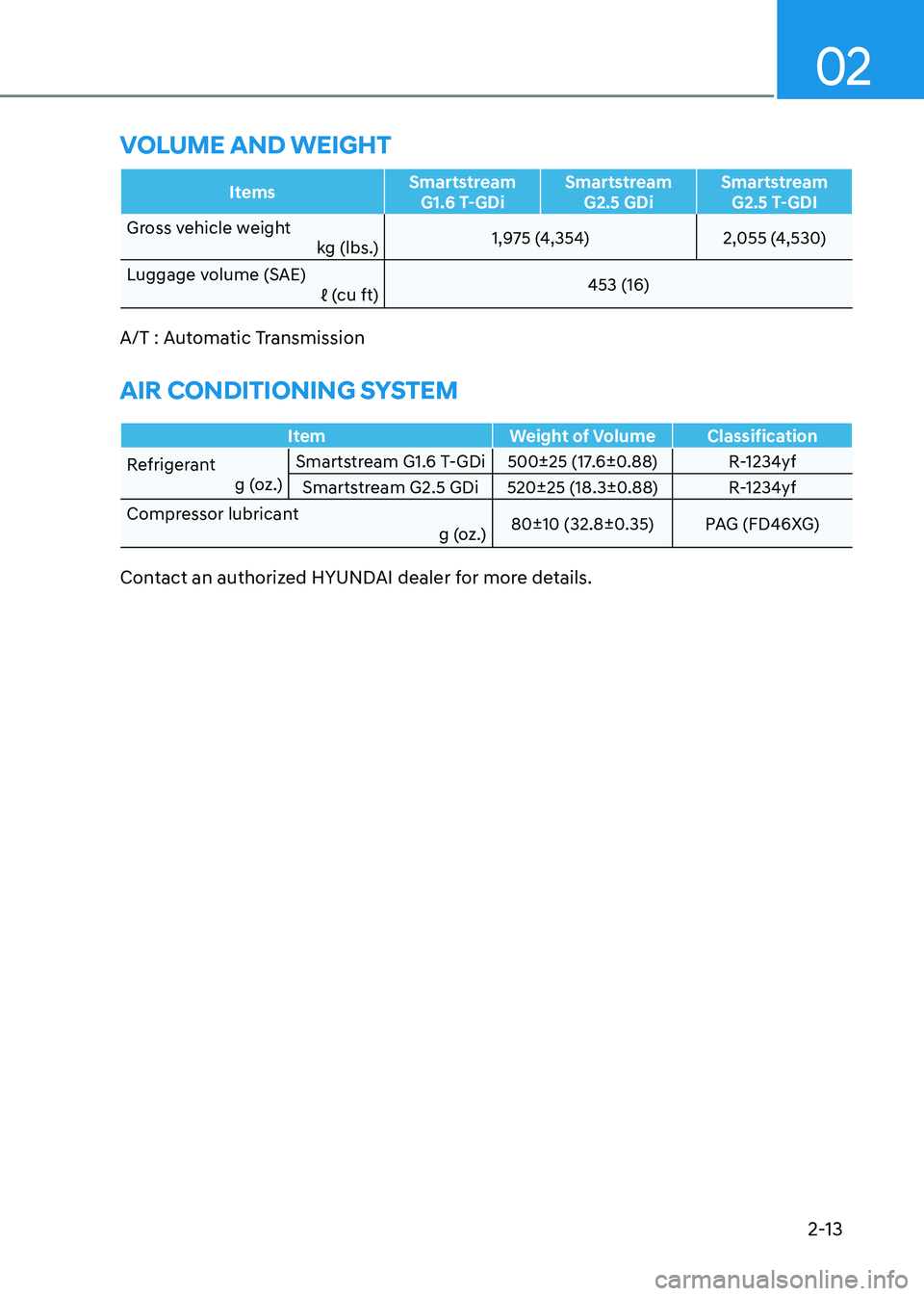

volumE anD wEight
ItemsSmartstream
G1.6 T-GDi Smartstream
G2.5 GDi Smartstream
G2.5 T-GDI
Gross vehicle weight
kg (lbs.)1,975 (4,354) 2,055 (4,530)
Luggage volume (SAE) ℓ (cu ft) 453 (16)
A/T : Automatic Transmission
air ConDitioning systEm
Item Weight of Volume Classification
Refrigerant g (oz.) Smartstream G1.6 T-GDi 500±25 (17.6±0.88) R-1234yf
Smartstream G2.5 GDi 520±25 (18.3±0.88) R-1234yf
Compressor lubricant g (oz.) 80±10 (32.8±0.35) PAG (FD46XG)
Contact an authorized HYUNDAI dealer for more details.
