Emergency Situations8-12
TPMS (Tire Pressure
Monitoring System)
Malfunction Indicator
The TPMS Malfunction Indicator
will illuminate after it blinks for
approximately one minute when there
is a problem with the Tire Pressure
Monitoring System.
We recommend that you have the
system checked by an authorized
HYUNDAI dealer as soon as possible.
NOTICE
If there is a malfunction with the TPMS,
the Low Tire Pressure Position Telltale
will not be displayed even though the
vehicle has an under-inflated tire.
NOTICE
The TPMS Malfunction Indicator may
illuminate after blinking for one minute
if the vehicle is near electric power
supply cables or radio transmitters
such as police stations, government
and public offices, broadcasting
stations, military installations, airports,
transmitting towers, etc.
Additionally, the TPMS Malfunction
Indicator may illuminate if snow chains
are used or electronic devices such as
computers, chargers, remote starters,
navigation, etc. This may interfere with
normal operation of the TPMS.
Changing a Tire with TPMS
If you have a flat tire, the Low Tire
Pressure and Position telltales will come
on. We recommend that you have the flat
tire repaired by an authorized HYUNDAI
dealer as soon as possible or replace the
flat tire with the spare tire.
NOTICE
It is recommended that you do not
use a puncture-repairing agent not
approved by HYUNDAI dealer or the
equivalent specified for your vehicle to
repair and/or inflate a low pressure tire.
Tire sealant not approved by HYUNDAI
dealer or the equivalent specified for
your vehicle may damage the tire
pressure sensor.
The spare tire (if equipped) does not
come with a tire pressure monitoring
sensor. When the low pressure tire or
the flat tire is replaced with the spare
tire, the Low Tire Pressure Telltale will
remain on. Also, the TPMS Malfunction
Indicator will illuminate after blinking
for one minute if the vehicle is driven
at speed above 15.5 mph (25 km/h) for
approximately 10 minutes.
Once the original tire equipped with
a tire pressure monitoring sensor is
reinflated to the recommended pressure
and reinstalled on the vehicle, the
Low Tire Pressure Telltale and TPMS
Malfunction Indicator will go off within a
few minutes of driving.
If the indicators do not extinguish after
a few minutes, we recommend that you
contact an authorized HYUNDAI dealer.
Each wheel is equipped with a tire
pressure sensor mounted inside the tire
behind the valve stem (except for the
spare tire). You must use TPMS specific
wheels. It is recommended that you
always have your tires serviced by an
authorized HYUNDAI dealer.

Maintenance9-36
Wheel Alignment and Tire
Balance
The wheels on your vehicle were
aligned and balanced carefully at the
factory to give you the longest tire
life and best overall performance.
In most cases, you will not need to
have your wheels aligned again.
However, if you notice unusual tire
wear or your vehicle pulling one way
or the other, the alignment may need
to be reset.
If you notice your vehicle vibrating
when driving on a smooth road, your
wheels may need to be rebalanced.
NOTICE
Incorrect wheel weights can
damage your vehicle’s aluminum
wheels. Use only approved wheel
weights.
Tire Replacement
Tread wear indicatorTread wear indicator
OHI078080
If the tire is worn evenly, a tread
wear indicator will appear as a solid
band across the tread. This shows
there is less than 1/16 in. (1.6 mm) of
tread left on the tire. Replace the tire
when this happens.
Do not wait for the band to appear
across the entire tread before
replacing the tire
.
WARNING
To reduce the risk of DEATH or
SERIOUS INJURY:

[ Replace tires that are worn, show
uneven wear, or are damaged.
Worn tires can cause loss of
braking effectiveness, steering
control, and traction.

[ Always replace tires with the
same size as each tire that was
originally supplied with this
vehicle. Using tires and wheels
other than the recommended
sizes could cause unusual
handling characteristics, poor
vehicle control, or negatively
affect your vehicle’s Anti-Lock
Brake System (ABS) resulting in a
serious accident.

[ When replacing tires (or wheels),
it is recommended to replace
the two front or two rear tires (or
wheels) as a pair. Replacing just
one tire can seriously affect your
vehicle’s handling.

[ Tires degrade over time, even
when they are not being used.
Regardless of the remaining
tread, HYUNDAI recommends
that tires be replaced after six (6)
years of normal service.

[ Heat caused by hot climates or
frequent high loading conditions
can accelerate the aging process.
Failure to follow this warning
may cause sudden tire failure,
which could lead to a loss of
vehicle control resulting in an
accident.

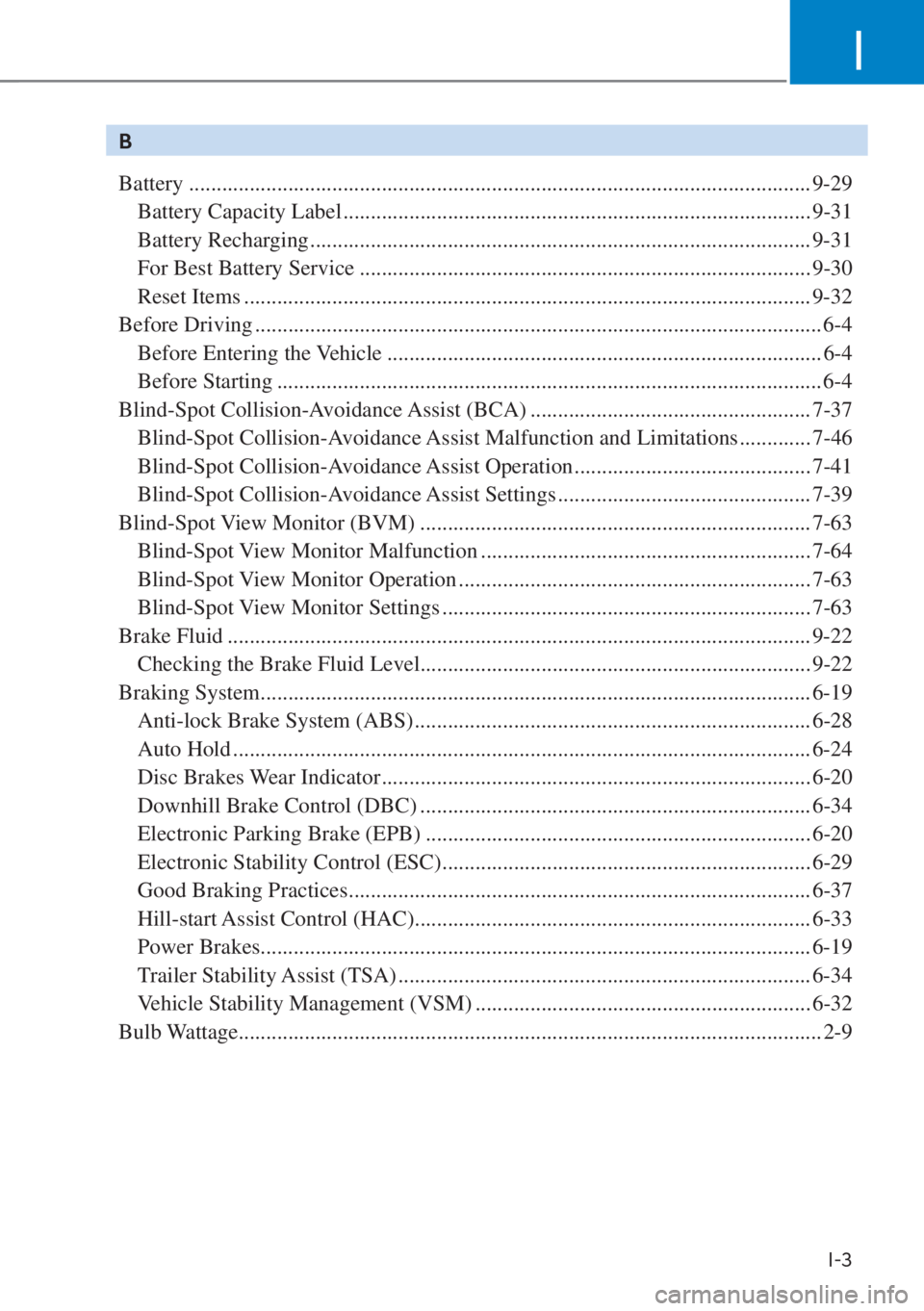

I
I-3
B
Battery ................................................................\
................................................. 9-29
Battery Capacity Label ........................................................................\
............. 9-31
Battery Recharging ........................................................................\
................... 9-31
For Best Battery Service ........................................................................\
.......... 9-30
Reset Items ........................................................................\
............................... 9-32
Before Driving ........................................................................\
............................... 6-4
Before Entering the Vehicle ........................................................................\
....... 6-4
Before Starting ........................................................................\
........................... 6-4
Blind-Spot Collision-Avoidance Assist (BCA) ................................................... 7-37
Blind-Spot Collision-Avoidance Assist Malfunction and Limitations ............. 7-46
Blind-Spot Collision-Avoidance Assist Operation ........................................... 7-41
Blind-Spot Collision-Avoidance Assist Settings .............................................. 7-39
Blind-Spot View Monitor (BVM) ....................................................................... 7-63
Blind-Spot View Monitor Malfunction ............................................................ 7-64
Blind-Spot View Monitor Operation ................................................................ 7-63
Blind-Spot View Monitor Settings ................................................................... 7-63
Brake Fluid ........................................................................\
.................................. 9-22
Checking the Brake Fluid Level ....................................................................... 9-22
Braking System ........................................................................\
............................ 6-19
Anti-lock Brake System (ABS) ........................................................................\
6-28
Auto Hold ........................................................................\
................................. 6-24
Disc Brakes Wear Indicator ........................................................................\
...... 6-20
Downhill Brake Control (DBC) ....................................................................... 6-34
Electronic Parking Brake (EPB) ...................................................................... 6-20
Electronic Stability Control (ESC) ................................................................... 6-29
Good Braking Practices ........................................................................\
............ 6-37
Hill-start Assist Control (HAC)..................................................\
...................... 6-33
Power Brakes ........................................................................\
............................ 6-19
Trailer Stability Assist (TSA) ........................................................................\
... 6-34
Vehicle Stability Management (VSM) ............................................................. 6-32
Bulb Wattage ........................................................................\
.................................. 2-9

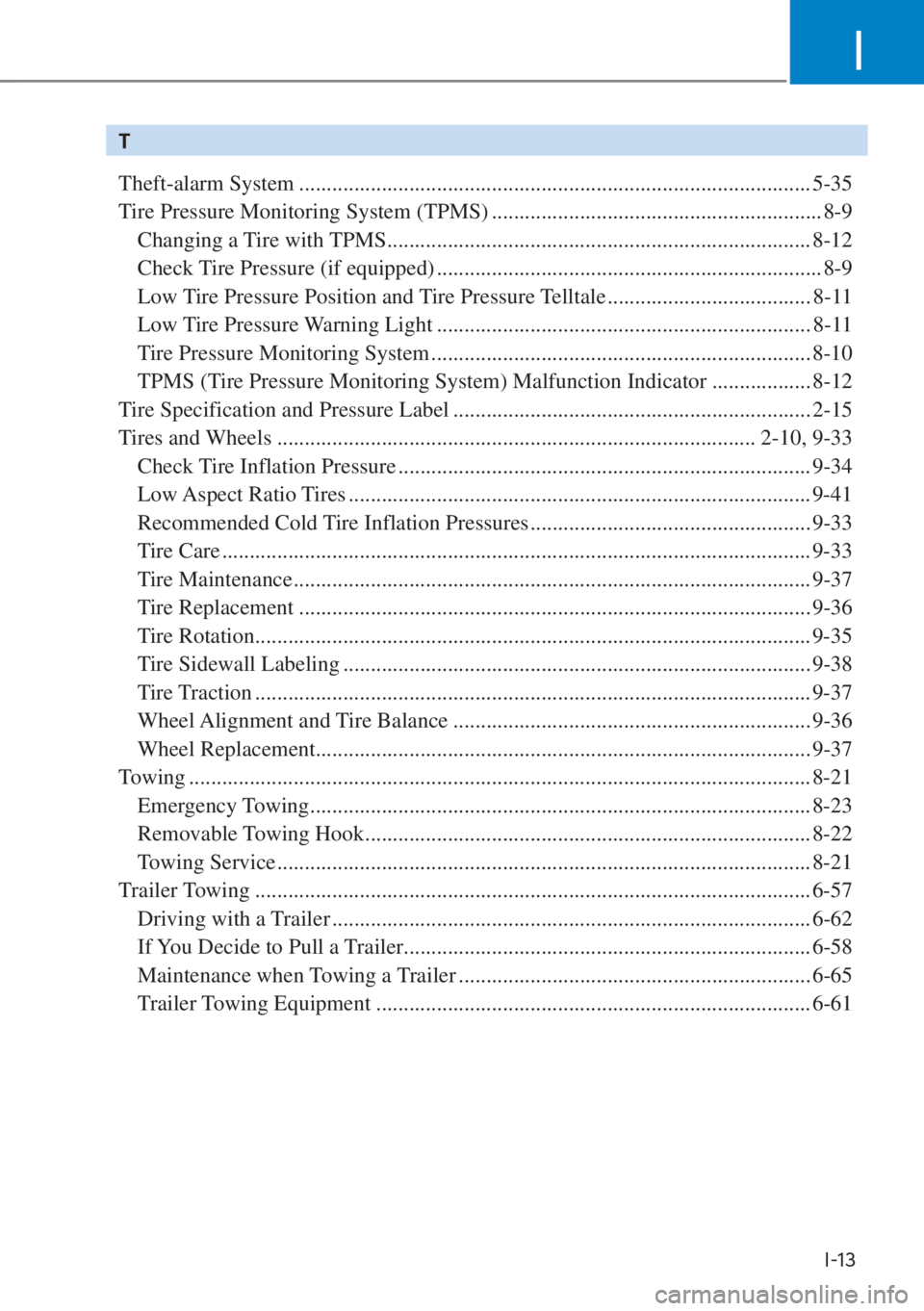

I
I-13
T
Theft-alarm System ........................................................................\
..................... 5-35
Tire Pressure Monitoring System (TPMS) ............................................................ 8-9
Changing a Tire with TPMS ........................................................................\
..... 8-12
Check Tire Pressure (if equipped) ...................................................................... 8-9
Low Tire Pressure Position and Tire Pressure Telltale ..................................... 8-11
Low Tire Pressure Warning Light .................................................................... 8-11
Tire Pressure Monitoring System ..................................................................... 8-10
TPMS (Tire Pressure Monitoring System) Malfunction Indicator .................. 8-12
Tire Specification and Pressure Label ................................................................. 2-15
Tires and Wheels ........................................................................\
............... 2-10, 9-33
Check Tire Inflation Pressure ........................................................................\
... 9-34
Low Aspect Ratio Tires ........................................................................\
............ 9-41
Recommended Cold Tire Inflation Pressures ................................................... 9-33
Tire Care ........................................................................\
................................... 9-33
Tire Maintenance ........................................................................\
...................... 9-37
Tire Replacement ........................................................................\
..................... 9-36
Tire Rotation ........................................................................\
............................. 9-35
Tire Sidewall Labeling ........................................................................\
............. 9-38
Tire Traction ........................................................................\
............................. 9-37
Wheel Alignment and Tire Balance ................................................................. 9-36
Wheel Replacement ........................................................................\
.................. 9-37
Towing ..................................................................\
............................................... 8-21
Emergency Towing ........................................................................\
................... 8-23
Removable Towing Hook ........................................................................\
......... 8-22
Towing Service ........................................................................\
......................... 8-21
Trailer Towing ........................................................................\
............................. 6-57
Driving with a Trailer ........................................................................\
............... 6-62
If You Decide to Pull a Trailer..................................................................\
........ 6-58
Maintenance when Towing a Trailer ................................................................ 6-65
Trailer Towing Equipment ........................................................................\
....... 6-61
