2023 HYUNDAI SANTA FE HYBRID maintenance reset

9
9. Maintenance
Engine Compartment ........................................................................\
............... 9-3
Maintenance Services ........................................................................\
.............. 9-4
Owner’s Responsibility ........................................................................\
....................... 9-4
Owner Maintenance Precautions ........................................................................\
....... 9-4
Owner Maintenance ........................................................................\
................. 9-5Owner Maintenance Schedule ........................................................................\
............9-5
Scheduled Maintenance Services ....................................................................9-7Normal Maintenance Schedule ........................................................................\
.......... 9-9
Maintenance under Severe Usage Conditions ........................................................ 9-12
Explanation of Scheduled Maintenance Items .............................................. 9-14
Engine Oil ........................................................................\
.................................9-16
Checking the Engine Oil Level ........................................................................\
........... 9-16
Checking the Engine Oil and Filter ........................................................................\
....9-17
Engine Coolant/Inverter Coolant ....................................................................9-18Checking the Coolant Level......................................................................\
................. 9-18
Changing Coolant ........................................................................\
.............................. 9-21
Hybrid Starter & Generator (HSG) Belt ........................................................... 9-21
Checking the Hybrid Starter & Generator (HSG) Belt .............................................. 9-21
Brake Fluid ........................................................................\
............................... 9-22Checking the Brake Fluid Level ........................................................................\
......... 9-22
Washer Fluid ........................................................................\
............................ 9-23Checking the Washer Fluid Level ........................................................................\
...... 9-23
Air Cleaner ........................................................................\
............................... 9-24Filter Replacement ........................................................................\
.............................9-24
Cabin Air Filter ........................................................................\
......................... 9-25Filter Inspection........................................................................\
.................................. 9-25
Filter Replacement ........................................................................\
............................. 9-25
Wiper Blades ........................................................................\
........................... 9-26Blade Inspection ........................................................................\
................................9-26
Blade Replacement ........................................................................\
............................9-26
Battery ....................................................................\
......................................... 9-29For Best Battery Service ........................................................................\
................... 9-30
Battery Capacity Label ........................................................................\
....................... 9-31
Battery Recharging ........................................................................\
............................ 9-31
Reset Items ........................................................................\
......................................... 9-32

Maintenance9-8
Information

[ As it is normal for engine oil to be consumed during driving, the engine oil level should
be checked on regular basis.

[ The engine oil change interval for normal operating conditions is based on the use of
the recommended engine specification. If the recommended engine oil specification
is not used, then replace the engine oil according to the maintenance schedule under
severe operating conditions.

[ The vehicle may be equipped with the Oil Life Management System that predicts
engine oil life based on the driver’s driving history and alerts the driver to change
engine oil.
- If the deterioration of the engine oil increases depending on the driver’s driving
style, the remaining oil life alert will appear on the instrument cluster before the
normal engine oil replacement interval. Have the engine oil and filter changed by an
authorized HYUNDAI dealer.
- Oil Life Management System works when the recommended engine oil is used.
If the recommended engine oil is not used, replace the engine oil according to the
maintenance schedule under severe usage conditions. Also, check the engine oil level
regularly as this system assumes that the engine oil is being filled norm\
ally.
- Always reset the remaining engine oil life whenever the engine oil is changed.
Otherwise, the indication of remaining Oil life in the Oil Life Management System
may not be accurate.To reset the Oil Change Reminder, select ‘RESET’ from the
instrument cluster or infotainment system screen. Then, select ‘Yes’ when the
message “Reset oil life?” or “Has the engine oil been changed? Press [Yes] to reset
the oil life.” appears on the screen.
- If there is no alert until the maximum maintenance interval, have the vehicle
checked by an authorized HYUNDAI dealer.

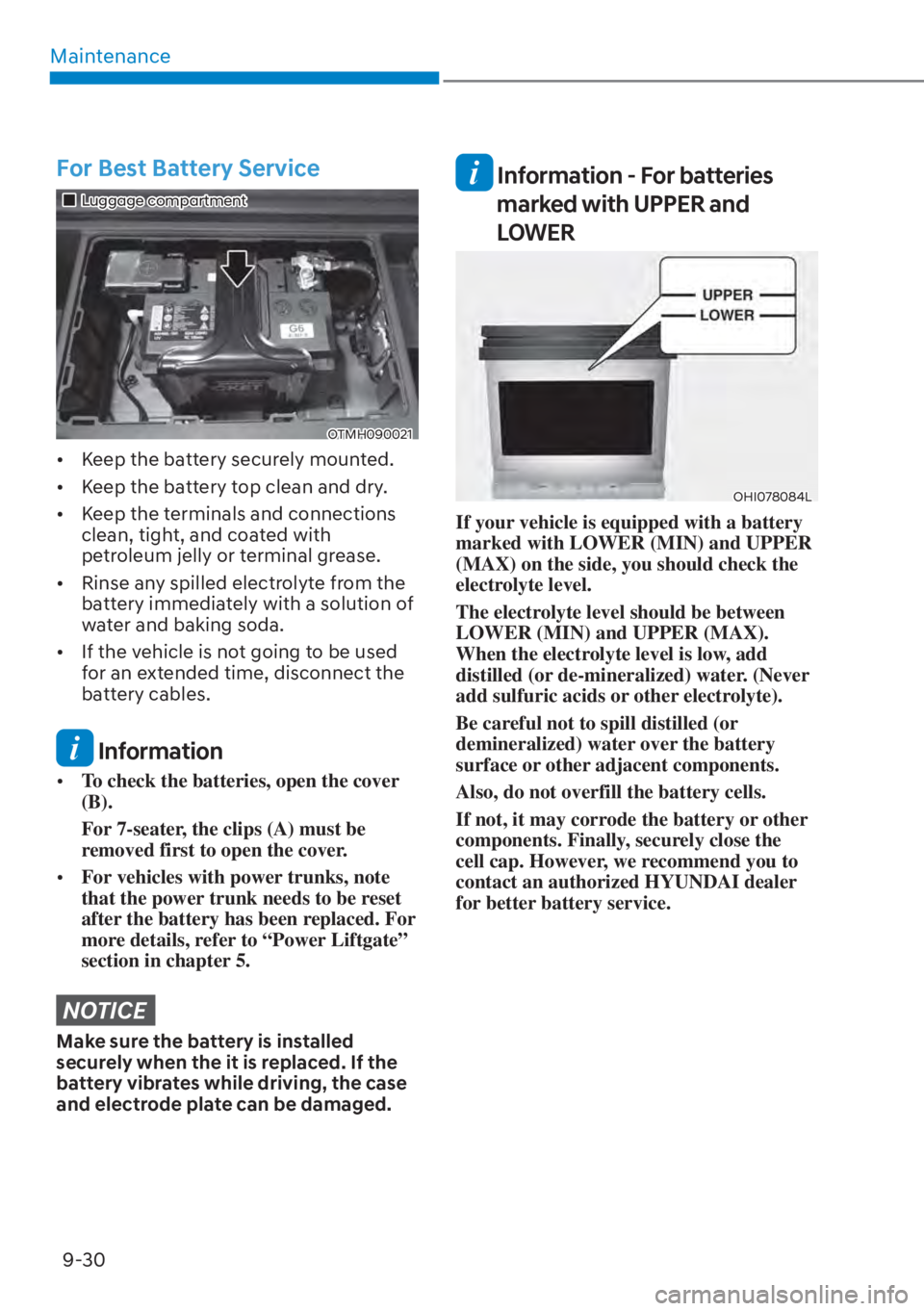

Maintenance9-30
For Best Battery Service
„Luggage compartment
OTMH090021

[ Keep the battery securely mounted.

[ Keep the battery top clean and dry.

[ Keep the terminals and connections
clean, tight, and coated with
petroleum jelly or terminal grease.

[ Rinse any spilled electrolyte from the
battery immediately with a solution of
water and baking soda.

[ If the vehicle is not going to be used
for an extended time, disconnect the
battery cables.
Information

[To check the batteries, open the cover
(B).
For 7-seater, the clips (A) must be
removed first to open the cover.

[ For vehicles with power trunks, note
that the power trunk needs to be reset
after the battery has been replaced. For
more details, refer to “Power Liftgate”
section in chapter 5.
NOTICE
Make sure the battery is installed
securely when the it is replaced. If the
battery vibrates while driving, the case
and electrode plate can be damaged.
Information - For batteries
marked with UPPER and
LOWER
OHI078084L
If your vehicle is equipped with a battery
marked with LOWER (MIN) and UPPER
(MAX) on the side, you should check the
electrolyte level.
The electrolyte level should be between
LOWER (MIN) and UPPER (MAX).
When the electrolyte level is low, add
distilled (or de-mineralized) water. (Never
add sulfuric acids or other electrolyte).
Be careful not to spill distilled (or
demineralized) water over the battery
surface or other adjacent components.
Also, do not overfill the battery cells.
If not, it may corrode the battery or other
components. Finally, securely close the
cell cap. However, we recommend you to
contact an authorized HYUNDAI dealer
for better battery service.

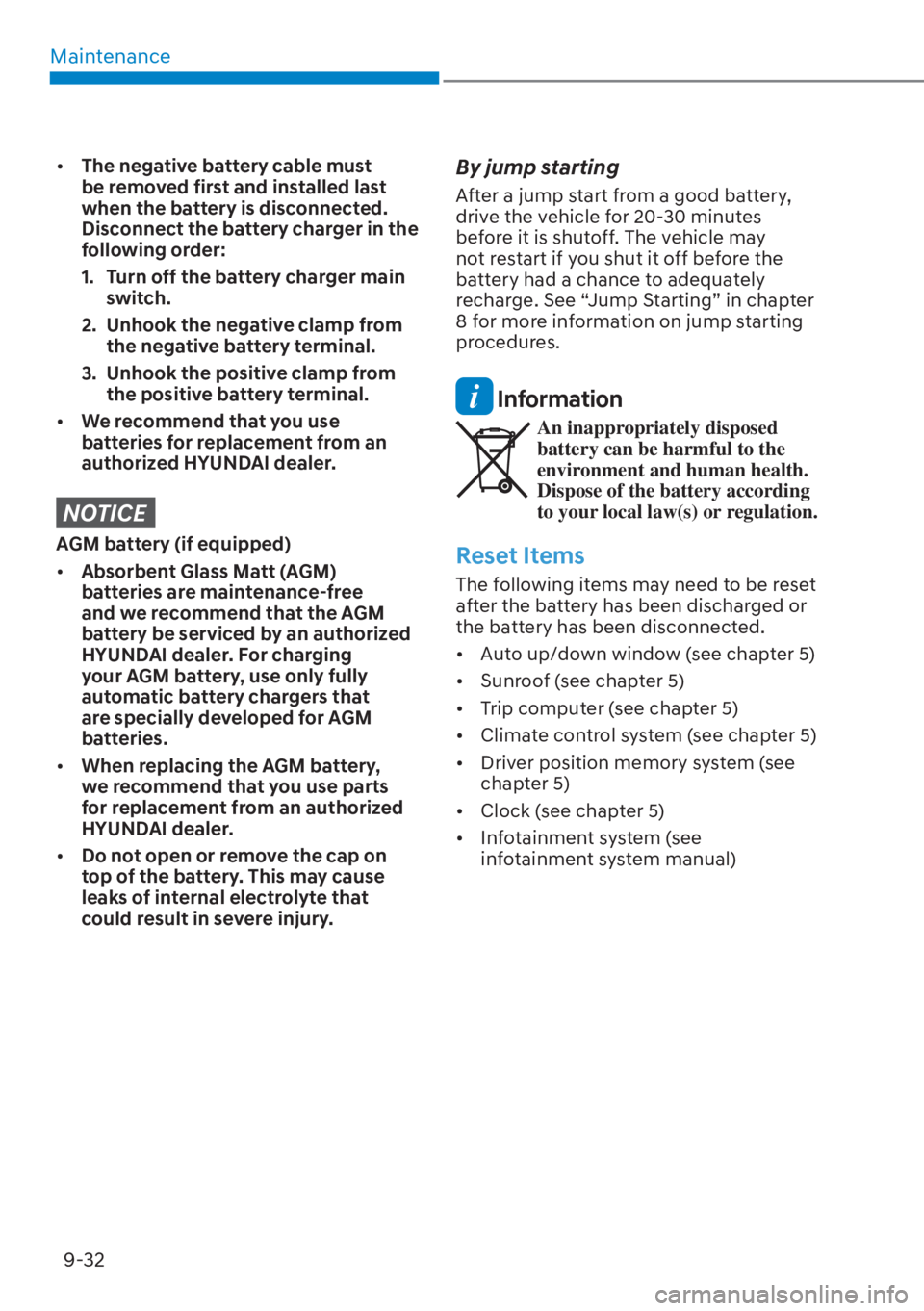

Maintenance9-32

[ The negative battery cable must
be removed first and installed last
when the battery is disconnected.
Disconnect the battery charger in the
following order:
1. Turn off the battery charger main
switch.
2. Unhook the negative clamp from the negative battery terminal.
3. Unhook the positive clamp from the positive battery terminal.

[ We recommend that you use
batteries for replacement from an
authorized HYUNDAI dealer.
NOTICE
AGM battery (if equipped)

[Absorbent Glass Matt (AGM)
batteries are maintenance-free
and we recommend that the AGM
battery be serviced by an authorized
HYUNDAI dealer. For charging
your AGM battery, use only fully
automatic battery chargers that
are specially developed for AGM
batteries.

[ When replacing the AGM battery,
we recommend that you use parts
for replacement from an authorized
HYUNDAI dealer.

[ Do not open or remove the cap on
top of the battery. This may cause
leaks of internal electrolyte that
could result in severe injury.
By jump starting
After a jump start from a good battery,
drive the vehicle for 20-30 minutes
before it is shutoff. The vehicle may
not restart if you shut it off before the
battery had a chance to adequately
recharge. See “Jump Starting” in chapter
8 for more information on jump starting
procedures.
Information
An inappropriately disposed
battery can be harmful to the
environment and human health.
Dispose of the battery according
to your local law(s) or regulation.
Reset Items
The following items may need to be reset
after the battery has been discharged or
the battery has been disconnected.

[Auto up/down window (see chapter 5)

[ Sunroof (see chapter 5)

[ Trip computer (see chapter 5)

[ Climate control system (see chapter 5)

[ Driver position memory system (see
chapter 5)

[ Clock (see chapter 5)

[ Infotainment system (see
infotainment system manual)

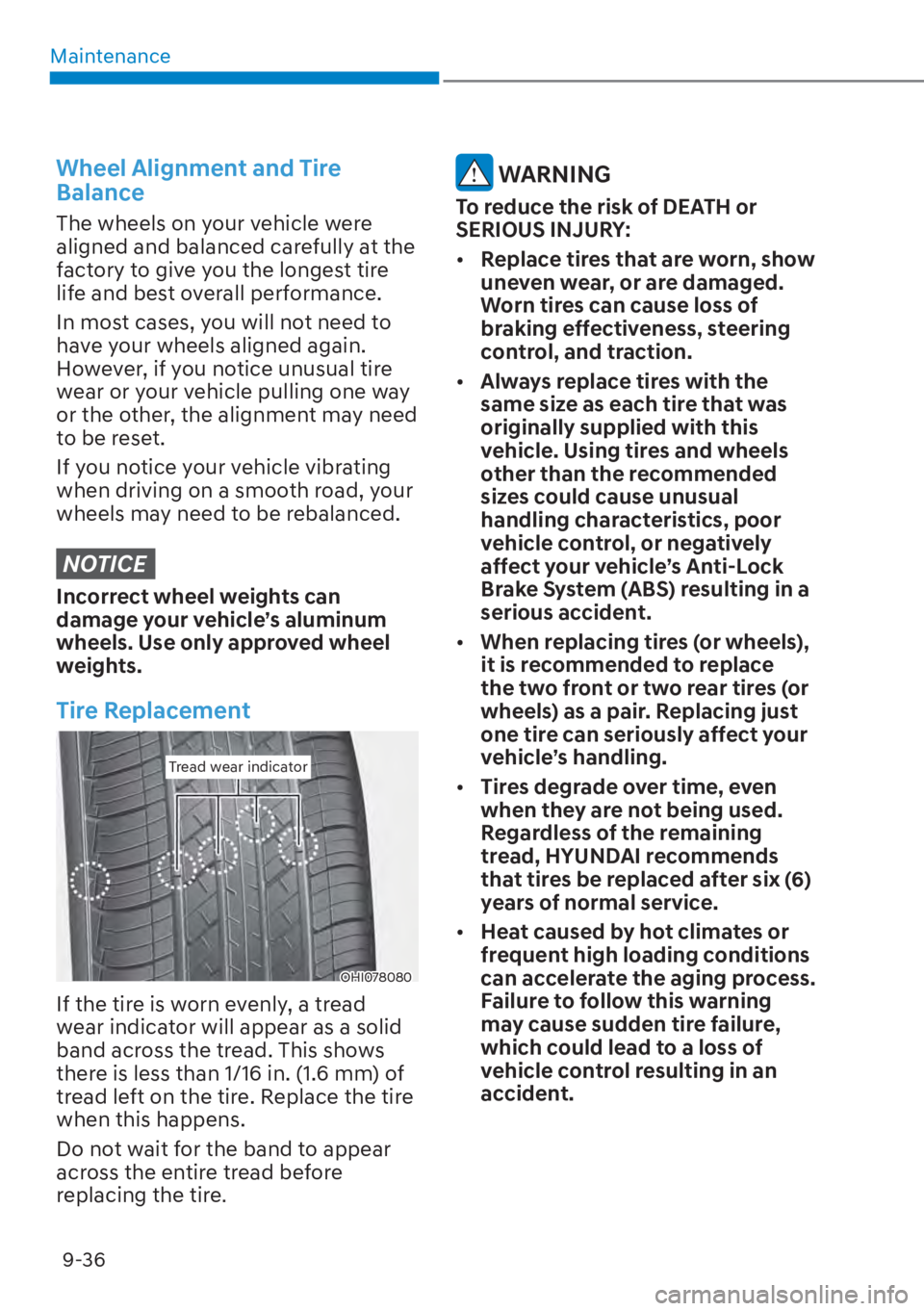

Maintenance9-36
Wheel Alignment and Tire
Balance
The wheels on your vehicle were
aligned and balanced carefully at the
factory to give you the longest tire
life and best overall performance.
In most cases, you will not need to
have your wheels aligned again.
However, if you notice unusual tire
wear or your vehicle pulling one way
or the other, the alignment may need
to be reset.
If you notice your vehicle vibrating
when driving on a smooth road, your
wheels may need to be rebalanced.
NOTICE
Incorrect wheel weights can
damage your vehicle’s aluminum
wheels. Use only approved wheel
weights.
Tire Replacement
Tread wear indicatorTread wear indicator
OHI078080
If the tire is worn evenly, a tread
wear indicator will appear as a solid
band across the tread. This shows
there is less than 1/16 in. (1.6 mm) of
tread left on the tire. Replace the tire
when this happens.
Do not wait for the band to appear
across the entire tread before
replacing the tire
.
WARNING
To reduce the risk of DEATH or
SERIOUS INJURY:

[ Replace tires that are worn, show
uneven wear, or are damaged.
Worn tires can cause loss of
braking effectiveness, steering
control, and traction.

[ Always replace tires with the
same size as each tire that was
originally supplied with this
vehicle. Using tires and wheels
other than the recommended
sizes could cause unusual
handling characteristics, poor
vehicle control, or negatively
affect your vehicle’s Anti-Lock
Brake System (ABS) resulting in a
serious accident.

[ When replacing tires (or wheels),
it is recommended to replace
the two front or two rear tires (or
wheels) as a pair. Replacing just
one tire can seriously affect your
vehicle’s handling.

[ Tires degrade over time, even
when they are not being used.
Regardless of the remaining
tread, HYUNDAI recommends
that tires be replaced after six (6)
years of normal service.

[ Heat caused by hot climates or
frequent high loading conditions
can accelerate the aging process.
Failure to follow this warning
may cause sudden tire failure,
which could lead to a loss of
vehicle control resulting in an
accident.

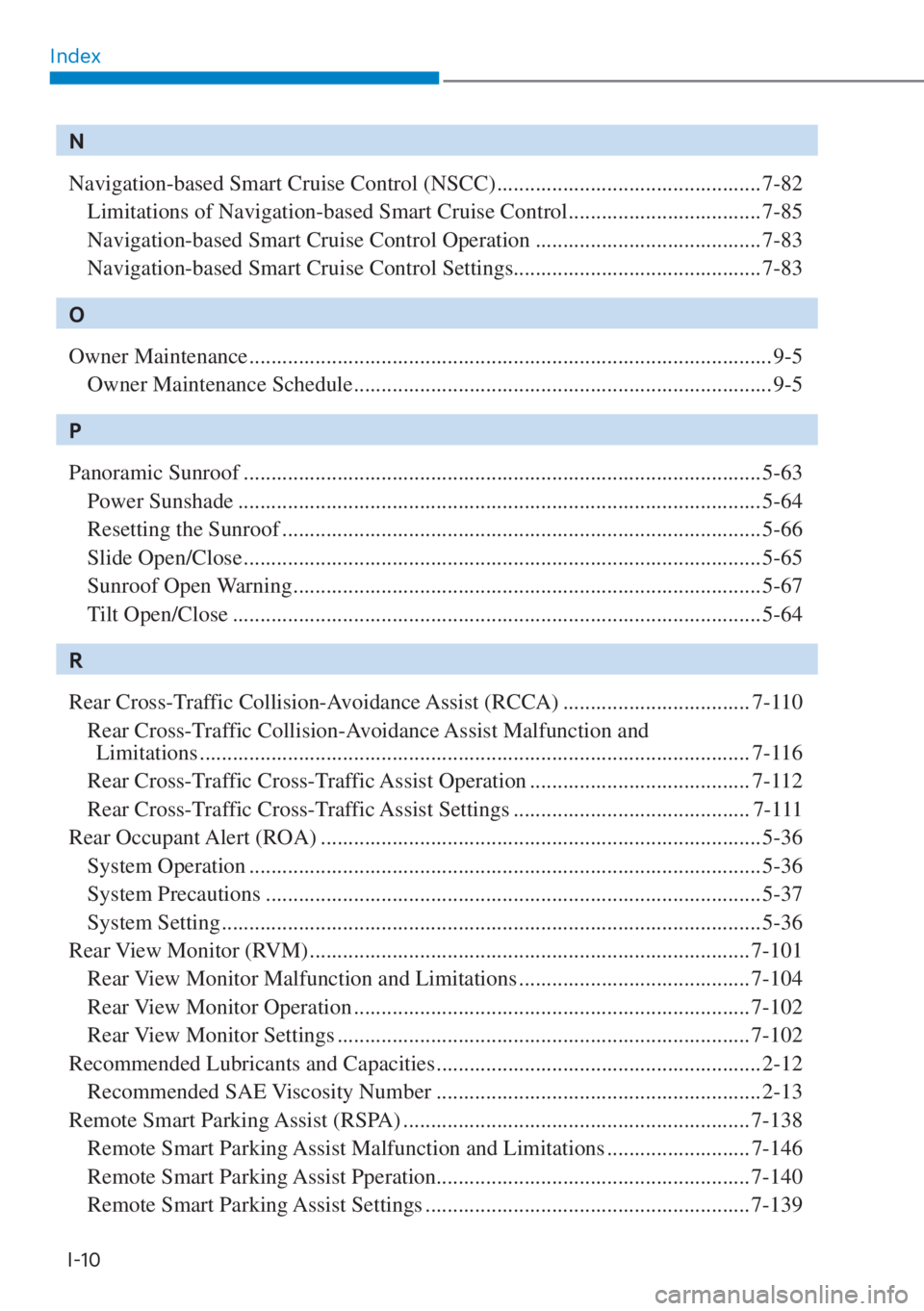

IndexI-10
N
Navigation-based Smart Cruise Control (NSCC) ................................................ 7-82
Limitations of Navigation-based Smart Cruise Control ................................... 7-85
Navigation-based Smart Cruise Control Operation ......................................... 7-83
Navigation-based Smart Cruise Control Settings ............................................. 7-83
O
Owner Maintenance ........................................................................\
....................... 9-5
Owner Maintenance Schedule ........................................................................\
.... 9-5
P
Panoramic Sunroof ........................................................................\
...................... 5-63
Power Sunshade ........................................................................\
....................... 5-64
Resetting the Sunroof ........................................................................\
............... 5-66
Slide Open/Close ........................................................................\
...................... 5-65
Sunroof Open Warning ........................................................................\
............. 5-67
Tilt Open/Close ........................................................................\
........................ 5-64
R
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) .................................. 7-110
Rear Cross-Traffic Collision-Avoidance Assist Malfunction and
Limitations ........................................................................\
............................ 7-116
Rear Cross-Traffic Cross-Traffic Assist Operation ........................................ 7-112
Rear Cross-Traffic Cross-Traffic Assist Settings ........................................... 7-111
Rear Occupant Alert (ROA) ........................................................................\
........ 5-36
System Operation ........................................................................\
..................... 5-36
System Precautions ........................................................................\
.................. 5-37
System Setting ........................................................................\
.......................... 5-36
Rear View Monitor (RVM) ........................................................................\
........ 7-101
Rear View Monitor Malfunction and Limitations .......................................... 7-104
Rear View Monitor Operation ........................................................................\
7-102
Rear View Monitor Settings ........................................................................\
... 7-102
Recommended Lubricants and Capacities ........................................................... 2-12
Recommended SAE Viscosity Number ........................................................... 2-13
Remote Smart Parking Assist (RSPA) ............................................................... 7-138
Remote Smart Parking Assist Malfunction and Limitations .......................... 7-146
Remote Smart Parking Assist Pperation ......................................................... 7-140
Remote Smart Parking Assist Settings ........................................................... 7-139
