2023 HYUNDAI SANTA FE HYBRID service indicator

1
Foreword ......................................................................\
...................................... 1-2
Hyundai Motor America ........................................................................\
............ 1-2
Guide to Hyundai Genuine Parts ...................................................................\
... 1-3
How to use this Manual ........................................................................\
............. 1-4
Safety Messages ........................................................................\
........................ 1-4
Fuel Requirements ........................................................................\
..................... 1-5
Vehicle Modifications ........................................................................\
................ 1-7
Vehicle Break-in Process ........................................................................\
........... 1-7
Vehicle Data Collection and Event Data Recorders ........................................ 1-8
HEV (Hybrid Electric Vehicle) System .............................................................. 1-9
Driving the Hybrid Vehicle ........................................................................\
...... 1-10
Starting the Vehicle ........................................................................\
............................. 1-10
Special Features ........................................................................\
.................................. 1-10
Hybrid System Gauge ........................................................................\
......................... 1-12
Warning and Indicator Lights ........................................................................\
............. 1-13
LCD Display Messages ........................................................................\
........................ 1-14
Energy Flow ........................................................................\
......................................... 1-17
Safety Precautions for Hybrid System ............................................................ 1-20Hybrid Vehicle Components ........................................................................\
............. 1-20
Service Interlock Connector ........................................................................\
...............1-22
Hybrid Battery Cooling Duct ........................................................................\
..............1-23
If an Accident Occurs ........................................................................\
..........................1-23
When the Hybrid Vehicle Shuts Off ........................................................................\
...1-24
1. Foreword / Hybrid System Overview

Foreword / Hybrid System Overview1-12
Hybrid System Gauge
Power gauge
„4.2-Inch
OTMH040003
„12.3-Inch
OTMH040004E
The hybrid system gauge indicates
whether the current driving condition is
fuel efficient or not.

[ CHARGE:
Shows that the energy made by the
vehicle is being converted to electrical
energy. (Regenerated energy)

[ ECO:
Shows that the vehicle is being driven
in an Eco-friendly manner.

[ POWER:
Shows that the vehicle is exceeding
the Eco-friendly range.
Hybrid battery SOC (State of Charge)
gauge
„4.2-Inch
OTMH040011N
„12.3-Inch
OTMH040006N
This gauge indicates the remaining
hybrid battery power. If the SOC is near
the “L (Low) or O” level, the vehicle
automatically operates the engine to
charge the battery.
However, if the Service Indicator (
)
and Malfunction Indicator Lamp (MIL)
(
) turn on when the SOC gauge is
near the “L (Low) or O” level, the vehicle
be checked by an authorized HYUNDAI
dealer.

01
1-13
Warning and Indicator Lights
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven. -
ON : Normal driving is possible.
- OFF : Normal driving is not possible, or a problem has occurred.
- Blinking : Emergency driving.
When the ready indicator goes OFF
or blinks, there is a problem with the
system. If this occurs, you have your
vehicle inspected by an authorized
HYUNDAI dealer.
EV mode indicator
This indicator illuminates:
When the vehicle is driven by the electric
mo
tor.
- “EV” indicator ON : Vehicle is driven using the electric motor or the
gasoline engine is stopped.
- “EV” indicator OFF : Vehicle is driven using the gasoline engine.
Service warning light
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.

- The service warning light illuminates
for approximately 3 seconds and
then turns off when all checks have
been performed.

[ When there is a problem with the
hybrid vehicle control system or
hardware.
When the warning light illuminates
while driving, or does not go OFF after
starting the vehicle, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Regenerative brake warning
light
This warning light illuminates:
When the regenerative brake does not
oper
ate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
If this occurs, drive safely and have
your vehicle inspected by an authorized
HYUNDAI dealer. The operation of the
brake pedal may be more difficult than
normal and the braking distance may
increase.

4
4. Instrument Cluster
Instrument Cluster ........................................................................\
.................... 4-4Instrument Cluster Control ........................................................................\
..................4-5Instrument panel illumination ........................................................................\
...........4-5
Gauges and Meters ........................................................................\
..............................4-5 Speedometer .....................................................................\
........................................4-5
Power gauge ........................................................................\
..................................... 4-6
Fuel gauge ........................................................................\
......................................... 4-6
Hybrid battery SOC (State of Charge) gauge ........................................................... 4-7
Outside temperature gauge ........................................................................\
.............. 4-7
Odometer .....................................................................\
............................................. 4-8
Distance to empty ........................................................................\
............................ 4-8
Fuel economy (for 12.3-inch cluster) ....................................................................... 4-9
Transmission Shift Indicator ........................................................................\
............... 4-9 Automatic transmission shift indicator ................................................................... 4-9
Warning and Indicator Lights ........................................................................\
............ 4-10 Seat belt warning light ........................................................................\
.................... 4-10
Air bag warning light ........................................................................\
....................... 4-10
Parking brake & Brake fluid warning light .............................................................. 4-10
Regenerative brake warning light ........................................................................\
.... 4-11
Anti-lock Brake System (ABS) warning light ........................................................... 4-11
Electronic Brake Force Distribution (EBD) system warning light ......................... 4-12
Electric Power Steering (EPS) warning light .......................................................... 4-12
Malfunction Indicator Lamp (MIL) ........................................................................\
.. 4-13
Electronic Parking Brake (EPB) warning light ........................................................ 4-13
AUTO HOLD indicator light ........................................................................\
............. 4-13
Charging system warning light ........................................................................\
....... 4-14
Engine oil pressure warning light ........................................................................\
... 4-14
Low fuel level warning light ........................................................................\
............ 4-15
Service warning light ........................................................................\
....................... 4-15
Exhaust system (GPF) warning light ....................................................................... 4-15
Overspeed warning light ........................................................................\
................. 4-15
Master warning light ........................................................................\
........................ 4-16
Low tire pressure warning light ......................................................................\
........ 4-16
Forward Safety warning light ........................................................................\
...........4-17
Lane Safety indicator light ........................................................................\
...............4-17
All wheel Drive (AWD)warning light.......................................................................\
..4-17
All wheel Drive (AWD) LOCK indicator light ............................................................4-17
LED headlight warning light ........................................................................\
............ 4-18
Icy road warning light ........................................................................\
...................... 4-18
Ready indicator ........................................................................\
................................ 4-19
EV mode indicator ........................................................................\
........................... 4-19
Electronic Stability Control (ESC) indicator light ................................................... 4-19

04
4-7
Hybrid battery SOC (State of Charge)
gauge
„4.2-Inch„12.3-Inch
OTMH040005NOCN7H040003
This gauge indicates the remaining
hybrid battery power. If the SOC is near
the “0 or L (Low)” level, the vehicle
automatically operates the engine to
charge the battery.
However, if the Service Indicator (
)
and Malfunction Indicator Lamp (MIL)
(
) turn on when the SOC gauge is
near the “0 or L (Low)” level, the vehicle
be checked by an authorized HYUNDAI
dealer.
NOTICE
Never try to start the vehicle if the fuel
tank is empty. In this condition, the
engine cannot charge the high voltage
battery of the hybrid system. If you
try to start the vehicle when the fuel
is empty, the high voltage battery will
become discharged and be damaged.
Outside temperature gauge
„4.2-Inch
OTMA048112
„12.3-Inch
OTMA040008
This gauge indicates the current outside
air temperatures by 1°F (1°C).
Note that the temperature indicated
on the LCD display may not change
as quickly as the outside temperature
(there may be a slight delay before the
temperature changes.)
You can change the temperature unit
from the Settings menu in the Cluster.
Select:
- 6HWXS

05
5-13

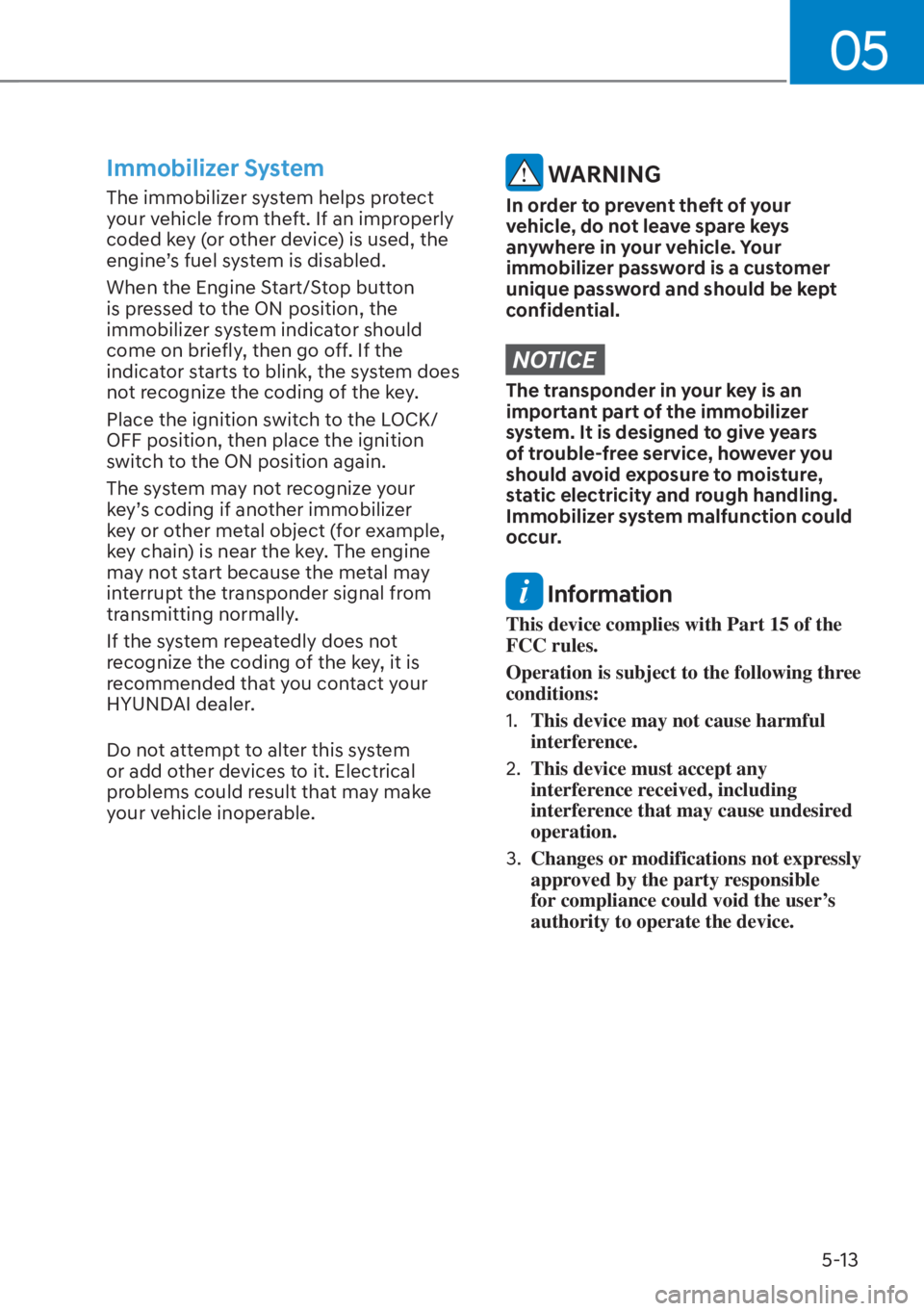

Immobilizer System
The immobilizer system helps protect
your vehicle from theft. If an improperly
coded key (or other device) is used, the
engine’s fuel system is disabled.
When the Engine Start/Stop button
is pressed to the ON position, the
immobilizer system indicator should
come on briefly, then go off. If the
indicator starts to blink, the system does
not recognize the coding of the key.
Place the ignition switch to the LOCK/
OFF position, then place the ignition
switch to the ON position again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (for example,
key chain) is near the key. The engine
may not start because the metal may
interrupt the transponder signal from
transmitting normally.
If the system repeatedly does not
recognize the coding of the key, it is
recommended that you contact your
HYUNDAI dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable. WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobilizer password is a customer
unique password and should be kept
confidential.
NOTICE
The transponder in your key is an
important part of the immobilizer
system. It is designed to give years
of trouble-free service, however you
should avoid exposure to moisture,
static electricity and rough handling.
Immobilizer system malfunction could
occur.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.

8
8. Emergency Situations
Hazard Warning Flasher ........................................................................\
........... 8-2
In Case of an Emergency while Driving........................................................... 8-2
If the Engine Stalls while Driving........................................................................\
......... 8-2
If the Engine Stalls at a Crossroad or Crossing .......................................................... 8-2
If You Have a Flat Tire While Driving ........................................................................\
...8-3
If the Engine will not Start ........................................................................\
........ 8-3
Jump Starting ........................................................................\
........................... 8-4
If the Engine Overheats ........................................................................\
.............8-7
Tire Pressure Monitoring System (TPMS) ........................................................ 8-9
Check Tire Pressure (if equipped) ........................................................................\
...... 8-9
Tire Pressure Monitoring System ........................................................................\
...... 8-10
Low Tire Pressure Warning Light ........................................................................\
........ 8-11
Low Tire Pressure Position and Tire Pressure Telltale ............................................... 8-11
TPMS (Tire Pressure Monitoring System) Malfunction Indicator ............................ 8-12
Changing a Tire with TPMS ........................................................................\
............... 8-12
If You Have a Flat Tire (with spare tire) ...........................................................8-14Jack and Tools ........................................................................\
.................................... 8-14
Removing and Storing the Spare Tire ....................................................................... 8-14
Changing Tires ........................................................................\
.................................... 8-15
Jack Label ........................................................................\
.......................................... 8-20
Towing ...................................................................\
........................................... 8-21Towing Service ........................................................................\
................................... 8-21
Removable Towing Hook ........................................................................\
................... 8-22
Emergency Towing ........................................................................\
............................. 8-23
Emergency Commodity ........................................................................\
......... 8-25Fire Extinguisher ........................................................................\
................................. 8-25
First Aid Kit ........................................................................\
..........................................8-25
Triangle Reflector ........................................................................\
............................... 8-25
Tire Pressure Gauge ........................................................................\
........................... 8-25

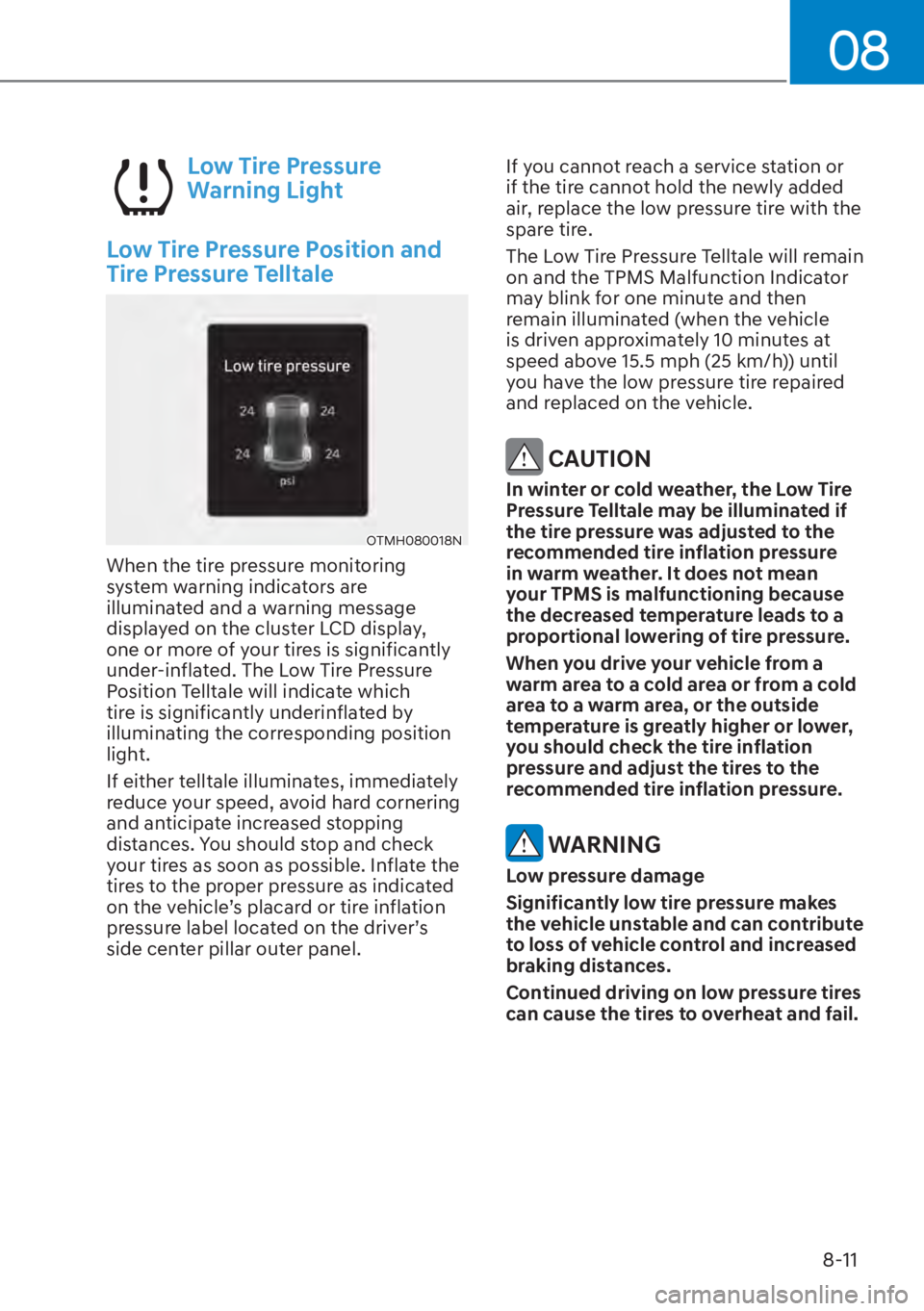

08
8-11
Low Tire Pressure
Warning Light
Low Tire Pressure Position and
Tire Pressure Telltale
OTMH080018N
When the tire pressure monitoring
system warning indicators are
illuminated and a warning message
displayed on the cluster LCD display,
one or more of your tires is significantly
under-inflated. The Low Tire Pressure
Position Telltale will indicate which
tire is significantly underinflated by
illuminating the corresponding position
light.
If either telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping
distances. You should stop and check
your tires as soon as possible. Inflate the
tires to the proper pressure as indicated
on the vehicle’s placard or tire inflation
pressure label located on the driver’s
side center pillar outer panel. If you cannot reach a service station or
if the tire cannot hold the newly added
air, replace the low pressure tire with the
spare tire.
The Low Tire Pressure Telltale will remain
on and the TPMS Malfunction Indicator
may blink for one minute and then
remain illuminated (when the vehicle
is driven approximately 10 minutes at
speed above 15.5 mph (25 km/h)) until
you have the low pressure tire repaired
and replaced on the vehicle.
CAUTION
In winter or cold weather, the Low Tire
Pressure Telltale may be illuminated if
the tire pressure was adjusted to the
recommended tire inflation pressure
in warm weather. It does not mean
your TPMS is malfunctioning because
the decreased temperature leads to a
proportional lowering of tire pressure.
When you drive your vehicle from a
warm area to a cold area or from a cold
area to a warm area, or the outside
temperature is greatly higher or lower,
you should check the tire inflation
pressure and adjust the tires to the
recommended tire inflation pressure.
WARNING
Low pressure damage
Significantly low tire pressure makes
the vehicle unstable and can contribute
to loss of vehicle control and increased
braking distances.
Continued driving on low pressure tires
can cause the tires to overheat and fail.
