2023 HYUNDAI SANTA FE HYBRID engine coolant

Foreword / Hybrid System Overview1-16

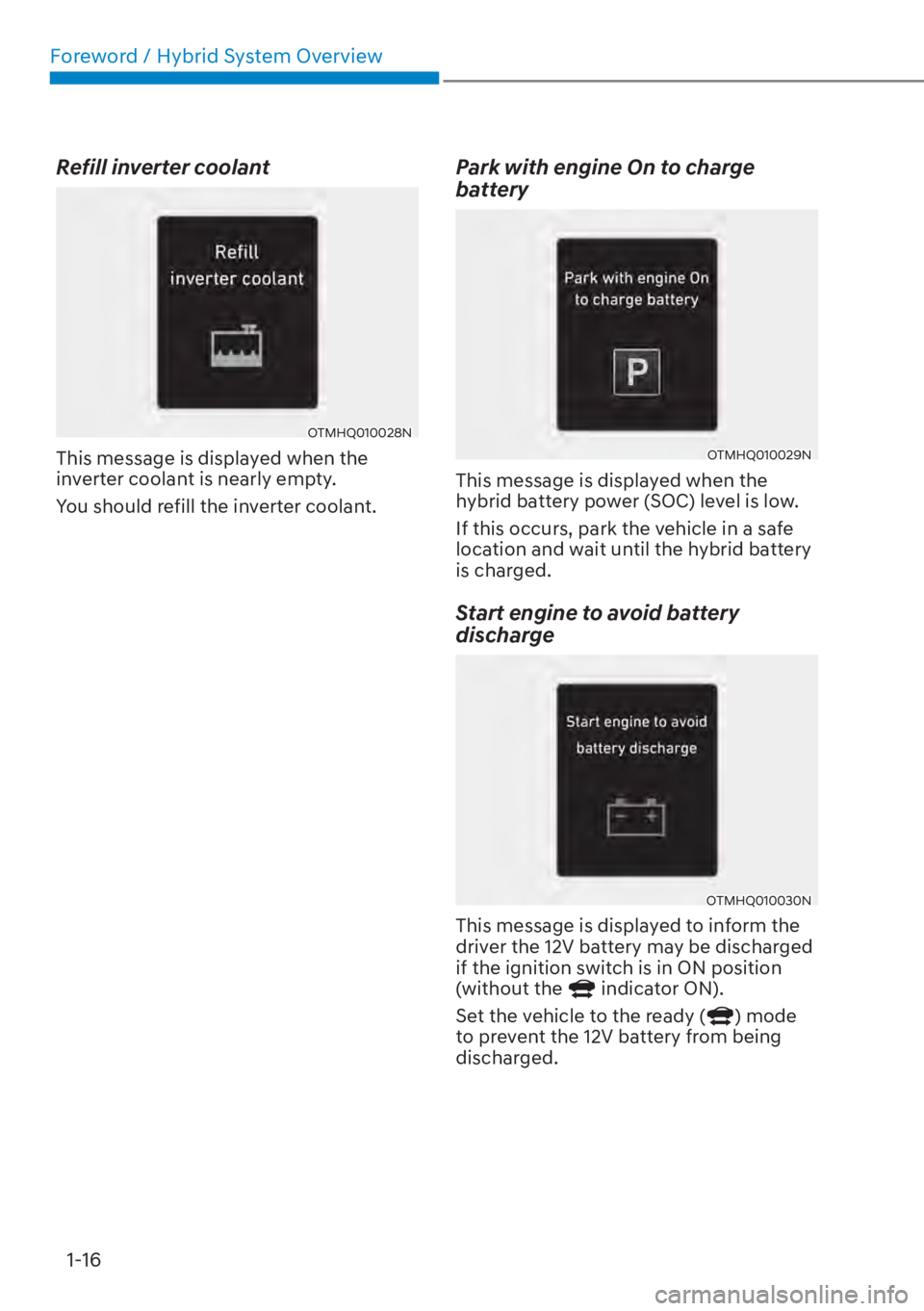

Refill inverter coolant
OTMHQ010028N
This message is displayed when the
inverter coolant is nearly empty.
You should refill the inverter coolant.
Park with engine On to charge
battery
OTMHQ010029N
This message is displayed when the
hybrid battery power (SOC) level is low.
If this occurs, park the vehicle in a safe
location and wait until the hybrid battery
is charged.
Start engine to avoid battery
discharge
OTMHQ010030N
This message is displayed to inform the
driver the 12V battery may be discharged
if the ignition switch is in ON position
(without the
indicator ON).
Set the vehicle to the ready (
) mode
to prevent the 12V battery from being
discharged.

2-7
02
„Smartstream G 1.6 T-GDi HEV
The actual engine compartment in the vehicle may differ from the illustration.
OTMH090001
1. ECU
2. Engine coolant reservoir .......................9-18
3. Engine coolant reservoir cap ................9-18
4. Inverter coolant reservoir......................9-18
5. Brake fluid reservoir ............................. 9-22
6. Air cleaner ............................................. 9-247. Engine oil filler cap ................................ 9-16
8. Engine oil dipstick ................................. 9-16
9. Windshield washer fluid reservoir ....... 9-23
10. Fuse box ................................................ 9-43
11. Inverter coolant reservoir cap .............. 9-19
ENGINE COMPARTMENT

Vehicle Information, Consumer Information and Reporting Safety Defects2-12
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant VolumeClassification
Engine oil
*1 *2
(drain and refill) Recommends
86TW
b SAE 0W-20, API SN PLUS/SP or
ILSAC GF-6
Automatic transmission fluid
86TW
bSK ATF SP4M-1, MICHANG ATF
SP4M-1, S-OIL ATF SP4M-1,
Hyundai Genuine ATF SP4M-1
Coolant 86TW
bMixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Inverter Coolant 86TW
bMixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Rear differential oil (AWD) 0.56~0.67 US qt.
a
b HYPOID GEAR OIL API GL-5, SAE
75W/85 (SK HCT-5 GEAR OIL
75W/85 or EQUIVALENT)
Transfer case oil (AWD) 0.65~0.71 US qt.
a
b
Brake fluid
*3As required SAE J1704 DOT-4 LV, FMVSS 116
DOT-4, ISO4925 CLASS-6
Fuel 86TW
bRefer to “Fuel requirements” in
chapter 1.
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
*3 : To maintain the best braking performance and ABS/ESC performance, you use genuine
brake fluid that conform to specifications.
*4 : Different type of coolant or water may damage the electrical component.

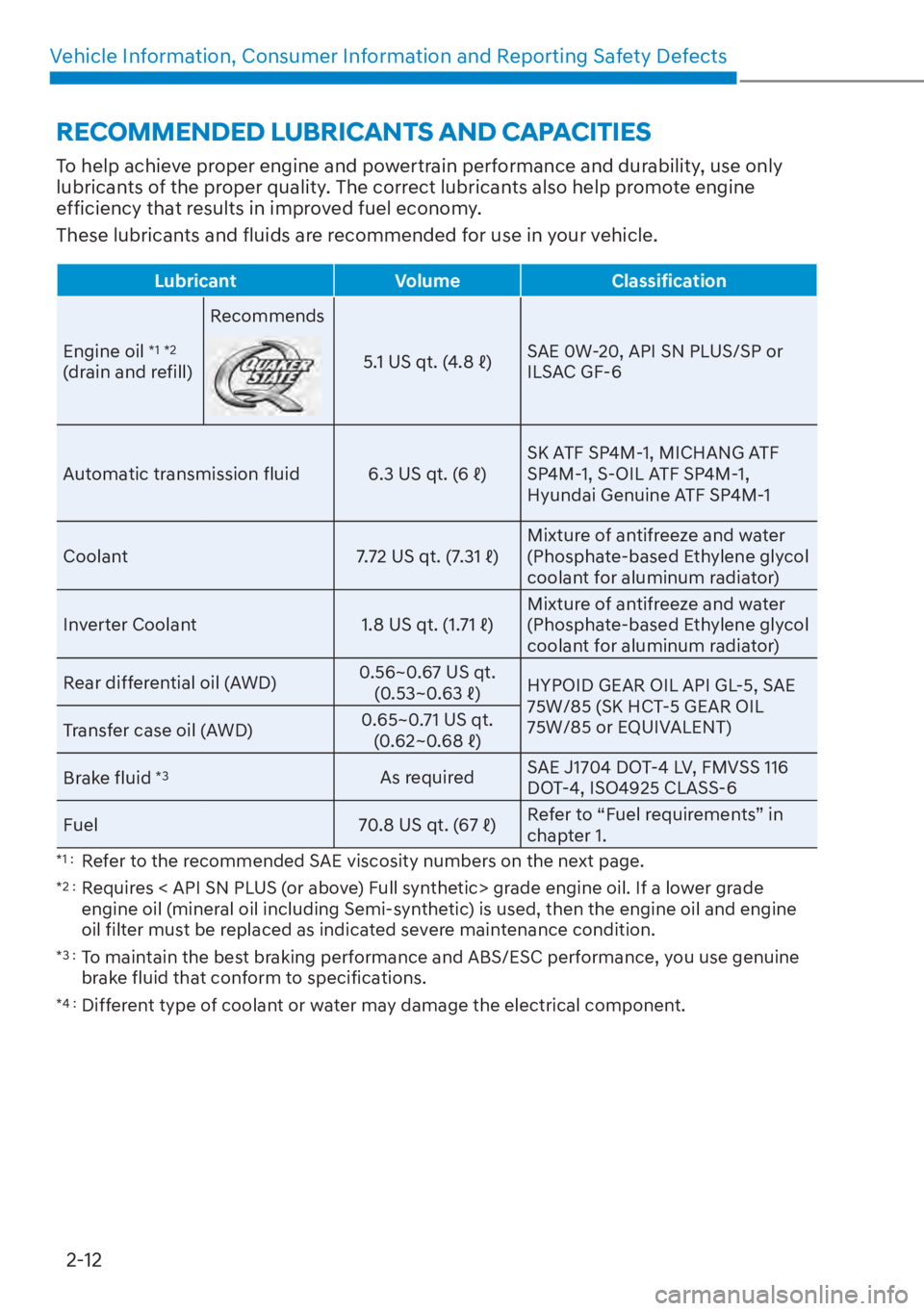

RECOMMENDED LUBRICANTS AND CAPACITIES

4
4. Instrument Cluster
Check Hybrid system ........................................................................\
....................... 4-27
Stop safely and check Hybrid system .................................................................... 4-27
Check Hybrid system. Do not start engine ............................................................ 4-27
Stop safely and check power supply ...................................................................... 4-27
Check virtual engine sound system........................................................................\
4-27
Refill inverter coolant ........................................................................\
...................... 4-27
Park with engine On to charge battery .................................................................. 4-27
Start engine to avoid battery discharge ................................................................. 4-27
Check regenerative brakes......................................................................\
................4-28
Check virtual engine sound system........................................................................\
4-28
LCD Display ........................................................................\
............................. 4-29LCD Display Control ........................................................................\
...........................4-29
View Modes ........................................................................\
....................................... 4-30Driving Assist mode ........................................................................\
......................... 4-31
Trip computer mode ........................................................................\
........................ 4-31
Turn By Turn (TBT) mode ........................................................................\
................. 4-31
Master warning group ........................................................................\
..................... 4-32
User settings mode ........................................................................\
..........................4-33
Trip Computer (Type A) ........................................................................\
......................4-42 Trip modes ........................................................................\
........................................4-42
Trip Computer (Type B) ........................................................................\
..................... 4-44 Trip modes ........................................................................\
....................................... 4-44

Instrument Cluster4-26
Engine has overheated
This message is displayed when the
engine coolant temperature is above
248°F (120°C). This means that the
engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check exhaust system (if equipped)
This message is displayed if there is
a problem with the GPF system. At
this time, the GPF warning light will
also blink. If this occurs, you have the
GPF system checked by an authorized
HYUNDAI dealer.
GPF : Gasoline Particulate Filter
Check headlight (if equipped)
This message is displayed if the
headlights are not operating properly. A
headlight bulb may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal (if equipped)
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check brake light (if equipped)
This message is displayed if the stop
lamps are not operating properly. A lamp
may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
NOTICE
Do not drive the vehicle with low fuel.
Hybrid battery damage may occur
when the fuel tank is completely empty.
Check headlamp LED (if equipped)
This message is displayed if there is
a problem with the LED headlamp.
You have the vehicle inspected by an
authorized HYUNDAI dealer.
Check Active Air Flap system
This message is displayed in the
following situations: - There is a malfunction with the actuator flap
- There is a malfunction with the actuator air flap controller
- The air flap does not open
When all of the above conditions are
fixed, the warning will disappear.
Ready to start driving
This message is displayed when the
vehicle is ready to be driven.
Check regenerative brakes
This message is displayed when the brake
performance is low or the regenerative
brake does not work properly due to a
failure in the brake system.
If this occurs, it may take longer for the
brake pedal to operate and the braking
distance may become longer.

04
4-27
Stop vehicle and check brakes
This message is displayed when a failure
occurs in the brake system.
If this occurs, park the vehicle in a safe
location and you tow your vehicle to the
nearest authorized HYUNDAI dealer and
have the vehicle inspected.
Check Hybrid system
This message is displayed when there
is a problem with the hybrid system.
Refrain from driving when the warning
message is displayed.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Stop safely and check Hybrid system
This message is displayed when there is
a problem with the hybrid system. The
“
” indicator will blink and a warning
chime will sound until the problem is
solved. Refrain from driving when the
warning message is displayed.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Check Hybrid system. Do not start
engine
This message is displayed when the
hybrid battery power (SOC) level is low.
A warning chime will sound until the
problem is solved. Refrain from driving
when the warning message is displayed.
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Stop safely and check power supply
This message is displayed when a failure
occurs in the power supply system.
If this occurs, park the vehicle in a safe
location and tow your vehicle to the
nearest authorized HYUNDAI dealer and
have the vehicle inspected.
Check virtual engine sound system
This message is displayed when there is
a problem with the Virtual Engine Sound
System (VESS).
If this occurs, you have the vehicle
inspected by an authorized HYUNDAI
dealer.
Refill inverter coolant
This message is displayed when the
inverter coolant is nearly empty.
You should refill the inverter coolant.
Park with engine On to charge
battery
This message is displayed when the
hybrid battery power (SOC) level is low.
If this occurs, park the vehicle in a safe
location and wait until the hybrid battery
is charged.
Start engine to avoid battery
discharge
This message is displayed to inform the
driver the 12V battery may be discharged
if the ignition switch is in ON position
(without the
indicator ON).
Set the vehicle to the ready (
) mode
to prevent the 12V battery from being
discharged.

04
4-33
Engine coolant temperature
OTMH040007
This engine coolant temperature gauge
display shows the temperature of the
engine coolant when the engine is
running.
NOTICE
When the gauge indicator gets out of
the normal range, toward the "H(Hot)"
position, it indicates overheating of the
engine. It may damage the engine.
Do not continue driving with the
overheated engine.
For more details, refer to "If the Engine
Overheats" section in the chapter 8.
User settings mode
OTM040060L
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver Assistance
2. Eco vehicle
3. Head-Up Display4. Cluster
5. Lights
6. Door
7. Convenience
8. Units
The information provided may differ
depending on which functions are
applicable to your vehicle.
Shift to P to edit settings
This warning message appears if you try
t
o adjust the User Settings while driving.
For your safety, change the User Settings
after parking the vehicle, applying the
parking brake and pressing the P (Park)
button.
Quick guide help
This mode provides quick guides for the
s
ystems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details, about each system,
refer to this Owner’s Manual.
Information
When the infotainment system is applied,
only the User’s Setting mode on the
infotainment system is supported but the
User’s Setting mode on the instrument
cluster is not supported.

06
6-47
Limitations of ECO mode
If the following conditions occur while
E
CO mode is operating, the system
operation is limited even though there is
no change in the ECO indicator.

[ When coolant temperature is low:
The system will be limited until engine
performance becomes normal.

[ When driving up a hill:
The system will be limited to gain
power when driving uphill because
engine torque is restricted.

[ When driving the vehicle in manual
shift mode using the paddle shifter.
The system will be limited according to
the shift location.
SPORT mode
SPORT mode provides sporty
but firm riding.
In SPORT mode, the fuel
efficiency may decrease.

[ When SPORT mode is selected, the
SPORT indicator will illuminate on the
instrument cluster.

[ Whenever the engine is restarted, the
drive mode will revert back to ECO
mode. If SPORT mode is desired, re-
select SPORT mode.

[ When SPORT mode is activated:
- The engine rpm will tend to remain raised over a certain length of time
even after releasing the accelerator
- Upshifts are delayed when accelerating
SMART mode
SMART mode selects the
proper driving mode among
ECO, COMFORT and SPORT
by judging the driver's
driving habits (i.e. mild or
dynamic) from the brake pedal
depression or the steering
wheel operation.

[ Press the DRIVE MODE button to
activate SMART mode. When SMART
mode is activated, the indicator
illuminates on the instrument cluster.

[ The vehicle starts in SMART mode,
when the engine was turned OFF in
SMART mode.

[ SMART mode automatically controls
gear shifting patterns, engine torque,
in accordance with the driver's driving
habits.
Information

[When you mildly drive the vehicle
in SMART mode, the driving mode
changes to ECO mode to improve fuel
efficiency. However, the actual fuel
efficiency may differ in accordance
with your driving situations (for
example, upward/downward slope,
vehicle deceleration/acceleration).

[ When you dynamically drive the
vehicle in SMART mode by abruptly
decelerating or sharply curving, the
driving mode changes to SPORT mode.
However, it may adversely affect fuel
economy.
