2023 HYUNDAI SANTA CRUZ Owners Manual

05
5-113

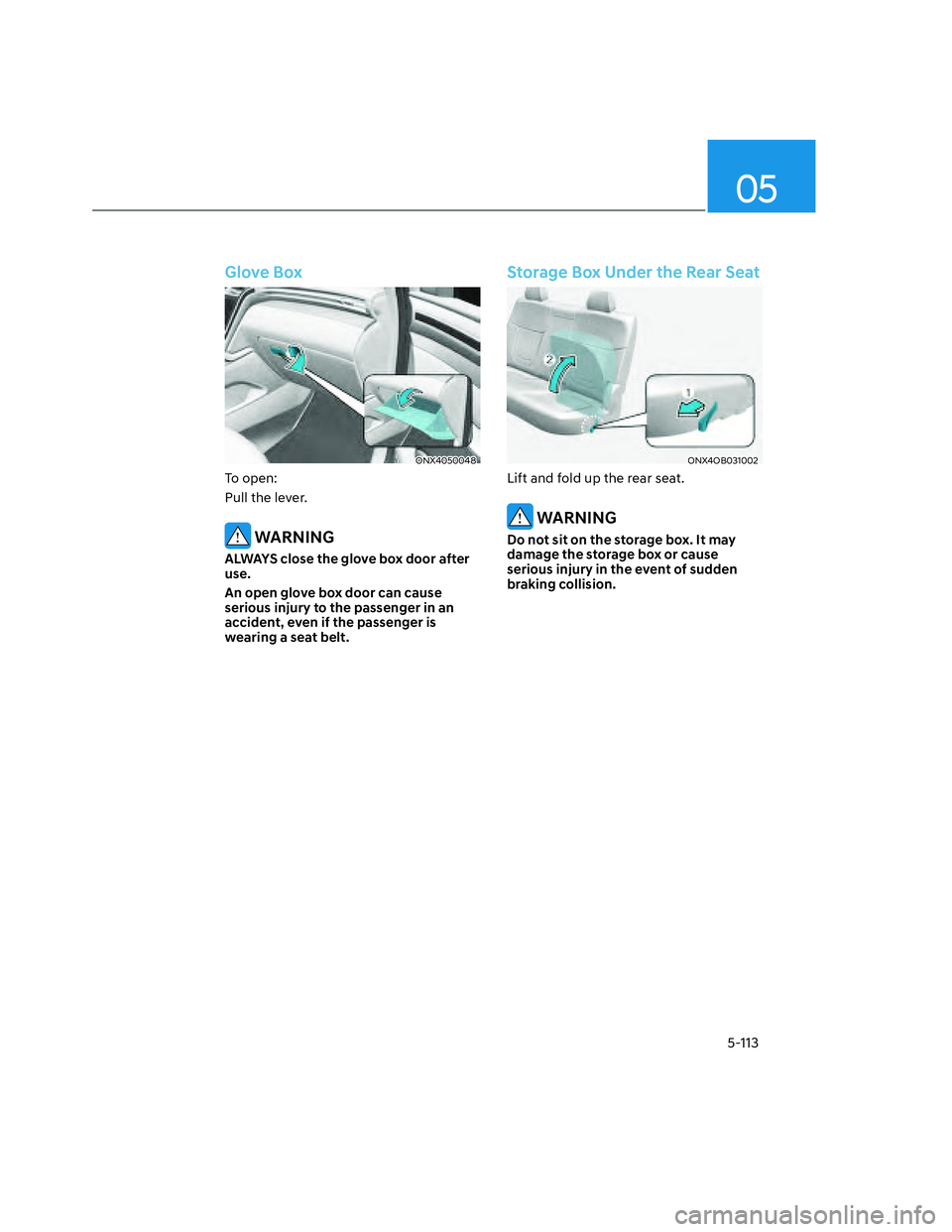

Glove Box
ONX4050048ONX4050048
To open:
Pull the lever.
WARNING
ALWAYS close the glove box door after
use.
An open glove box door can cause
serious injury to the passenger in an
accident, even if the passenger is
wearing a seat belt.
Storage Box Under the Rear Seat
ONX4OB031002ONX4OB031002
Lift and fold up the rear seat.
WARNING
Do not sit on the storage box. It may
damage the storage box or cause
serious injury in the event of sudden
braking collision.

Convenient Features
5-114

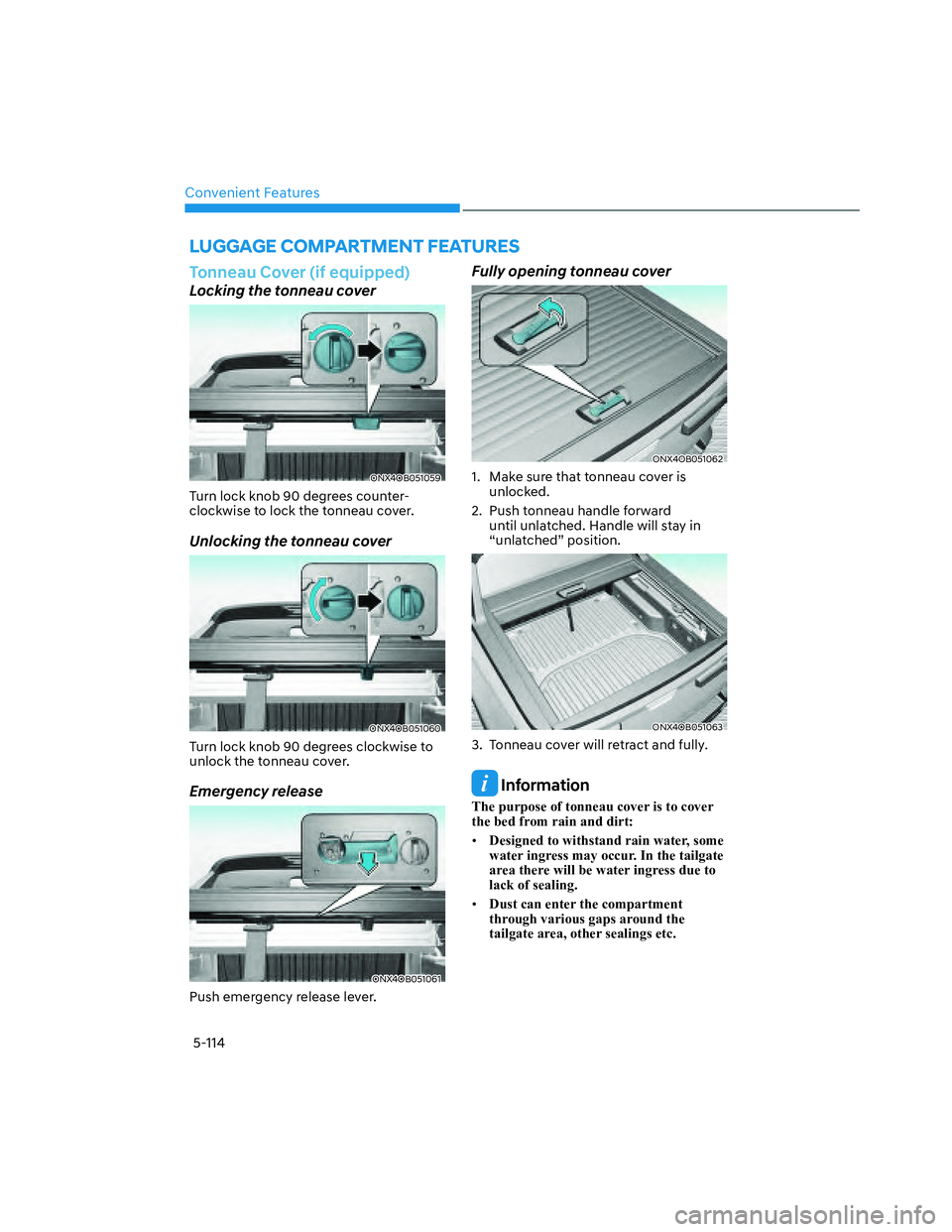

LUGGAGE COMPARTMENT FEATURES
Tonneau Cover (if equipped)
Locking the tonneau cover
ONX4OB051059ONX4OB051059
Turn lock knob 90 degrees counter-
clockwise to lock the tonneau cover.
Unlocking the tonneau cover
ONX4OB051060ONX4OB051060
Turn lock knob 90 degrees clockwise to
unlock the tonneau cover.
Emergency release
ONX4OB051061ONX4OB051061
Push emergency release lever.
Fully opening tonneau cover
ONX4OB051062ONX4OB051062
1. Make sure that tonneau cover is
unlocked.
2. Push tonneau handle forward
until unlatched. Handle will stay in
“unlatched” position.
ONX4OB051063ONX4OB051063
3. Tonneau cover will retract and fully.
Information
The purpose of tonneau cover is to cover
the bed from rain and dirt:
• Designed to withstand rain water, some
water ingress may occur. In the tailgate
area there will be water ingress due to
lack of sealing.
• Dust can enter the compartment
through various gaps around the
tailgate area, other sealings etc.

05
5-115

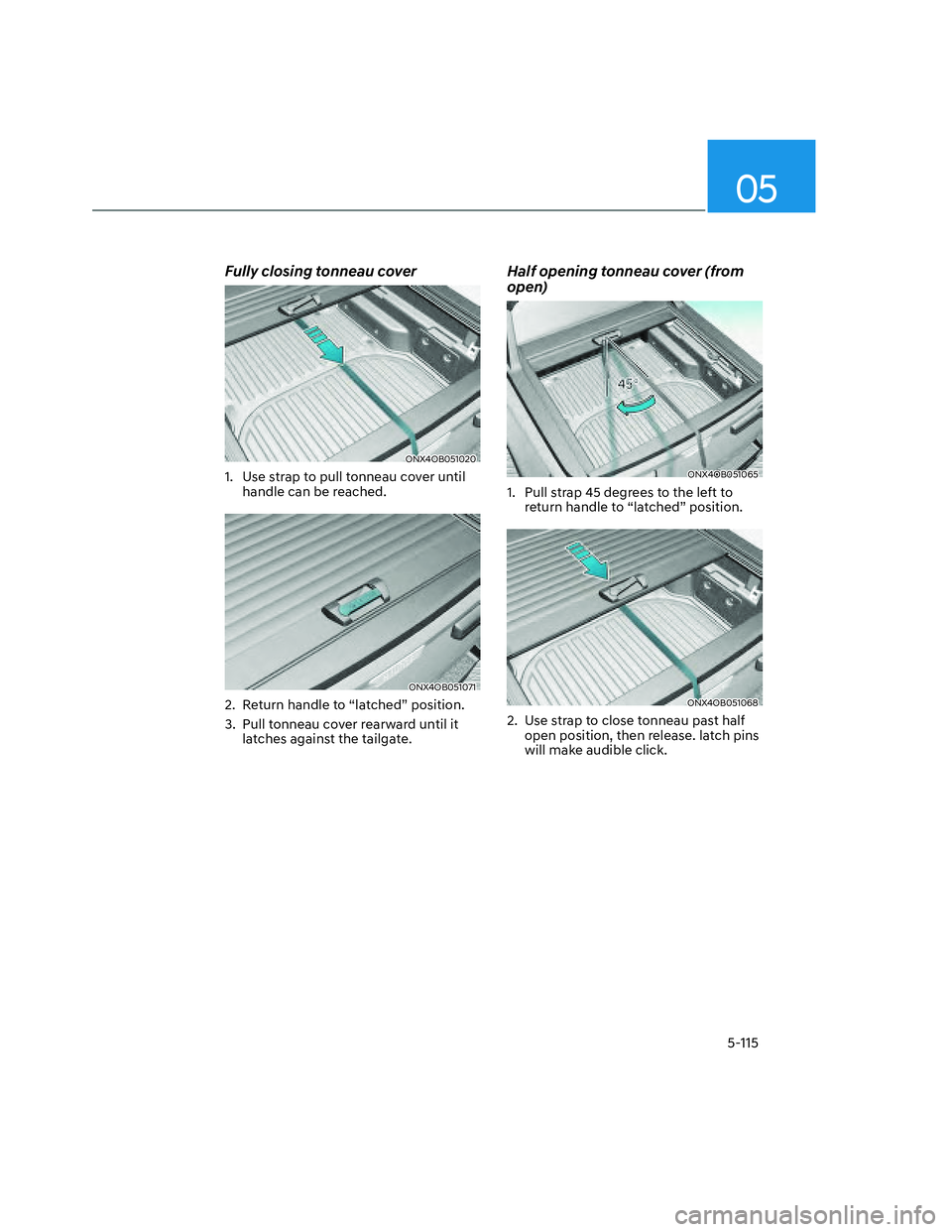

Fully closing tonneau cover
ONX4OB051020ONX4OB051020
1. Use strap to pull tonneau cover until
handle can be reached.
ONX4OB051071ONX4OB051071
2. Return handle to “latched” position.
3. Pull tonneau cover rearward until it
latches against the tailgate.
Half opening tonneau cover (from
open)
ONX4OB051065ONX4OB051065
1. Pull strap 45 degrees to the left to
return handle to “latched” position.
ONX4OB051068ONX4OB051068
2. Use strap to close tonneau past half
open position, then release. latch pins
will make audible click.

Convenient Features
5-116
Half opening tonneau cover (from
closed)
ONX4OB051062ONX4OB051062
1. Push tonneau handle forward until
unlatched. (Handle will stay in
“unlatched” position)
ONX4OB051067ONX4OB051067
2. Return handle to “latched” position.
3. Tonneau cover will open and stop at
halfway position.
NOTICE
• Tonneau cover is made of aluminium
profiles which heats up and cools
down relatively quick according to
weather conditions. This can cause
condensation on the inside of the
profiles and the panels.
• The pull strap has been designed
only for opening and closing the Roll
cover. The carabineer and ring will be
damaged in case of excessive load.
• Goods in the pickup bed must be
secured during transportation to
prevent damage on the structural
parts of tonneau cover (especially
the canister.)
• If the tonneau cover is closed and
has water, snow, ice or dirt on the
cover, it might enter into the pickup
bed as the cover retracts. To avoid
this, clean off the top surface of the
cover prior to opening.
• When opening the cover, the
opening should be careful and
controlled using the pull strap to
prevent the cover from hitting the
front with full speed, which it has
NOT been designed for.
CAUTION
• The Roll cover is not designed for
loading although it can support
normal snow loads. No part of it
can support any load from cargo or
persons and the product might be
damaged if somebody stands on it.

05
5-117
WARNING
• Do not drive with persons under the
tonneau cover.
• Do not allow persons or animals
to stay in the pickup bed when the
cover is closed.
• Temperatures can be very high under
the cover when closed.
• The pull strap should not be used to
tie down cargo.
• Do not disassemble the main shaft
from the canister without relieving
the spring tension completely.
• Remove fingers from lamellas when
opening and closing.
• We do not recommend washing
the tonneau cover in a brushless
carwash, as the coating may be
damaged due to use of chemicals.
• Wash the Roll cover regularly using
normal car shampoo and a soft, lint
free cloth or brush.
• If washed in any carwash, or if any
chemicals are used on the roll cover,
please ensure a max PH value of 8 is
used.
•
Sidewall Molded in Features
Commonly sold lumber items to be
added to the pickup bed, allowing users
to customize.
2x6 cross pickup bed support shelf
ONX4OB051073ONX4OB051073
Cut two 2”x6” pieces of standard lumber
to ~52” lengths and inset into forming’s
provided on the sidewalls.
ONX4OB051074ONX4OB051074
A 4’x4’ sheet of plywood can be placed
on top of the 2x6 supports to form a shelf
within the pickup bed.

Convenient Features
5-118
Plywood carrying shelf
ONX4OB051075ONX4OB051075
Steps to put tailgate in plywood position:
1. Detach both left and right support
cables.
2. Lift tailgate upward to 20 degrees
from full open position.
3. Connect both cables just below.
WARNING
• Close the tonneau cover securely
before driving.
• Cargo should not be interfered
with tonneau cover latching and
completely closing.
• When the tonneau cover is fully
opened, make sure that the buckle
is secure by pulling on the storage
strap.
• Be careful not to get your hands
pinched between the tonneau
cover and the deck when opening
and closing the tonneau cover, or
between the panels when folding.
• Make sure that all latches are
securely locked by pulling it
upwards.
• Do not stand or sit on the tonneau
cover.
• Do not install the tonneau
cover backwards, or in any other
orientation than indicated.
WARNING
• Allowing passengers to ride in the
pickup bed or on the tailgate can
result in death or serious injury in
a crash. Make sure all passengers
ride in a seat and wear a seat belt
properly.
• Never let passengers ride in the
pickup bed, in the trunk space, or on
the bed rails. This could cause very
serious injuries or death. No one
should ride in any position on your
vehicle that is not equipped with
seats and seat belts.
• Exceeding load limits or improperly
loading cargo on the vehicle can
cause a crash in which you can be
seriously injured or killed.
• Load the cargo securely before
starting to drive.

05
5-119
Underbed Storage
The underbed storage area is water
resistant and can be locked and unlocked
using the remote key or smart key.
Opening underbed storage
ONX4OB051021ONX4OB051021
The underbed storage can be unlocked
and opened by the following methods:
Vehicles equipped with remote key:
• Unlocking all doors using the main
unlock button in the vehicle or by
pressing the unlock button on the
remote key.
Vehicles equipped with Smart key:
• Unlocking all the doors using the
main unlock button in the vehicle or
by pressing the unlock button on the
smart key.
• Having the smart key in your
possession, opening the tailgate, and
then simply pressing the underfloor
storage release button.
Closing underbed storage
ONX4OB051022ONX4OB051022
To close the underbed storage lid, pull
the lid downward.
Note that if the underbed storage lid is
not fully closed, the LED bed lamps will
remain on and a warning message may
appear in the LCD cluster display.
Information
It is common for the underfloor storage
bin to have a scent when the vehicle is
new. This scent is normal, safe, and will be
reduced over time, similar to any new car
smell.
CAUTION
• Underbed storage should be dried
before closing the lid to prevent
mold growth.
• Take care to keep water channel and
sealing surface clear of debris.
• Do not store the valuable items
underbed storage area.
• Do not apply water directly to the
underbed storage bin latch. It may
cause latch damage.

Convenient Features
5-120
WARNING
ONX4OB051023ONX4OB051023
• Do not go into the underbed storage.
• If someone is locked inside the bin,
push the emergency release lever (1).
How to open underbed storage lid
manually
If there is an electrical failure that
prevents the bed underbed storage
lid from opening, the latch can be
mechanically released using the
following steps:
ONX4OB051076ONX4OB051076
1. Remove the tailgate assembly from its
hinges.
ONX4OB051077ONX4OB051077
2. Insert a ridged hook or tool between
the lid and floor, locating the release
cable with the tool.
3. Provide an even downward force to
release the latch.
