2023 HYUNDAI PALISADE instrument cluster

04
4-19

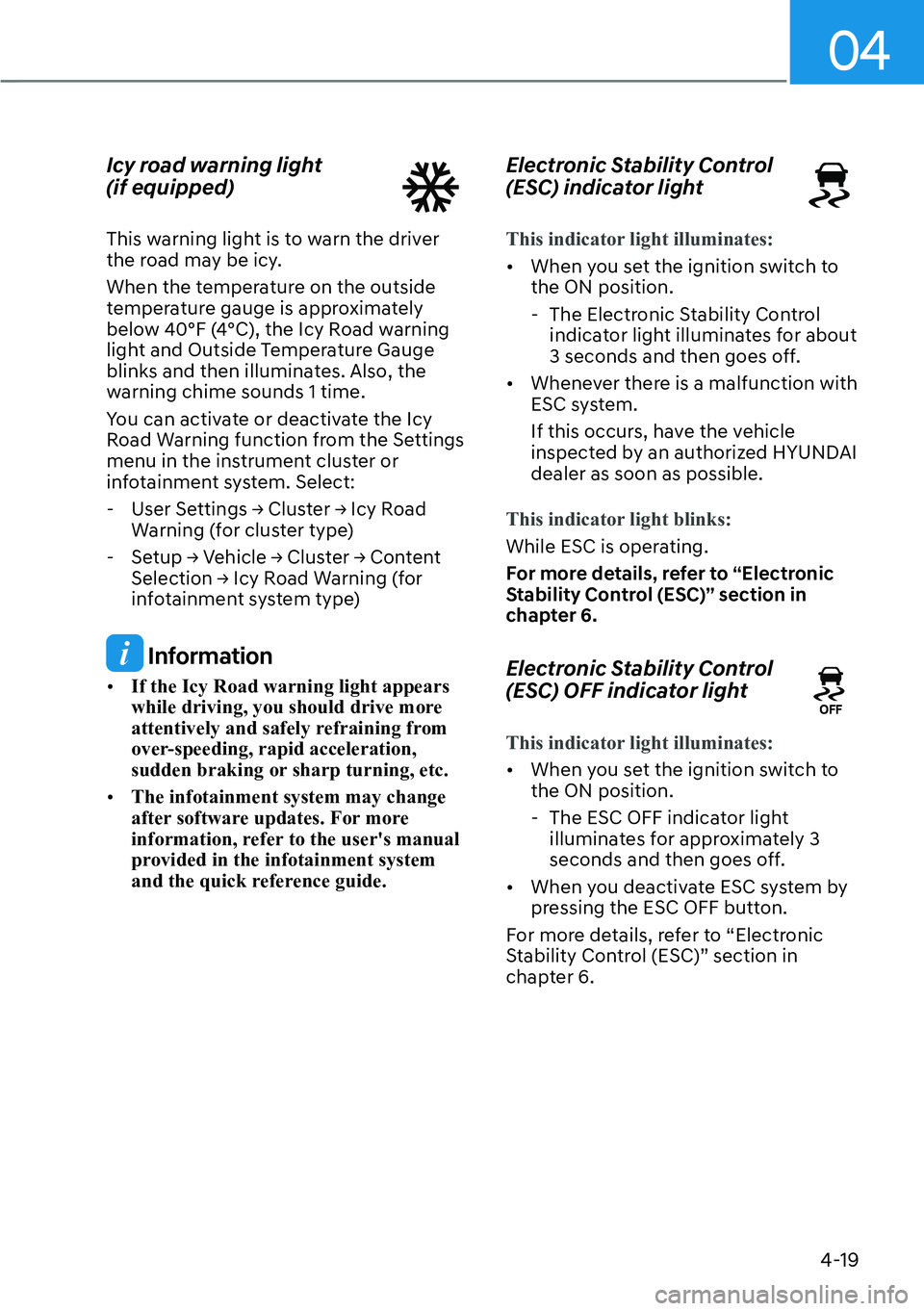

Icy road warning light
(if equipped)
This warning light is to warn the driver
the road may be icy.
When the temperature on the outside
temperature gauge is approximately
below 40°F (4°C), the Icy Road warning
light and Outside Temperature Gauge
blinks and then illuminates. Also, the
warning chime sounds 1 time.
You can activate or deactivate the Icy
Road Warning function from the Settings
menu in the instrument cluster or
infotainment system. Select: - 8VHU6HWWLQJV

Instrument Cluster4-20
Immobilizer indicator light
This indicator light illuminates for up to
30 seconds:
When the vehicle detects the smart key
in the v
ehicle with the ignition switch in
the ACC or ON position.
- Once the smart key is detected, you can start the engine.

- The indicator light goes off after
starting the engine.
This indicator light blinks for a few
seconds:
When the smart key is not in the vehicle. -
If the smart key is not detected, you
cannot start the engine.
This indicator light illuminates for 2
seconds and goes off:
If the smart key is in the vehicle and the
ignition s
witch is ON, but the vehicle
cannot detect the smart key.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
This indicator light blinks:
Whenever there is a malfunction with the
immobiliz
er system.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
Downhill Brake Control (DBC)
indicator light (if equipped)
This indicator light illuminates:

[ When y
ou set the ignition switch to
the ON position.

- The downhill brake control indicator
light illuminates for about 3 seconds
and then goes off.

[ When you activate the system by
pressing the DBC button.
This indicator light blinks:
When Downhill Brake Control system is
oper
ating.
This indicator light illuminates yellow:
Whenever there is a malfunction with
Do
wnhill Brake Control system.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more details, refer to "Downhill Brake
Control (DBC)" section in chapter 6.

Instrument Cluster4-22
High Beam Assist indicator
light
This indicator light illuminates:
When the high-beam is on with the light
s
witch in the AUTO position.

[ White: When High Beam Assist is
ready to operate.

[ Green: When High Beam Assist is
operating.
If your vehicle detects oncoming or
preceding vehicles, High Beam Assist
will switch the high beam to low beam
automatically.
For more details, refer to “High Beam
Assist (HBA)” section in chapter 5.
AUTO HOLD indicator light
This indicator light illuminates:

[ [Whit
e] When you activate Auto Hold
by pressing the AUTO HOLD switch.

[ [Green] When you stop the vehicle
completely by depressing the brake
pedal with Auto Hold activated.

[ [Yellow] Whenever there is a
malfunction with the Auto Hold
function.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
For more details, refer to “Electronic
Parking Brake (EPB)” section in chapter
6.
LCD Display Messages
Vehicle is on
This message is displayed if you open
the driver’s door when the gear is in P
(Park) and the ignition switch in the ON
or START position.
Turn the engine off before leaving the
vehicle.
Shift to P
This message is displayed if you try to
turn off the vehicle without the gear in
the P (Park) position.
If this occurs, the ignition switch places
to the ACC position.
Vehicle is in N. Press START button
and shift to P (if equipped)
This message is displayed if you try to
turn off the vehicle with the gear in N
(Neutral).
To turn off the vehicle:
1. Press the Engine Start/Stop button. The button will change to the ON
position.
2. Press the P button to shift to P (Park).
3. Press the Engine Start/Stop button again, then the vehicle will turn off.
Low key battery (for smart key
system)
This message is displayed if the battery
of the smart key is discharged while
changing the ignition switch to the OFF
position.

Instrument Cluster4-24
Battery discharging due to external
electrical devices (if equipped)
This message is displayed if the battery
voltage is weak due to any non-factory
electrical accessories (ex. dashboard
camera) while parking. Be careful that
the battery is not discharged.
If the warning message appears after
removing the non-factory electrical
accessories, have the vehicle inspected
by an authorized HYUNDAI dealer.
Press START button with key
(for smart key system)
This warning message is displayed if you
press the Engine Start/Stop button while
the warning message "Key not detected"
is displayed.
At this time, the immobilizer indicator
light blinks.
Place digital key on the wireless
charger to keep the vehicle running
If the vehicle is remotely started and
‘Start Vehicle’ is deselected from the
Settings menu in the infotainment
system screen for Driver 1 and Driver 2,
this message will be displayed for up to
30 seconds when a door is opened after
unlocking the doors with a digital key.
To drive your vehicle, place the
registered digital key on the wireless
charger, when this message appears.
Vehicle is On (started by digital key)
This message is displayed for up to 10
seconds if the driver's door is opened
without the driver's seat belt fastened
after turning on the engine with a digital
key. After the message is displayed, a
warning sounds when the door is closed.
Information
Since the engine was started with a digital
key, if the engine is turned off, and there is
no smart key or digital key in the vehicle,
it may be difficult to start the engine
again.
Place saved digital key on wireless
charger, then press the START
button
This message is displayed for 6 seconds
and the immobilizer indicator light
(
) will blink for 10 seconds after the
message “Press START button with key”
is displayed for 4 seconds if the smart
key is not in the vehicle or not detected,
or the digital key is not placed on the
wireless charger when you press the
Engine Start/Stop button. To start the
vehicle, place a registered digital key on
the wireless charger, and then press the
Engine Start/Stop button.
Scan an authorized fingerprint, then
press the START button
This message is displayed for 6 seconds
and the immobilizer indicator light
(
) will blink for 10 seconds after the
message “Press START button with key”
is displayed for 4 seconds if the smart
key is not in the vehicle or not detected,
or your fingerprint is not verified when
you press the Engine Start/Stop button.
To start the vehicle, have an authorized
fingerprint verified on the fingerprint
sensor, and then press the Engine Start/
Stop button.
Digital key(s) active
This message is displayed for 4 seconds
when a smartphone key or NFC card
key is registered, and vehicle doors are
locked and unlocked after more than
10 minutes and the ignition switch is
placed to the ON position. The message
is not displayed again until more than 10
minutes have passed after the doors are
relocked.

Instrument Cluster4-26
Lights
B0088EU04
This indicator displays which exterior
light is selected using the lighting
control.
You can activate or deactivate Wiper/
Lights display function from the Settings
menu in the infotainment system. Select: - 6HWXS

Instrument Cluster4-28
LCD Display Control
B0090KO01
The LCD display modes can be changed by using the control buttons.
Switch Function
MODE button for changing modes
, MOVE switch for changing items
OK SELECT/RESET button for setting or resetting the selected item
Information
If equipped with an infotainment system, only the Settings menu in the infotainment
system is supported and not the instrument cluster.
LCD DISPLAY

Instrument Cluster4-30
Trip computer mode
B0091EU04
B0091EU05
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more information, refer to "Trip
Computer" in this chapter.
Turn By Turn (TBT) mode
B0091KO03
Turn-by-turn navigation, distance/time
to destination information is displayed
when Turn by Turn view is selected.

Instrument Cluster4-32
Trip Computer (Type A)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example, Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Drive Info

[ Trip distance

[ Total driving time

[ Average fuel economy
Since refueling

[ Trip distance

[ Total driving time

[ Average fuel economy
Accumulated Info

[ Trip distance

[ Total driving time

[ Average fuel economy
Auto Stop (if equipped)
B0090KO01
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).

à For 10.25-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.
