2023 HYUNDAI PALISADE instrument cluster

Instrument Cluster4-34
Trip Computer (Type B)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example, Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Drive Info

[ Trip distance

[ Total driving time

[ Average fuel economy

Since refueling

[ Trip distance

[ Total driving time

[ Average fuel economy

Accumulated Info

[ Trip distance

[ Total driving time

[ Average fuel economy

Auto Stop (if equipped)

Digital speedometer
B0090KO01
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 1.6 gallons (6 liters) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).

à For 10.25-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.

Instrument Cluster4-36
B0802EU05

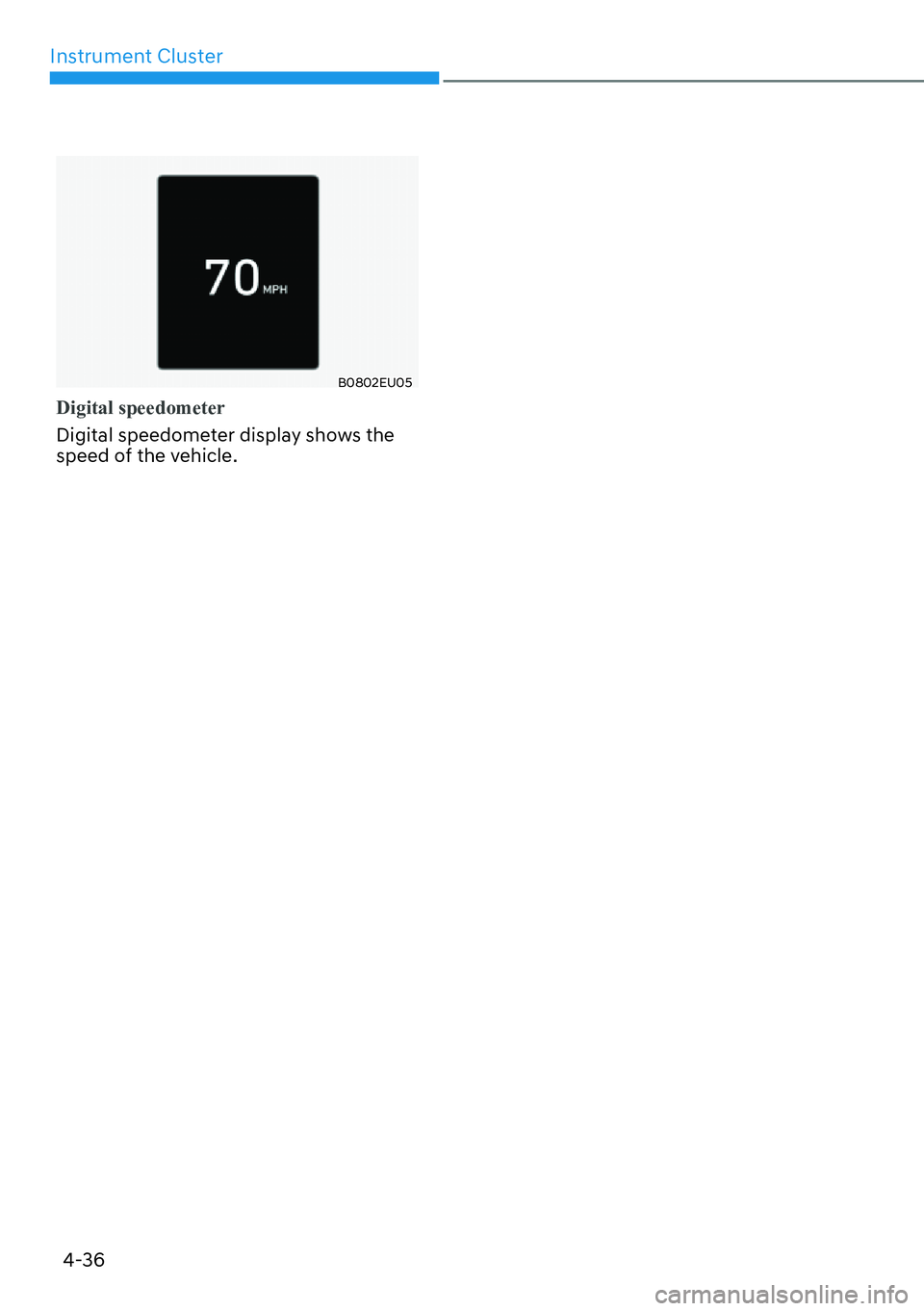

Digital speedometer
Digital speedometer display shows the
speed o
f the vehicle.

Convenience Features5-28

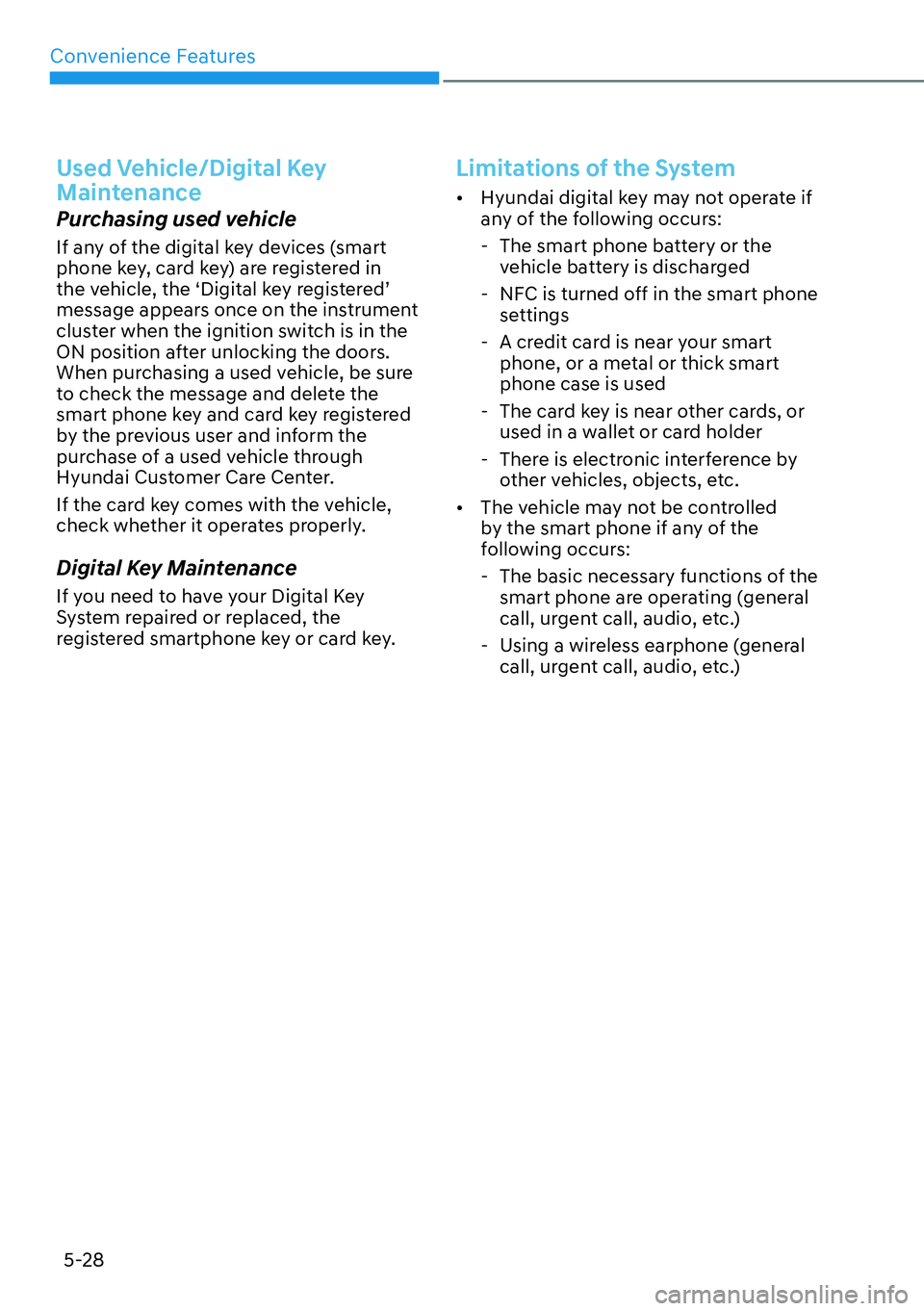

Used Vehicle/Digital Key
Maintenance
Purchasing used vehicle
If any of the digital key devices (smart
phone key, card key) are registered in
the vehicle, the ‘Digital key registered’
message appears once on the instrument
cluster when the ignition switch is in the
ON position after unlocking the doors.
When purchasing a used vehicle, be sure
to check the message and delete the
smart phone key and card key registered
by the previous user and inform the
purchase of a used vehicle through
Hyundai Customer Care Center.
If the card key comes with the vehicle,
check whether it operates properly.
Digital Key Maintenance
If you need to have your Digital Key
System repaired or replaced, the
registered smartphone key or card key.
Limitations of the System

[ Hyundai digital key may not operate if
any of the following occurs:

- The smart phone battery or the
vehicle battery is discharged

- NFC is turned off in the smart phone
settings

- A credit card is near your smart
phone, or a metal or thick smart
phone case is used

- The card key is near other cards, or
used in a wallet or card holder

- There is electronic interference by
other vehicles, objects, etc.

[ The vehicle may not be controlled
by the smart phone if any of the
following occurs:

- The basic necessary functions of the
smart phone are operating (general
call, urgent call, audio, etc.)

- Using a wireless earphone (general
call, urgent call, audio, etc.)

Convenience Features5-44
STEERING WHEEL
MDPS (Motor Driven Power
Steering)
The system assists you with steering the
vehicle. If the vehicle is turned off or
if the power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the system
checked by an authorized HYUNDAI
dealer.
CAUTION
If MDPS (Motor Driven Power Steering)
does not operate normally, the
warning light and the message ‘Check
motor driven power steering’ will
illuminate on the instrument cluster.
You may steer the vehicle, but it will
require increased steering efforts. Take
your vehicle to an authorized HYUNDAI
dealer or to a service station and have
the system checked as soon as possible.
Information
The following symptoms may occur during
normal vehicle operation:

[ The steering effort may be high
immediately after pressing the ignition
switch or Engine Start/Stop button to
the ON position.
This happens as the system performs
the MDPS system diagnostics. When
the diagnostics are completed, the
steering wheel effort will return to its
normal condition.

[ When the battery voltage is low, you
might have to put more steering effort.
However, it is a temporary condition so
that it will return to normal condition
after charging the battery.

[ A click noise may be heard from the
MDPS relay after the ignition switch or
Engine Start/Stop button is in the ON
or LOCK/OFF position.

[ Motor noise may be heard when the
vehicle is at a stop or at a low driving
speed.

[ When you operate the steering wheel
in low temperatures, abnormal noise
may occur. If the temperature rises, the
noise will disappear. This is a normal
condition.

[ When an error is detected from MDPS,
the steering effort assist function will
not be activated in order to prevent
fatal accidents. Instrument cluster
warning lights may be on or the
steering effort may be high. If these
symptoms occur, drive the vehicle to
a safe area as soon as it is safe to do
so. Have the system checked by an
authorized HYUNDAI dealer as soon
as possible.

05
5-45

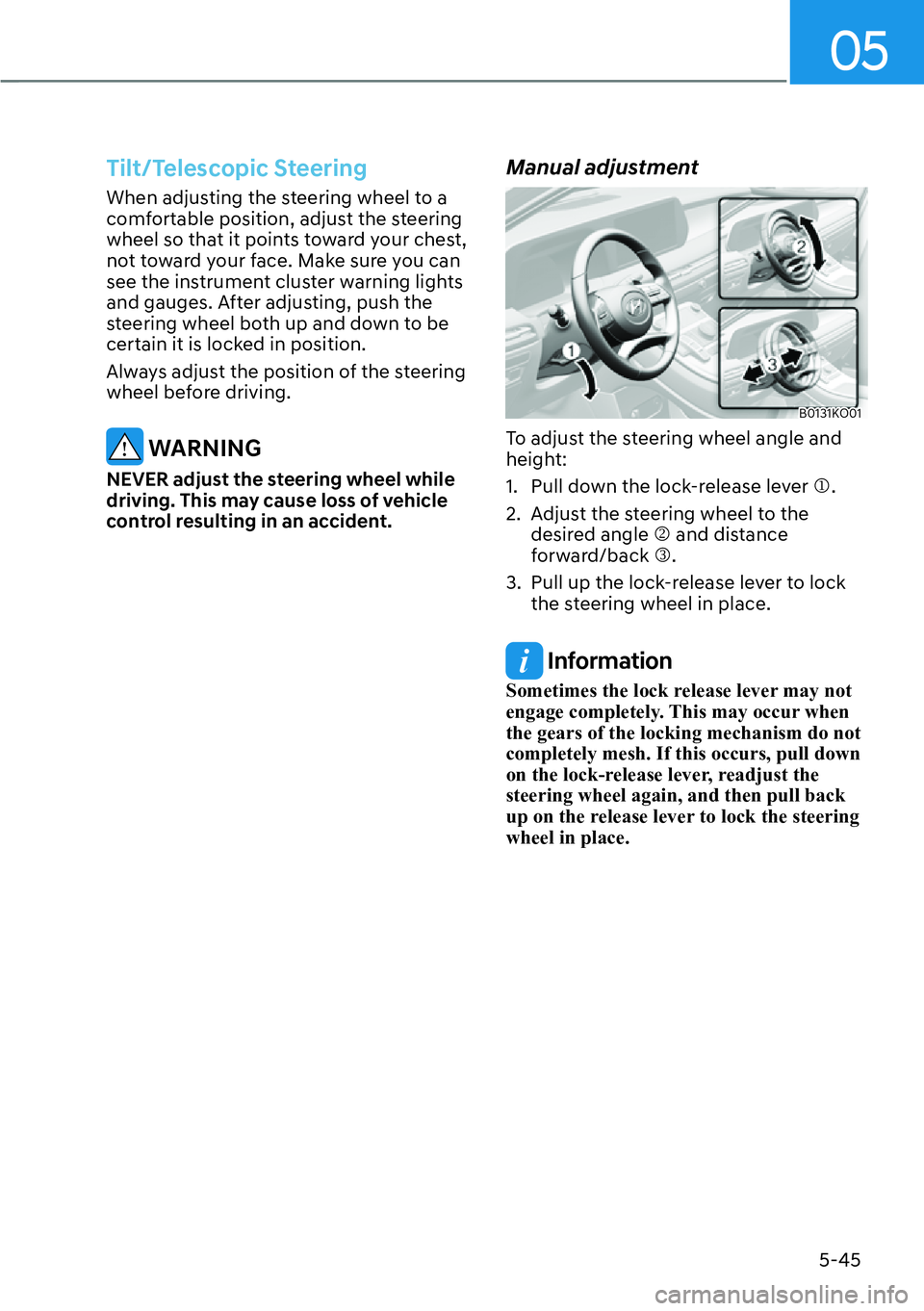

Tilt/Telescopic Steering
When adjusting the steering wheel to a
comfortable position, adjust the steering
wheel so that it points toward your chest,
not toward your face. Make sure you can
see the instrument cluster warning lights
and gauges. After adjusting, push the
steering wheel both up and down to be
certain it is locked in position.
Always adjust the position of the steering
wheel before driving.
WARNING
NEVER adjust the steering wheel while
driving. This may cause loss of vehicle
control resulting in an accident.
Manual adjustment
B0131KO01
To adjust the steering wheel angle and
height:
1. Pull down the lock-release lever M.
2. Adjust the steering wheel to the desired angle N and distance
forward/back O.
3. Pull up the lock-release lever to lock the steering wheel in place.
Information
Sometimes the lock release lever may not
engage completely. This may occur when
the gears of the locking mechanism do not
completely mesh. If this occurs, pull down
on the lock-release lever, readjust the
steering wheel again, and then pull back
up on the release lever to lock the steering
wheel in place.

Convenience Features5-82
Opening the Hood
B0152KO01
1. Park the vehicle and set the parking brake.
2. Pull the release lever to unlatch the hood. The hood should pop open
slightly.
B0152KO02
3. Go to the front of the vehicle, raise the hood slightly, push up the secondary
latch M inside of the hood center and
lift the hood N.
After the hood has been lifted halfway,
it will raise completely by itself.
Closing the Hood
1. Before closing the hood, check in and around the engine compartment to
ensure the following:

- Any tools or other loose objects
are removed from the engine room
area or hood opening area

- All gloves, rags, or other
combustible material is removed
from the engine compartment

- All filler caps are tightly and
correctly installed
2. Lower the hood halfway (lifted approximately 12 in. (30 cm) from the
closed position) and push down to
securely lock in place. Then double
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.
WARNING

[Before closing the hood, ensure
all obstructions are removed from
around the hood opening.

[ Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.

[ Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.
HOOD

Convenience Features5-86

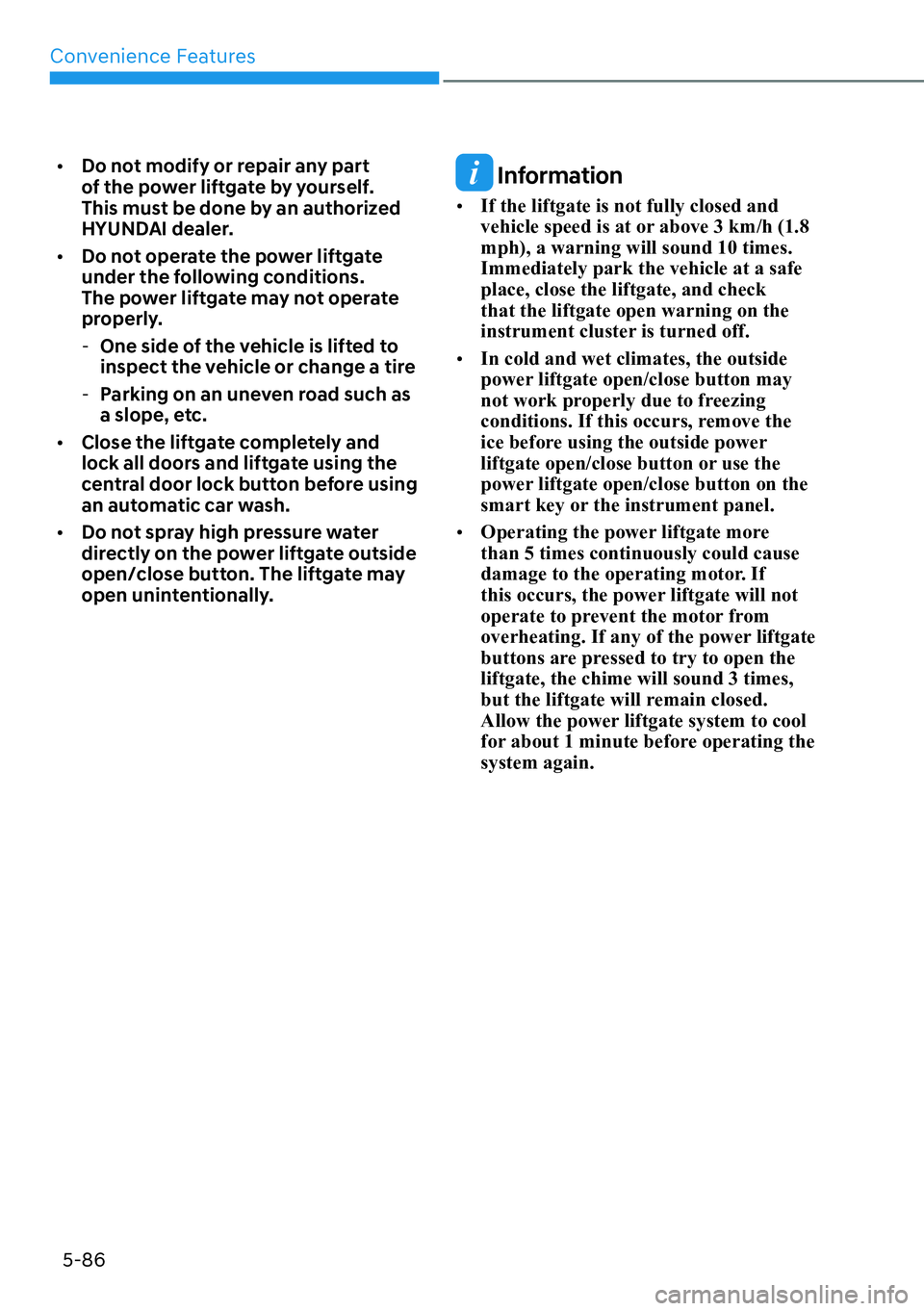

[ Do not modify or repair any part
of the power liftgate by yourself.
This must be done by an authorized
HYUNDAI dealer.

[ Do not operate the power liftgate
under the following conditions.
The power liftgate may not operate
properly.

- One side of the vehicle is lifted to
inspect the vehicle or change a tire

- Parking on an uneven road such as
a slope, etc.

[ Close the liftgate completely and
lock all doors and liftgate using the
central door lock button before using
an automatic car wash.

[ Do not spray high pressure water
directly on the power liftgate outside
open/close button. The liftgate may
open unintentionally. Information

[If the liftgate is not fully closed and
vehicle speed is at or above 3 km/h (1.8
mph), a warning will sound 10 times.
Immediately park the vehicle at a safe
place, close the liftgate, and check
that the liftgate open warning on the
instrument cluster is turned off.

[ In cold and wet climates, the outside
power liftgate open/close button may
not work properly due to freezing
conditions. If this occurs, remove the
ice before using the outside power
liftgate open/close button or use the
power liftgate open/close button on the
smart key or the instrument panel.

[ Operating the power liftgate more
than 5 times continuously could cause
damage to the operating motor. If
this occurs, the power liftgate will not
operate to prevent the motor from
overheating. If any of the power liftgate
buttons are pressed to try to open the
liftgate, the chime will sound 3 times,
but the liftgate will remain closed.
Allow the power liftgate system to cool
for about 1 minute before operating the
system again.

05
5-91

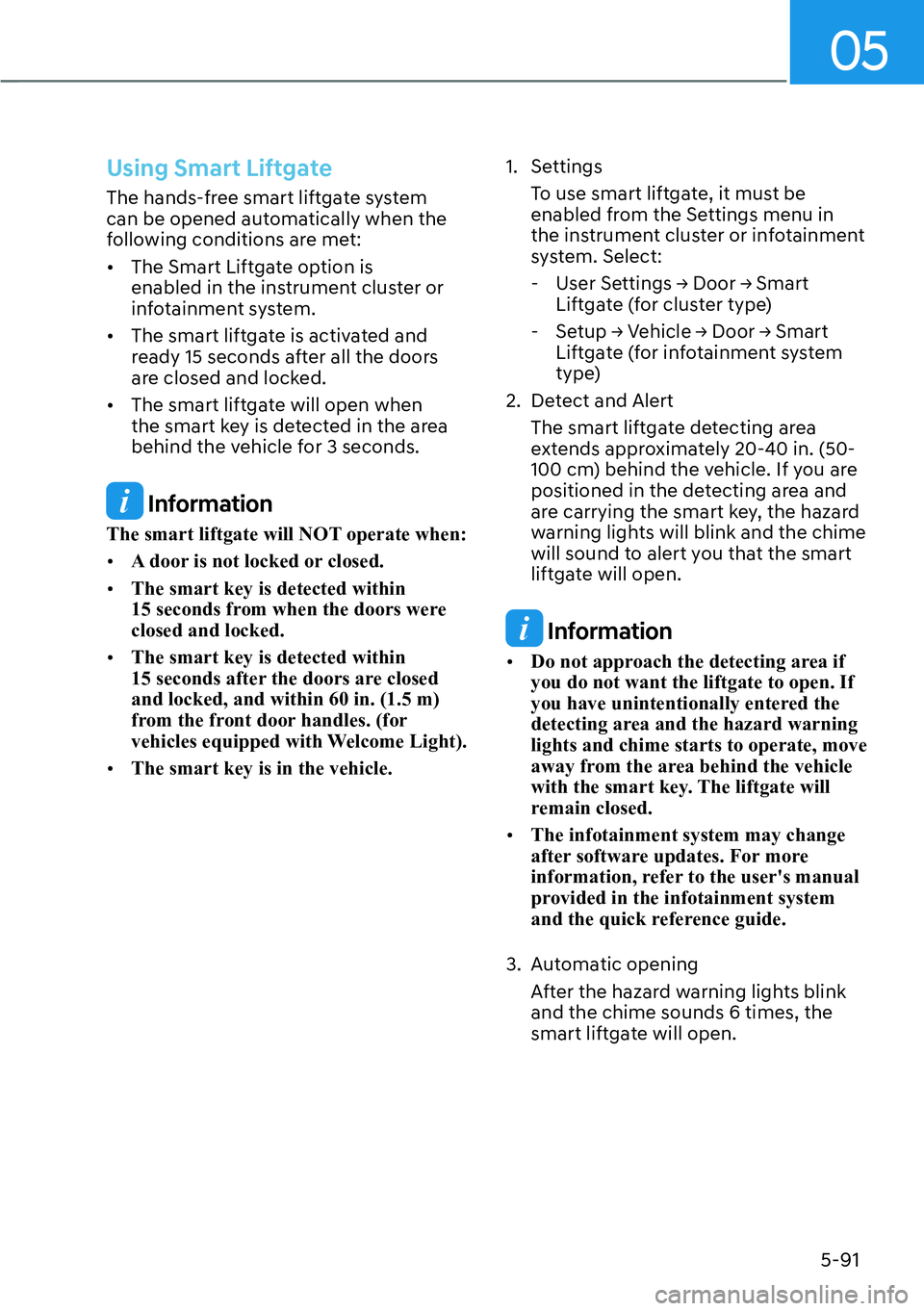

Using Smart Liftgate
The hands-free smart liftgate system
can be opened automatically when the
following conditions are met:

[The Smart Liftgate option is
enabled in the instrument cluster or
infotainment system.

[ The smart liftgate is activated and
ready 15 seconds after all the doors
are closed and locked.

[ The smart liftgate will open when
the smart key is detected in the area
behind the vehicle for 3 seconds.
Information
The smart liftgate will NOT operate when:

[A door is not locked or closed.

[ The smart key is detected within
15 seconds from when the doors were
closed and locked.

[ The smart key is detected within
15 seconds after the doors are closed
and locked, and within 60 in. (1.5 m)
from the front door handles. (for
vehicles equipped with Welcome Light).

[ The smart key is in the vehicle. 1. Settings
To use smart liftgate, it must be
enabled from the Settings menu in
the instrument cluster or infotainment
system. Select:

- 8VHU6HWWLQJV
