Driving your vehicle6-26
OCN7N061247N
ESC SPORT
To activate ESC SPORT mode

[ Pr

ess the ESC OFF button briefly. The
ESC SPORT indicator light illuminates
on the cluster LCD display. In this
state, ESC only stabilizes the vehicle
to a limited degree.
When ESC SPORT mode is activated:

[ ESC only improves driving stability to
a limited degree.

[ Traction control is still activated, but
with less wheel control (more slip).

[ Engine torque can partially be limited
for the vehicle's stability and the
driving wheel spin may be restricted
for better traction.
To deactivate ESC SPORT mode

[ Press the ESC OFF button briefly. The
ESC SPORT indicator light will go off
on the cluster LCD display.
To deactivate ESC (ESC OFF)
Press and hold the ESC OFF
button continuously for more
than 3 seconds. The ESC OFF
indicator light and message
"Traction & Stability Control
disabled" illuminates and a
warning chime sounds. In
this state, both the traction
control function of ESC (engine
management) and the brake
control function of ESC (braking
management) are disabled. To
activate the ESC again, briefly
press the ESC OFF button. The
ESC OFF indicator light will go
off.
NOTICE
Driving with wheels and tires with
different sizes may cause the ESC
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized wheels and
tires installed.
WARNING
Don't use ESC SPORT mode or ESC OFF
while using a mini spare tire or a tire
repair kit is in use!

06
6-27
ESC OFF usage
When Driving
The ESC OFF mode should only be used
brie
fly to help free the vehicle if stuck in
snow or mud, by temporarily stopping
operation of ESC, to maintain wheel
torque.
To turn ESC off while driving, press the
ESC OFF button while driving on a flat
road surface.
NOTICE
To prevent damage to the transmission:

[ Do not allow wheel(s) of one axle to
spin excessively while the ESC, ABS,
and Parking Brake warning lights
are displayed. The repairs would not
be covered by the vehicle warranty.
Reduce engine power and do not
spin the wheel(s) excessively while
these lights are displayed.

[ When operating the vehicle
on a dynamometer, make sure
ESC is turned off (ESC OFF light
illuminated).
Information
Turning ESC off does not affect ABS or
standard brake system operation.
Drive mode selection
When the ESC is on, the characteristic
of ESC varies according to which drive
mode is selected by pressing the DRIVE
MODE or N1 or N2 button on the steering
wheel.
Mode
button Selected
mode Characteristic
of ESC
DRIVE
MODE
butt

on ECO mode NORMAL
NORMAL mode NORMAL
SPORT mode NORMAL
N button N mode SPORT
N CUSTOM mode NORMAL/
SPORT/OFF
For more details, refer to "Drive Mode
Integrated Control System" in this
chapter.

Driving your vehicle6-28

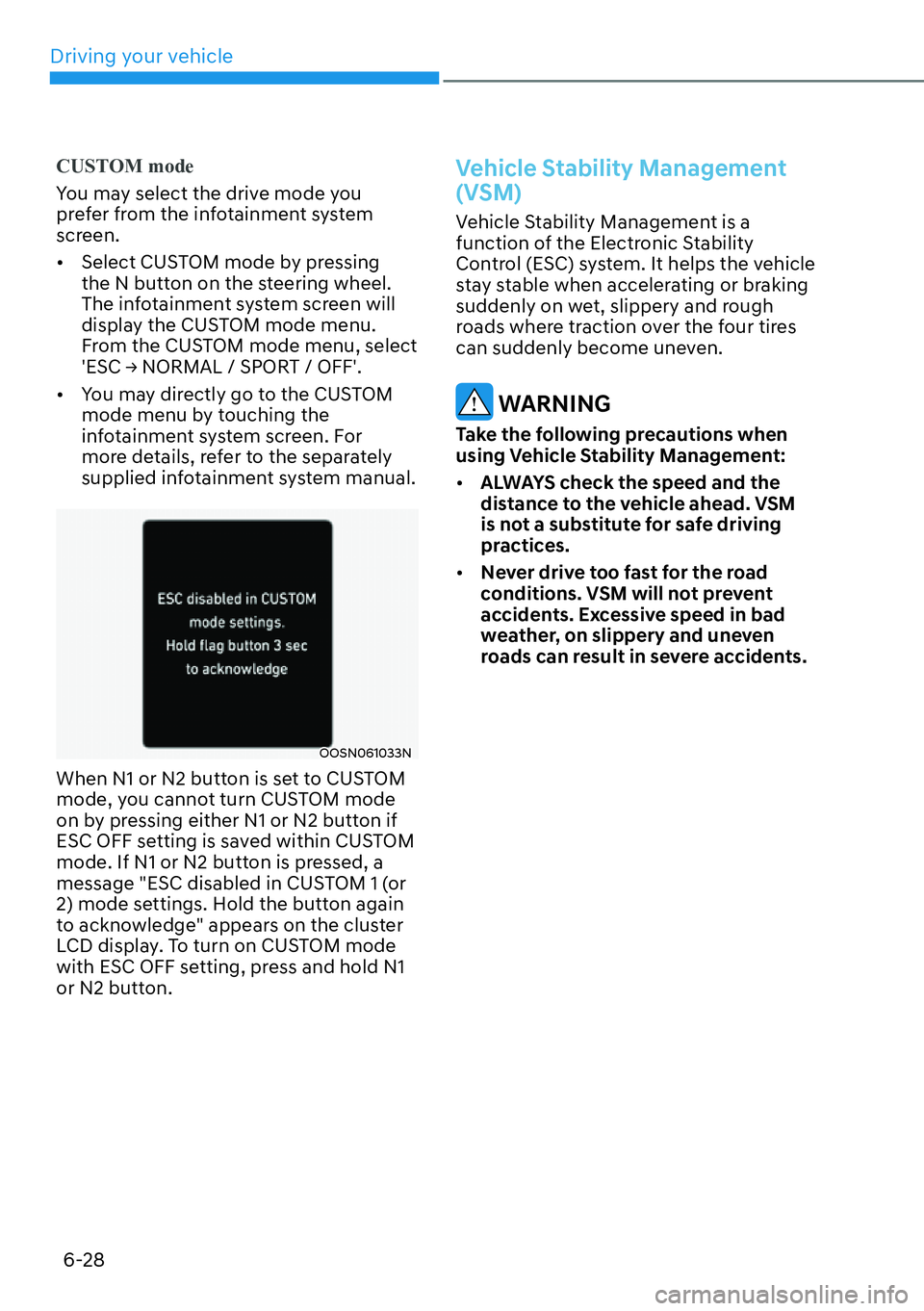

CUSTOM mode
You may select the drive mode you
pr
efer from the infotainment system
screen.

[ Select CUSTOM mode by pressing
the N button on the steering wheel.
The infotainment system screen will
display the CUSTOM mode menu.
From the CUSTOM mode menu, select

(6&

06
6-29
VSM operation
When operating
When you apply your brakes under
conditions which ma
y activate ESC, you
may hear sounds from the brakes, or feel
a corresponding sensation in the brake
pedal. This is normal and it means your
VSM is active.
Information
VSM does not operate when:

[ Driving through banked corners might
result in a ESC system shut down,
due to system self-diagnostics and an
assumption of a sensor failure. In the
next ignition cycle, the ESC system is
available again.

[ Driving in reverse.

[ The ESC OFF indicator light is on.

[ The EPS (Electric power steering)
warning light (
) is on or blinks.
VSM OFF condition
To cancel VSM operation, press the ESC
OFF butt

on. ESC OFF () indicator light
will illuminate.
To turn on VSM, press the ESC OFF
button again. The ESC OFF indicator light
will go out.
WARNING
If the ESC () indicator light or EPS
() warning light stays illuminated
or blinks, your vehicle may have a
malfunction with the VSM system.
When the warning light illuminates
have the vehicle be checked by an
authorized HYUNDAI dealer as soon as
possible.
NOTICE
Driving with wheels and tires with
different sizes may cause the VSM
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized tires and
wheels installed.

06
6-35

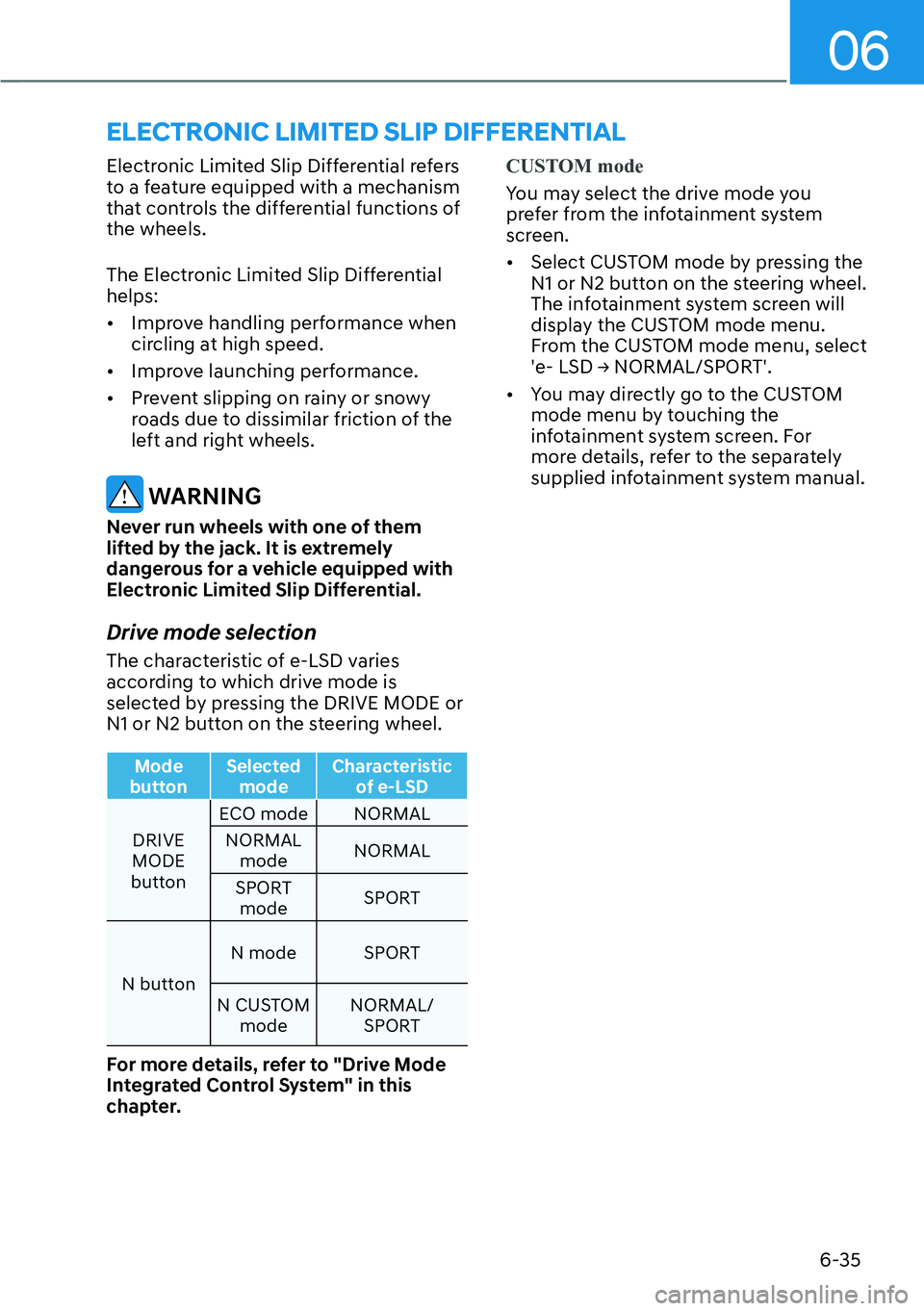

ELECTRONIC LIMITED SLIP DIFFERENTIAL
Electronic Limited Slip Differential refers
to a feature equipped with a mechanism
that controls the differential functions of
the wheels.
The Electronic Limited Slip Differential
helps:

[Improve handling performance when
circling at high speed.

[ Improve launching performance.

[ Prevent slipping on rainy or snowy
roads due to dissimilar friction of the
left and right wheels.
WARNING
Never run wheels with one of them
lifted by the jack. It is extremely
dangerous for a vehicle equipped with
Electronic Limited Slip Differential.
Drive mode selection
The characteristic of e-LSD varies
according to which drive mode is
selected by pressing the DRIVE MODE or
N1 or N2 button on the steering wheel.
Mode
button Selected
mode Characteristic
of e-LSD
DRIVE
MODE
butt

on ECO mode NORMAL
NORMAL mode NORMAL
SPORT mode SPORT
N button N mode SPORT
N CUSTOM mode NORMAL/
SPORT
For more details, refer to "Drive Mode
Integrated Control System" in this
chapter. CUSTOM mode
You may select the drive mode you
pr

efer from the infotainment system
screen.

[ Select CUSTOM mode by pressing the
N1 or N2 button on the steering wheel.
The infotainment system screen will
display the CUSTOM mode menu.
From the CUSTOM mode menu, select

H/6'

Driving your vehicle6-38
DRIVE MODE INTEGRATED CONTROL SYSTEM
Drive Mode
„Drive mode knob
OOSN061008N
„N1 button
OOSN061020L
„N2 button
OOSN061021L
Information
If N1 or N2 button is set to ‘Drive mode’
from the infotainment system, the drive
mode can be selected by pressing N1 or N2
button.
For more details, please refer to the
infotainment system manual separately
supplied. The drive mode may be selected
according to the driver’s preference or
road condition.
The system resets to be in the NORMAL
mode, when the engine is restarted.
The mode changes, whenever the N1 or
N2 button on the steering wheel or the
Drive mode knob is turned.
NORMAL
SPORT ECO
SNOW
When NORMAL mode is selected, it is
not displayed on the instrument cluster.
When in NORMAL mode, turn the Drive
mode knob to the limit and hold as a
shortcut to N mode.

Driving your vehicle6-40
SPORT mode
SPORT mode manages
the driving dynamics by
automatically adjusting the
steering effort, the engine and
transmission control logic for
enhanced driving performance.

[ When SPORT mode is selected by
pressing the DRIVE MODE knob, the
SPORT indicator will illuminate.

[ Whenever the engine is restarted,
the Drive Mode will revert back to
NORMAL mode. If SPORT mode is
desired, re-select SPORT mode from
the DRIVE MODE Knob.

[ When SPORT mode is activated:
- The engine RPM will tend to remain raised over a certain length of time
even after releasing the accelerator
- Upshifts are delayed when accelerating
Information
In SPORT mode, the fuel efficiency may
decrease.
SNOW mode
SNOW mode offers special
traction tuning for snow
optimizing available traction in
adverse conditions. Snow mode
adjusts left and right wheel slip
control, engine torque and shift
patterns according to available
traction levels.
N mode
„N1 button
OOSN061020L
„N2 button
OOSN061021L
N mode may be selected by pressing the
N1 or N2 button.
The system resets to be in the NORMAL
mode, when the engine is restarted.
Information
The driver can set the N1 or N2 button to
N mode on the infotainment system screen.
For more details on N1 or N2 button
setup, refer to “N button” in this chapter.

Driving your vehicle6-42
NGS (N Grin Shift)
Controls engine / transmission to
maximum performance when pressing
NGS button on the steering wheel
remote control in situations where rapid
acceleration is required.
Functional description and
operating conditions
OOSN061018L
When NGS button is pressed:

[ Automatically shifts to the lowest
allowable gear (Automatic shifting is
not performed in manual shift mode)

[ Turbo is in overboost mode (For
added power and torque)

[ N Grin Shift is available for 20 Seconds

[ N Grin Shift can be reused 40 seconds
later after using the function for 20
seconds
N Grin Shift will turn off during operation
or will not operate when:

[ Changing Drive-mode during N Grin
Shift operation

[ Engine check light is on

[ Transmission high temperature
(overheating) lights on

[ Transmission malfunction

[ Shift lever is in P/ R/ N

[ Using N Grin Shift within 40 seconds
after using the function for 20
seconds
„Activated „Non-operating
OJSN040333OOSN061052N
CAUTION

[The driver should hold the
responsibility to safely drive and
control the vehicle when using N
Grin Shift.

[ Do not attempt dangerous driving
while using N Grin Shift.

[ It is recommended to use after
vehicle break-in and continuous
use of N Grin Shift can overload
the vehicle components such as
transmission, engine and drive shaft.
