Driving your vehicle6-6
Engine Start/Stop Button Positions
Button Position Action Notes
OFF T
o turn off the engine, press
the Engine Start/Stop button
with the vehicle shifted to P
(Park).
Note if the Engine Start/Stop
button is pressed with the
vehicle shifted to D (Drive)
or R (Reverse), the gear will
automatically shift to P (Park).
If the Engine Start/Stop
button is pressed with the
gear shifted to N (Neutral), the
Engine Start/Stop button will
change to the ACC position. If the steering wheel is not locked
properly when you open the driver’s
door, the warning chime will sound.
ACC
Press the Engine Start/Stop
button when the button is
in the OFF position without
depressing the brake pedal.
Some of the electrical
accessories are usable.
The steering wheel unlocks.
[
If you leave the Engine Start/Stop
button in the ACC position for
more than one hour, the battery
power will turn off automatically
to prevent the battery from
discharging.

[ If the steering wheel doesn’t unlock
properly, the Engine Start/Stop
button will not work. Press the
Engine Start/Stop button while
turning the steering wheel right and
left to release.
ON Press the Engine Start/Stop
button while it is in the ACC
position without depressing
the brake pedal.
The warning lights can be
checked before the engine is
started. Do not leave the Engine Start/Stop
button in the ON position when the
engine is not running to prevent the
battery from discharging.
START
To start the engine, depress
the brake pedal and press the
Engine Start/ Stop button with
the gear shifted to the P (Park)
or the N (Neutral) position.
For your safety, start the
engine with the gear shifted to
the P (Park) position. If you press the Engine Start/Stop
button without depressing the brake
pedal, the engine does not start
and the Engine Start/Stop button
changes as follows:
2))

Driving your vehicle6-14
Transmission ranges
The indicator in the instrument cluster
displays the shift lever position when the
Engine Start/Stop button is in the ON
position.
P (Park)
Always come to a complete stop before
shifting in
to P (Park).
To shift from P (Park), you must depress
firmly on the brake pedal and make sure
your foot is off the accelerator pedal.
If you have done all of the above and
still cannot shift the lever out of P
(Park), see “Shift-Lock Release” in this
chapter.
The shift lever must be in P (Park) before
turning the engine off.
WARNING

[ Shifting into P (Park) while the
vehicle is in motion may cause you to
lose control of the vehicle.

[ After the vehicle has stopped, always
make sure the shift lever is in P
(Park), apply the parking brake, and
turn the engine off.

[ When parking on an incline, place
the shift lever in P (Park) and apply
the parking brake to prevent the
vehicle from rolling downhill.

[ For safety, always engage the
parking brake with the shift lever in
the P (Park) position except for the
case of emergency parking.
R (Reverse)
Use this position to drive the vehicle
backw

ard.
NOTICE
Always come to a complete stop before
shifting into or out of R (Reverse); you
may damage the transmission if you
shift into R (Reverse) while the vehicle is
in motion.
N (Neutral)
The wheels and transmission are not
engaged.
U

se N (Neutral) if you need to restart a
stalled engine, or if it is necessary to stop
with the engine ON. Shift into P (Park)
if you need to leave your vehicle for any
reason.
Always depress the brake pedal when
you are shifting from N (Neutral) to
another gear.
WARNING
Do not shift into gear unless your foot is
firmly on the brake pedal. Shifting into
gear when the engine is running at high
speed can cause the vehicle to move
very rapidly. You could lose control of
the vehicle and hit people or objects.

Driving your vehicle6-18
Good Driving Practices

[ Never move the shift lever from P
(Park) or N (Neutral) to any other
position with the accelerator pedal
depressed.

[ Never move the shift lever into P
(Park) when the vehicle is in motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).

[ Do not move the shift lever to N
(Neutral) when driving. Doing so
may result in an accident because
of a loss of engine braking and the
transmission could be damaged.

[ Driving uphill or downhill, always shift
to D (Drive) when driving forward or to
R (Reverse) when driving backwards,
and check the gear position indicated
on the cluster before driving. If you
drive in the opposite direction of the
selected gear, the engine will turn
off and a serious accident might be
occurred due to the degraded brake
performance.

[ Do not drive with your foot resting
on the brake pedal. Even light, but
consistent pedal pressure can result
in the brakes overheating, brake wear
and possibly even brake failure.

[ Depressing both accelerator
and brake pedals at the same
time can trigger logic for engine
power reduction to assure vehicle
deceleration. Vehicle acceleration
will resume after the brake pedal is
released.

[ When driving in Manual Shift mode,
slow down before shifting to a lower
gear. Otherwise, the lower gear may
not be engaged if the engine RPMs
are outside of the allowable range.

[ When driving with shifter paddles,
slow down before shifting to a lower
gear. Otherwise, the lower gear may
not be engaged if the engine RPMs
are outside of the allowable range.
[
Always apply the parking brake when
leaving the vehicle. Do not depend on
placing the transmission in P (Park) to
keep the vehicle from moving.

[ Exercise extreme caution when
driving on a slippery surface. Be
especially careful when braking,
accelerating or shifting gears. On a
slippery surface, an abrupt change
in vehicle speed can cause the drive
wheels to lose traction and may cause
loss of vehicle control resulting in an
accident.

[ Optimum vehicle performance and
economy is obtained by smoothly
depressing and releasing the
accelerator.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[ALWAYS wear your seatbelt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.

[ Avoid high speeds when cornering or
turning.

[ Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[ The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[ Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[ In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the t ravel lanes.

[ HYUNDAI recommends you follow all
posted speed limits.

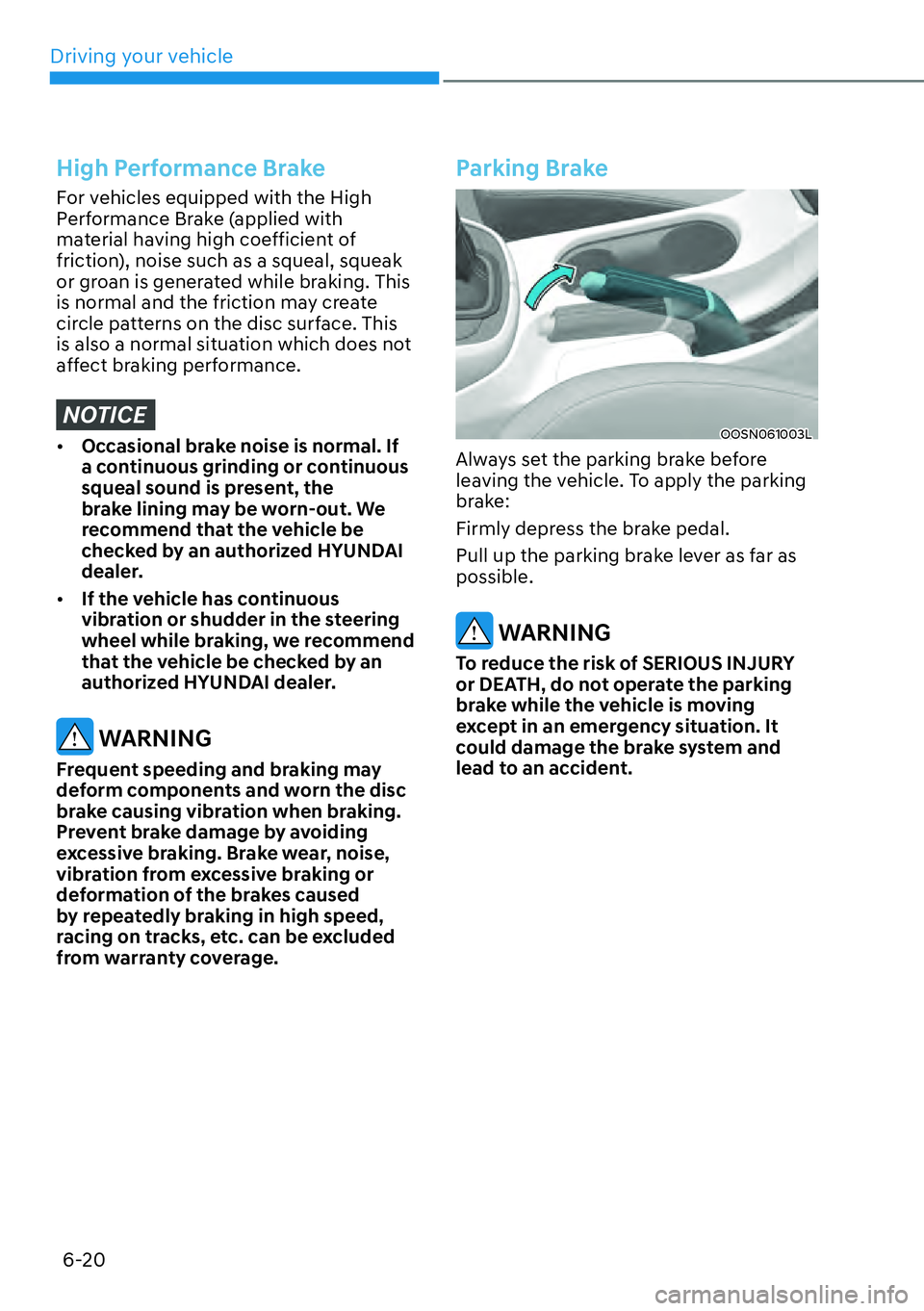

Driving your vehicle6-20
High Performance Brake
For vehicles equipped with the High
Performance Brake (applied with
material having high coefficient of
friction), noise such as a squeal, squeak
or groan is generated while braking. This
is normal and the friction may create
circle patterns on the disc surface. This
is also a normal situation which does not
affect braking performance.
NOTICE

[ Occasional brake noise is normal. If
a continuous grinding or continuous
squeal sound is present, the
brake lining may be worn-out. We
recommend that the vehicle be
checked by an authorized HYUNDAI
dealer.

[ If the vehicle has continuous
vibration or shudder in the steering
wheel while braking, we recommend
that the vehicle be checked by an
authorized HYUNDAI dealer.
WARNING
Frequent speeding and braking may
deform components and worn the disc
brake causing vibration when braking.
Prevent brake damage by avoiding
excessive braking. Brake wear, noise,
vibration from excessive braking or
deformation of the brakes caused
by repeatedly braking in high speed,
racing on tracks, etc. can be excluded
from warranty coverage.
Parking Brake
OOSN061003L
Always set the parking brake before
leaving the vehicle. To apply the parking
brake:
Firmly depress the brake pedal.
Pull up the parking brake lever as far as
possible.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH, do not operate the parking
brake while the vehicle is moving
except in an emergency situation. It
could damage the brake system and
lead to an accident.

06
6-21
OOSN061004L
To release:
Firmly depress the brake pedal.
While pressing the release button (1),
slightly pull up on the parking brake lever
then lower the parking brake lever (2).
If the parking brake does not release
or does not release all the way, have
your vehicle checked by an authorized
HYUNDAI dealer.
WARNING

[Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the
brake pedal. Move the shift lever
into P (Park) position, then apply
the parking brake, and set the
Engine Start/Stop button in the OFF
position.
Vehicles with the parking brake not
fully engaged are at risk for moving
inadvertently and causing injury to
yourself or others.

[ When parking on an incline, block
the wheels to prevent the vehicle
from rolling down.

[ NEVER allow anyone who is
unfamiliar with the vehicle to touch
the parking brake. If the parking
brake is released unintentionally,
serious injury may occur.

[ Only release the parking brake when
you are seated inside the vehicle
with your foot firmly on the brake
pedal.
NOTICE

[Do not apply the accelerator pedal
while the parking brake is engaged.
If you depress the accelerator pedal
with the parking brake engaged,
warning will sound. Damage to the
parking brake may occur.

[ Driving with the parking brake on
can overheat the braking system and
cause premature wear or damage to
brake parts. Make sure the parking
brake is released and the Brake
Warning Light is off before driving.
Check the Parking Brake
Warning Light by setting the
Engine Start/Stop button to
the ON position (do not start
the engine).
This light will be illuminated when the
parking brake is applied with the Engine
Start/Stop button in the START or ON
position.
Before driving, be sure the parking brake
is released and the Brake Warning Light
is OFF.
If the Parking Brake Warning Light
remains on after the parking brake
is released while engine is running,
there may be a malfunction in the
brake system. Immediate attention is
necessary.
If at all possible, cease driving the vehicle
immediately. If that is not possible,
use extreme caution while operating
the vehicle and only continue to drive
the vehicle until you can reach a safe
location.

Driving your vehicle6-22
Anti-Lock Brake System (ABS)
WARNING
Anti-Lock Braking System (ABS) or
Electronic Stability Control (ESC)
system will not prevent accidents
due to improper or dangerous driving
maneuvers. Even though vehicle
control is improved during emergency
braking, always maintain a safe
distance between you and objects
ahead of you. Vehicle speeds should
always be reduced during extreme
road conditions. The braking distance
for vehicles equipped with ABS or ESC
may be longer than for those without
these systems in the following road
conditions.
Drive your vehicle at reduced speeds
during the following conditions:

[ Rough, gravel or snow-covered
roads.

[ On roads where the road surface is
pitted or has different surface height.

[ Tire chains are installed on your
vehicle.
The safety features of ABS or ESC
equipped vehicle should not be tested
by high speed driving or cornering. This
could endanger the safety of yourself or
others.
ABS is an electronic braking system that
helps prevent a braking skid. ABS allows
the driver to steer and brake at the same
time.
Using ABS
To obtain the maximum benefit from
your ABS in an emergency situation,
do not attempt to modulate your brake
pressure and do not try to pump your
brakes. Depress your brake pedal as hard
as possible.
When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in the
brake pedal. This is normal and it means
your ABS is active.
ABS does not reduce the time or distance
it takes to stop the vehicle.
Always maintain a safe distance from the
vehicle in front of you.
ABS will not prevent a skid that results
from sudden changes in direction, such
as trying to take a corner too fast or
making a sudden lane change. Always
drive at a safe speed for the road and
weather conditions.
ABS cannot prevent a loss of stability.
Always steer moderately when braking
hard. Severe or sharp steering wheel
movement can still cause your vehicle to
veer into oncoming traffic or off the road.
On loose or uneven road surfaces,
operation of the anti-lock brake system
may result in a longer stopping distance
than for vehicles equipped with a
conventional brake system.
The ABS (
) warning light will stay
on for several seconds after the Engine
Start/Stop button is in the ON position.
During that time, ABS will go through
self-diagnosis and the light will go off if
everything is normal.

Driving your vehicle6-24
ESC operation
ESC ON condition
When the engine is turned off and then
on again, ESC oper
ation is enabled,
and it is activated in the ESC operating
mode (not in ESC Sport mode or ESC
OFF mode) regardless of the ESC mode
before turning off the engine.
You may select between the following
state of ESC:

[ ESC NORMAL activated (ESC ON)

[ ESC SPORT activated (ESC SPORT
indicator illuminates)

[ ESC deactivated (ESC OFF indicator
illuminates)
When operating
When ESC is in operation, the
ESC indicator light blinks:

[ When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in
the brake pedal. This is normal and it
means your ESC is active.

[ When ESC activates, the engine may
not respond to the accelerator as it
does under routine conditions.

[ If Cruise Control was in use when ESC
activates, Cruise Control automatically
disengages. Cruise Control can be
reengaged when the road conditions
allow. See “Cruise Control (CC)” later
in this chapter.

[ When moving out of the mud or
driving on a slippery road, the engine
rpm (revolutions per minute) may
not increase even if you press the
accelerator pedal deeply. This is to
maintain the stability and traction of
the vehicle and does not indicate a
problem.
Indicator lights

v
ESC indicator light (blinks)

v ESC OFF indicator light (comes on)
When the Engine Start/Stop button is
in the ON position, the ESC indicator
light illuminates, then goes off if the ESC
system is operating normally.
The ESC indicator light blinks whenever
ESC is operating.
If the ESC indicator light stays on, your
vehicle may have a malfunction with
the ESC system. When this warning light
illuminates have the vehicle be checked
by an authorized HYUNDAI dealer as
soon as possible.
The ESC OFF indicator light comes on
when ESC is turned off.
WARNING
When ESC is blinking, this indicates ESC
is active:
Drive slowly and NEVER attempt to
accelerate. NEVER turn ESC off while
the ESC indicator light is blinking or you
may lose control of the vehicle resulting
in an accident.

06
6-25

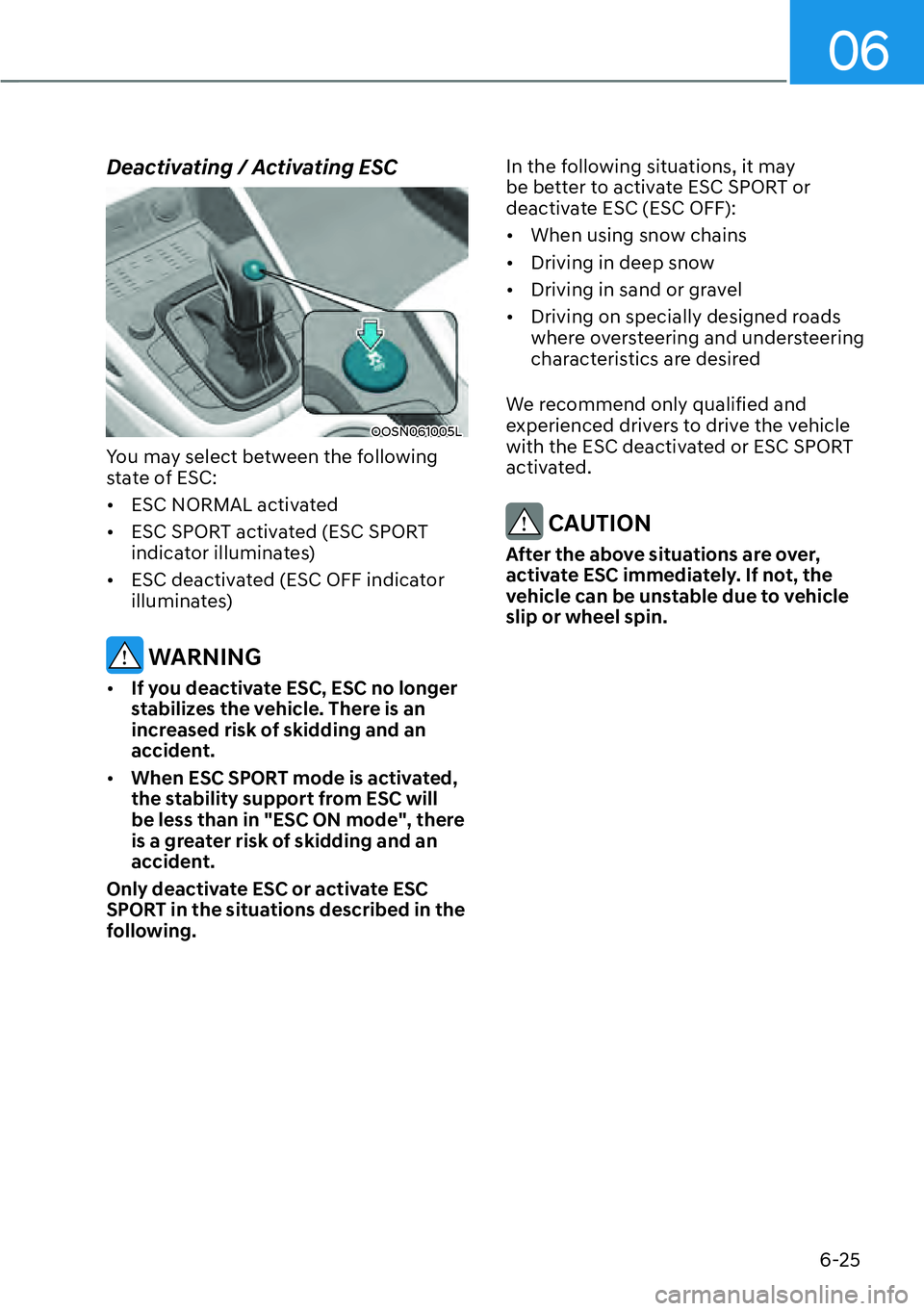

Deactivating / Activating ESC
OOSN061005L
You may select between the following
state of ESC:

[ESC NORMAL activated

[ ESC SPORT activated (ESC SPORT
indicator illuminates)

[ ESC deactivated (ESC OFF indicator
illuminates)
WARNING

[If you deactivate ESC, ESC no longer
stabilizes the vehicle. There is an
increased risk of skidding and an
accident.

[ When ESC SPORT mode is activated,
the stability support from ESC will
be less than in "ESC ON mode", there
is a greater risk of skidding and an
accident.
Only deactivate ESC or activate ESC
SPORT in the situations described in the
following. In the following situations, it may
be better to activate ESC SPORT or
deactivate ESC (ESC OFF):

[
When using snow chains

[ Driving in deep snow

[ Driving in sand or gravel

[ Driving on specially designed roads
where oversteering and understeering
characteristics are desired
We recommend only qualified and
experienced drivers to drive the vehicle
with the ESC deactivated or ESC SPORT
activated.
CAUTION
After the above situations are over,
activate ESC immediately. If not, the
vehicle can be unstable due to vehicle
slip or wheel spin.
