2023 HYUNDAI KONA wheel

5
Infotainment System ........................................................................\
............. 5-101USB Port ........................................................................\
............................................ 5-101
Antenna ...................................................................\
................................................... 5-101
Steering Wheel Remote Controls ........................................................................\
.... 5-102
Bluetooth® Wireless Technology ........................................................................\
..... 5-103
Voice Recognition ........................................................................\
............................ 5-103
Infotainment System ........................................................................\
....................... 5-103
How Vehicle Radio Works ........................................................................\
................ 5-104
5. Convenient Features

05
5-33
Electric Power Steering (EPS)
For information on steering modes,
please refer to the separately supplied
infotainment system manual.
The system assists you with steering the
vehicle. If the vehicle is turned off or
if the power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the system
checked by an authorized HYUNDAI
dealer.
CAUTION

[If Electric Power Steering does not
operate normally, the warning
light and the message ‘Check motor
driven power steering’ will illuminate
on the instrument cluster. You may
steer the vehicle, but it will require
increased steering efforts. Take your
vehicle to an authorized HYUNDAI
dealer or to a service station and
have the system checked as soon as
possible.

[ When abnormality is detected in
the electric power steering system,
to prevent a deadly accident, the
steering assist function will stop. At
this time, the warning light turns on
or blinks on the cluster. The steering
wheel may become difficult to
control or operate. Have your vehicle
checked immediately, after moving
the vehicle to a safe zone.
Information
The following symptoms may occur during
normal vehicle operation:

[The steering effort may be high
immediately after pressing the Engine
Start/Stop button to the ON position.
This happens as the system performs
the EPS system diagnostics. When the
diagnostics are completed, the steering
wheel effort will return to its normal
condition.

[ When the battery voltage is low, you
might have to put more steering effort.
However, it is a temporary condition so
that it will return to normal condition
after charging the battery.

[ A click noise may be heard from the
EPS relay after the Engine Start/Stop
button is in the ON or OFF position.

[ Motor noise may be heard when the
vehicle is at a stop or at a low driving
speed.

[ When you operate the steering wheel
in low temperatures, abnormal noise
may occur. If the temperature rises, the
noise will disappear. This is a normal
condition.

[ When an error is detected from EPS,
the steering effort assist function will
not be activated in order to prevent
fatal accidents. Instrument cluster
warning lights may be on or the
steering effort may be high. If these
symptoms occur, drive the vehicle to
a safe area as soon as it is safe to do
so. Have the system checked by an
authorized HYUNDAI dealer as soon
as possible.
STEERING WHEEL

Convenient Features5-34
Tilt / Telescopic Steering
When adjusting the steering wheel to a
comfortable position, adjust the steering
wheel so that it points toward your chest,
not toward your face. Make sure you can
see the instrument cluster warning lights
and gauges. After adjusting, push the
steering wheel both up and down to be
certain it is locked in position.
Always adjust the position of the steering
wheel before driving.
WARNING
NEVER adjust the steering wheel while
driving. This may cause loss of vehicle
control resulting in an accident.
OOSN051006L
To adjust the steering wheel angle and
height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the desired angle (2) and distance
forward/back (3).
3. Pull up the lock-release lever to lock the steering wheel in place.
Information
Sometimes the lock release lever may not
engage completely. This may occur when
the gears of the locking mechanism do not
completely mesh. If this occurs, pull down
on the lock-release lever, readjust the
steering wheel again, and then pull back
up on the release lever to lock the steering
wheel in place.

05
5-35

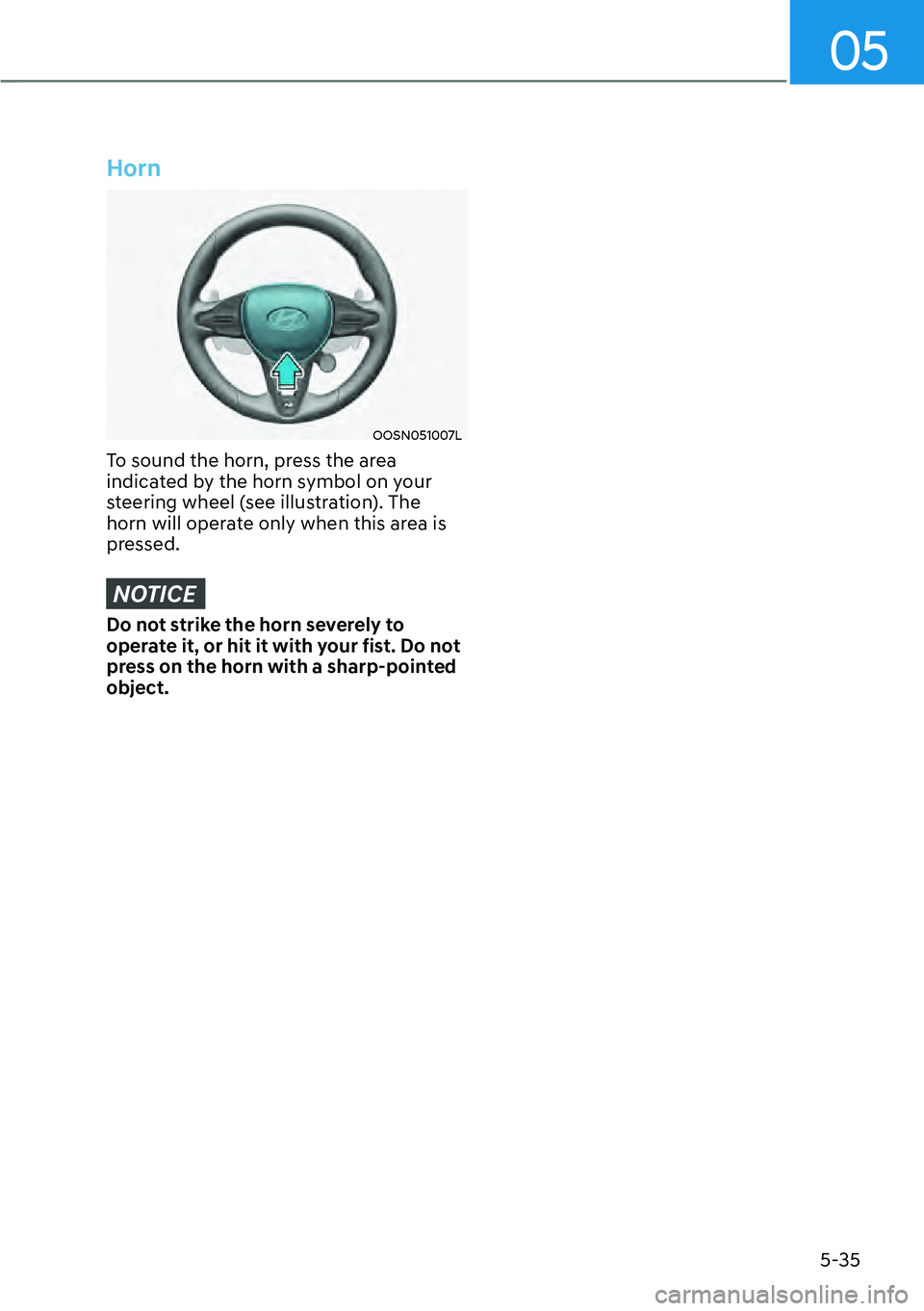

Horn
OOSN051007L
To sound the horn, press the area
indicated by the horn symbol on your
steering wheel (see illustration). The
horn will operate only when this area is
pressed.
NOTICE
Do not strike the horn severely to
operate it, or hit it with your fist. Do not
press on the horn with a sharp-pointed
object.

05
5-77

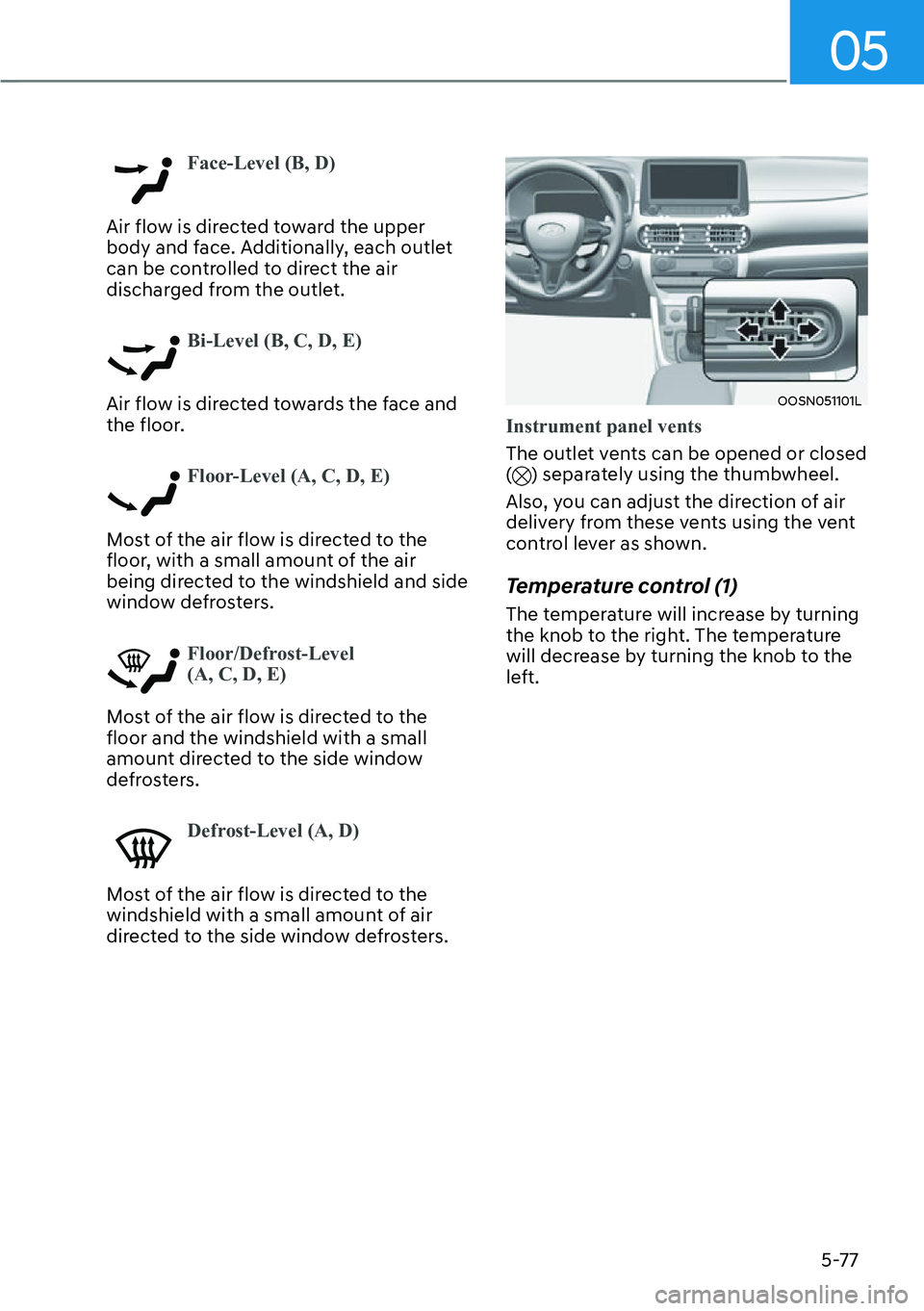

Face-Level (B, D)
Air flow is directed toward the upper
body and f
ace. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
Bi-Level (B, C, D, E)
Air flow is directed towards the face and
the floor
.
Floor-Level (A, C, D, E)
Most of the air flow is directed to the
floor
, with a small amount of the air
being directed to the windshield and side
window defrosters.
Floor/Defrost-Level
(A, C, D, E)
Most of the air flow is directed to the
floor and the windshield with a small
amount dir
ected to the side window
defrosters.
Defrost-Level (A, D)
Most of the air flow is directed to the
windshield with a small amoun
t of air
directed to the side window defrosters.
OOSN051101L
Instrument panel vents
The outlet vents can be opened or closed
(
) separately using the thumbwheel.
Also, you can adjust the direction of air
delivery from these vents using the vent
control lever as shown.
Temperature control (1)
The temperature will increase by turning
the knob to the right. The temperature
will decrease by turning the knob to the
left.

Convenient Features5-102
Steering Wheel Remote Controls
OOSN051026L
The steering wheel audio control
switches are installed for your
convenience.
NOTICE
Do not operate multiple audio remote
control buttons simultaneously.
VOLUME ( + / - ) (1)

[ Move the VOLUME toggle switch up
to increase volume.

[ Move the VOLUME toggle switch
down to decrease volume.
SEEK/PRESET (/ ) (2)
If the SEEK/PRESET toggle switch is
moved up or down and held for 0.8
seconds or more, it will function in the
following modes.
RADIO mode
It will function as the AUTO SEEK select
s

witch. It will SEEK until you release the
switch.
MEDIA mode
It will function as the FF/REW switch.
If the SEEK/PRESET t

oggle switch is
moved up or down, it will function in the
following modes.
RADIO mode
It will function as the PRESET STATION
UP/DOWN s
witch.
MEDIA mode
It will function as the TRACK UP/ DOWN
s
witch.
MODE () (3)
Press the MODE button to select Radio,
Disc, or AUX.
MUTE () (4)

[ Press the button to mute the sound.

[ Press the button again to activate the
sound.
Information
Detailed information for audio control
buttons are described in the following
pages in this chapter.

Driving your vehicle6-4
Before Entering the Vehicle

[ Be sure all windows, outside mirror(s),
and outside lights are clean and
unobstructed.

[ Remove frost, snow, or ice.

[ Visually check the tires for uneven
wear and damage.

[ Check under the vehicle for any sign
of leaks.

[ Be sure there are no obstacles behind
you if you intend to back up.
Before Starting

[Make sure the hood, the liftgate, and
the doors are securely closed and
locked.

[ Adjust the position of the seat and
steering wheel.

[ Adjust the inside and side view
mirrors.

[ Verify all the lights work.

[ Fasten your seat belt. Check that all
passengers have fastened their seat
belts.

[ Check the gauges and indicators
in the instrument panel and the
messages on the instrument display
when the Engine Start/Stop button is
in the ON position.

[ Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:

[ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to “Seat
Belts” section in chapter 3.

[ Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.

[ Stay focused on the task of driving.
Driver distraction can cause
accidents.

[ Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING

06
6-5
ENGINE START/STOP BUTTON
OOS057001
Whenever the front door is opened, the
Engine Start/Stop button will illuminate
and will go off 30 seconds after the door
is closed.
WARNING
To turn the vehicle off in an emergency:
Press and hold the Engine Start/Stop
button for more than two seconds OR
Rapidly press and release the Engine
Start/Stop button three times (within
three seconds).
If the vehicle is still moving, you can
restart the vehicle without depressing
the brake pedal by pressing the Engine
Start/Stop button with the gear in the N
(Neutral) position.
WARNING

[NEVER press the Engine Start/Stop
button while the vehicle is in motion
except in an emergency. This will
result in the vehicle turning off and
loss of power assist for the steering
and brake systems. This may lead
to loss of directional control and
braking function, which could cause
an accident.

[ Before leaving the driver’s seat,
always make sure the gear is in the
P (Park) position, set the parking
brake, press the Engine Start/Stop
button to the OFF position, and take
the Smart Key with you. Unexpected
vehicle movement may occur if these
precautions are not followed.

[ NEVER reach through the steering
wheel for the Engine Start/Stop
button or any other control while the
vehicle is in motion. The presence
of your hand or arm in this area
may cause a loss of vehicle control
resulting in an accident.
