Convenience Features
5-54
• All filler caps are tightly and correctly installed
2. Lower the hood until it is about 12 in. (30 cm) above the closed position and then
let it drop.
3. Check the hood has locked properly. If the hood is raised slightly, open it again
and drop it from a little higher. Check
again.
WARNING • Before closing the hood, ensure all obstructions are removed from around
the hood opening. The hood will rise up
or move down automatically if the
height is not firmly adjusted. Be aware
of the damage caused by the
unintended hood movements.
• Always double check to make sure that the hood is firmly latched before driving
away. Check there is no hood open
warning light or message displayed on
the instrument cluster. Driving with the
hood open may cause a total loss of
visibility, resulting in a collision.
• Do not move the vehicle with the hood raised. It may block your vision and may
result in a collision.

Front Trunk
Opening the Front Trunk
B5010702
Opening the hood reveals the front trunk
and you can store your belongings.
Information Front trunk weight limit: 25 lbs. (10 kg)
The front trunk’s weight limit depends on the
specifications.

WARNING • NEVER make an attempt to get inside the front trunk. It will cause a fatal
injury.
• Before closing the hood, ensure all obstructions are removed from around
the hood opening. The hood will rise up
or move down automatically if the
height is not firmly adjusted. Be aware
of the damage caused by the
unintended hood movements.
• Never store cigarette lighters, propane cylinders, or other
flammable/explosive materials in the
vehicle. These items may catch fire
and/or explode if the vehicle is exposed
to hot temperatures for extended
periods.

Hyundai_CE_en_US.book Page 54

5
5-55
CAUTION • Do not exceed the luggage volume capacity of the front trunk. The
overweighted front trunk can be
severely damaged.
• Do not store the fragile objects in the front trunk.
• ALWAYS keep the front trunk cover closed securely while driving. Items
inside your vehicle are moving as fast
as the vehicle. If you have to stop or
turn quickly, or if there is a crash, the
items can be damaged.
• Do not spray water in the front trunk. Vehicle driving system may get
damaged since the front trunk is
located at the center of motor
compartment.
• Be careful when you store any liquid in the front trunk. If liquid leak outside the
front trunk, it will cause damage to the
electric devices in the motor
compartment.
• Do not press the front trunk cover or place the objects on the front trunk
cover. It may be deformed or damaged.
• When closing the front trunk cover, be careful not to touch objects inside the
trunk. Loaded objects or the front trunk
may be deformed or damaged and the
front trunk cover may be opened during
driving due to poor closing, resulting in
joints and damage.

NOTICE7RDYRLGSRVVLEOHWKHIWGRQRWOHDYH
YDOXDEOHVLQWKHVWRUDJHFRPSDUWPHQWV

Power Trunk
Power Trunk Operating
Conditions
The power trunk operates when vehicle
speed is below 1.8 mph (3 km/h).
WARNING • Never leave children or animals unattended in your vehicle. Children
may operate the power trunk. Doing so
can result in injury to themselves or
others and can damage the vehicle.
• Make sure there are no people or objects and enough space around the
trunk before operating the power trunk
or smart trunk prior to use. Serious
injury, damage to the vehicle or
damage to surrounding objects (for
example, walls, ceilings, vehicles, etc.)
may result if contact with the trunk
occurs.
• Make sure there are no people or objects around the trunk before
operating the power trunk. Wait until
the trunk is opened fully and stopped
before loading or unloading cargo from
the vehicle.

NOTICE
[ 'RQRWFORVHRURSHQWKHSRZHUWUXQN PDQXDOO\7KLVPD\FDXVHGDPDJHWR
WKHSRZHUWUXQN,ILWLVQHFHVVDU\WR
FORVHRURSHQWKHSRZHUWUXQNPDQXDOO\
ZKHQWKHEDWWHU\LVGLVFKDUJHGRU
GLVFRQQHFWHGGRQRWDSSO\H[FHVVLYH
IRUFH

[ 'RQRWRSHUDWHWKHSRZHUWUXQNPRUH WKDQWLPHVFRQWLQXRXVO\ZKHQWKH
YHKLFOHLVWXUQHGRII LQGLFDWRURII\f
LVRII8VHWKHSRZHUWUXQNZLWKWKH
YHKLFOHWXUQHGRQ LQGLFDWRURQ\f
ZKHQWKHSRZHUWUXQNLVXVHG
Hyundai_CE_en_US.book Page 55

Driving Your Vehicle
6-16
Using one pedal driving
Pull and hold the left paddle shifter ( )
for over 0.5 seconds while coasting to
enable the one pedal driving mode.
• Release the paddle shifter when the vehicle speed is above 1.8 mph (3 km/h)
to return to the previously set
regenerative braking level.
• If the vehicle speed is below 1.8 mph (3 km/h), the vehicle will keep engaging
the brake although the driver releases
the paddle shifter.
• Releasing the paddle shifter after the vehicle comes to a stop will maintain
the vehicle stationary.
CAUTION • The vehicle may not come to a stop although the one pedal driving function
is active, depending on the condition of
the vehicle and the road. Check the
surroundings and depress the brake
pedal to decelerate.
• If the driver depresses the accelerator pedal while pulling and holding the left
paddle shifter ( ) to increase the
braking level, one pedal driving
function operates same as i-PEDAL
function. In this case, the vehicle speed
is no longer controllable through the
paddle shifter.

One pedal driving limitations
In the following conditions, the vehicle
may not come to a stop although the one
pedal driving function is active. Depress
the brake pedal to stop the vehicle when:
• Driving on a slope, or when the vehicle is repeatedly driven and stopped.
• The vehicle is driving through the end of the slope.
• Driving on a slippery surface such as an icy, rainy, or muddy road.
• The wheels are not properly aligned. • A wheel slip or wheel spin occurs.
• The weight on board is heavy.
• The vehicle is tilted to one side.
• The tire is worn out.
Automatic engagement of EPB
Use one pedal driving function to bring
the vehicle to a stop and automatically
engage the Electronic Parking Brake
(EPB).
After the vehicle is stopped, EPB is
automatically applied when any of the
following conditions are satisfied:
• The driver’s seatbelt is unfastened and
the driver’s door is open.
• The gear shifts to N (Neutral).
• The hood is open.
• The trunk is open.
• 5 minutes have passed after the vehicle has stopped.
• One pedal driving is limited due to other reasons.
Using i-PEDAL
i-PEDAL assists the driver to accelerate,
decelerate, and stop the vehicle with only
the accelerator pedal.
Turning on/off the i-PEDAL
• Turning on i-PEDAL:
Pull the left paddle shifter ( ) once
when the regenerative braking level is
at 3. i-PEDAL is turned on and the
instrument cluster displays the
‘i-PEDAL’ message. i-PEDAL is not
available while the smart regeneration
system is on. Turn off the smart
regeneration system first before using
i-PEDAL.
• Turning off i-PEDAL: Pull the right paddle shifter ( ) once
while the function is on. Otherwise,
shift the gear to R (Reverse) then to D
Hyundai_CE_en_US.book Page 16

6
6-17

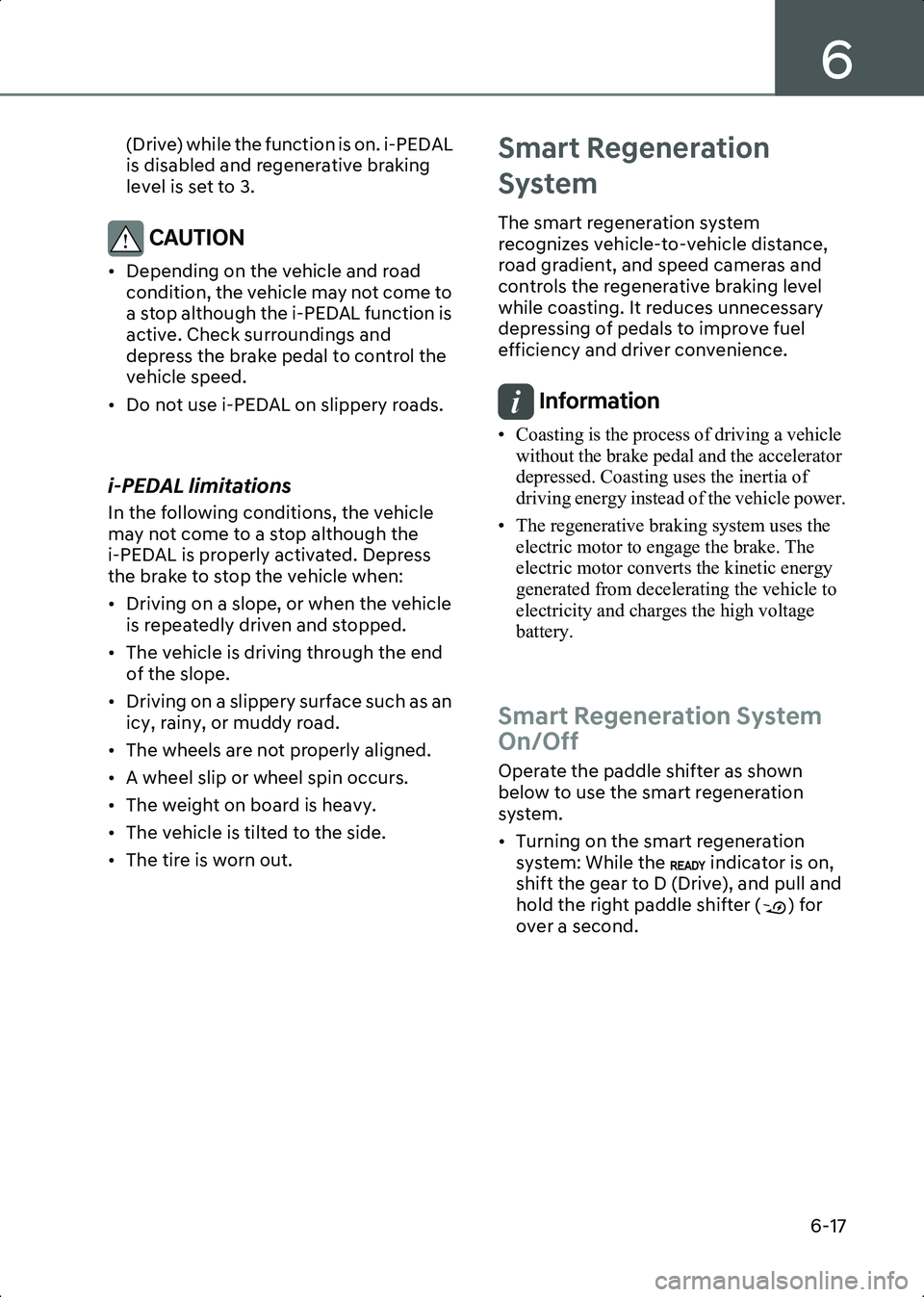

(Drive) while the function is on. i-PEDAL
is disabled and regenerative braking
level is set to 3.
CAUTION • Depending on the vehicle and road condition, the vehicle may not come to
a stop although the i-PEDAL function is
active. Check surroundings and
depress the brake pedal to control the
vehicle speed.
• Do not use i-PEDAL on slippery roads.

i-PEDAL limitations
In the following conditions, the vehicle
may not come to a stop although the
i-PEDAL is properly activated. Depress
the brake to stop the vehicle when:
• Driving on a slope, or when the vehicle is repeatedly driven and stopped.
• The vehicle is driving through the end of the slope.
• Driving on a slippery surface such as an icy, rainy, or muddy road.
• The wheels are not properly aligned.
• A wheel slip or wheel spin occurs.
• The weight on board is heavy.
• The vehicle is tilted to the side.
• The tire is worn out.
Smart Regeneration
System
The smart regeneration system
recognizes vehicle-to-vehicle distance,
road gradient, and speed cameras and
controls the regenerative braking level
while coasting. It reduces unnecessary
depressing of pedals to improve fuel
efficiency and driver convenience.
Information • Coasting is the process of driving a vehicle without the brake pedal and the accelerator
depressed. Coasting uses the inertia of
driving energy instead of the vehicle power.
• The regenerative braking system uses the electric motor to engage the brake. The
electric motor converts the kinetic energy
generated from decelerating the vehicle to
electricity and charges the high voltage
battery.

Smart Regeneration System
On/Off
Operate the paddle shifter as shown
below to use the smart regeneration
system.
• Turning on the smart regeneration system: While the indicator is on,
shift the gear to D (Drive), and pull and
hold the right paddle shifter ( ) for
over a second.
Hyundai_CE_en_US.book Page 17

Driving Your Vehicle
6-52
Vehicle Load Limit
Two labels on your driver’s door sill
show how much weight your vehicle
was designed to carry: the Tire and
Loading Information Label and the
Certification Label.
Before loading your vehicle,
familiarize yourself with the following
terms for determining your vehicle’s
weight ratings, from the vehicle’s
specifications and the Certification
Label:
Base Curb Weight
This is the weight of the vehicle
including a full tank of fuel and all
standard equipment. It does not
include passengers, cargo, or
optional equipment.
Vehicle Curb Weight
This is the weight of your new vehicle
when you picked it up from your
dealer plus any aftermarket
equipment.
Cargo Weight
This figure includes all weight added
to the Base Curb Weight, including
cargo and optional equipment.
GAW (Gross Axle Weight)
This is the total weight placed on
each axle (front and rear) - including
vehicle curb weight and all payload.
GAWR (Gross Axle Weight Rating)
This is the maximum allowable
weight that can be carried by a single
axle (front or rear). These numbers
are shown on the Certification Label.
The total load on each axle must
never exceed its GAWR.GVW (Gross Vehicle Weight)
This is the Base Curb Weight plus
actual Cargo Weight plus passengers.
GVWR (Gross Vehicle Weight Rating)
This is the maximum allowable
weight of the fully loaded vehicle
(including all options, equipment,
passengers and cargo). The GVWR is
shown on the Certification Label
located on the driver’s door sill.
The Loading Information
Label
Type A
ONE1061056NType B
ONE1061057N

3
3
L1B

QTJ
L1B

QTJ

3
3L1B

QTJ
L1B

QTJ
Hyundai_CE_en_US.book Page 52

6
6-53
Type C
ONE1061058N

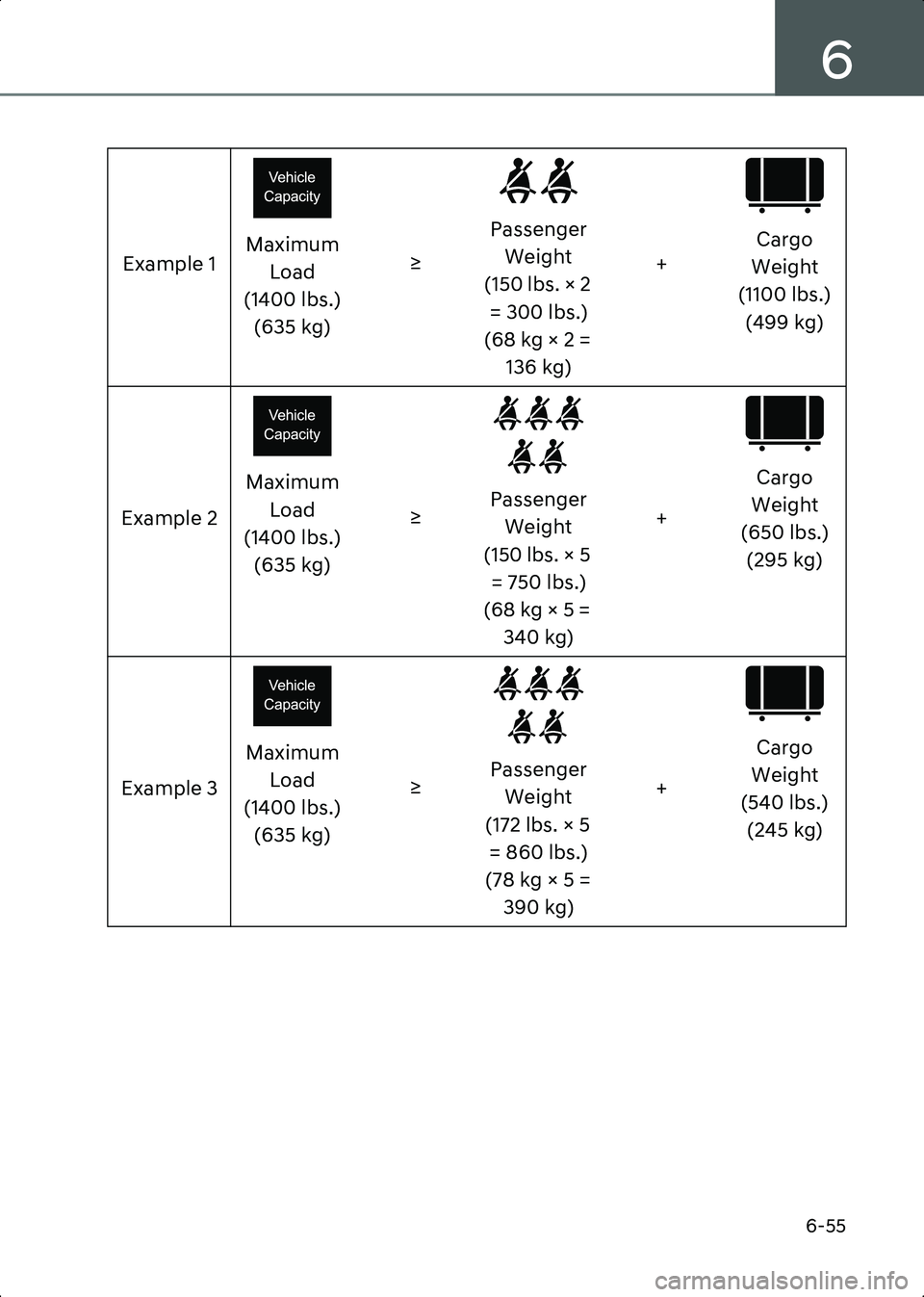

Vehicle capacity weight
5 persons: 860 lbs. (390 kg)
Vehicle capacity weight is the
maximum combined weight of
occupants and cargo. If your vehicle
is equipped with a trailer, the
combined weight includes the
tongue load.
Seating capacity
Total : 5 persons (Front seat : 2
persons, Rear seat : 3 persons)
Seating capacity is the maximum
number of occupants including a
driver, your vehicle may carry.
However, the seating capacity may
be reduced based upon the weight of
all of the occupants, and the weight
of the cargo being carried or towed.

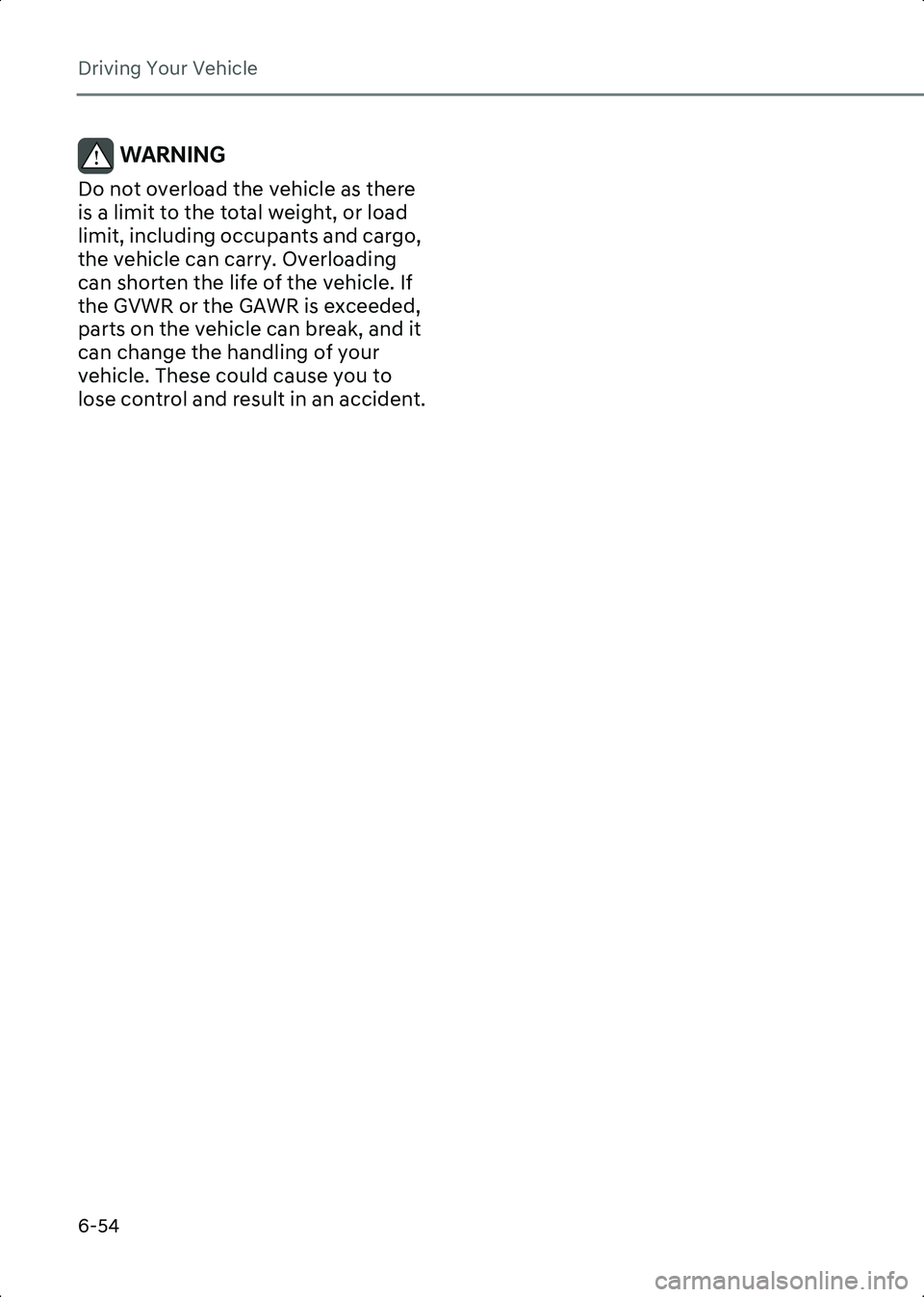

Do not overload the vehicle as there
is a limit to the total weight, or load
limit including occupants and cargo,
the vehicle can carry.
Cargo capacity
The cargo capacity of your vehicle
will increase or decrease depending
on the weight and the number of
occupants and the tongue load, if
your vehicle is equipped with a trailer.Steps for determining correct load
limit
1. Locate the statement "The
combined weight of occupants and
cargo should never exceed XXX kg
or XXX lbs." on your vehicle's
placard.
2. Determine the combined weight of the driver and passengers that will
be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from XXX
kg or XXX lbs.
4.The resulting figure equals the available amount of cargo and
luggage load capacity. For
example, if the "XXX" amount
equals 1400 lbs. and there will be
five 150 lbs. passengers in your
vehicle, the amount of available
cargo and luggage load capacity is
650 lbs. (1400 - 750 (5 x 150) = 650
lbs.)
5. Determine the combined weight of luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity
calculated in Step 4.
6.If your vehicle will be towing a trailer, load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and
luggage load capacity of your
vehicle.

3
3 L1B

QTJ
L1B

QTJ
Hyundai_CE_en_US.book Page 53

Driving Your Vehicle
6-54
WARNING Do not overload the vehicle as there
is a limit to the total weight, or load
limit, including occupants and cargo,
the vehicle can carry. Overloading
can shorten the life of the vehicle. If
the GVWR or the GAWR is exceeded,
parts on the vehicle can break, and it
can change the handling of your
vehicle. These could cause you to
lose control and result in an accident.

Hyundai_CE_en_US.book Page 54

6
6-55
Example 1Maximum
Load
(1400 lbs.) (635 kg) ≥
Passenger
Weight
(150 lbs. × 2 = 300 lbs.)
(68 kg × 2 = 136 kg) +
Cargo
Weight
(1100 lbs.) (499 kg)
Example 2 Maximum
Load
(1400 lbs.) (635 kg) ≥
Passenger
Weight
(150 lbs. × 5 = 750 lbs.)
(68 kg × 5 = 340 kg) +
Cargo
Weight
(650 lbs.) (295 kg)
Example 3 Maximum
Load
(1400 lbs.) (635 kg) ≥
Passenger
Weight
(172 lbs. × 5 = 860 lbs.)
(78 kg × 5 = 390 kg) +
Cargo
Weight
(540 lbs.) (245 kg)
Hyundai_CE_en_US.book Page 55
