6-9
06
Engine Stop/Start button positions
- Vehicle with manual transmission/intelligent manual transmission
Button PositionAction Notice
OFF[ 7 R W X U Q R I I W K H H Q J L Q H V W R S
the vehicle and then press the
Engine Start/Stop button.
[ 7 K H V W H H U L Q J Z K H H O O R F N V W R
protect the vehicle from theft.
(if equipped)If the steering wheel is not locked
properly when you open the
driver’s door, the warning chime
will sound.
ACC[ 3 U H V V W K H ( Q J L Q H 6 W D U W 6 W R S
button when the button is
in the OFF position without
depressing the clutch pedal.
[ ( O H F W U L F D O D F F H V V R U L H V D U H
usable.
[ 7 K H V W H H U L Q J Z K H H O X Q O R F N V [ , I \ R X O H D Y H W K H ( Q J L Q H 6 W D U W
Stop button in the ACC position
for more than one hour, the
battery power will turn off
automatically to prevent the
battery from discharging.
[ , I W K H V W H H U L Q J Z K H H O G R H V QT W
unlock properly, the Engine
Start/Stop button will not
work. Press the Engine Start/
Stop button whilst turning the
steering wheel right and left to
release tension.
ON[ 3 U H V V W K H ( Q J L Q H 6 W D U W 6 W R S
button whilst it is in the ACC
position without depressing the
clutch pedal.
[ 7 K H Z D U Q L Q J O L J K W V F D Q E H
checked before the engine is
started.Do not leave the Engine Start/
Stop button in the ON position
when the engine is not running
to prevent the battery from
discharging.
STARTTo start the engine, depress the
clutch and brake pedals and
press the Engine Start/Stop
button with the shift lever in
neutral.If you press the Engine Start/Stop
button without depressing the
clutch pedal, the engine does not
start and the Engine Start/Stop
button changes as follows:
OFF o ACC o ON o OFF
Page 283 of 649
6-10
Driving your vehicle
Engine Stop/Start button positions
- Vehicle with automatic transmission / dual clutch transmission
Button PositionAction Notice
OFF[ 7 R W X U Q R I I W K H H Q J L Q H S U H V V W K H
Engine Start/Stop button with
shift lever in P (Park). When you
press the Engine Start/Stop
button without the shift lever in
P (Park), the Engine Start/Stop
button does not turn to the OFF
position, but turns to the ACC
position.
[ 7 K H V W H H U L Q J Z K H H O O R F N V W R
protect the vehicle from theft.
(if equipped)If the steering wheel is not locked
properly when you open the
driver’s door, the warning chime
will sound.
ACC[ 3 U H V V W K H ( Q J L Q H 6 W D U W 6 W R S
button when the button is
in the OFF position without
depressing the brake pedal.
[ 6 R P H H O H F W U L F D O D F F H V V R U L H V D U H
usable.
[ 7 K H V W H H U L Q J Z K H H O X Q O R F N V [ , I \ R X O H D Y H W K H ( Q J L Q H 6 W D U W
Stop button in the ACC position
for more than one hour, the
battery power will turn off
automatically to prevent the
battery from discharging.
[ , I W K H V W H H U L Q J Z K H H O G R H V QT W
unlock properly, the Engine
Start/Stop button will not work.
[ 3 U H V V W K H ( Q J L Q H 6 W D U W 6 W R S
button whilst turning the
steering wheel right and left to
release tension.
ON[ 3 U H V V W K H ( Q J L Q H 6 W D U W 6 W R S
button whilst it is in the ACC
position without depressing the
brake pedal.
[ 7 K H Z D U Q L Q J O L J K W V F D Q E H
checked before the engine is
started.Do not leave the Engine Start/
Stop button in the ON position
when the engine is not running
to prevent the battery from
discharging.
STARTTo start the engine, depress the
brake pedal and press the Engine
Start/Stop button with the shift
lever in the P (Park) or in the N
(Neutral) position.
For your safety, start the engine
with the shift lever in the P (Park)
position.If you press the Engine Start/Stop
button without depressing the
brake pedal, the engine does not
start and the Engine Start/Stop
button changes as follows:
OFF o ACC o ON o OFF or ACC
Page 286 of 649
6-13
06
OIB054009
„Type A
„Type B
OIB054001
The shift lever can be moved with pressing the button (1).
The button (1) must be pressed whilst moving the shift lever.
„Type C
OPDEN057107
The shift lever can be moved with pressing the button (1).
The button (1) must be pressed while moving the shift lever.
Manual transmission operation
The manual transmission has 5 (or 6)
forward gears. The transmission is fully
synchronized in all forward gears so
shifting to either a higher or a lower gear
is easily accomplished
WARNING
Before leaving the driver’s seat, always
make sure the shift lever is in in the
1st gear when the vehicle is parked
on an uphill and in R (Reverse) on
a downhill, set the parking brake,
and place the ignition switch in the
LOCK/OFF position. Unexpected
vehicle movement may occur if these
precautions are not followed.
To shift to R (Reverse), make sure the
vehicle has completely stopped, and
then move the shift lever to neutral
before moving into R (Reverse).
When you’ve come to a complete stop
and it’s hard to shift into the 1st gear or
R (Reverse):
1. Put the shift lever in neutral and
release the clutch pedal.
2. Depress the clutch pedal, and then
shift into the first gear or R (Reverse)
gear.
i Information
' X U L Q J F R O G Z H D W K H U V K L I W L Q J P D \ E H
G L I I L F X O W X Q W L O W K H W U D Q V P L V V L R Q O X E U L F D Q W
K D V Z D U P H G X S
0 $ 1 8 $ / 7 5 $ 1 6 0 , 6 6 , 2 1
Page 288 of 649
6-15
06

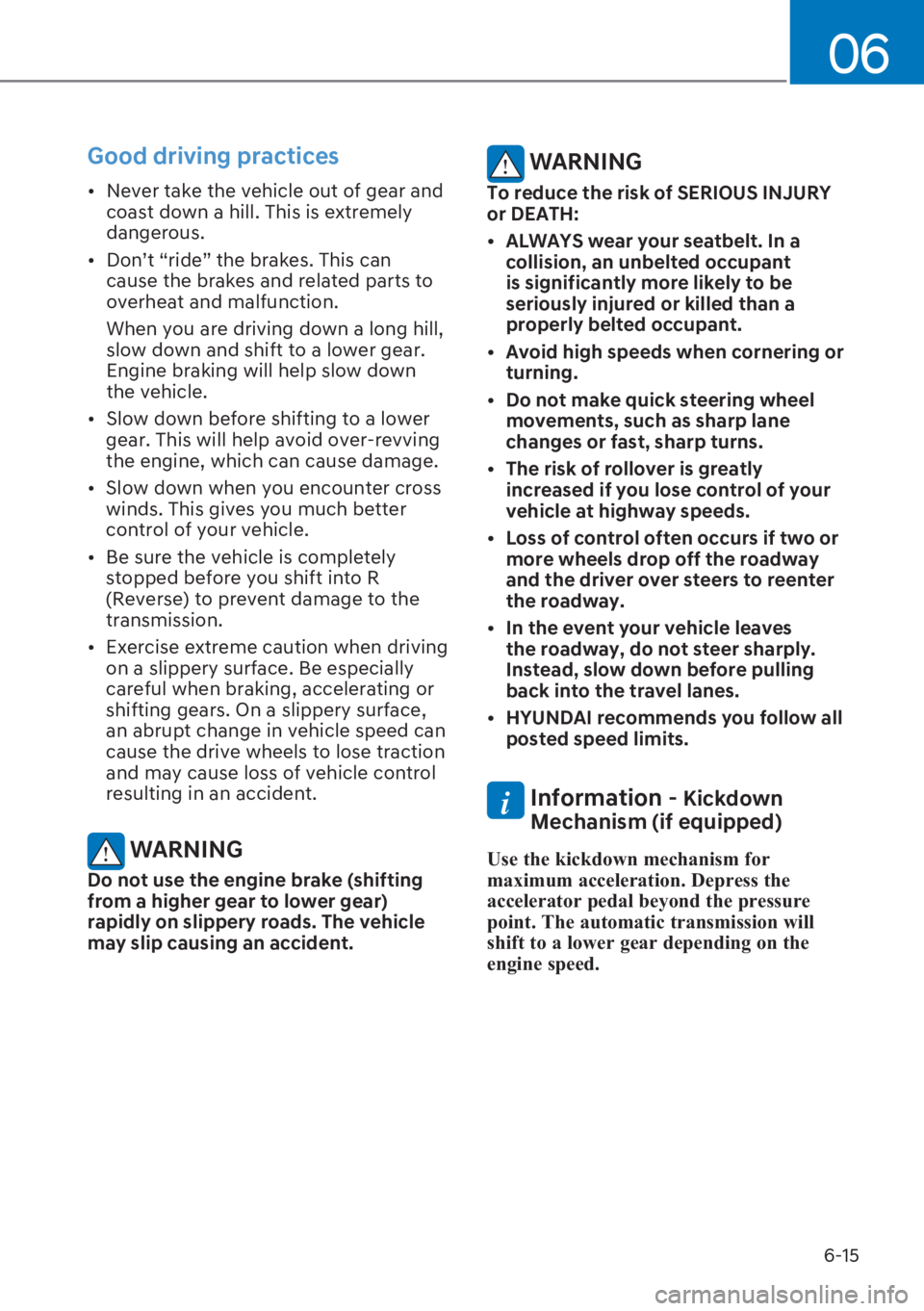

Good driving practices
[ 1 H Y H U W D N H W K H Y H K L F O H R X W R I J H D U D Q G
coast down a hill. This is extremely
dangerous.
[ ' R QT W U U L G HV W K H E U D N H V 7 K L V F D Q
cause the brakes and related parts to
overheat and malfunction.
When you are driving down a long hill,
slow down and shift to a lower gear.
Engine braking will help slow down
the vehicle.
[ 6 O R Z G R Z Q E H I R U H V K L I W L Q J W R D O R Z H U
gear. This will help avoid over-revving
the engine, which can cause damage.
[ 6 O R Z G R Z Q Z K H Q \ R X H Q F R X Q W H U F U R V V
winds. This gives you much better
control of your vehicle.
[ % H V X U H W K H Y H K L F O H L V F R P S O H W H O \
stopped before you shift into R
(Reverse) to prevent damage to the
transmission.
[ ( [ H U F L V H H [ W U H P H F D X W L R Q Z K H Q G U L Y L Q J
on a slippery surface. Be especially
careful when braking, accelerating or
shifting gears. On a slippery surface,
an abrupt change in vehicle speed can
cause the drive wheels to lose traction
and may cause loss of vehicle control
resulting in an accident.
WARNING
Do not use the engine brake (shifting
from a higher gear to lower gear)
rapidly on slippery roads. The vehicle
may slip causing an accident.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:
[ ALWAYS wear your seatbelt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.
[ Avoid high speeds when cornering or
turning.
[ Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.
[ The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.
[ Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.
[ In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the travel lanes.
[ HYUNDAI recommends you follow all
posted speed limits.
i Information - Kickdown
Mechanism (if equipped)
8 V H W K H N L F N G R Z Q P H F K D Q L V P I R U
P D [ L P X P D F F H O H U D W L R Q ' H S U H V V W K H
D F F H O H U D W R U S H G D O E H \ R Q G W K H S U H V V X U H
S R L Q W 7 K H D X W R P D W L F W U D Q V P L V V L R Q Z L O O
V K L I W W R D O R Z H U J H D U G H S H Q G L Q J R Q W K H
H Q J L Q H V S H H G
Page 290 of 649
6-17
06
The transmission is fully synchronized
in all forward gears so shifting to
either a higher or a lower gear is easily
accomplished. Depress the clutch pedal
down fully whilst shifting, then release it
slowly.
If your vehicle is equipped with an
ignition lock switch, the engine will not
start when starting the engine without
depressing the brake pedal and clutch
pedal. (if equipped)
The shift lever must be returned to the
neutral position before shifting into
R (Reverse). Push the button located
immediately below the shift knob
and pull the gearshift lever to the left
sufficiently, and then shift into reverse
(R) gear position. Make sure the vehicle
is completely stopped before shifting
into R (Reverse).
Never operate the engine with the
tachometer (rpm) in the red zone. CAUTION
[ When downshifting from fifth gear
to fourth gear, caution should be
taken not to inadvertently press the
shift lever sideways in such a manner
that the second gear is engaged.
Such a drastic downshift may cause
the engine speed to increase to the
point that the tachometer will enter
the red-zone. Such overrevving of
the engine and transmission may
possibly cause engine damage.
[ Do not downshift more than 2 gears
or downshift the gear when the
engine is running at high speed
(5,000 RPM or higher). Such a
downshifting may damage the
engine, clutch and the transmission.
[ During cold weather, shifting may
be difficult until the transmission
lubricant is warmed up. This is
normal and not harmful to the
transmission.
[ If you’ve come to a complete stop
and it’s hard to shift into the 1st gear
or R(Reverse), leave the shift lever at
N(Neutral) position and release the
clutch. Press the clutch pedal back
down, and then shift into the 1st gear
or R(Reverse) gear position.
Page 291 of 649
6-18
Driving your vehicle
[ To avoid premature clutch wear
and damage, do not drive with your
foot resting on the clutch pedal.
Also, don’t use the clutch to hold the
vehicle stopped on an uphill grade,
whilst waiting for a traffic light, etc.
[ Do not use the shift lever as a
handrest during driving, as this can
result in premature wear of the
transmission shift forks.
[ To prevent possible damage to the
clutch system, do not start with the
2nd (second) gear engaged except
when you start on a slippery road.
WARNING
[ Before leaving the driver’s seat,
always set the parking brake fully
and shut the engine off. Then make
sure the transmission is shifted into
the 1st gear when the vehicle is
parked on a level or uphill grade, and
shifted into R (Reverse) on a downhill
grade. Unexpected and sudden
vehicle movement can occur if these
precautions are not followed in the
order identified.
[ Do not use the engine brake (shifting
from a high gear to lower gear)
rapidly on slippery roads. The vehicle
may slip causing an accident.
Using the clutch
The clutch should be pressed all the way
to the floor before shifting, then released
slowly. The clutch pedal should always
be fully released whilst driving. Do not
rest your foot on the clutch pedal whilst
driving. This can cause unnecessary
wear. Do not partially engage the clutch
to hold the vehicle on an incline. This
causes unnecessary wear. Use the
foot brake or parking brake to hold the
vehicle on an incline. Do not operate the
clutch pedal rapidly and repeatedly.
CAUTION
When operating the clutch pedal, press
the clutch pedal down fully. If you don’t
press the clutch pedal fully, the clutch
may be damaged or noise may occur.
Downshifting
When you must slow down in heavy
traffic or whilst driving up steep hills,
downshift before the engine starts to
labour. Downshifting reduces the chance
of stalling and gives better acceleration
when you again need to increase your
speed. When the vehicle is traveling
down steep hills, downshifting helps
maintain safe speed and prolongs brake
life.
Page 292 of 649
6-19
06
Good driving practices
[ Never take the vehicle out of gear and
coast down a hill. This is extremely
hazardous. Always leave the vehicle
in gear.
[ Don’t “ride” the brakes. This can cause
them to overheat and malfunction.
Instead, when you are driving down a
long hill, shift to a lower gear. When
you do this, the engine braking will
help slow down the vehicle.
[ Slow down before shifting to a lower
gear. This will help avoid over-revving
the engine, which can cause damage.
[ Slow down when you encounter cross
winds. This gives you much better
control of your vehicle.
[ Be sure the vehicle is completely
stopped before you attempt to shift
into reverse. The transmission can be
damaged if you do not.
[ Exercise extreme caution when driving
on a slippery surface. Be especially
careful when braking, accelerating or
shifting gears. On a slippery surface,
an abrupt change in vehicle speed can
cause the drive wheels to lose traction
and the vehicle to go out of control. WARNING
[ Always buckle-up! In a collision, an
unbelted occupant is significantly
more likely to be seriously injured
or killed than a properly belted
occupant.
[ Avoid high speeds when cornering or
turning.
[ Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.
[ The risk of rollover is greatly
ncreased if you lose control of your
vehicle at highway speeds.
[ Loss of control often occurs if two or
more wheels drop off the roadway
and the driver oversteers to reenter
the roadway.
[ In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the travel lanes.
[ Never exceed posted speed limits.
Page 294 of 649
6-21
06
Transmission ranges
The indicator in the instrument cluster
displays the shift lever position when the
ignition switch is in the ON position.
3 3 D U N
Always come to a complete stop before
shifting into P (Park).
To shift from P (Park), you must depress
firmly on the brake pedal and make sure
your foot is off the accelerator pedal.
If you have done all of the above and
still cannot shift the lever out of P
(Park), see “Shift-Lock Release” in this
chapter.
The shift lever must be in P (Park) before
turning the engine off.
WARNING
[ Shifting into P (Park) whilst the
vehicle is in motion may cause you to
lose control of the vehicle.
[ After the vehicle has stopped, always
make sure the shift lever is in P (Park),
apply the parking brake, and turn the
engine off.
[ When parking on an incline, place the
shift lever in P (Park) and apply the
parking brake to prevent the vehicle
from rolling downhill.
[ For safety, always engage the parking
brake with the shift lever in the P
(Park) position except for the case of
emergency parking.
5 5 H Y H U V H
Use this position to drive the vehicle
backward.
NOTICE
Always come to a complete stop before
shifting into or out of R (Reverse); you
may damage the transmission if you
shift into R (Reverse) whilst the vehicle
is in motion.
1 1 H X W U D O
The wheels and transmission are not
engaged.
Use N (Neutral) if you need to restart
a stalled engine, or if it is necessary to
stop with the engine ON. Shift into P
(Park) if you need to leave your vehicle
for any reason.
Always depress the brake pedal when
you are shifting from N (Neutral) to
another gear.
WARNING
Do not shift into gear unless your foot is
firmly on the brake pedal. Shifting into
gear when the engine is running at high
speed can cause the vehicle to move
very rapidly. You could lose control of
the vehicle and hit people or objects.
' ' U L Y H
This is the normal driving position. The
transmission will automatically shift
through a 6-gear sequence, providing
the best fuel economy and power.
For extra power when passing another
vehicle or driving uphill, depress the
accelerator fully. The transmission will
automatically downshift to the next
lower gear (or gears, as appropriate).
