2023 HYUNDAI I20 Warning mode

6-41
06
ESC OFF usage
:KHQ'ULYLQJ
The ESC OFF mode should only be used
briefly to help free the vehicle if stuck in
snow or mud, by temporarily stopping
operation of the ESC, to maintain wheel
torque.
To turn ESC off whilst driving, press the
ESC OFF button whilst driving on a flat
road surface.
NOTICE
To prevent damage to the transmission:

[ 'RQRWDOORZZKHHOVRIRQHD[OHWR
spin excessively whilst the ESC, ABS,
and parking brake warning lights
are displayed. The repairs would not
be covered by the vehicle warranty.
Reduce engine power and do not spin
the wheel(s) excessively whilst these
lights are displayed.

[ :KHQRSHUDWLQJWKHYHKLFOHRQ
a dynamometer, make sure the
ESC is turned off (ESC OFF light
illuminated).
i Information
7XUQLQJWKH(6&RIIGRHVQRWDIIHFW$%6
RUVWDQGDUGEUDNHV\VWHPRSHUDWLRQ
Vehicle Stability Management
(VSM)
The Vehicle Stability Management (VSM)
is a function of the Electronic Stability
Control (ESC) system. It helps ensure the
vehicle stays stable when accelerating
or braking suddenly on wet, slippery and
rough roads where traction over the four
tyres can suddenly become uneven.
WARNING
Take the following precautions when
using the Vehicle Stability Management
(VSM):

[ $/:$<6FKHFNWKHVSHHGDQGWKH
distance to the vehicle ahead. The
VSM is not a substitute for safe
driving practices.

[ 1HYHUGULYHWRRIDVWIRUWKHURDG
conditions. The VSM system will not
prevent accidents. Excessive speed
in bad weather, slippery and uneven
roads can result in severe accidents.

6-51
06
ISG Indication
The ISG System is indicated by lamp on
the instrument cluster. If your vehicle is
equipped with a supervision cluster, the
notice will illuminate on the LCD display.
OBC3060009
The system may require the engine to
manually restart when the light on the
ISG OFF button will illuminate and if your
vehicle is equipped with a supervision
cluster, a warning message comes on
continuously.
OBC3N061014AU
OBC3070110TU/OBC3070111TU
The engine will not start if the shift lever
is moved from the N (neutral) stage to
the D (driving) stage, manual mode, or R
(reverse) stage without stepping on the
brake pedal whilst the engine is stopped
automatically. At this time, if you press
the brake it will be restarted.

6-53
06
NOTICE
If you want to use the ISG function, the
battery sensor needs to be calibrated
for approximately 4 hours with the
ignition off and then, turn the engine
on and off 2 or 3 times.
WARNING
When the engine is in Idle Stop mode,
it’s possible to restart the engine
without the driver taking any action.
Before leaving the car or doing
anything in the engine room area,
stop the engine by turning the ignition
switch to the LOCK (OFF) position or
removing the ignition key.

07
7-89
OBC3070022
To turn off Smart Cruise Control
Press the Driving Assist button to turn
Smart Cruise Control system off.
Information
If your vehicle is equipped with Manual
Speed Limit Assist, press and hold the
Driving Assist button to turn off Smart
Cruise Control. However, Manual Speed
Limit Assist will turn on.
Based on DRIVE MODE
Smart Cruise Control will change
acceleration based on the drive mode
selected from Drive Mode Integrated
Control system. Refer to the following
chart.
Drive mode Smart Cruise Comtrol
COMFORT Normal
ECO Slow
SPORT Fast
Information
For more details on drive mode, refer to
“Drive Mode Integrated Control System”
VHFWLRQLQFKDSWHU
„Type A
OTM070141L
„Type B
ONX4E070090
Warning volume
With the engine on, select ‘Driver
DVVLVWDQFH

07
7-153
Parking Assist operation
Operating button
Parking/View button
OBC3070044R
Name Description
Parking/
View button
(
)Press and hold the
Parking/View button
to turn on Parking
Assist. Also, Forward/
Reverse Parking
Distance warning will
automatically turn on.
Parking
Safety
button
(
)Press the Parking
Safety button whilst
Parking Assist is
operating to end
function operation.
Parking mode
„Perpendicular reverse parking
[5LJKWVLGH
[Left side
OTM048444L
„Parallel reverse parking
[5LJKWVLGH
[Left side
OTM048443L
Use Parking mode when the following
conditions are satisfied.

[Parking space is straight

[Parallel reverse parking or
perpendicular reverse parking is
required

[There is a parked vehicle near the
parking space

[There is enough space to move the
vehicle

07
7-159
OBC3070104TU/OBC3070105TU
Additional instructions (messages)
When Parking Assist is operating, a
message may appear regardless of the
operating order. The messages will
appear according to the circumstances.
Follow the instructions provided whilst
using Parking Assist.
WARNING

[Always check surroundings for
pedestrians, animals or objects
before taking your foot off the brake
pedal.

[If the vehicle does not move even
though the brake pedal is not
depressed, check the surroundings
before depressing the accelerator
pedal.
Exit mode
„Parallel exit
[/HIWVLGH
[5LJKWVLGH
OTM048445L
Use Exit mode when the following
conditions are satisfied.

[There is enough space to move the
vehicle
Operating order
Exit mode operates in the following
order:
1. Getting ready for exit
2. Selecting exit mode and type
3. Checking space
4. Steering wheel control
5. Exiting complete

[Parking Assist will help you with
parallel exit.

07

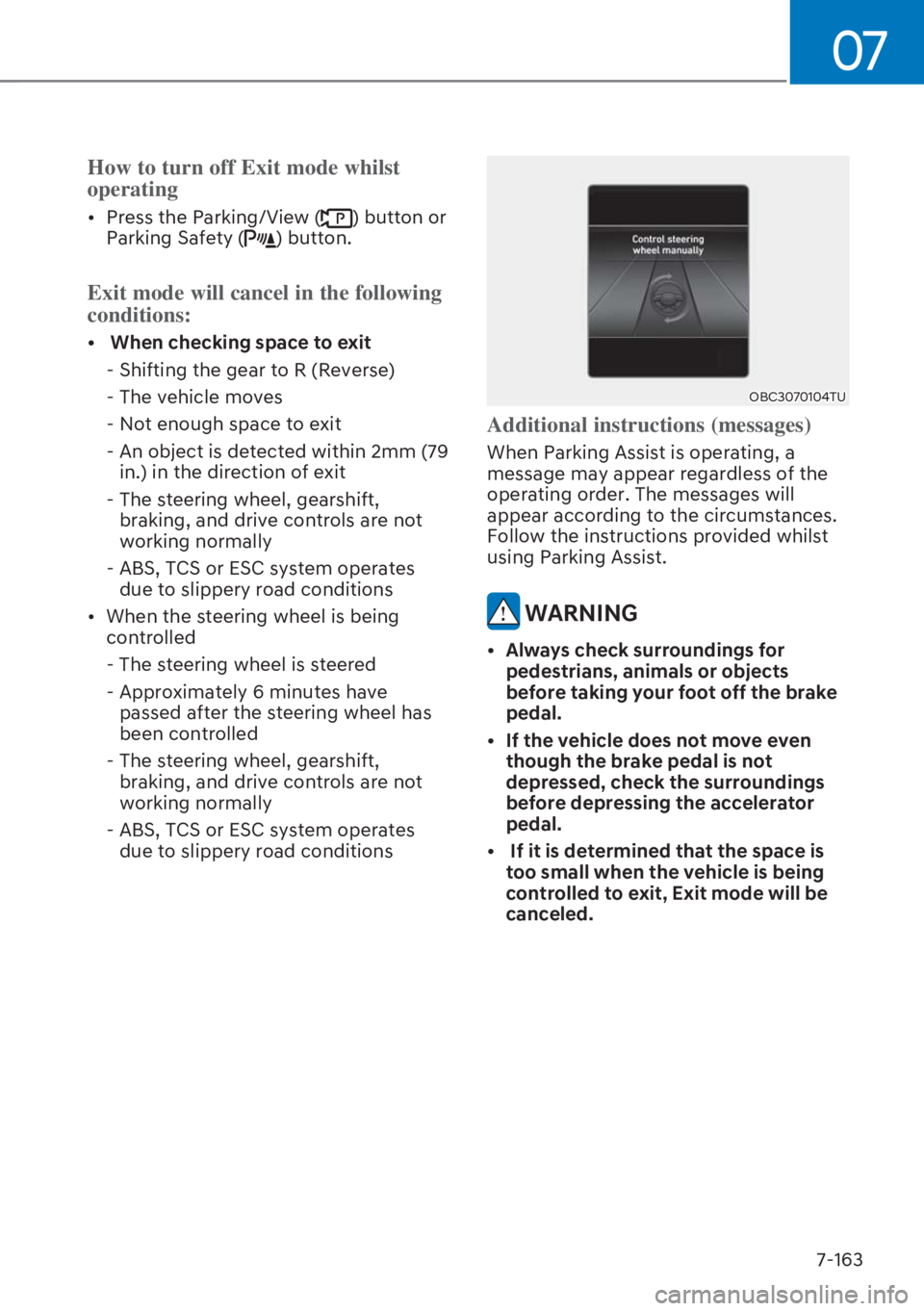

7-163
How to turn off Exit mode whilst
operating

[Press the Parking/View () button or
Parking Safety () button.
Exit mode will cancel in the following
conditions:

[ When checking space to exit
- Shifting the gear to R (Reverse)
- The vehicle moves
- Not enough space to exit
- An object is detected within 2mm (79
in.) in the direction of exit
- The steering wheel, gearshift,
braking, and drive controls are not
working normally
- ABS, TCS or ESC system operates
due to slippery road conditions

[When the steering wheel is being
controlled
- The steering wheel is steered
- Approximately 6 minutes have
passed after the steering wheel has
been controlled
- The steering wheel, gearshift,
braking, and drive controls are not
working normally
- ABS, TCS or ESC system operates
due to slippery road conditions
OBC3070104TU
Additional instructions (messages)
When Parking Assist is operating, a
message may appear regardless of the
operating order. The messages will
appear according to the circumstances.
Follow the instructions provided whilst
using Parking Assist.
WARNING

[Always check surroundings for
pedestrians, animals or objects
before taking your foot off the brake
pedal.

[If the vehicle does not move even
though the brake pedal is not
depressed, check the surroundings
before depressing the accelerator
pedal.

[ If it is determined that the space is
too small when the vehicle is being
controlled to exit, Exit mode will be
canceled.

8-11
08
OBC3N081002AU
ONX4E080005
(1) Low Tyre Pressure Telltale/TPMS
Malfunction Indicator
(2) Low Tyre Pressure Position Telltale
and Tyre Pressure Telltale (Shown on
the LCD display)
Check tyre pressure
ONX4E040019

[You can check the tyre pressure in the
Warning mode on the cluster.
Refer to the “LCD Display Modes” in
chapter 4.

[Tyre pressure is displayed after a few
minutes of driving after initial engine
start up.

[If tyre pressure is not displayed when
the vehicle is stopped, “Drive to
display” message will appear. After
driving, check the tyre pressure.

[The displayed tyre pressure values
may differ from those measured with a
tyre pressure gauge.

[You can change the tyre pressure
unit in the User Settings mode on the
instrument cluster.
- psi, kpa, bar (Refer to “LCD Modes”
in chapter 4).
7<5(35(6685(021,725,1*6<67(0
