6-38
Driving your vehicle
Using ABS
To obtain the maximum benefit from
your ABS in an emergency situation,
do not attempt to modulate your brake
pressure and do not try to pump your
brakes. Depress your brake pedal as
hard as possible.
When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in the
brake pedal. This is normal and it means
your ABS is active.
ABS does not reduce the time or
distance it takes to stop the vehicle.
Always maintain a safe distance from the
vehicle in front of you.
ABS will not prevent a skid that results
from sudden changes in direction, such
as trying to take a corner too fast or
making a sudden lane change. Always
drive at a safe speed for the road and
weather conditions.
ABS cannot prevent a loss of stability.
Always steer moderately when braking
hard. Severe or sharp steering wheel
movement can still cause your vehicle
to veer into oncoming traffic or off the
road.
On loose or uneven road surfaces,
operation of the anti-lock brake system
may result in a longer stopping distance
than for vehicles equipped with a
conventional brake system.
The ABS warning light (
) will stay
on for several seconds after the ignition
switch is in the ON position. During
that time, the ABS will go through self-
diagnosis and the light will go off if
everything is normal. If the light stays
on, you may have a problem with your
ABS. We recommend that you contact a
HYUNDAI authorised repairer as soon as
possible.
WARNING
If the ABS warning light () is on and
stays on, you may have a problem with
the ABS. Your power brakes will work
normally. To reduce the risk of serious
injury or death, we recommend that
you contact your HYUNDAI dealer as
soon as possible.
NOTICE
When you drive on a road having poor
traction, such as an icy road, and apply
your brakes continuously, the ABS will
be active continuously and the ABS
warning light (
) may illuminate. Pull
your vehicle over to a safe place and
turn the engine off.
Restart the engine. If the ABS warning
light is off, then your ABS system is
normal.
Otherwise, you may have a problem
with your ABS system. We recommend
that you contact a HYUNDAI authorised
repairer as soon as possible.
i Information
:KHQ\RXMXPSVWDUW\RXUYHKLFOH
EHFDXVHRIDGUDLQHGEDWWHU\WKH$%6
ZDUQLQJOLJKW
PD\WXUQRQDWWKH
VDPHWLPH7KLVKDSSHQVEHFDXVHRIWKH
ORZEDWWHU\YROWDJH,WGRHVQRWPHDQ\RXU
$%6LVPDOIXQFWLRQLQJ+DYHWKHEDWWHU\
UHFKDUJHGEHIRUHGULYLQJWKHYHKLFOH

6-58
Driving your vehicle
Hazardous driving conditions
When hazardous driving elements are
encountered such as water, snow,
ice, mud and sand, take the following
precautions:

[Drive cautiously and maintain a longer
braking distance.

[Avoid abrupt braking or steering.

[When your vehicle is stuck in snow,
mud, or sand, use the second
gear. Accelerate slowly to avoid
unnecessary wheel spin.

[Put sand, rock salt, tyre chains or
other non-slip materials under the
wheels to provide additional traction
whilst the vehicle becomes stuck in
ice, snow, or mud.
WARNING
Downshifting with an Automatic
transmission, whilst driving on slippery
surfaces can cause an accident. The
sudden change in tyre speed could
cause the tyres to skid. Be careful when
downshifting on slippery surfaces.
Rocking the vehicle
If it is necessary to rock the vehicle to
free it from snow, sand, or mud, first
turn the steering wheel right and left to
clear the area around your front wheels.
Then, shift back and forth between the
1st gear and R (Reverse, for manual
transmission vehicle) or R (Reverse)
and a forward gear (for Automatic
transmission vehicle/Dual clutch
transmission vehicle).
Try to avoid spinning the wheels, and do
not race the engine.
To prevent transmission wear, wait until
the wheels stop spinning before shifting
gears. Release the accelerator pedal
whilst shifting, and press lightly on the
accelerator pedal whilst the transmission
is in gear. Slowly spinning the wheels in
forward and reverse directions causes
a rocking motion that may free the
vehicle.
WARNING
If the vehicle is stuck and excessive
wheel spin occurs, the temperature
in the tyres can increase very quickly.
If the tyres become damaged, a tyre
blow out or tyre explosion can occur.
This condition is dangerous - you and
others may be injured. Do not attempt
this procedure if people or objects are
anywhere near the vehicle.
If you attempt to free the vehicle, the
vehicle can overheat quickly, possibly
causing an engine compartment fire or
other damages. Try to avoid spinning
the wheels as much as possible to
prevent overheating of either the tyres
or the engine. DO NOT allow the vehicle
to spin the wheels above 35 mph (56
km/h).
i Information
7KH(6&V\VWHPLIHTXLSSHGPXVWEH
WXUQHG2))EHIRUHURFNLQJWKHYHKLFOH
63(&,$/'5,9,1*&21',7,216

6-63
06
&KDLQ,QVWDOODWLRQ
When installing tyre chains, follow the
manufacturer’s instructions and mount
them as tightly possible. Drive slowly
(less than 20 mph (30 km/h)) with
chains installed. If you hear the chains
contacting the body or chassis, stop and
tighten them. If they still make contact,
slow down until the noise stops. Remove
the tyre chains as soon as you begin
driving on cleared roads.
When mounting snow chains, park
the vehicle on level ground away from
traffic. Turn on the vehicle Hazard
Warning Flasher and place a triangular
emergency warning device behind the
vehicle (if available). Always place the
vehicle in P (Park), apply the parking
brake and turn off the engine before
installing snow chains.
NOTICE
When using tyre chains:

[Wrong size chains or improperly
installed chains can damage your
vehicle’s brake lines, suspension,
body and wheels.

[Use SAE “S” class or wire chains.

[If you hear noise caused by chains
contacting the body, retighten the
chain to prevent contact with the
vehicle body.

[To prevent body damage, retighten
the chains after driving 0.3~0.6 miles
(0.5~1.0 km).

[Do not use tyre chains on vehicles
equipped with aluminium wheels. If
unavoidable, use a wire type chain.

[Use wire chains less than 0.47 in (12
mm) wide to prevent damage to the
chain’s connection.
Winter Precautions
Use high quality ethylene glycol coolant
Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because it
helps prevent corrosion in the cooling
system, lubricates the water pump and
prevents freezing. Be sure to replace or
replenish your coolant in accordance
with the maintenance schedule. Before
winter, have your coolant tested to
assure that its freezing point is sufficient
for the temperatures anticipated during
the winter.
Check battery and cables
Winter temperatures affect battery
performance. Inspect the battery and
cables, as specified in the chapter
9. The battery charging level can be
checked by a HYUNDAI authorised
repairer or in a service station.
Change to “winter weight” oil if
necessary
In some regions during winter, it is
recommended to use the “winter
weight” oil with lower viscosity. For
further information, refer to the chapter
2. When you are not sure about a type
of winter weight oil, consult a HYUNDAI
authorised repairer.

6-70
Driving your vehicle
Driving with a trailer
Towing a trailer requires a certain
amount of experience. Before setting
out for the open road, you must get to
know your trailer. Acquaint yourself with
the feel of handling and braking with the
added weight of the trailer. And always
keep in mind that the vehicle you are
driving is now longer and not nearly as
responsive as your vehicle is by itself.
Before you start, check the trailer towbar
and platform, safety chains, electrical
connector(s), lights, tyres and brakes.
During your trip, occasionally check
to be sure that the load is secure, and
that the lights and trailer brakes are still
working.
Distance
Stay at least twice as far behind the
vehicle ahead as you would when driving
your vehicle without a trailer. This can
help you avoid situations that require
heavy braking and sudden turns.
Passing
You will need more passing distance up
ahead when you’re towing a trailer. And,
because of the increased vehicle length,
you’ll need to go much farther beyond
the passed vehicle before you can return
to your lane.
Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, move your hand to the left.
To move the trailer to the right, move
your hand to the right. Always back up
slowly and, if possible, have someone
guide you.
Making turns
When you’re turning with a trailer, make
wider turns than normal. Do this so your
trailer won’t strike soft shoulders, kerbs,
road signs, trees, or other objects. Avoid
jerky or sudden manoeuvres. Signal well
in advance.
Turn signals
When you tow a trailer, your vehicle has
to have a different turn signal flasher and
extra wiring. The green arrows on your
instrument panel will flash whenever you
signal a turn or lane change. Properly
connected, the trailer lights will also
flash to alert other drivers you’re about
to turn, change lanes, or stop.
When towing a trailer, the green arrows
on your instrument panel will flash for
turns even if the bulbs on the trailer
are burned out. Thus, you may think
drivers behind you are seeing your
signals when, in fact, they are not. It’s
important to check occasionally to be
sure the trailer bulbs are still working.
You must also check the lights every
time you disconnect and then reconnect
the wires.
WARNING
Do not connect a trailer lighting system
directly to your vehicle’s lighting
system. Use an approved trailer wiring
harness.
Failure to do so could result in damage
to the vehicle electrical system and/or
personal injury.
We recommend that you have the
system checked by a HYUNDAI
authorised repairer as soon as possible.

Driver assistance system
7-6
OBC3070003
Emergency braking

[To warn the driver that emergency
braking will occur, the ‘Emergency
%UDNLQJ
TZDUQLQJPHVVDJHZLOODSSHDU
on the cluster and an audible warning
will sound and the steering wheel will
vibrate. (if equipped).

[If a vehicle is detected in front,
the function will operate when
your vehicle speed is between
approximately 6~37 mph (10~60
km/h).

[If a pedestrian or cyclist is detected
in front, the function will operate
when your vehicle speed is between
approximately 6~37 mph (10~60
km/h).

[In emergency braking situation,
braking is assisted with strong braking
power by the function to help prevent
collision with the vehicle, pedestrian
or cyclist ahead.
OBC3070004
Stopping vehicle and ending brake
control

[When the vehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOODSSHDU
on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
WARNING
Take the following precautions when
using Forward Collision-Avoidance
Assist:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[With ‘Active Assist’ or ‘Warning Only’
selected, when ESC is turned off by
pressing and holding the ESC OFF
button for more than 3 seconds,
Forward Collision-Avoidance Assist
will turn off automatically. In this
case, the function cannot be set
from the Settings menu and the

warning light will illuminate on the
cluster which is normal. If ESC is
turned on by pressing the ESC OFF
button, Forward Collision-Avoidance
Assist will maintain the last setting.

Driver assistance system
7-36

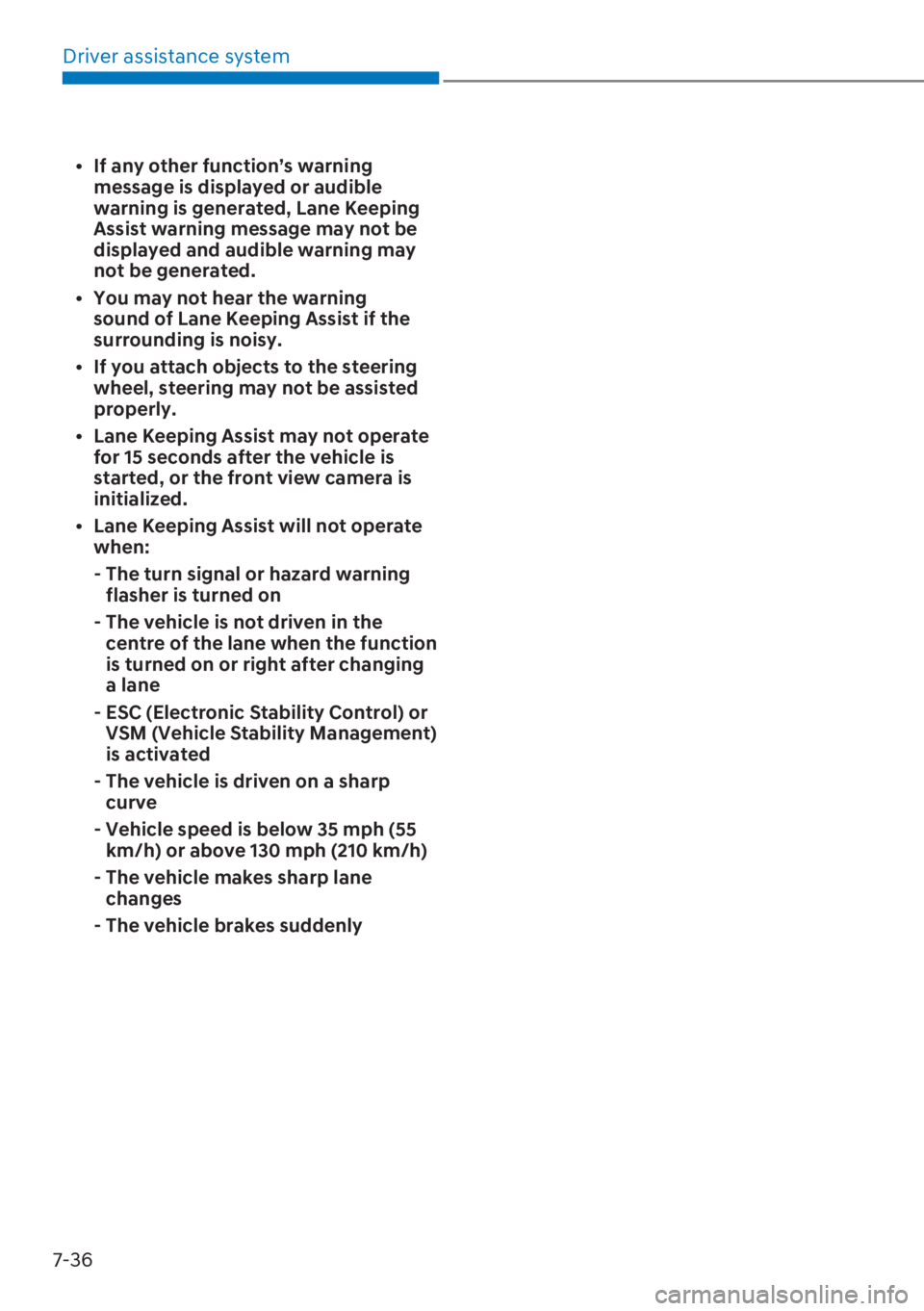

[If any other function’s warning
message is displayed or audible
warning is generated, Lane Keeping
Assist warning message may not be
displayed and audible warning may
not be generated.

[You may not hear the warning
sound of Lane Keeping Assist if the
surrounding is noisy.

[If you attach objects to the steering
wheel, steering may not be assisted
properly.

[Lane Keeping Assist may not operate
for 15 seconds after the vehicle is
started, or the front view camera is
initialized.

[Lane Keeping Assist will not operate
when:
- The turn signal or hazard warning
flasher is turned on
- The vehicle is not driven in the
centre of the lane when the function
is turned on or right after changing
a lane
- ESC (Electronic Stability Control) or
VSM (Vehicle Stability Management)
is activated
- The vehicle is driven on a sharp
curve
- Vehicle speed is below 35 mph (55
km/h) or above 130 mph (210 km/h)
- The vehicle makes sharp lane
changes
- The vehicle brakes suddenly

07
7-53
OBC3070125R
Collision-Avoidance Assist (whilst
driving)

[To warn the driver of a collision, the
warning light on the outside rearview
mirror will blink and a warning
message will appear on the cluster.
At the same time, an audible warning
will sound and the steering wheel will
vibrate (if equipped).

[The function will operate when your
vehicle speed is between 40~120
mph (60~200 km/h) and both lane
markings of the driving lane are
detected.

[Emergency braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.
WARNING

[Collision-Avoidance Assist will
be canceled under the following
circumstances:
- Your vehicle enters the next lane by
a certain distance
- Your vehicle is away from the
collision risk
- The steering wheel is sharply
steered
- The brake pedal is depressed
- Forward Collision-Avoidance Assist
is operating

[After function operation or lane
change, you must drive to the centre
of the lane. The function will not
operate if the vehicle is not driven in
the centre of the lane.

Driver assistance system
7-72
OBC3070090TU
Warning overspeed
When driving at a speed higher than
the displayed speed limit, the red speed
limit indicator will blink.
OBC3070091ROBC3070092R
Changing set speed
If the speed limit of the road changes
during the operation of Manual Speed
Limit Assist or Smart Cruise Control,
an arrow in the direction of up or down
is displayed to inform the driver that
the set speed needs to be changed. At
this time, the driver can change the set
speed according to the speed limit by
using the + or – switch on the steering
wheel.
WARNING

[If the Speed limit tolerance is set over
‘0’, the set speed will change to a
higher speed than the speed limit of
the road. If you want to drive below
the speed limit, set the Speed limit
tolerance under '0' or use the
– switch on the steering wheel to
lower the set speed.

[Even after changing the set speed
according to the speed limit of the
road, the vehicle can still be driven
over the speed limit. If necessary,
depress the brake pedal to reduce
your driving speed.

[If the speed limit of the road is under
20 mph (30 km/h), the set speed
change function will not work.

[Intelligent Speed Limit Assist
operates using the speed unit in the
instrument cluster set by the driver.
If the speed unit is set to a unit other
than the speed unit used in your
country, Intelligent Speed Limit
Assist may not operate properly.
Information
