5-41
05
[ Do not get back into a vehicle
once you have begun refuelling.
You can generate a build-up of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapours
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other petrol source, with your bare
hand.
[ When refuelling, always move the
shift lever to the N (Neutral, for
Automatic transmission/Dual clutch
transmission) or the first gear or R
(Reverse, for Manual transmission)
position, set the parking brake,
and place the ignition switch to the
/ 2 & . 2 ) ) S R V L W L R Q 6 S D U N V S U R G X F H G
by electrical components related to
the engine can ignite fuel vapours
causing a fire.
[ When using an approved portable
fuel container, be sure to place
the container on the ground prior
to refuelling. Static electricity
discharge from the container can
ignite fuel vapours causing a fire.
Once refuelling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.
[ Use only approved portable plastic
fuel containers designed to carry and
store petrol.[ Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle whilst at a gas station,
especially during refuelling.
[ Do not over-fill or top-off your
vehicle tank, which can cause petrol
spillage.
[ If a fire breaks out during refuelling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
W K H O R F D O I L U H G H S D U W P H Q W ) R O O R Z D Q \
safety instructions they provide.
[ If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.
[ Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
i Information
0 D N H V X U H W R U H I X H O \ R X U Y H K L F O H
D F F R U G L Q J W R W K H
Page 188 of 649
5-47
05
NOTICE
If the driver exits the vehicle through
another door besides the driver
door, the battery saver function
does not operate and the headlight
G H O D \ I X Q F W L R Q G R H V Q R W W X U Q 2 ) )
automatically.
This may cause the battery to
discharge. To avoid battery discharge,
W X U Q 2 ) ) W K H K H D G O L J K W V P D Q X D O O \ I U R P
the headlight switch before exiting the
vehicle.
Daytime running light (DRL)
(if equipped)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
light OFF when:
1. The parking brake is applied.
2. The engine is turned off.
Headlight levelling device
OBC3050009R
To adjust the headlight beam level
according to the number of the
passengers and loading weight in the
luggage area, turn the beam levelling
switch.
The higher the number on the switch
position, the lower the headlight beam
level. Always keep the headlight beam
at the proper levelling position, or
headlights may dazzle other road users.
Listed below are examples of
appropriate switch settings for varying
loads. For loading conditions other than
those listed, adjust the switch position to
the most similar situation.
Loading conditionSwitch position
Driver only0
Driver + Front
passenger0
Full passengers
(including driver)1
Full passengers
(including driver) +
Maximum permissible
loading2
Driver + Maximum
permissible loading 3
Page 192 of 649
5-51
05
2. When the front view camera is
adversely affected by an external
condition. Such examples may
include:
[ When the vehicle’s headlights have
been damaged or not repaired
properly
[ When the vehicle headlights are not
aimed properly
[ When the vehicle is driven on a
narrow curved road or rough road
[ When the vehicle is driven on an
uphill road or downhill road
[ When only part of the vehicle in front
is visible on a crossroad or curved
road
[ When there is a traffic light,
reflecting sign, flashing sign or mirror
[ When the road conditions are bad
such as being wet or covered with
snow
[ When a vehicle suddenly appears
from a curve
[ When the vehicle is tilted from a flat
tyre or being towed
[ : K H Q / D Q H . H H S L Q J $ V V L V W V \ V W H P
warning light illuminates
[ When the light from the oncoming or
front vehicle is not detected because
of exhaust fume, smoke, fog, snow,
etc.
[ When the front window is covered
with foreign matters such as ice,
dust, fog, or is damaged
3. When the forward visibility is poor.
Such examples may include:
[ When the headlights of an oncoming
vehicle or a vehicle in front is not
detected due to poor outside
visibility (smog, smoke, dust, fog,
heavy rain, snow, etc.)
[ When the windscreen visibility is
poor WARNING
[ 7 K H I X Q F W L R Q P D \ Q R W Z R U N D U R X Q G
seconds after starting the vehicle or
the initialization or rebooting of the
front view camera.
[ ' R Q R W D W W H P S W W R G L V D V V H P E O H
the front view camera without the
assistance of a HYUNDAI authorised
repairer technician.
If the front view camera is removed
for any reason, the system may need
to be re-calibrated. We recommend
that the system be inspected by a
HYUNDAI authorised repairer.
[ , I W K H Z L Q G V F U H H Q R I \ R X U Y H K L F O H
is replaced, most likely the front
view camera will need to be
re-calibrated. If this occurs, have
your vehicle inspected and have the
system re-calibrated by a HYUNDAI
authorised repairer.
[ % H F D U H I X O W K D W Z D W H U G R H V QT W J H W L Q W R
front view camera unit and do not
remove or damage related parts of
High Beam Assist system.
[ ' R Q R W S O D F H R E M H F W V R Q W K H F U D V K
pad that reflect light such as mirrors,
white paper, etc. The system may
malfunction if sunlight is reflected.
[ $ W W L P H V + L J K % H D P $ V V L V W P D \
not work properly. The system is
for your convenience only. It is the
responsibility of the driver for safe
driving practices and always check
the road conditions for your safety.
[ : K H Q W K H V \ V W H P G R H V Q R W R S H U D W H
normally, change the light position
manually between the high beam and
low beam.
Page 218 of 649
5-77
05
WARNING
Windscreen heating
Do not use the
or position
during cooling operation in extremely
humid weather. The difference
between the temperature of the
outside air and that of the windscreen
could cause the outer surface of the
windscreen to fog up, causing loss of
visibility. In this case, set the mode
selection knob or button to the
position and fan speed control knob or
button to lower speed.
[ ) R U P D [ L P X P G H I U R V W S H U I R U P D Q F H
set the temperature control knob
to the highest temperature setting
(rotated all the way to the right) and
the fan speed control to the highest
setting.
[ , I Z D U P D L U W R W K H I O R R U L V G H V L U H G
whilst defrosting or defogging, set the
mode to the floor-defrost position.
[ % H I R U H G U L Y L Q J F O H D U D O O V Q R Z D Q G L F H
from the windscreen, rear window,
outside rear view mirrors, and all side
windows.
[ & O H D U D O O V Q R Z D Q G L F H I U R P W K H
bonnet and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up inside of the
windscreen.
i Information
, I W K H H Q J L Q H W H P S H U D W X U H L V V W L O O F R O G D I W H U
starting, then a brief engine warm up
period may be required for the vented air
flow to become warm or hot.
Manual climate control system
To defog inside windscreen
OBC3050118
1. Select any fan speed except
"0"position.
2. Select the desired temperature.
3. Select the
or position.
4. The outside (fresh) air will be selected
automatically. Additionally, the
air conditioning (if equipped) will
automatically operate if the mode is
selected to the
position.
If the air conditioning and outside
(fresh) air position are not selected
automatically, press the corresponding
button manually.
WINDSCREEN DEFROSTING AND DEFOGGING
Page 219 of 649

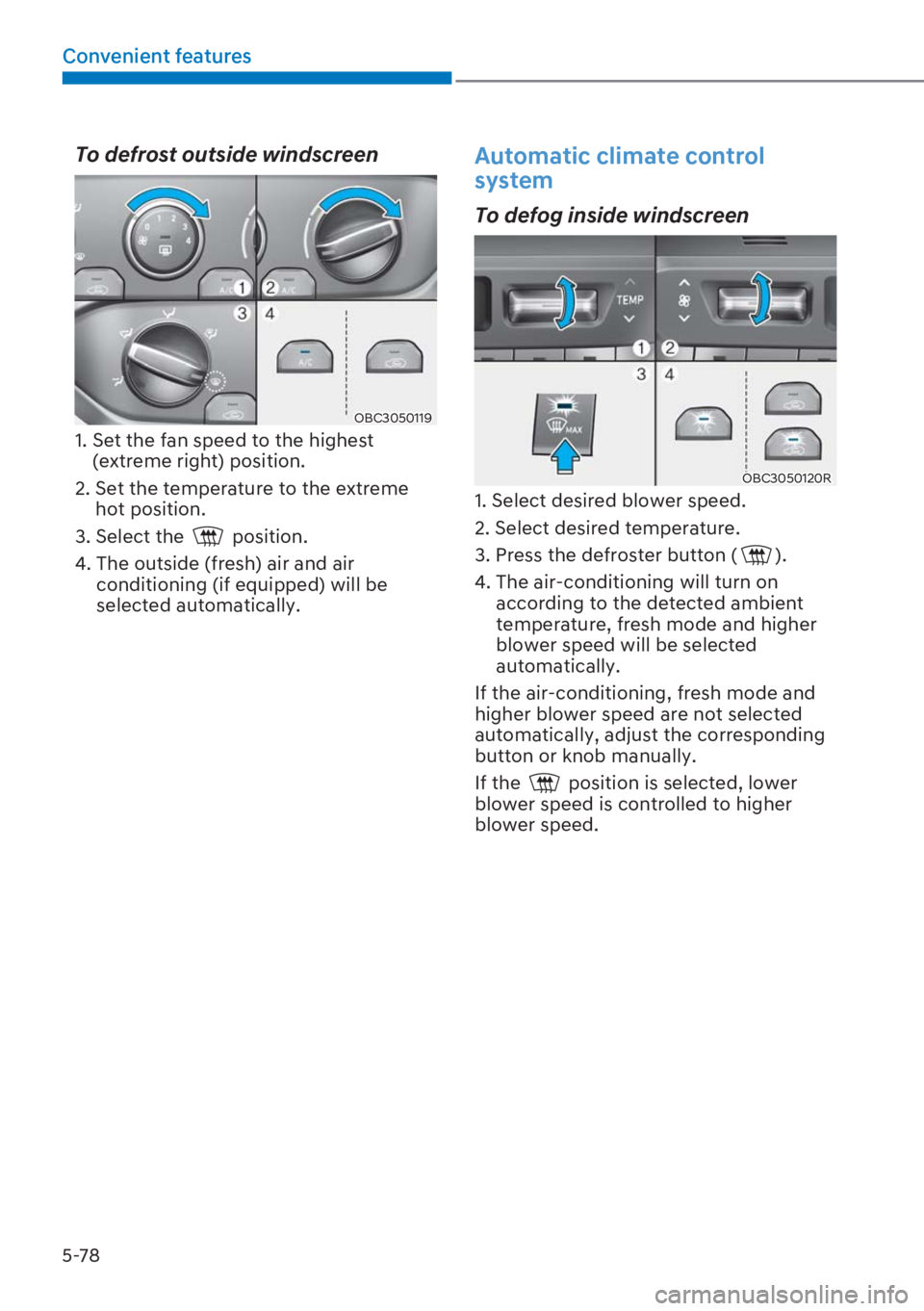

5-78
Convenient features
To defrost outside windscreen
OBC3050119
1. Set the fan speed to the highest
(extreme right) position.
2. Set the temperature to the extreme
hot position.
3. Select the
position.
4. The outside (fresh) air and air
conditioning (if equipped) will be
selected automatically.
Automatic climate control
system
To defog inside windscreen
OBC3050120R
1. Select desired blower speed.
2. Select desired temperature.
3. Press the defroster button (
).
4. The air-conditioning will turn on
according to the detected ambient
temperature, fresh mode and higher
blower speed will be selected
automatically.
If the air-conditioning, fresh mode and
higher blower speed are not selected
automatically, adjust the corresponding
button or knob manually.
If the
position is selected, lower
blower speed is controlled to higher
blower speed.
Page 234 of 649
5-93
05
Roof rack
OGB046238R
If the vehicle has a roof rack, you can
load cargo on top of your vehicle.
NOTICE
If the vehicle is equipped with a
sunroof, be sure not to position cargo
onto the roof rack in such a way that it
could interfere with sunroof operation.
NOTICE
[ : K H Q F D U U \ L Q J F D U J R R Q W K H U R R I
rack, take the necessary precautions
to make sure the cargo does not
damage the roof of the vehicle.
[ : K H Q F D U U \ L Q J O D U J H R E M H F W V R Q W K H
roof rack, make sure they do not
exceed the overall roof length or
width.
WARNING
[ 7 K H I R O O R Z L Q J V S H F L I L F D W L R Q L V W K H
maximum weight that can be loaded
onto the roof rack. Distribute the
load as evenly as possible onto the
roof rack and secure the load firmly.
5 2 2 )
5 $ & .70 kg (154 lbs)
EVENLY DISTRIBUTED
Loading cargo or luggage in excess of
the specified weight limit on the roof
rack may damage your vehicle.
[ 7 K H Y H K L F O H F H Q W U H R I J U D Y L W \ Z L O O
be higher when items are loaded
onto the roof rack. Avoid sudden
starts, braking, sharp turns, abrupt
manoeuvres or high speeds that may
result in loss of vehicle control or
rollover resulting in an accident.
[ $ O Z D \ V G U L Y H V O R Z O \ D Q G W X U Q F R U Q H U V
carefully when carrying items on
the roof rack. Severe wind updrafts,
caused by passing vehicles or natural
causes, can cause sudden upward
pressure on items loaded on the
roof rack. This is especially true
when carrying large, flat items such
as wood panels or mattresses. This
could cause the items to fall off the
roof rack and cause damage to your
vehicle or others around you.
[ 7 R S U H Y H Q W G D P D J H R U O R V V R I F D U J R
whilst driving, check frequently
before or whilst driving to make
sure the items on the roof rack are
securely fastened.
EXTERIOR FEATURES
Page 249 of 649
5-108
Convenient features
7 X U Q L Q J W K H G L V S O D \ R Q R U R I I
To prevent glare, you can turn off the
screen. The screen can be turned off
only whilst the system is on.
1. On the control panel, press the
[ 0 ( 1 8 & / 2 & .] button.
2. When the option selection window
displays, turn the [ 7 8 1 (] knob to
select ' L V S O D \ R I I, and then press the
knob.
[ To turn the screen back on, press
any of the control panel buttons.
* H W W L Q J W R N Q R Z W K H E D V L F
R S H U D W L R Q V
You can select an item or adjust the
settings by using the number buttons
and the [ 7 8 1 (] knob on the control
panel.
Selecting an item
1 X P E H U H G L W H P V
Press the corresponding number button.
1 X P E H U O H V V L W H P V
Turn the [ 7 8 1 (] knob to select the
desired item, and then press the knob.
Adjusting the settings
Turn the [ 7 8 1 (] knob to adjust the
value, and then press the knob to save
changes.
Turn the [ 7 8 1 (] knob to the right to
increase the value and turn the [ 7 8 1 (]
knob to the left to decrease the value.
❈ The system’s actual appearance and layout may differ depending on the vehicle
model and specification.
Page 257 of 649
![HYUNDAI I20 2023 Owners Manual 5-116
Convenient features
Restarting the current playback
On the control panel after the song has
played for 2 seconds, press the [< 6 ( ( .]
button.
[ You can also push the Up lever on the
stee](/manual-img/35/56129/w960_56129-256.png "HYUNDAI I20 2023 Owners Manual 5-116
Convenient features
Restarting the current playback
On the control panel after the song has
played for 2 seconds, press the [< 6 ( ( .]
button.
[ You can also push the Up lever on the
stee")
5-116
Convenient features
Restarting the current playback
On the control panel after the song has
played for 2 seconds, press the [< 6 ( ( .]
button.
[ You can also push the Up lever on the
steering wheel.
Playing the previous or next song
To play the previous song on the control
panel within the first 2 seconds of the
current song, press the [< 6 ( ( .] button.
To play the next song, press the
[ 7 5 $ & . >] button on the control panel.
[ If more than 2 seconds of playback
have elapsed, press the [< 6 ( ( .]
button on the control panel twice to
play the previous song.
[ You can also push the Up/down lever
on the steering wheel.
NOTICE
3 U H V V W K H > 0 ( 1 8 & / 2 & . @ E X W W R Q R Q
W K H F R Q W U R O S D Q H O W R G L V S O D \ W K H P R G H
V H O H F W L R Q Z L Q G R Z W X U Q W K H > 7 8 1 ( @ N Q R E
W R I L Q G W K H G H V L U H G V R Q J D Q G S U H V V W K H
N Q R E W R S O D \ W K H I L O H
Playing repeatedly
On the control panel, press the [
5 3 7] button. The repeat play mode
changes each time you press it. The
corresponding mode icon will be
displayed on the screen.
Playing in random order
On the control panel, press the
[ 6 + ) /] button. The shuffle play mode is
activated or deactivated each time you
press it. When you activate the shuffle
mode, the corresponding mode icon will
be displayed on the screen.
NOTICE
' H S H Q G L Q J R Q W K H F R Q Q H F W H G % O X H W R R W K
G H Y L F H R U P R E L O H S K R Q H U H S H D W
U D Q G R P R U G H U I H D W X U H V P D \ Q R W E H
V X S S R U W H G
Searching folders
1. On the control panel, press the
[ 0 ( 1 8 & / 2 & .] button.
2. When the option selection window
displays, turn the [ 7 8 1 (] knob to
select the Folder list and then press
the knob.
3. Navigate to the desired folder in the
) R O G H U O L V W and then press the [ 7 8 1 (]
knob.
[ The first song in the selected folder
will be played.
i Information
