2023 HYUNDAI I20 Smart cruise

7
Driving SafetyForward Collision–Avoidance Assist (FCA) (front view camera only) ..................... 7-2
Forward Collision–Avoidance Assist (FCA) (Sensor fusion) ................................... 7-15
Lane Keeping Assist (LKA) .......................................................................................7-30
Blind-Spot Collision Warning (BCW)....................................................................... 7-37
Blind-Spot Collision-Avoidance Assist (BCA) ......................................................... 7-47
Safe Exit Warning (SEW) ......................................................................................... 7-60
Manual Speed Limit Assist (MSLA) ........................................................................ 7-66
Intelligent Speed Limit Assist (ISLA) ....................................................................... 7-70
Driver Attention Warning (DAW) ............................................................................. 7-75
Driving ConvenienceCruise Control (CC) .................................................................................................. 7-81
Smart Cruise Control (SCC) .................................................................................... 7-85
Navigation-Based Smart Cruise Control (NSCC) .................................................. 7-101
Lane Following Assist (LFA) ................................................................................... 7-108
Parking SafetyRear View Monitor (RVM) ....................................................................................... 7-112
Rear Cross-Traffic Collision Warning (RCCW) ....................................................... 7-116
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)......................................... 7-124
Reverse Parking Distance Warning (PDW) ........................................................... 7-135
Forward/Reverse Parking Distance Warning (PDW) ............................................ 7-138
Reverse Parking Collision-Avoidance Assist (PCA) .............................................. 7-143
Parking Assist (PA) ................................................................................................... 7-151
Declaration of conformity ........................................................................... 7-168

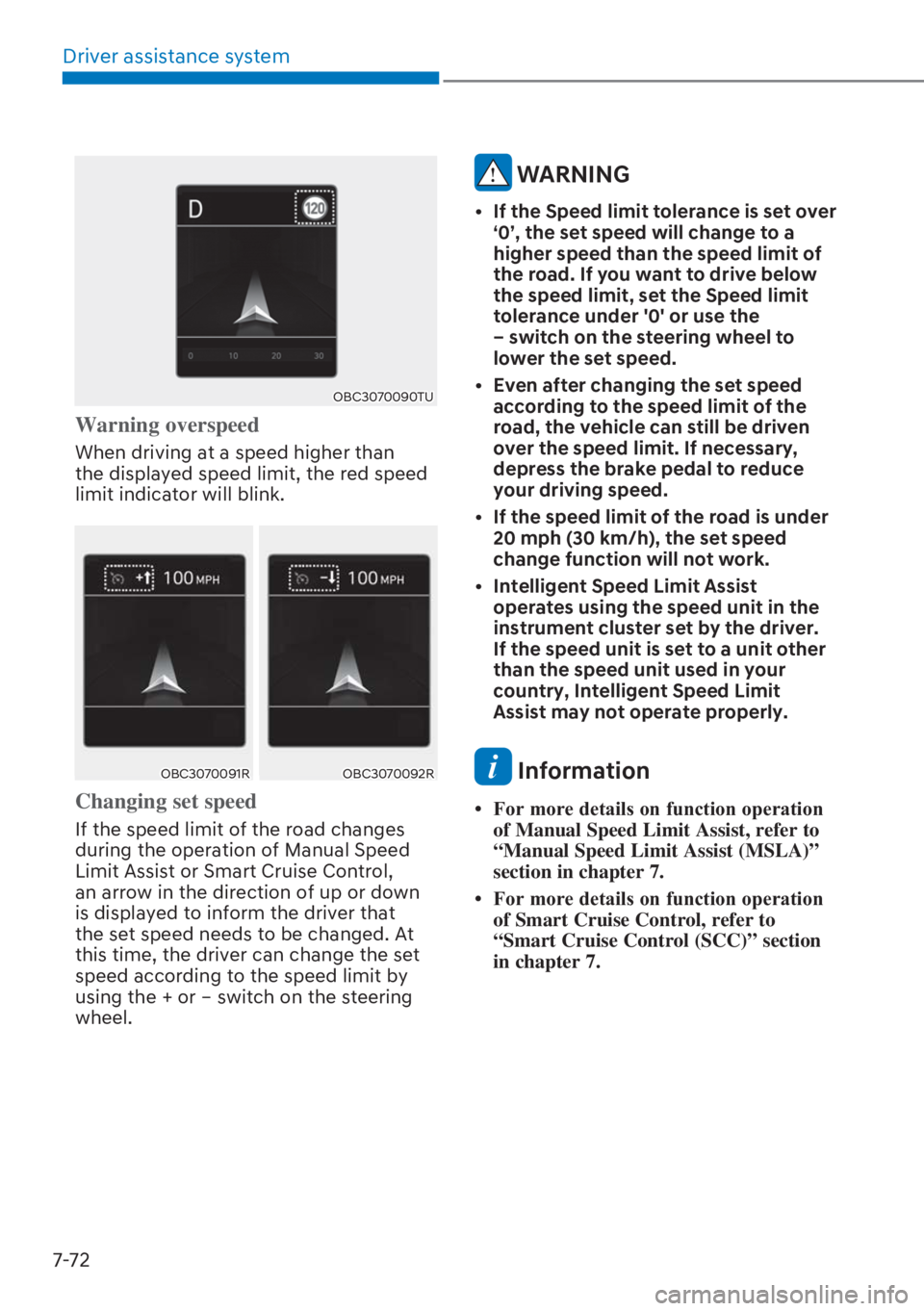

7. Driver assistance system

Driver assistance system
7-72
OBC3070090TU
Warning overspeed
When driving at a speed higher than
the displayed speed limit, the red speed
limit indicator will blink.
OBC3070091ROBC3070092R
Changing set speed
If the speed limit of the road changes
during the operation of Manual Speed
Limit Assist or Smart Cruise Control,
an arrow in the direction of up or down
is displayed to inform the driver that
the set speed needs to be changed. At
this time, the driver can change the set
speed according to the speed limit by
using the + or – switch on the steering
wheel.
WARNING

[If the Speed limit tolerance is set over
‘0’, the set speed will change to a
higher speed than the speed limit of
the road. If you want to drive below
the speed limit, set the Speed limit
tolerance under '0' or use the
– switch on the steering wheel to
lower the set speed.

[Even after changing the set speed
according to the speed limit of the
road, the vehicle can still be driven
over the speed limit. If necessary,
depress the brake pedal to reduce
your driving speed.

[If the speed limit of the road is under
20 mph (30 km/h), the set speed
change function will not work.

[Intelligent Speed Limit Assist
operates using the speed unit in the
instrument cluster set by the driver.
If the speed unit is set to a unit other
than the speed unit used in your
country, Intelligent Speed Limit
Assist may not operate properly.
Information

07
7-85 Smart Cruise Control is designed to
detect the vehicle ahead and help
maintain the desired speed and
minimum distance between the vehicle
ahead.
Overtaking Acceleration Assist
Whilst Smart Cruise Control is operating,
if the function judges that the driver is
determined to overtake the vehicle in
front, acceleration will be assisted.
Detecting sensor
OTM070001
OBC3070006
OBC3V071001
[1] : Front view camera,
[2] : Front radar
The front view camera and front radar
are used as a detecting sensor to help
detect the vehicles in front.
Refer to the picture above for the
detailed location of the detecting sensor.
60$57&58,6(&21752/

Driver assistance system
7-86
CAUTION
Always keep the front view camera
and front radar in good condition to
maintain optimal performance of Smart
Cruise Control.
For more details on the precautions of
the front view camera and front radar,
refer to “Forward Collision-Avoidance
Assist (FCA)” section in chapter 7.
Smart Cruise Control settings
Setting features
OBC3070022
To turn on Smart Cruise Control

[Press the Driving Assist button to turn
on the function. The speed will be set
to the current speed on the cluster.

[ If there is no vehicle in front of you,
the set speed will be maintained, but
if there is a vehicle in front of you,
the speed may decrease to maintain
the distance to the vehicle ahead. If
the vehicle ahead accelerates, your
vehicle will travel at a steady cruising
speed after accelerating to the set
speed.
Information
If your vehicle speed is between 5~ 20
mph (10~ 30 km/h) when you press the
Driving Assist button, the Smart Cruise
Control speed will be set to 20 mph (30
km/h).

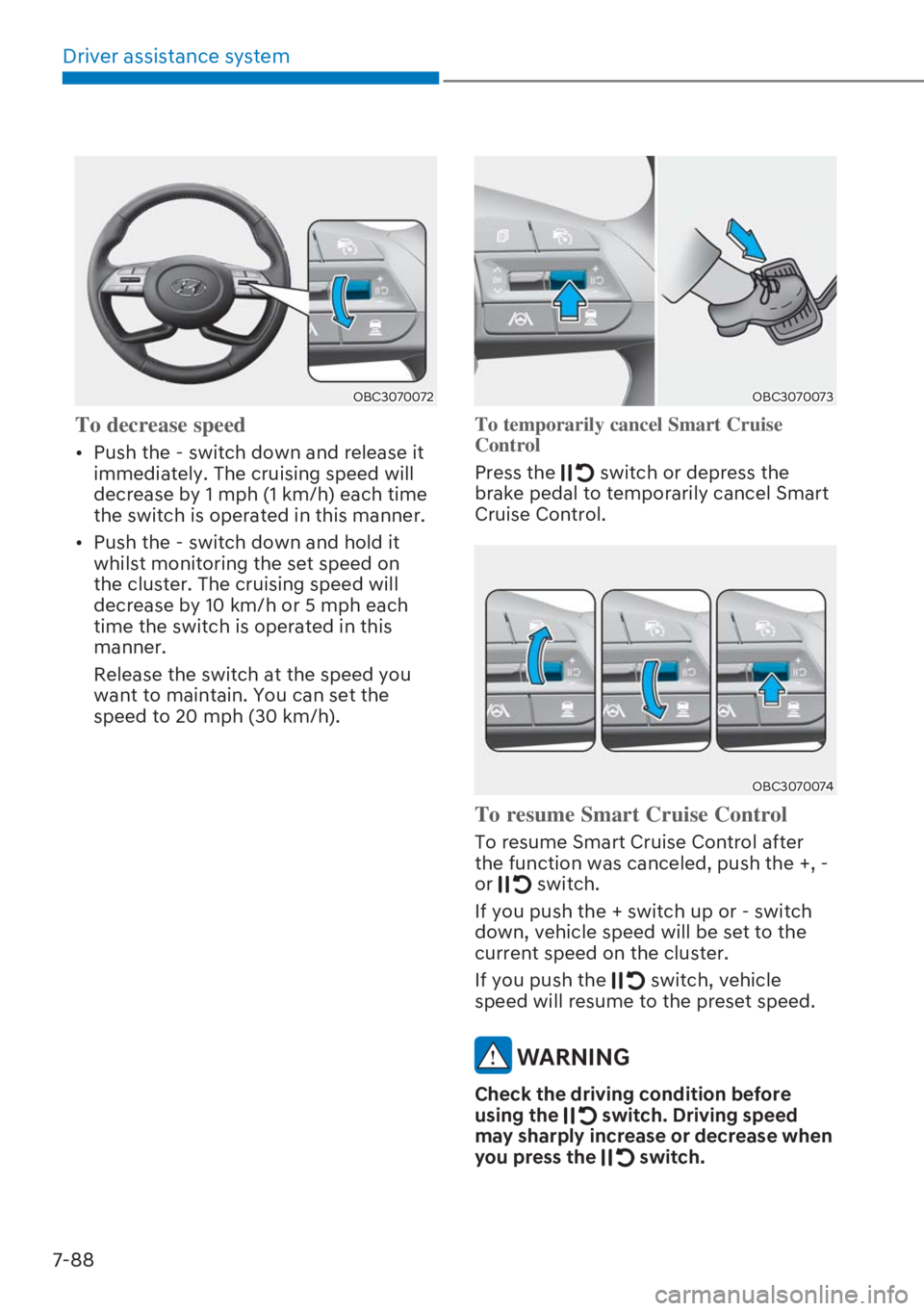

Driver assistance system
7-88
OBC3070072
To decrease speed

[Push the - switch down and release it
immediately. The cruising speed will
decrease by 1 mph (1 km/h) each time
the switch is operated in this manner.

[Push the - switch down and hold it
whilst monitoring the set speed on
the cluster. The cruising speed will
decrease by 10 km/h or 5 mph each
time the switch is operated in this
manner.
Release the switch at the speed you
want to maintain. You can set the
speed to 20 mph (30 km/h).
OBC3070073
To temporarily cancel Smart Cruise
Control
Press the switch or depress the
brake pedal to temporarily cancel Smart
Cruise Control.
OBC3070074
To resume Smart Cruise Control
To resume Smart Cruise Control after
the function was canceled, push the +, -
or
switch.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
switch, vehicle
speed will resume to the preset speed.
WARNING
Check the driving condition before
using the switch. Driving speed
may sharply increase or decrease when
you press the
switch.

07
7-89
OBC3070022
To turn off Smart Cruise Control
Press the Driving Assist button to turn
Smart Cruise Control system off.
Information
If your vehicle is equipped with Manual
Speed Limit Assist, press and hold the
Driving Assist button to turn off Smart
Cruise Control. However, Manual Speed
Limit Assist will turn on.
Based on DRIVE MODE
Smart Cruise Control will change
acceleration based on the drive mode
selected from Drive Mode Integrated
Control system. Refer to the following
chart.
Drive mode Smart Cruise Comtrol
COMFORT Normal
ECO Slow
SPORT Fast
Information
For more details on drive mode, refer to
“Drive Mode Integrated Control System”
VHFWLRQLQFKDSWHU
„Type A
OTM070141L
„Type B
ONX4E070090
Warning volume
With the engine on, select ‘Driver
DVVLVWDQFH

Driver assistance system
7-90
Smart Cruise Control operation
Operating conditions
Smart Cruise Control will operate when
the following conditions are satisfied.
Basic function

[The gear is in D (Drive)

[ 7KHGULYHU
TVGRRULVFORVHG

[Parking brake is not applied

[Your vehicle speed is within the
operating speed range:

[5-110 mph (10~180 km/h)

[ESC (Electronic Stability Control), TCS
(Traction Control System) or ABS is on

[ESC (Electronic Stability Control), TCS
(Traction Control System) or ABS is not
controlling the vehicle

[Engine rpm is not in the red zone

[Forward Collision-Avoidance Assist
brake control is not operating
Overtaking Acceleration Assist
Overtaking Acceleration Assist will
operate when the turn signal indicator
is turned on to the left (left-hand drive)
or turned on to the right (right-hand
drive) whilst Smart Cruise Control is
operating, and the following conditions
are satisfied:

[Your vehicle speed is above 40 mph
(60 km/h)

[The hazard warning flasher is off

[A vehicle is detected in front of your
vehicle

[Deceleration is not needed to maintain
distance with the vehicle in front
WARNING

[When the turn signal indicator is
turned on to the left (left-hand drive)
or turned on to the right (right-
hand drive) whilst there is a vehicle
ahead, the vehicle may accelerate
temporarily. Pay attention to the road
conditions at all times.

[Regardless of your countries driving
direction, Overtaking Acceleration
Assist will operate when the
conditions are satisfied. When
using the function in countries with
different driving direction, always
check the road conditions at all
times.

07
7-91
Smart Cruise Control display
and control
Basic function
You can see the status of the Smart
Cruise Control operation in the Driving
Assist mode on the cluster. Refer to
“LCD Display Modes” section in chapter
4.
Smart Cruise Control will be displayed
as below depending on the status of the
function.
„“Driving Assist” screen unselected„"Driving Assist" screen selected
OBC3070033ROBC3070038R

[When operating
(1) Whether there is a vehicle ahead
and the selected distance level are
displayed.
(2) Set speed is displayed.
(3) Whether there is a vehicle ahead
and the target vehicle distance are
displayed.
OAC3069053R

[When temporarily canceled
(1)
indicator is displayed.
(2) The previous set speed is shaded.
Information
