2023 HYUNDAI I20 Stop and go

9-26
Maintenance
Filter inspection
The climate control air filter should be
replaced according to the Maintenance
Schedule. If the vehicle is operated in
severely air-polluted cities or on dusty
rough roads for a long period, it should
be inspected more frequently and
replaced earlier. When you replace the
climate control air filter, replace it by
performing the following procedure,
and be careful to avoid damaging other
components.
Replace the filter according to the
Maintenance Schedule.
Filter replacement
OBC3050036R
1. Open the glove box.
OBC3090022R
2. Push in both sides of the glove box as
shown. This will ensure that the glove
box stopper pins will get released
from its holding location allowing the
glove box to hang.
OBC3N090013
3. Press and hold the lock on the left side
of the cover.
4. Pull out the cover.
5. Replace the climate control air filter.
6. Reassemble in the reverse order of
disassembly.
NOTICE
ODH073012
Install a new climate control air filter
in the correct direction with the
arrow symbol () facing downwards,
otherwise, it may be noisy and the
effectiveness of the filter may be
reduced.
CLIMATE CONTROL AIR FILTER

9-29
09
WARNING
To prevent SERIOUS INJURY or DEATH
to you or bystanders, always follow
these precautions when working near
or handling the battery:
Always read and follow
instructions carefully when
handling a battery.
Wear eye protection designed
to protect the eyes from acid
splashes.
Keep all flames, sparks, or
smoking materials away from
the battery.
Hydrogen is always present in
battery cells, is highly
combustible, and may explode
if ignited.
%DWWHULHVFRQWDLQVXOIXULFDFLG
which is highly corrosive. Do
not allow acid to contact your
eyes, skin or clothing.
If acid gets into your eyes, flush your
eyes with clean water for at least 15
minutes and get immediate medical
attention. If acid gets on your skin,
thoroughly wash the area. If you
feel pain or a burning sensation, get
medical attention immediately.

[When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
battery carrier or with your hands on
opposite corners.

[Do not attempt to jump start your
vehicle if your battery is frozen.

[NEVER attempt to recharge the
battery when the vehicle’s battery
cables are connected to the battery.

[The electrical ignition system works
with high voltage. NEVER touch these
components with the engine running
or when the Engine Start/Stop button
is in the ON position.

[Do not allow the (+) and (-) jumper
cables to touch. It may cause sparks.

[The battery may rupture or explode
when you jump start with a low or
frozen battery.

[Leaked battery electrolyte due to
repeated driving on sharp curves
(e.g. on circuits) may cause safety
problem. Avoid repeated driving on
sharp curves.
NOTICE
If you connect unauthorised electronic
devices to the battery, the battery may
be discharged. Never use unauthorised
devices.
%$77(5<

9-31
09
%DWWHU\FDSDFLW\ODEHO
OBC3090062
„ Example
❈ The actual battery label in the vehicle
may differ from the illustration.
1. AGM50L-DIN : The HYUNDAI model
name of battery
2. 12V : The nominal voltage
3. 50Ah (20HR) : The nominal capacity
(in Ampere hours)
4. RC 80 : The nominal reserve capacity
(in min.)
5. CCA 560A : Cold-test current in
amperes by SAE/EN
%DWWHU\UHFKDUJLQJ
Your vehicle has a maintenance-free,
calcium-based battery.

[ ,IWKHEDWWHU\EHFRPHVGLVFKDUJHG
over a short time (for example, the
headlights or interior lights were on
whilst the vehicle was not in use),
recharge it by slow charging (trickle)
for 10 hours.

[ ,IWKHEDWWHU\JUDGXDOO\GLVFKDUJHV
because of high electrical load whilst
the vehicle is being used, recharge it
at 20-30A for two hours.
WARNING
When recharging the battery, observe
the following precautions:

[ %HIRUHSHUIRUPLQJPDLQWHQDQFHRU
recharging the battery, turn off all
accessories and stop the engine.

[Do not allow cigarettes, sparks, or
flame near the battery.

[Wear eye protection when checking
the battery during charging.

[The battery must be removed from
the vehicle and placed in an area with
good ventilation.

[Watch the battery during charging,
and stop or reduce the charging
rate if the battery cells begin
gassing (boiling) violently or if the
temperature of the electrolyte of any
cell exceeds 49°C (120°F).

[The negative battery cable must be
removed first and installed last when
the battery is disconnected.

[Disconnect the battery charger in the
following order.
1. Turn off the main battery charger
switch.
2. Unhook the negative clamp from
the negative battery terminal.
3. Unhook the positive clamp from
the positive battery terminal.

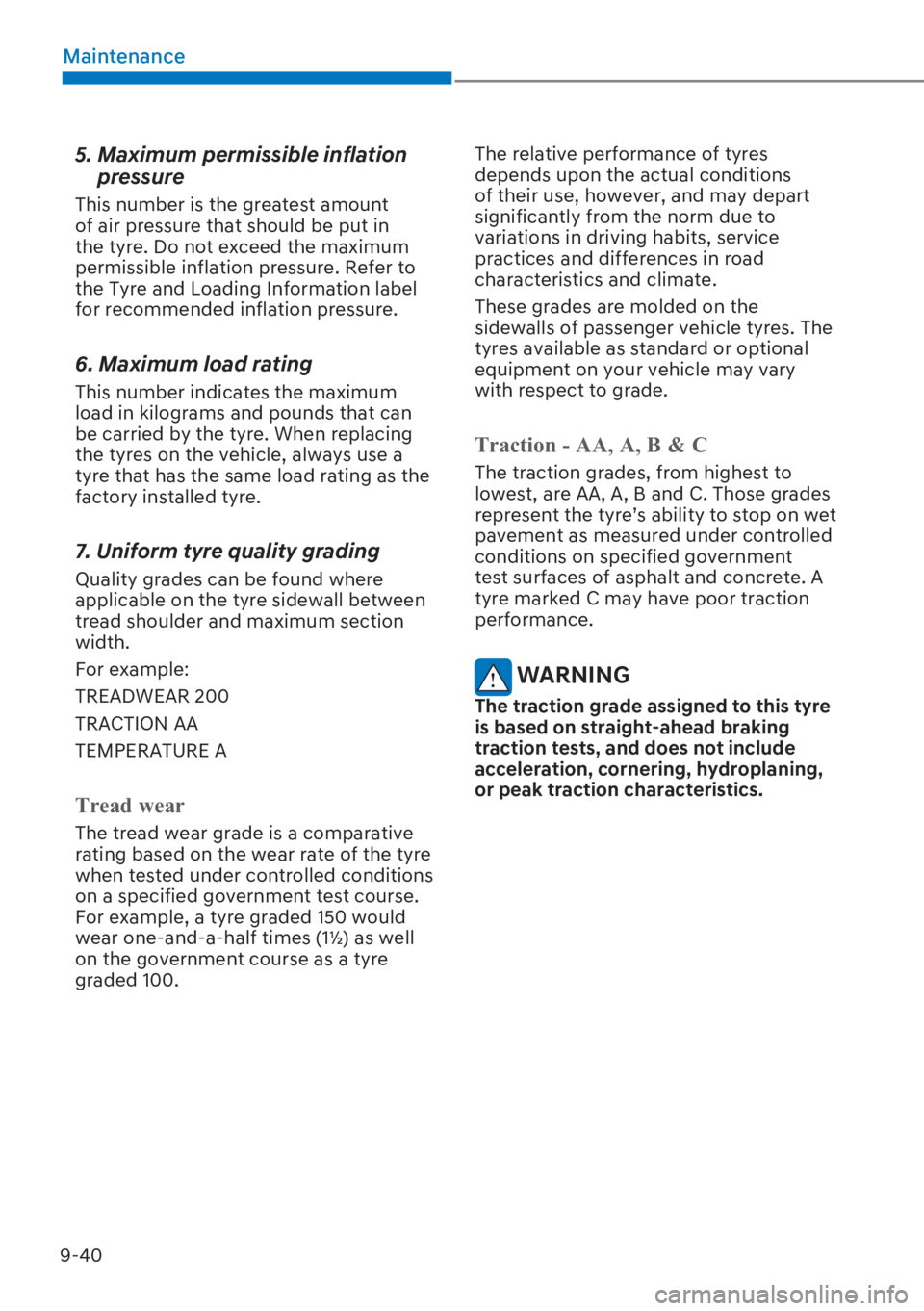

9-40
Maintenance
5. Maximum permissible inflation
pressure
This number is the greatest amount
of air pressure that should be put in
the tyre. Do not exceed the maximum
permissible inflation pressure. Refer to
the Tyre and Loading Information label
for recommended inflation pressure.
6. Maximum load rating
This number indicates the maximum
load in kilograms and pounds that can
be carried by the tyre. When replacing
the tyres on the vehicle, always use a
tyre that has the same load rating as the
factory installed tyre.
7. Uniform tyre quality grading
Quality grades can be found where
applicable on the tyre sidewall between
tread shoulder and maximum section
width.
For example:
TREADWEAR 200
TRACTION AA
TEMPERATURE A
7UHDGZHDU
The tread wear grade is a comparative
rating based on the wear rate of the tyre
when tested under controlled conditions
on a specified government test course.
For example, a tyre graded 150 would
wear one-and-a-half times (1½) as well
on the government course as a tyre
graded 100. The relative performance of tyres
depends upon the actual conditions
of their use, however, and may depart
significantly from the norm due to
variations in driving habits, service
practices and differences in road
characteristics and climate.
These grades are molded on the
sidewalls of passenger vehicle tyres. The
tyres available as standard or optional
equipment on your vehicle may vary
with respect to grade.
7UDFWLRQ$$$% &
The traction grades, from highest to
lowest, are AA, A, B and C. Those grades
represent the tyre’s ability to stop on wet
pavement as measured under controlled
conditions on specified government
test surfaces of asphalt and concrete. A
tyre marked C may have poor traction
performance.
WARNING
The traction grade assigned to this tyre
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.

9-72
Maintenance
OBC3090047
[1] : Turn Signal Light, [2] : Tail/Stop Light,
[3] : Tail light
7XUQVLJQDOOLJKW7DLOVWRSOLJKW
4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
5. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
6. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
7. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
8. Reinstall the light assembly to the
body of the vehicle.
7DLOOLJKW
1. Open the tailgate and remove the
tailgate trim.
2. Loosen the retaining screw of the
tailgate lid cover and then remove the
cover.
3. Disconnect the connector and then
remove the nuts by turning the nuts
counter clockwise.
4. Take the light assembly out.
OBC3090049R
[1] : Rear Fog Light, [2] : Back-up Light
5HDUIRJOLJKW%DFNXS/LJKW
1. Remove the rear tire and wheel cover.
2. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
3. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
4. Insert a new bulb in the socket.
5. Reinstall the light assembly to the
body of the vehicle.

9-76
Maintenance
OBC3V091003
[1] : Turn Signal Light, [2] : Tail/Stop Light,
[3] : Tail light
7XUQVLJQDOOLJKW7DLOVWRSOLJKW7DLO
OLJKW
4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
5. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
6. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
7. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
8. Reinstall the light assembly to the
body of the vehicle.
OBC3V091004
[1] : Rear Fog Light
5HDUIRJOLJKW5HDUUHIOHFWLRQOLJKW
1. Remove the rear tyre and wheel cover.
2. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
3. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
4. Insert a new bulb in the socket.
5. Reinstall the light assembly to the
body of the vehicle.

9-77
09
Type D
OBC3V091006
(1) Turn signal lamp
(2) Tail/Stop light
(3) Rear fog light/Rear reflection light
7XUQVLJQDOODPS7DLOOLJKW6WRS
OLJKW
If the LED lamp does not operate,
we recommend that the system be
inspected by a HYUNDAI authorised
repairer. The LED lamps cannot be
replaced as a single unit because it is an
integrated unit.
The LED lamp has to be replaced with
the unit. Unless a skilled technician
checks or repairs the LED lamp, it may
damage related parts of the vehicle.
OBC3V091004
[1] : Rear Fog Light
5HDUIRJOLJKW5HDUUHIOHFWLRQOLJKW
1. Remove the rear tyre and wheel cover.
2. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
3. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
4. Insert a new bulb in the socket.
5. Reinstall the light assembly to the
body of the vehicle.

9-78
Maintenance
High mounted stop light
replacement
OBC3090051
1. Open the tailgate.
2. Remove the socket by turning it
counterclockwise until the tabs on the
socket align with the slots.
3. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
4. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
5. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
License plate light bulb
replacement
OAI3089029
1. Using a flat-blade screwdriver gently
pry the lens cover from the lamp
housing.
2. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
3. Remove the bulb by pulling it straight
out.
4. Install a new bulb.
5. Reinstall in the reverse order.
