02
2-11

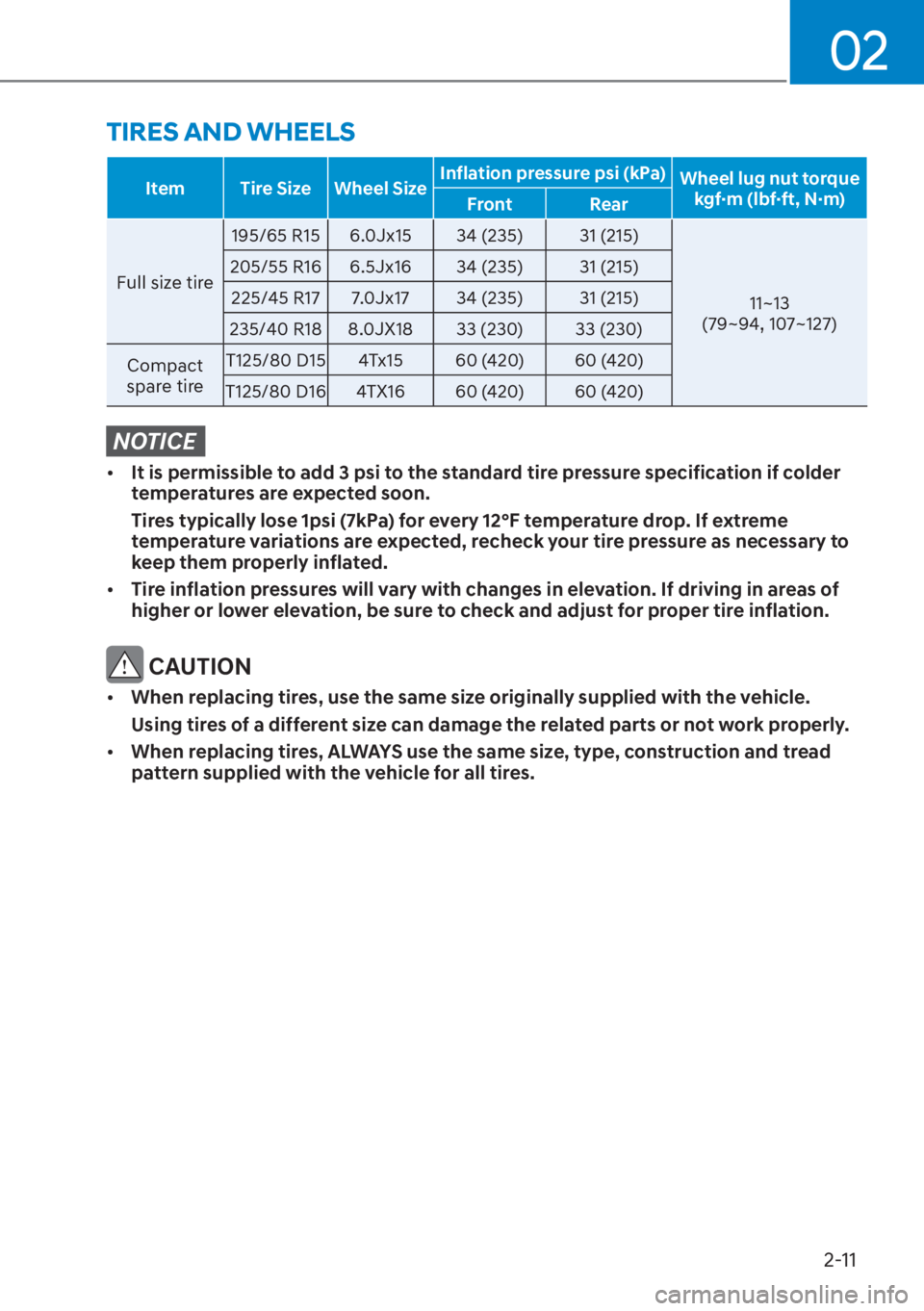

TIRES AND WHEELS
Item Tire Size Wheel SizeInflation pressure psi (kPa)
Wheel lug nut torque
kgf·m (lbf·ft, N·m)
Front Rear
Full size tire 195/65 R15
6.0Jx15 34 (235) 31 (215)
11~13
(79~94, 107~127)
205/55 R16
6.5Jx16 34 (235) 31 (215)
225/45 R17 7.0Jx17 34 (235) 31 (215)
235/40 R18 8.0JX18 33 (230) 33 (230)
Compact
spare tire T125/80 D15 4Tx15 60 (420) 60 (420)
T125/80 D16 4TX16 60 (420) 60 (420)
NOTICE
[ It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.
[ Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION
[ When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
[ When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.
