2023 HYUNDAI ELANTRA tow

Driver Assistance System7-8
Forward Collision-Avoidance Assist
disabled
OCN7070032L
When the front windshield where the
front view camera is located or the
sensor is covered with foreign material,
such as snow or rain, it can reduce the
detecting performance and temporarily
limit or disable Forward Collision-
Avoidance Assist.
If this occurs the ‘Forward Safety system
GLVDEOHG&DPHUDREVFXUHG
TZDUQLQJ
message, and the
and warning
lights will illuminate on the cluster.
Forward Collision-Avoidance Assist will
operate properly when such snow, rain or
foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate properly after
obstruction (snow, rain, or foreign
material) is removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING

[ Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.

[ Forward Collision-Avoidance Assist
may not properly operate in an area
(for example, open terrain), where
any objects are not detected after
turning ON the engine.
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[ The temperature around the frontview
camera is high or low due to
surrounding environment

[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass

[ Moisture is not removed or frozen on
the windshield

[ Washer fluid is continuously sprayed,
or the wiper is on

[ Driving in heavy rain or snow, or thick
fog

[ The field of view of the front view
camera is obstructed by sun glare

[ Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road

[ An object is placed on the dashboard

[ Your vehicle is being towed

[ The surrounding is very bright

[ The surrounding is very dark, such as
in a tunnel, etc.

[ The brightness changes suddenly, for
example when entering or exiting a
tunnel

[ The brightness outside is low, and the
headlights are not on or are not bright

07
7-13

[Detecting vehicle
OTM070003
If the vehicle in front of you has
cargo that extends rearward from
the cab, or when the vehicle in front
of you has higher ground clearance,
additional special attention is
required. Forward Collision-
Avoidance Assist may not be able
to detect the cargo extending from
the vehicle. In these instances,
you must maintain a safe braking
distance from the rearmost object,
and if necessary, steer the vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain distance.
WARNING

[When you are towing a trailer or
another vehicle, we recommend that
Forward Collision-Avoidance Assist is
turned off due to safety reasons.

[ Forward Collision-Avoidance Assist
may operate if objects that are
similar in shape or characteristics
to vehicles and pedestrians are
detected.

[ Forward Collision-Avoidance Assist
does not operate on bicycles,
motorcycles, or smaller wheeled
objects, such as luggage bags,
shopping carts, or strollers.
[
Forward Collision-Avoidance
Assist may not operate properly if
interfered by strong electromagnetic
waves.

[ Forward Collision-Avoidance Assist
may not operate for 15 seconds after
the vehicle is started, or the front
view camera is initialized.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

Driver Assistance System7-24

[ Your vehicle is being towed

[ The surrounding is very bright

[ The surrounding is very dark, such as
in a tunnel, etc.

[ The brightness changes suddenly, for
example when entering or exiting a
tunnel

[ The brightness outside is low, and the
headlights are not on or are not bright

[ Driving through steam, smoke or
shadow

[ Only part of the vehicle, pedestrian or
cyclist is detected

[ The vehicle in front is a bus, heavy
truck, truck with an unusually shaped
cargo, trailer, etc.

[ The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[ The brightness outside is low, and the
tail lamps are not on or are not bright

[ The rear of the front vehicle is small
or the vehicle does not look normal,
such as when the vehicle is tilted,
overturned, or the side of the vehicle
is visible, etc.

[ 7KHIURQWYHKLFOH
TVJURXQGFOHDUDQFHLV low or high

[ A vehicle, pedestrian or cyclist
suddenly cuts in front

[ The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[ The temperature around the frontview
camera is high or low due to
surrounding environment
[
Driving through a tunnel or iron bridge

[ Driving in vast areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[ Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[ A material is near that reflects very
well on the front radar, such as a
guardrail, nearby vehicle, etc.

[ The cyclist in front is on a bicycle
made of material that does not reflect
on the front radar

[ The vehicle in front is detected late

[ The vehicle in front is suddenly
blocked by an obstacle

[ The vehicle in front suddenly changes
lane or suddenly reduces speed

[ The vehicle in front is bent out of
shape

[ 7KHIURQWYHKLFOH
TVVSHHGLVIDVWRU slow

[ The vehicle in front steers in the
opposite direction of your vehicle to
avoid a collision

[ With a vehicle in front, your vehicle
changes lane at low speed

[ The vehicle in front is covered with
snow

[ You are departing or returning to the
lane

[ Unstable driving

[ You are on a roundabout and the
vehicle in front is not detected

[ You are continuously driving in a circle

[ The vehicle in front has an unusual
shape

[ The vehicle in front is driving uphill or
downhill

07
7-29

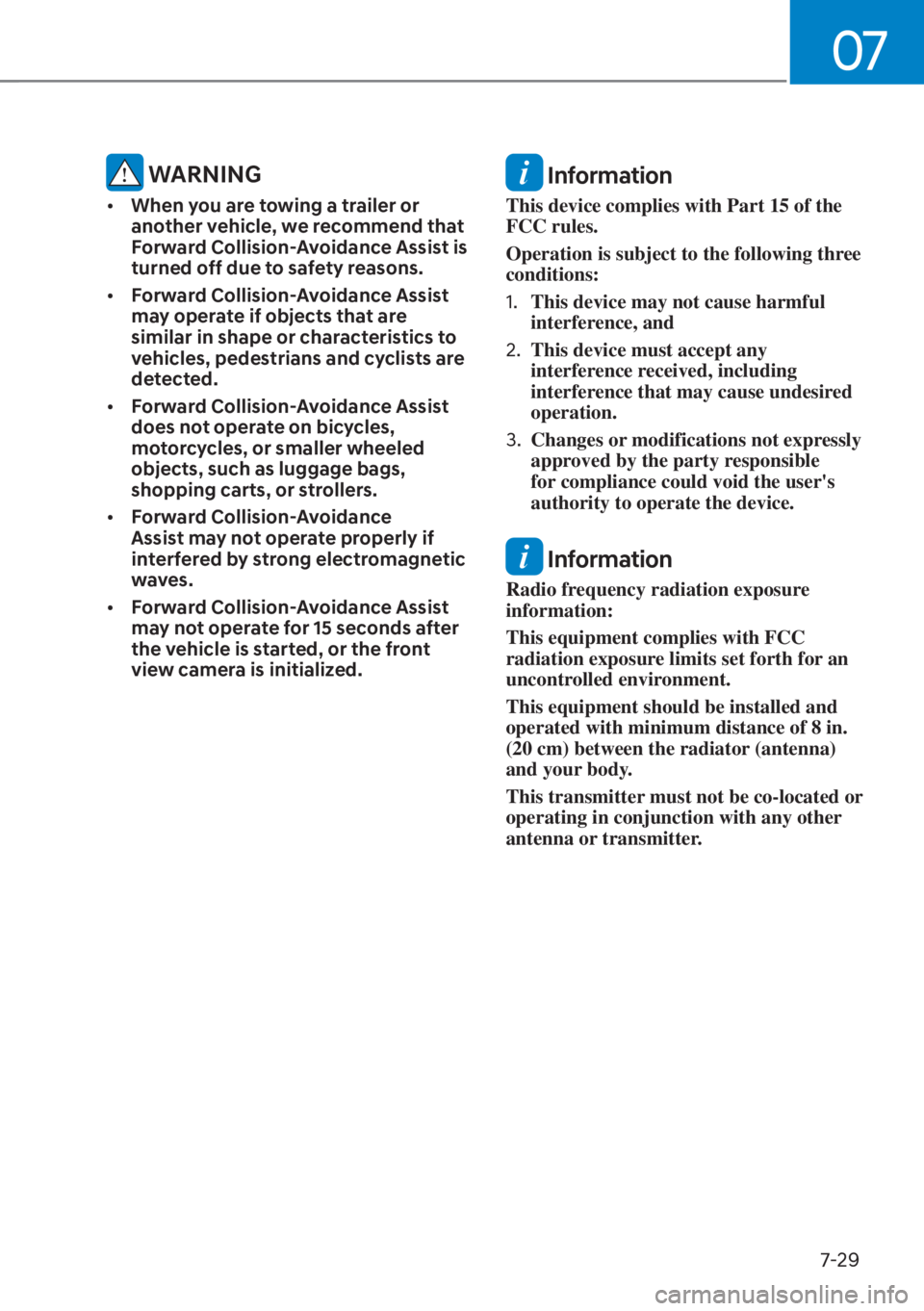

WARNING

[When you are towing a trailer or
another vehicle, we recommend that
Forward Collision-Avoidance Assist is
turned off due to safety reasons.

[ Forward Collision-Avoidance Assist
may operate if objects that are
similar in shape or characteristics to
vehicles, pedestrians and cyclists are
detected.

[ Forward Collision-Avoidance Assist
does not operate on bicycles,
motorcycles, or smaller wheeled
objects, such as luggage bags,
shopping carts, or strollers.

[ Forward Collision-Avoidance
Assist may not operate properly if
interfered by strong electromagnetic
waves.

[ Forward Collision-Avoidance Assist
may not operate for 15 seconds after
the vehicle is started, or the front
view camera is initialized.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

07
7-35

[There are more than two lane
markings (or road edges) on the road

[ The lane number increases or
decreases, or the lane markings (or
road edges) are crossing

[ The lane markings (or road edges) are
complicated or a structure substitutes
for the lines, such as a construction
area

[ There are road markings, such as
zigzag lanes, crosswalk markings and
road signs

[ The lane suddenly disappears, such as
at the intersection

[ The lane (or road width) is very wide
or narrow

[ There is a boundary structure in the
roadway, such as a tollgate, sidewalk,
curb, etc.

[ The distance to the front vehicle is
extremely short or the vehicle in front
is covering the lane marking
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.
WARNING
Take the following precautions when
using Lane Keeping Assist:

[The driver has the responsibility to
safely drive and control the vehicle.
Do not solely rely on Lane Keeping
Assist and drive dangerously.

[ The operation of Lane Keeping Assist
can be canceled or not work properly
depending on road conditions and
surroundings. Always be cautious
while driving.

[ Refer to “Limitations of Lane Keeping
Assist” if the lane is not detected
properly.

[ When you are towing a trailer or
another vehicle, we recommend that
Lane Keeping Assist is turned off due
to safety reasons.

[ If the vehicle is driven at high speed,
the steering wheel will not be
controlled. The driver must always
follow the speed limit when using
Lane Keeping Assist.

[ If any other system’s warning
message is displayed or audible
warning is generated, Lane Keeping
Assist warning message may not be
displayed and audible warning may
not be generated.

[ You may not hear the warning
sound of Lane Keeping Assist if the
surrounding is noisy.

[ If you attach objects to the steering
wheel, steering may not be assisted
properly.

[ Lane Keeping Assist may not operate
for 15 seconds after the vehicle is
started, or the front view camera is
initialized.

07
7-45

[Driving where the road is merging/
dividing
OHY059010
Blind-Spot Collision Warning may not
operate properly when driving where
the road merges or divides. The
function may not detect the vehicle
in the next lane.
Always pay attention to road and
driving conditions while driving.

[ Driving on an inclined road
OCN7060049
Blind-Spot Collision Warning may
not operate properly when driving
on a slope. The function may not
detect the vehicle in the next lane or
may incorrectly detect the ground or
structure.
Always pay attention to road and
driving conditions while driving.
[
Driving where the heights of the
lanes are different
OCN7060050
Blind-Spot Collision Warning may not
operate properly when driving where
the heights of the lanes are different.
The function may not detect the
vehicle on a road with different lane
heights (underpass joining section,
grade separated intersections, etc.).
Always pay attention to road and
driving conditions while driving.
WARNING

[When you are towing a trailer or
another vehicle, make sure that you
turn off Blind-Spot Collision Warning.

[ Blind-Spot Collision Warning may
not operate properly if interfered by
strong electromagnetic waves.

[ Blind-Spot Collision Warning may
not operate for 15 seconds after the
vehicle is started, or the rear corner
radars are initialized.

Driver Assistance System7-58

[ Driving where the road is merging/
dividing
OHY059010
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving where the road merges
or divides. The function may not
detect the vehicle in the next lane.
Always pay attention to road and
driving conditions while driving.

[ Driving on an inclined road
OCN7060049
Blind-Spot Collision-Avoidance Assist
may not operate properly when
driving on a slope. The function may
not detect the vehicle in the next
lane or may incorrectly detect the
ground or structure.
Always pay attention to road and
driving conditions while driving.
[
Driving where the heights of the
lanes are different
OCN7060050
Blind-Spot Collision-Avoidance
Assist may not operate properly
when driving where the heights of
the lanes are different. The function
may not detect the vehicle on a
road with different lane heights
(underpass joining section, grade
separated intersections, etc.).
Always pay attention to road and
driving conditions while driving.
WARNING

[When you are towing a trailer or
another vehicle, make sure that
you turn off Blind-Spot Collision-
Avoidance Assist.

[ Blind-Spot Collision-Avoidance
Assist may not operate properly if
interfered by strong electromagnetic
waves.

[ Blind-Spot Collision-Avoidance
Assist may not operate for 15 seconds
after the vehicle is started, or the
front view camera or rear corner
radars are initialized.

07
7-87
OCN7070028L
Collision Warning
While Smart Cruise Control is operating,
when the collision risk with the v
ehicle
DKHDGLVKLJKWKH
S&ROOLVLRQ:DUQLQJ
T
warning message will appear on the
cluster, and an audible warning will
sound to warn the driver. Always have
your eyes on the road while driving, and
if necessary, depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
WARNING
In the following situations, Smart Cruise
Control may not warn the driver of a
collision.
- The distance from the front vehicle
is near, or the vehicle speed of the
front vehicle is faster or similar to
your vehicle
- The speed of the front vehicle is very
slow or is at a standstill
- The accelerator pedal is depressed
right after Smart Cruise Control is
turned on
WARNING
Take the following precautions when
using Smart Cruise Control:

[ Smart Cruise Control does not
substitute for proper and safe
driving. It is the responsibility of the
driver to always check the speed and
distance to the vehicle ahead.

[ Smart Cruise Control may not
recognize unexpected and sudden
situations or complex driving
situations, so always pay attention to
driving conditions and control your
vehicle speed.

[ Keep Smart Cruise Control off when
the function is not in use to avoid
inadvertently setting a speed.

[ Do not open the door or leave the
vehicle when Smart Cruise Control
is operating, even if the vehicle is
stopped.

[ Always be aware of the selected
speed and vehicle distance.

[ Keep a safe distance according to
road conditions and vehicle speed.
If the vehicle distance is too close
during high-speed driving, a serious
collision may result.

[ When maintaining distance with
the vehicle ahead, if the front
vehicle disappears, Smart Cruise
Control may suddenly accelerate to
the set speed. Always be aware of
unexpected and sudden situations
from occurring.

[ Vehicle speed may decrease on an
upward slope and increase on a
downward slope.

[ Always be aware of situations such
as when a vehicle cuts in suddenly.

[ When you are towing a trailer or
another vehicle, we recommend that
Smart Cruise Control is turned off
due to safety reasons.

[ Turn off Smart Cruise Control when
your vehicle is being towed.
