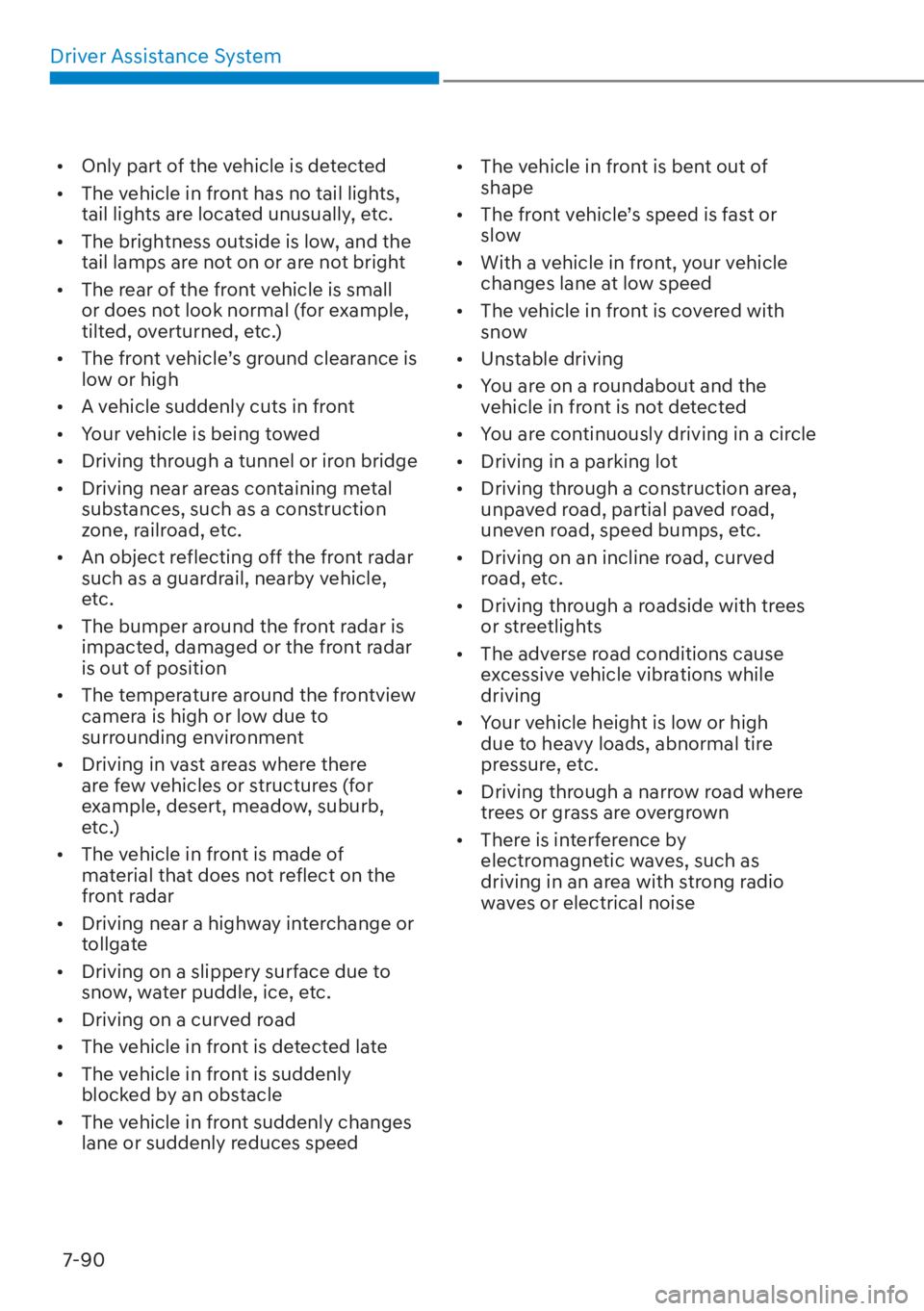

Driver Assistance System7-90

[ Only part of the vehicle is detected

[ The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[ The brightness outside is low, and the
tail lamps are not on or are not bright

[ The rear of the front vehicle is small
or does not look normal (for example,
tilted, overturned, etc.)

[ 7KHIURQWYHKLFOH
TVJURXQGFOHDUDQFHLV low or high

[ A vehicle suddenly cuts in front

[ Your vehicle is being towed

[ Driving through a tunnel or iron bridge

[ Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[ An object reflecting off the front radar
such as a guardrail, nearby vehicle,
etc.

[ The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[ The temperature around the frontview
camera is high or low due to
surrounding environment

[ Driving in vast areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[ The vehicle in front is made of
material that does not reflect on the
front radar

[ Driving near a highway interchange or
tollgate

[ Driving on a slippery surface due to
snow, water puddle, ice, etc.

[ Driving on a curved road

[ The vehicle in front is detected late

[ The vehicle in front is suddenly
blocked by an obstacle

[ The vehicle in front suddenly changes
lane or suddenly reduces speed
[
The vehicle in front is bent out of
shape

[ 7KHIURQWYHKLFOH
TVVSHHGLVIDVWRU slow

[ With a vehicle in front, your vehicle
changes lane at low speed

[ The vehicle in front is covered with
snow

[ Unstable driving

[ You are on a roundabout and the
vehicle in front is not detected

[ You are continuously driving in a circle

[ Driving in a parking lot

[ Driving through a construction area,
unpaved road, partial paved road,
uneven road, speed bumps, etc.

[ Driving on an incline road, curved
road, etc.

[ Driving through a roadside with trees
or streetlights

[ The adverse road conditions cause
excessive vehicle vibrations while
driving

[ Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[ Driving through a narrow road where
trees or grass are overgrown

[ There is interference by
electromagnetic waves, such as
driving in an area with strong radio
waves or electrical noise

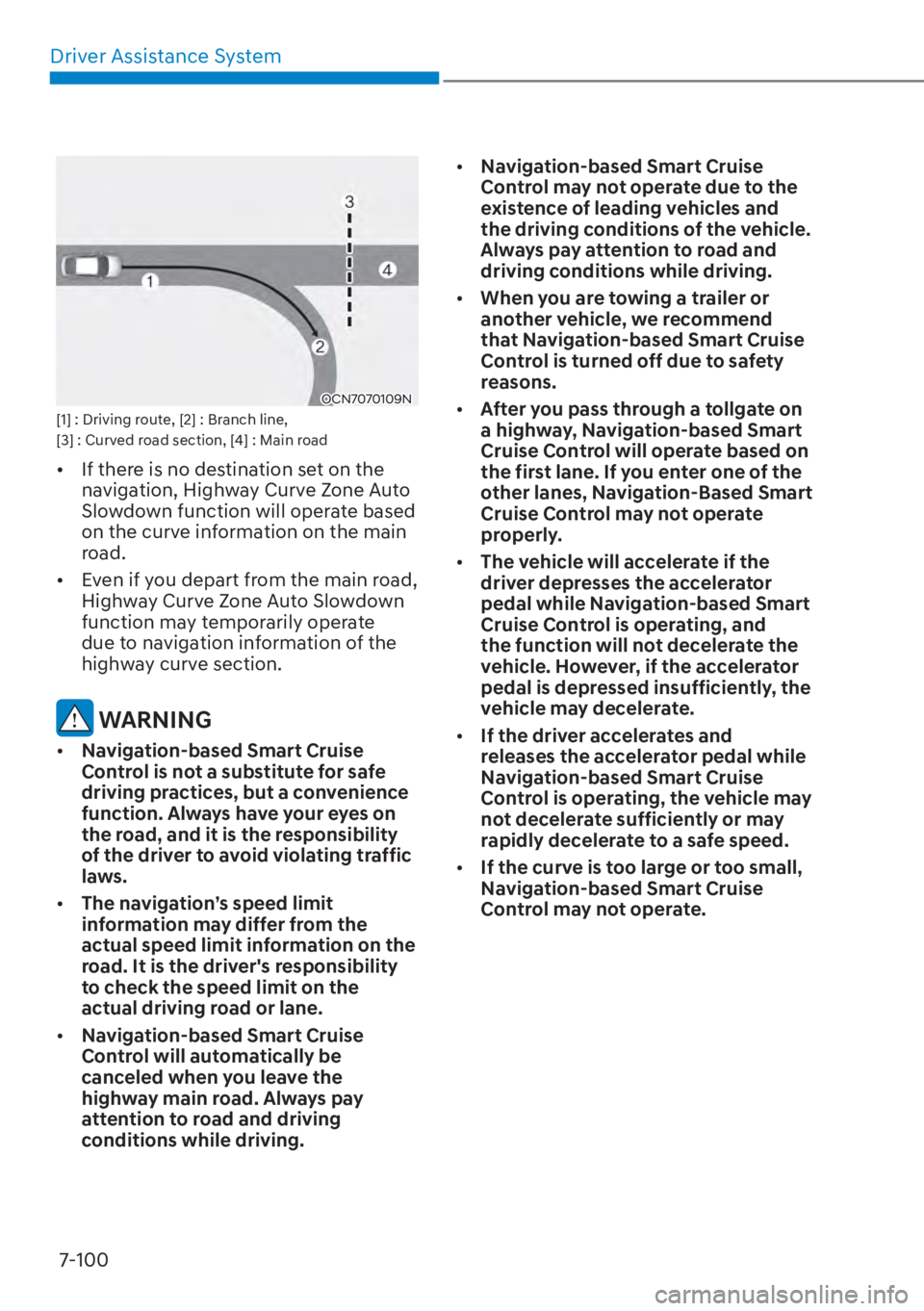

Driver Assistance System7-100
OCN7070109N[1] : Driving route, [2] : Branch line,
[3] : Curved road section, [4] : Main road

[ If there is no destination set on the
navigation, Highway Curve Zone Auto
Slowdown function will operate based
on the curve information on the main
road.

[ Even if you depart from the main road,
Highway Curve Zone Auto Slowdown
function may temporarily operate
due to navigation information of the
highway curve section.
WARNING

[Navigation-based Smart Cruise
Control is not a substitute for safe
driving practices, but a convenience
function. Always have your eyes on
the road, and it is the responsibility
of the driver to avoid violating traffic
laws.

[ The navigation’s speed limit
information may differ from the
actual speed limit information on the
road. It is the driver's responsibility
to check the speed limit on the
actual driving road or lane.

[ Navigation-based Smart Cruise
Control will automatically be
canceled when you leave the
highway main road. Always pay
attention to road and driving
conditions while driving.
[
Navigation-based Smart Cruise
Control may not operate due to the
existence of leading vehicles and
the driving conditions of the vehicle.
Always pay attention to road and
driving conditions while driving.

[ When you are towing a trailer or
another vehicle, we recommend
that Navigation-based Smart Cruise
Control is turned off due to safety
reasons.

[ After you pass through a tollgate on
a highway, Navigation-based Smart
Cruise Control will operate based on
the first lane. If you enter one of the
other lanes, Navigation-Based Smart
Cruise Control may not operate
properly.

[ The vehicle will accelerate if the
driver depresses the accelerator
pedal while Navigation-based Smart
Cruise Control is operating, and
the function will not decelerate the
vehicle. However, if the accelerator
pedal is depressed insufficiently, the
vehicle may decelerate.

[ If the driver accelerates and
releases the accelerator pedal while
Navigation-based Smart Cruise
Control is operating, the vehicle may
not decelerate sufficiently or may
rapidly decelerate to a safe speed.

[ If the curve is too large or too small,
Navigation-based Smart Cruise
Control may not operate.

07
7-111
WARNING

[The driver is responsible for
controlling the vehicle for safe
driving.

[ Always have your hands on the
steering wheel while driving.

[ Highway Driving Assist is a
supplemental function that assists
the driver in driving the vehicle
and is not a complete autonomous
driving system. Always check road
conditions, and if necessary, take
appropriate actions to drive safely.

[ Always have your eyes on the road,
and it is the responsibility of the
driver to avoid violating traffic laws.
The vehicle manufacturer is not
responsible for any traffic violation
or accidents caused by the driver.

[ Highway Driving Assist may not
be able to recognize all traffic
situations. The function may not
detect possible collisions due to
limitations of Highway Driving Assist.
Always be aware of the limitations
of the system. Obstacles such as
vehicles, motorcycles, bicycles,
pedestrians, unspecified objects,
structures, etc., that may collide with
the vehicle may not be detected.

[ Highway Driving Assist will turn off
automatically under the following
situations:
- Driving on roads that Highway
Driving Assist does not operate,
such as a rest area, intersection,
junction, etc.
- The navigation does not operate
properly such as when the
navigation is being updated or
restarted
[
Highway Driving Assist may
inadvertently operate or turn off
depending on road conditions
(navigation information) and
surroundings.

[ Lane Following Assist function may
be temporarily disabled when the
front view camera cannot detect
lanes properly or the hands-off
warning is on.

[ You may not hear the warning sound
of Highway Driving Assist if the
surrounding is noisy.

[ If the vehicle is driven at high speed
above a certain speed at a curve,
your vehicle may drive to one side or
may depart from the driving lane.

[ When you are towing a trailer or
another vehicle, we recommend that
Highway Driving Assist is turned off
due to safety reasons.

[ The hands–off warning message
may appear early or late depending
on how the steering wheel is held or
road conditions. Always have your
hands on the steering wheel while
driving.

[ For your safety, please read the
owner's manual before using the
Highway Driving Assist.

[ Highway Driving Assist will not
operate when the engine is started,
or when the detecting sensors or
navigation is being initialized.

07
7-129

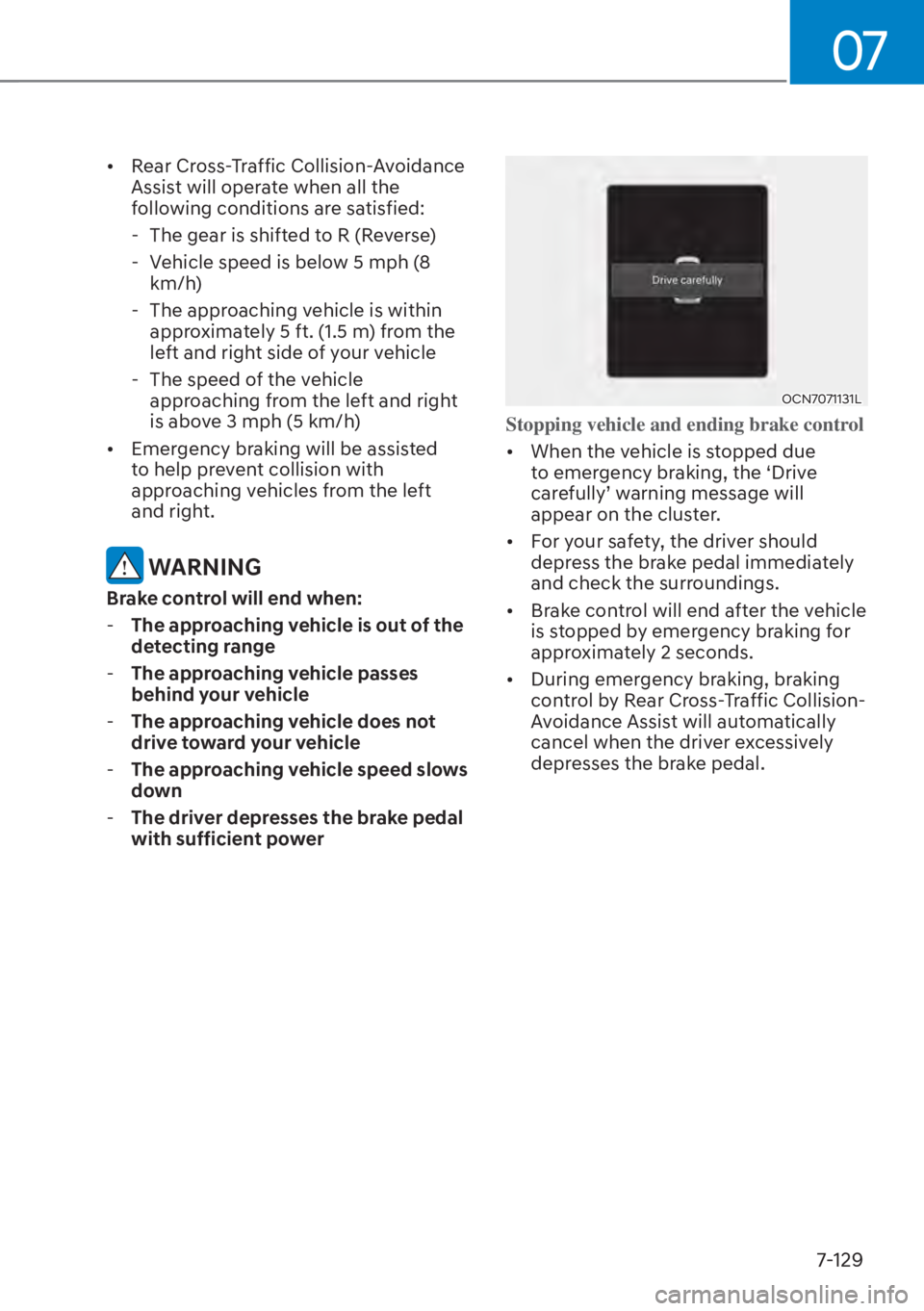

[Rear Cross-Traffic Collision-Avoidance
Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8 km/h)
- The approaching vehicle is within approximately 5 ft. (1.5 m) from the
left and right side of your vehicle
- The speed of the vehicle approaching from the left and right
is above 3 mph (5 km/h)

[ Emergency braking will be assisted
to help prevent collision with
approaching vehicles from the left
and right.
WARNING
Brake control will end when:
- The approaching vehicle is out of the
detecting range
- The approaching vehicle passes
behind your vehicle
- The approaching vehicle does not
drive toward your vehicle
- The approaching vehicle speed slows
down
- The driver depresses the brake pedal
with sufficient power
OCN7071131L
Stopping vehicle and ending brake control

[ When the v
ehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.

[ For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.

[ During emergency braking, braking
control by Rear Cross-Traffic Collision-
Avoidance Assist will automatically
cancel when the driver excessively
depresses the brake pedal.

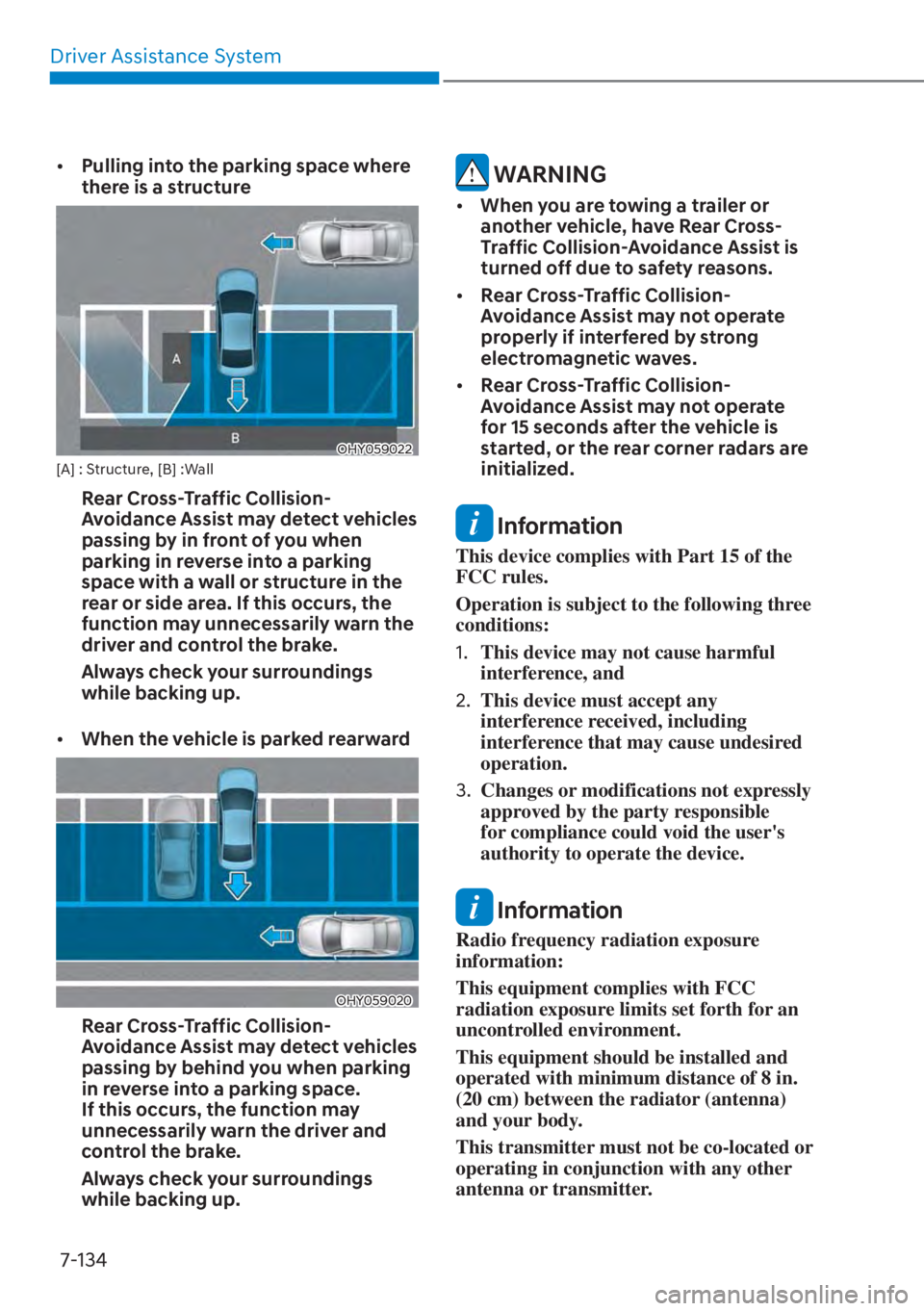

Driver Assistance System7-134

[ Pulling into the parking space where
there is a structure
OHY059022[A] : Structure, [B] :Wall
Rear Cross-Traffic Collision-
Avoidance Assist may detect vehicles
passing by in front of you when
parking in reverse into a parking
space with a wall or structure in the
rear or side area. If this occurs, the
function may unnecessarily warn the
driver and control the brake.
Always check your surroundings
while backing up.

[ When the vehicle is parked rearward
OHY059020
Rear Cross-Traffic Collision-
Avoidance Assist may detect vehicles
passing by behind you when parking
in reverse into a parking space.
If this occurs, the function may
unnecessarily warn the driver and
control the brake.
Always check your surroundings
while backing up.
WARNING

[When you are towing a trailer or
another vehicle, have Rear Cross-
Traffic Collision-Avoidance Assist is
turned off due to safety reasons.

[ Rear Cross-Traffic Collision-
Avoidance Assist may not operate
properly if interfered by strong
electromagnetic waves.

[ Rear Cross-Traffic Collision-
Avoidance Assist may not operate
for 15 seconds after the vehicle is
started, or the rear corner radars are
initialized.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

07
7-145
Reverse Parking Collision-Avoidance
Assist may unnecessarily warn the driver
or assist with braking even if there are
no pedestrians or objects under the
following circumstances:

[Any non-factory equipment or
accessory is installed

[ Your vehicle is unstable due to an
accident or other causes

[ Bumper height or rear ultrasonic
sensor installation has been modified

[ Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[ Rear view camera or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.

[ The pattern on the road is mistaken
for a pedestrian

[ There is shadow or light reflecting on
the ground

[ Pedestrians or objects are around the
path of the vehicle

[ Objects generating excessive
noise, such as vehicle horns, loud
motorcycle engines or truck air
brakes, are near your vehicle

[ Your vehicle is backing towards a
narrow passage or parking space

[ Your vehicle is backing towards an
uneven road surface, such as an
unpaved road, gravel, bump, gradient,
etc.

[ A trailer or carrier is installed on the
rear of your vehicle

[ An ultrasonic sensor with similar
frequency is near your vehicle

Hazard Warning Flasher ........................................................................\
........ 8-2
In Case of an Emergency While Driving ....................................................... 8-2
If the Engine Stalls While Driving ........................................................................\
.... 8-2
If the Engine Stalls at a Crossroad or Crossing ...................................................... 8-2
If you Have a Flat Tire While Driving ....................................................................... 8-3
If the Engine Will not Start ........................................................................\
.... 8-3If the Engine Doesn’t Turn Over or Turns Over Slowly ........................................... 8-3
If the Engine Turns Over Normally but Doesn’t Start ............................................. 8-3
Jump Starting ........................................................................\
........................8-4
If the engine overheats ........................................................................\
..........8-6
Tire Pressure Monitoring System (TPMS) ....................................................8-8
Check Tire Pressure ........................................................................\
..........................8-8
Tire Pressure Monitoring System ........................................................................\
.... 8-9
Low Tire Pressure Telltale ........................................................................\
.............. 8-10
Low Tire Pressure Position and Tire Pressure Telltale .......................................... 8-10
TPMS (Tire Pressure Monitoring System) Malfunction Indicator ......................... 8-12
Changing a Tire with TPMS ........................................................................\
............ 8-12
If you Have a Flat Tire (With spare tire) ...................................................... 8-14Jack and Tools ........................................................................\
.................................8-14
Changing Tires ........................................................................\
.................................8-15
Towing ...................................................................\
.......................................8-20Towing Service ........................................................................\
............................... 8-20
Removable Towing Hook ........................................................................\
................ 8-21
Emergency Towing ........................................................................\
......................... 8-22
8. Emergency Situations
8

Emergency Situations8-4
Jump starting can be dangerous if done
incorrectly. Follow the jump starting
procedure in this section to avoid serious
injury or damage to your vehicle. If in
doubt about how to properly jump start
your vehicle, have a service technician or
towing service do it for you.
WARNING
To prevent SERIOUS INJURY or DEATH
to you or bystanders, always follow
these precautions when working near
or handling the battery:
Always read and follow
instructions carefully when
handling a battery.
Wear eye protection designed
to protect the eyes from acid
splashes.
Keep all flames, sparks, or
smoking materials away from
the battery.
Hydrogen is always present
in battery cells, is highly
combustible, and may explode
if ignited.
Keep batteries out of reach of
children.
Batteries contain sulfuric acid
which is highly corrosive. Do
not allow acid to contact your
eyes, skin or clothing.
If acid gets into your eyes, flush your
eyes with clean water for at least 15
minutes and get immediate medical
attention. If acid gets on your skin,
thoroughly wash the area. If you feel
pain or a burning sensation, get medical
attention immediately.

[ When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
battery carrier or with your hands on
opposite corners.

[ Do not attempt to jump start your
vehicle if your battery is frozen.

[ NEVER attempt to recharge the
battery when the vehicle’s battery
cables are connected to the battery.

[ The electrical ignition system works
with high voltage. NEVER touch
these components with the engine
running or when the ignition switch
is in the ON position.
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s) or
regulations.
NOTICE
To prevent damage to your vehicle:

[Only use a 12-volt power supply
(battery or jumper system) to jump
start your vehicle.

[ Do not attempt to jump start your
vehicle by push-starting.
Jump starting procedure
1. Position the vehicles close enough
that the jumper cables will reach, but
do not allow the vehicles to touch.
2. Avoid fans or any moving parts in the engine compartment at all times, even
when the vehicles are turned off.
3. Turn off all electrical devices such as radios, lights, air conditioning, etc.
Put the vehicle in P (Park), and set the
parking brakes. Turn both vehicles
OFF.
JUMP STARTING
