Convenience Features5-38

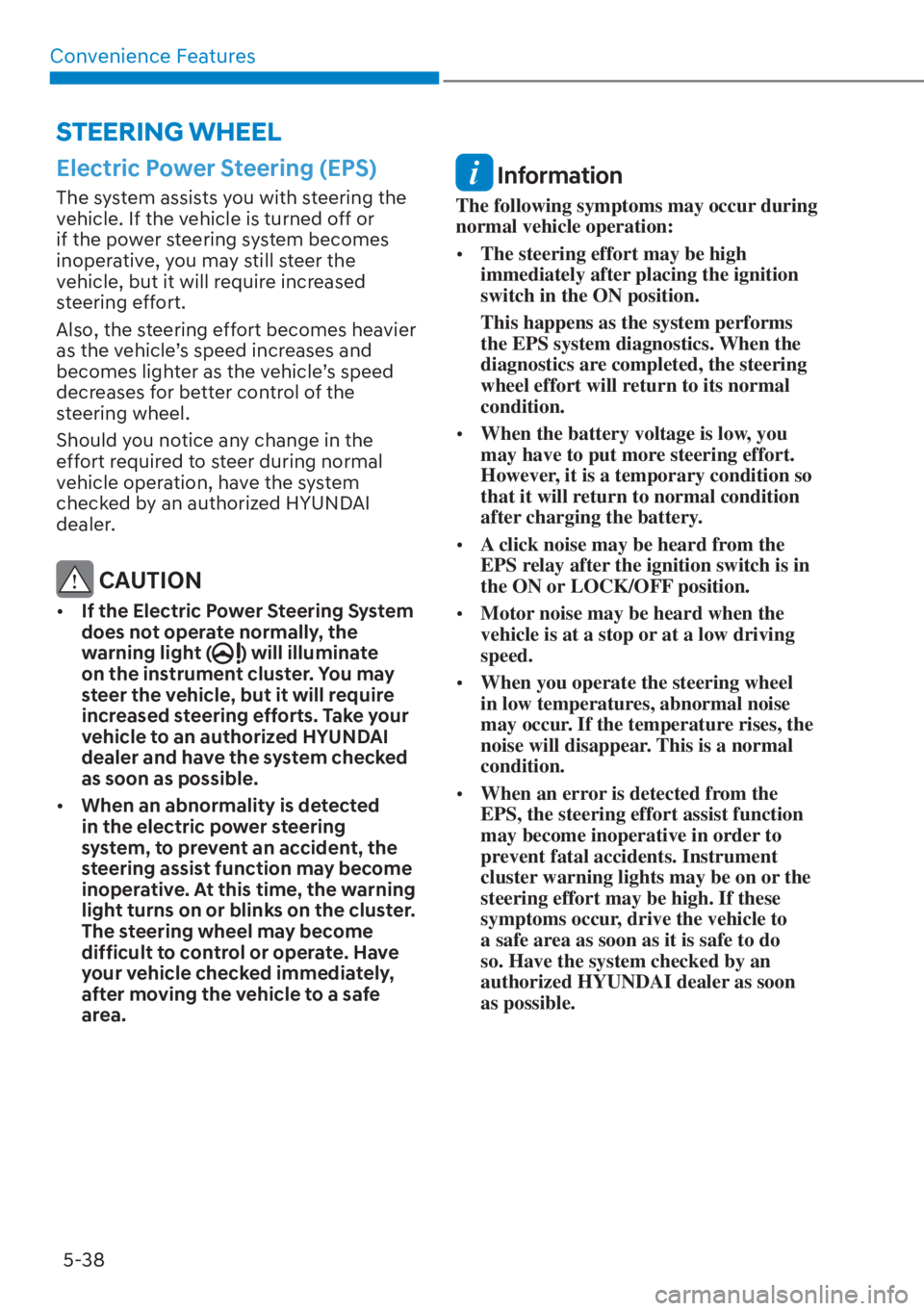

STEERING WHEEL
Electric Power Steering (EPS)
The system assists you with steering the
vehicle. If the vehicle is turned off or
if the power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
Also, the steering effort becomes heavier
as the vehicle’s speed increases and
becomes lighter as the vehicle’s speed
decreases for better control of the
steering wheel.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the system
checked by an authorized HYUNDAI
dealer.
CAUTION

[ If the Electric Power Steering System
does not operate normally, the
warning light (
) will illuminate
on the instrument cluster. You may
steer the vehicle, but it will require
increased steering efforts. Take your
vehicle to an authorized HYUNDAI
dealer and have the system checked
as soon as possible.

[ When an abnormality is detected
in the electric power steering
system, to prevent an accident, the
steering assist function may become
inoperative. At this time, the warning
light turns on or blinks on the cluster.
The steering wheel may become
difficult to control or operate. Have
your vehicle checked immediately,
after moving the vehicle to a safe
area.
Information
The following symptoms may occur during
normal vehicle operation:

[The steering effort may be high
immediately after placing the ignition
switch in the ON position.
This happens as the system performs
the EPS system diagnostics. When the
diagnostics are completed, the steering
wheel effort will return to its normal
condition.

[ When the battery voltage is low, you
may have to put more steering effort.
However, it is a temporary condition so
that it will return to normal condition
after charging the battery.

[ A click noise may be heard from the
EPS relay after the ignition switch is in
the ON or LOCK/OFF position.

[ Motor noise may be heard when the
vehicle is at a stop or at a low driving
speed.

[ When you operate the steering wheel
in low temperatures, abnormal noise
may occur. If the temperature rises, the
noise will disappear. This is a normal
condition.

[ When an error is detected from the
EPS, the steering effort assist function
may become inoperative in order to
prevent fatal accidents. Instrument
cluster warning lights may be on or the
steering effort may be high. If these
symptoms occur, drive the vehicle to
a safe area as soon as it is safe to do
so. Have the system checked by an
authorized HYUNDAI dealer as soon
as possible.

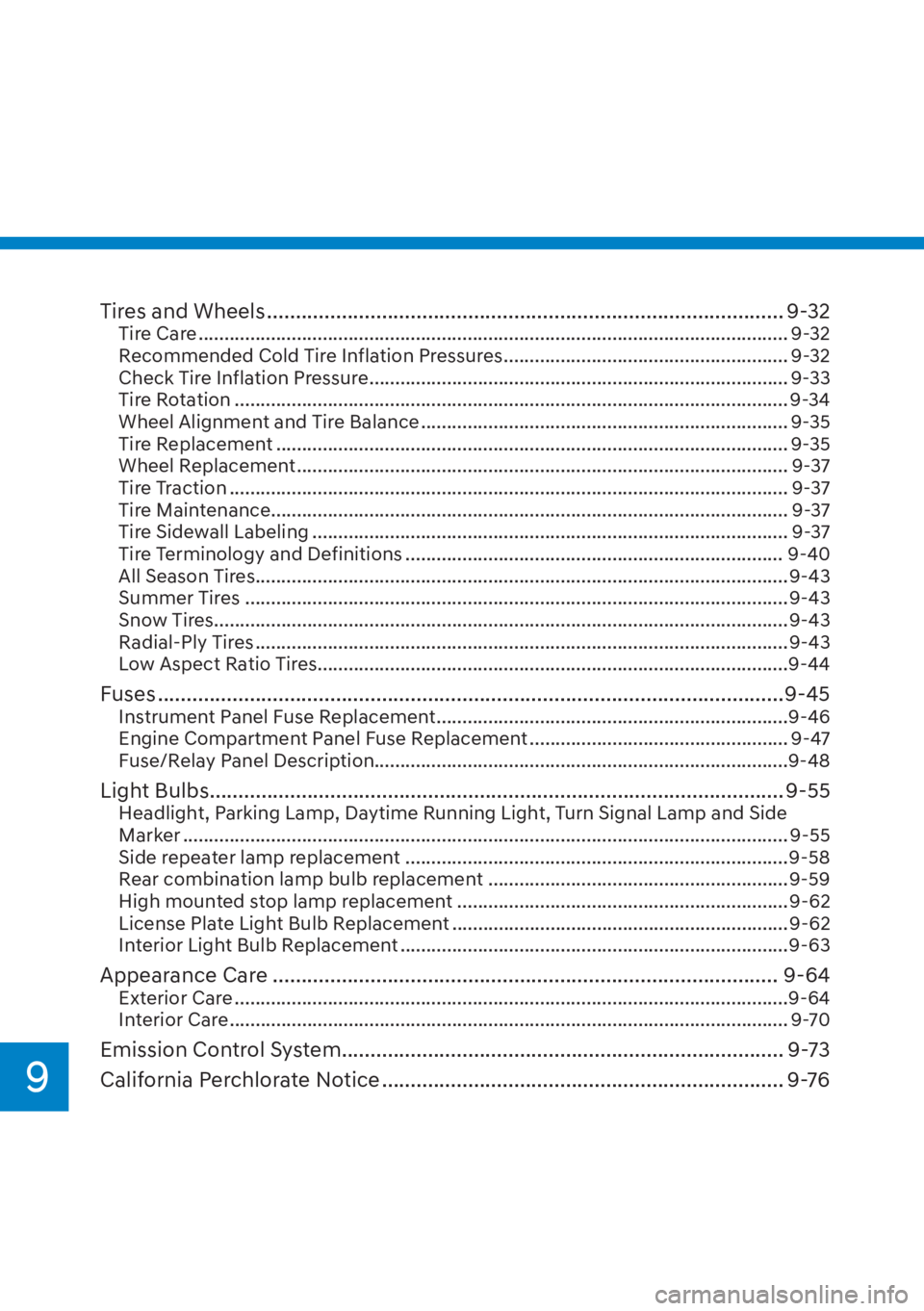

Tires and Wheels ........................................................................\
.................. 9-32Tire Care ........................................................................\
.......................................... 9-32
Recommended Cold Tire Inflation Pressures ....................................................... 9-32
Check Tire Inflation Pressure ........................................................................\
......... 9-33
Tire Rotation ........................................................................\
................................... 9-34
Wheel Alignment and Tire Balance ....................................................................... 9-35
Tire Replacement ........................................................................\
........................... 9-35
Wheel Replacement ........................................................................\
....................... 9-37
Tire Traction ........................................................................\
.................................... 9-37
Tire Maintenance..................................................................\
.................................. 9-37
Tire Sidewall Labeling ........................................................................\
.................... 9-37
Tire Terminology and Definitions ........................................................................\
. 9-40
All Season Tires ........................................................................\
............................... 9-43
Summer Tires ........................................................................\
................................. 9-43
Snow Tires......................................................................\
......................................... 9-43
Radial-Ply Tires ........................................................................\
............................... 9-43
Low Aspect Ratio Tires ........................................................................\
...................9-44
Fuses ...................................................................\
..........................................9-45Instrument Panel Fuse Replacement ....................................................................9-46
Engine Compartment Panel Fuse Replacement .................................................. 9-47
Fuse/Relay Panel Description........................................................................\
........9-48
Light Bulbs ........................................................................\
............................ 9-55Headlight, Parking Lamp, Daytime Running Light, Turn Signal Lamp and Side
Marker .....................................................................\
................................................ 9-55
Side repeater lamp replacement ........................................................................\
..9-58
Rear combination lamp bulb replacement .......................................................... 9-59
High mounted stop lamp replacement ................................................................ 9-62
License Plate Light Bulb Replacement ................................................................. 9-62
Interior Light Bulb Replacement ........................................................................\
...9-63
Appearance Care ........................................................................\
................ 9-64Exterior Care ........................................................................\
...................................9-64
Interior Care ........................................................................\
.................................... 9-70
Emission Control System ........................................................................\
..... 9-73
California Perchlorate Notice ...................................................................... 9-76
9

Maintenance9-48
OCN7N090001N

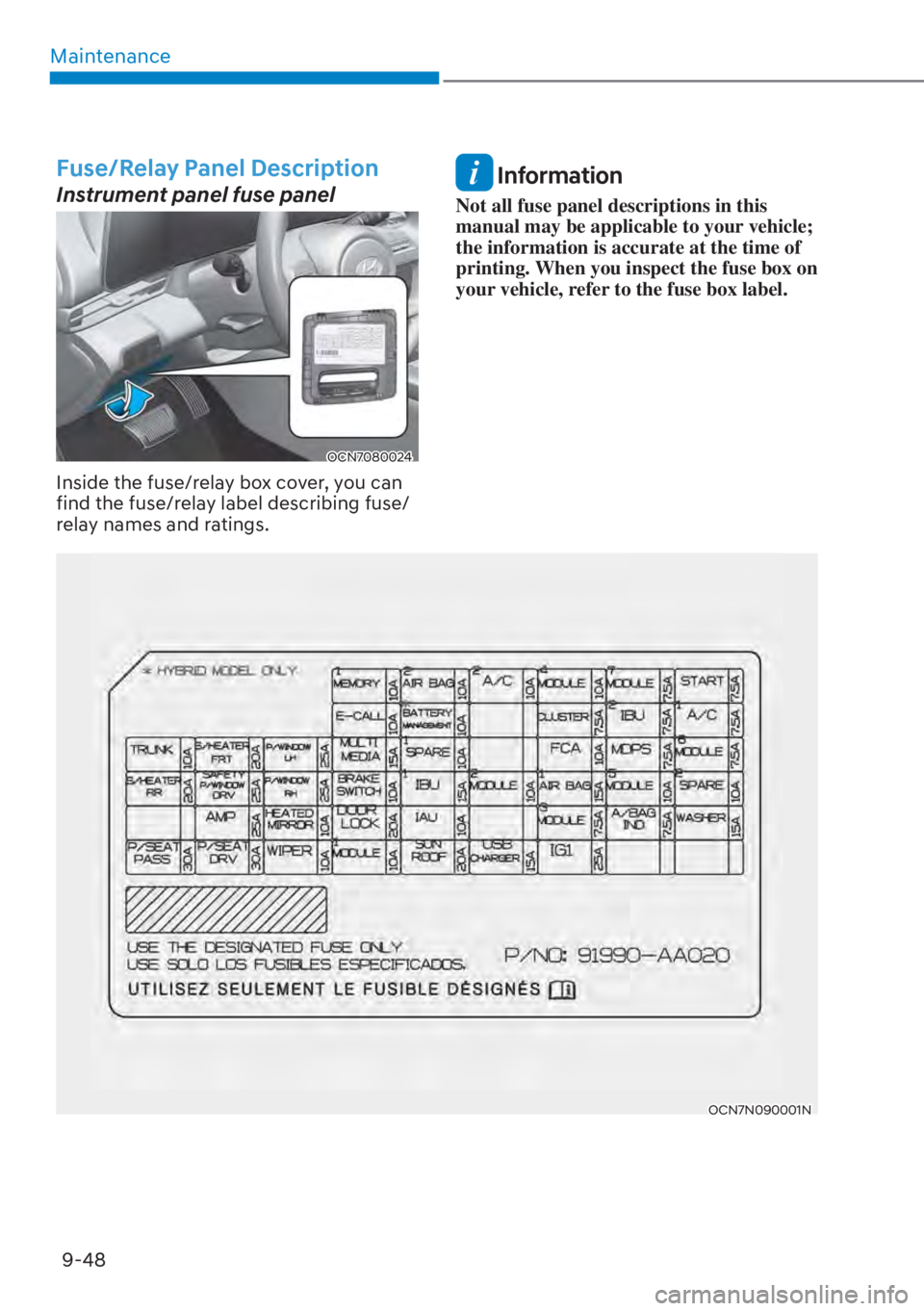

Fuse/Relay Panel Description
Instrument panel fuse panel
OCN7080024
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.

09
9-49

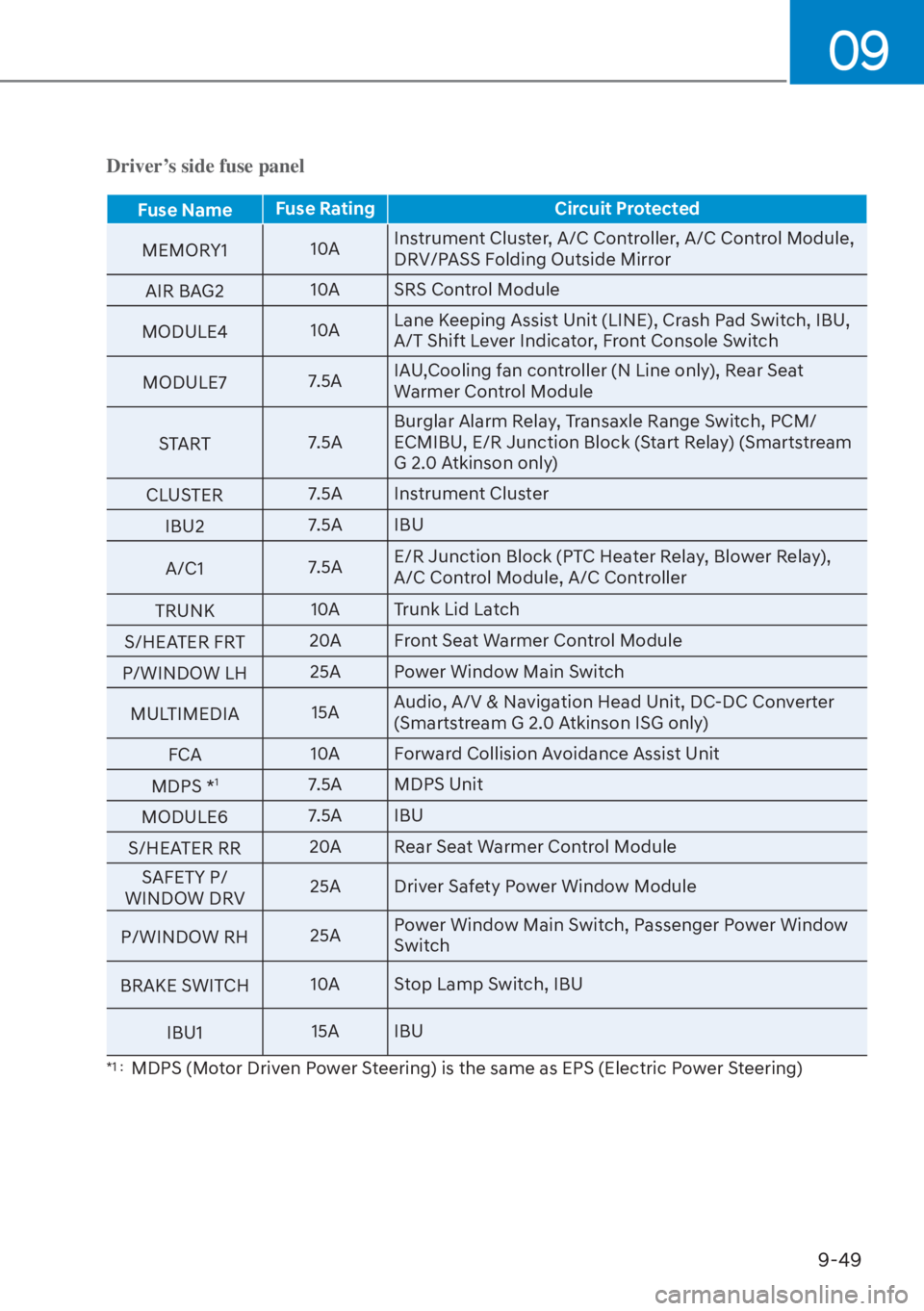

Driver’s side fuse panel
Fuse NameFuse Rating Circuit Protected
MEMORY1 10
AInstrument Cluster, A/C Controller, A/C Control Module,
DRV/PASS Folding Outside Mirror
AIR BAG2 10A SRS Control Module
MODULE4 10ALane Keeping Assist Unit (LINE), Crash Pad Switch, IBU,
A/T Shift Lever Indicator, Front Console Switch
MODULE7 7.5AIAU, Cooling fan controller (N Line only), Rear Seat
Warmer Control Module
START 7.5ABurglar Alarm Relay, Transaxle Range Switch, PCM/
ECM IBU, E/R Junction Block (Start Relay) (Smartstream
G 2.0 Atkinson only)
CLUSTER 7.5A Instrument Cluster
IBU2 7.5A IBU
A/C1 7.5AE/R Junction Block (PTC Heater Relay, Blower Relay),
A/C Control Module, A/C Controller
TRUNK 10A Trunk Lid Latch
S/HEATER FRT 20A Front Seat Warmer Control Module
P/WINDOW LH 25A Power Window Main Switch
MULTIMEDIA 15AAudio, A/V & Navigation Head Unit, DC-DC Converter
(Smartstream G 2.0 Atkinson ISG only)
FCA 10A Forward Collision Avoidance Assist Unit
MDPS *
17.5A MDPS Unit
MODULE6 7.5A IBU
S/HEATER RR 20A Rear Seat Warmer Control Module
SAFETY P/
WINDOW DRV 25A Driver Safety Power Window Module
P/WINDOW RH 25APower Window Main Switch, Passenger Power Window
Switch
BRAKE SWITCH 10A Stop Lamp Switch, IBU
IBU1 15A IBU
*1 : MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering)

Maintenance9-50
Driver’s side fuse panel
Fuse Name Fuse Rating Circuit Protected
MODULE2 10
AE/R Junction Block (Power Outlet Relay), AMP, IBU, IAU,
Audio, Power Outside Mirror Switch, DC-DC Converter
(Smartstream G 2.0 Atkinson ISG only), A/V & Navigation
Head Unit
AIR BAG1 15ASRS Control Module, Passenger Occupant Detection
Sensor
MODULE5 10AA/T Shift Lever Indicator, Front Wireless Charger, A/C
Controller, Electro Chromic Mirror, A/C Control Module,
Audio, A/V & Navigation Head Unit, AMP, DC-DC
Converter (Smartstream G 2.0 Atkinson ISG only), Data
Link Connector, Rear Seat Warmer Control Module,
Front Seat Warmer Control Module
AMP 25AAMP, DC-DC Converter (Smartstream G 2.0 Atkinson ISG
only)
HEATED MIRROR 10ADRV/PAS Outside Mirror Heated, A/C Control Module,
A/C Controller, ECU (N Line only)
DOOR LOCK 20A Door Lock/Unlock Actuator
IAU 10A BLE Unit, IAU, Driver/Passenger Door NFC Module
MODULE3 7.5A Sport Mode Switch, Stop Lamp Switch, IAU
A/BAG IND 7.5A Instrument Cluster, Overhead Console Lamp
WASHER 15A Multifunction Switch
P/SEAT PASS 30A Power Seat
P/SEAT DRV 30A Power Seat
WIPER 10A PCM/ECM, IBU
MODULE1 10ADriver/Passenger Smart Key Outside Handle, Crash
Pad Switch, Sport Mode Switch, Data Link Connector,
Hazard Switch, Key Solenoid
SUNROOF 20A Sunroof Motor
USB CHARGER 15A Front USB Charger
IG1 25A PCB Block (Fuse - ABS3, ECU5, EOP2, TCU2)

09
9-51
OCN7090014N

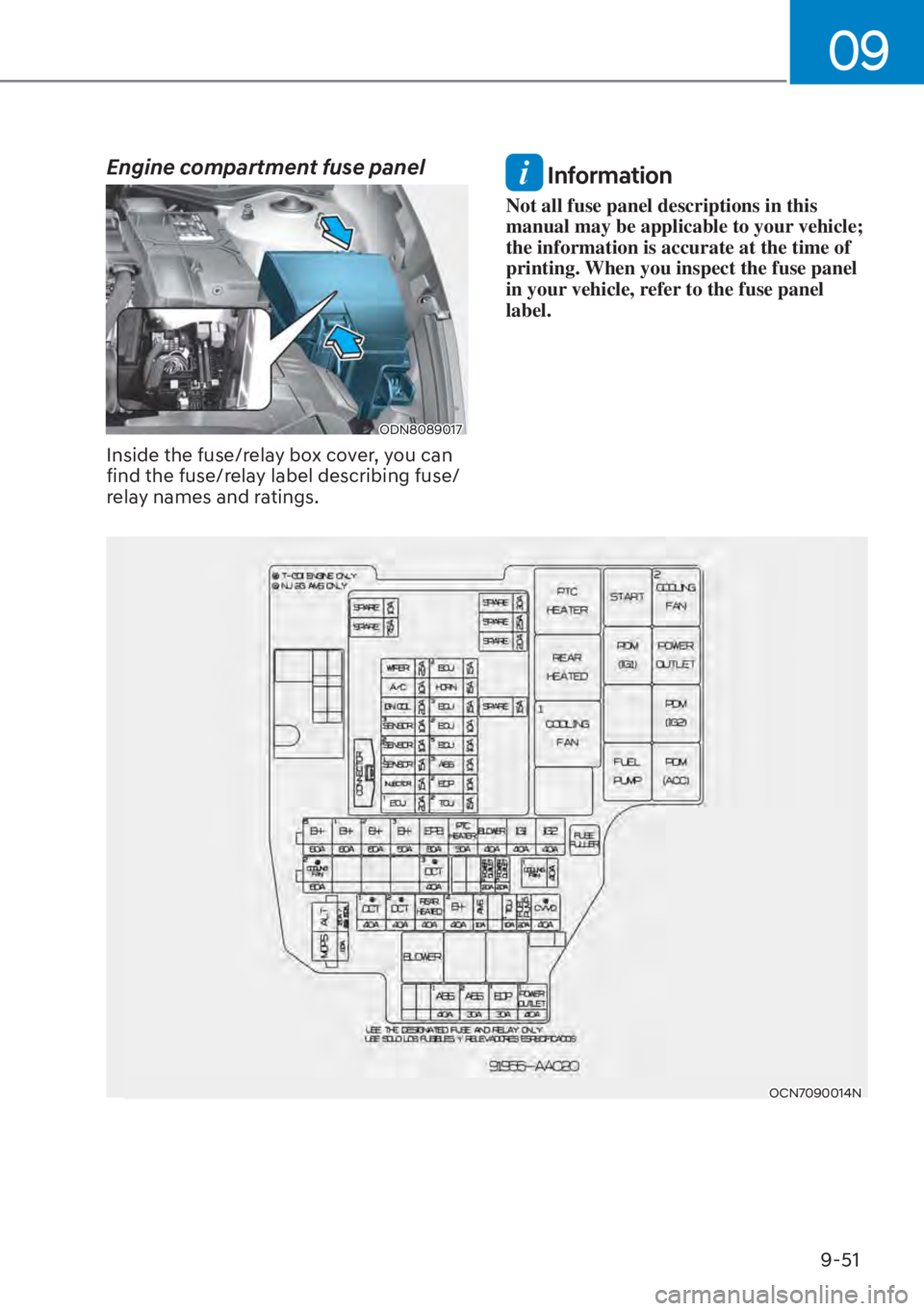

Engine compartment fuse panel
ODN8089017
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.

Maintenance9-52

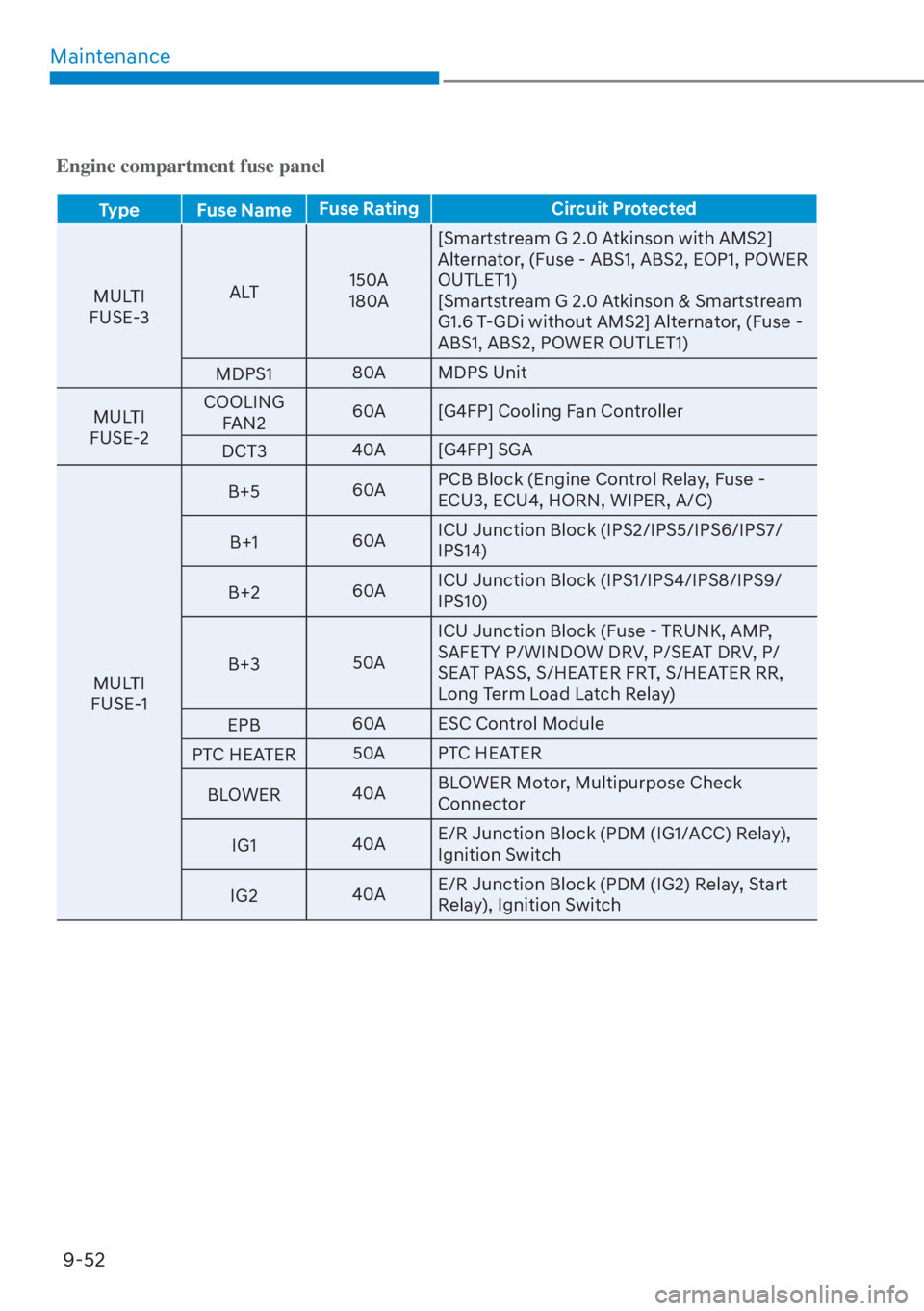

Engine compartment fuse panel
Type Fuse Name Fuse Rating Circuit Protected
MULTI
FUSE
-3 ALT
150A
180A [Smartstream G 2.0 Atkinson with AMS2]
Alternator, (Fuse - ABS1, ABS2, EOP1, POWER
OUTLET1)
[Smartstream G 2.0 Atkinson & Smartstream
G1.6 T-GDi without AMS2] Alternator, (Fuse -
ABS1, ABS2, POWER OUTLET1)
MDPS1 80A MDPS Unit
MULTI
FUSE-2 COOLING
FAN2 60A [G4FP] Cooling Fan Controller
DCT3 40A [G4FP] SGA
MULTI
FUSE-1 B+5
60APCB Block (Engine Control Relay, Fuse -
ECU3, ECU4, HORN, WIPER, A/C)
B+1 60AICU Junction Block (IPS2/IPS5/IPS6/IPS7/
IPS14)
B+2 60AICU Junction Block (IPS1/IPS4/IPS8/IPS9/
IPS10)
B+3 50AICU Junction Block (Fuse - TRUNK, AMP,
SAFETY P/WINDOW DRV, P/SEAT DRV, P/
SEAT PASS, S/HEATER FRT, S/HEATER RR,
Long Term Load Latch Relay)
EPB 60A ESC Control Module
PTC HEATER 50A PTC HEATER
BLOWER 40ABLOWER Motor, Multipurpose Check
Connector
IG1 40AE/R Junction Block (PDM (IG1/ACC) Relay),
Ignition Switch
IG2 40AE/R Junction Block (PDM (IG2) Relay, Start
Relay), Ignition Switch

09
9-53
Engine compartment fuse panel
Type Fuse NameFuse Rating Circuit Protected
FUSE POWER
OUTLET2 20
A Front Power Outlet
POWER
OUTLET3 20A Not Used
COOLING FAN1 40A
Cooling Fan (Smartstream G 2.0 Atkinson
only)
DCT1 40A [G4FP] TCM
DCT2 40A [G4FP] TCM
REAR
HEATED 40A Rear Glass Heated
B+4 40AICU Junction Block (Fuse - AIR BAG2,
IBU1, BRAKE SWITCH, DOOR LOCK, IAU,
MODULE1, SUNROOF,Power Window Relay)
AMS 10A Battery Sensor
TCU1 10A [DCT] TCM, [M/T] Ignition Lock
FUEL PUMP 20AFuel Pump Control Module (T-GDI), Fuel
Pump Motor (NU MPI AKS)
CVVD 40A [G4FP] CVVD Actuator
ABS1 40AABS Control Module, ESC Control Module,
Multipurpose Check Connector
ABS2 30AABS Control Module, ESC Control Module,
Multipurpose Check Connector
EOP1 30AElectronic Oil Pump (Smartstream G 2.0
Atkinson ISG only)
POWER
OUTLET1 40A P/OUTLET FRT
