2023 HYUNDAI ELANTRA reset infotainment system

4-25
04
LCD Display Control
OCN7040023L
The LCD display modes can be changed by using the control buttons.
1.
: MODE button for changing modes
2.
, : MOVE switch for changing items
3. OK : Push the SELECT/RESET button for setting or resetting the selected item
Information
When the infotainment system is applied, only the User’s Setting mode on the
infotainment system is supported but the User’s Setting mode on the instrument cluster is
not supported.
/&'',63/$<

4-40
Instrument Cluster
LCD Display Control
OCN7040023L
The LCD display modes can be changed by using the control buttons.
Switch Operation
Function
Ta pMODE button for changing view modes
, Ta pMOVE switch for changing items
OK Ta p
SELECT/RESET button for setting the selected item
Tap and hold SELECT/RESET button for retrieving assist information or
resetting the selected item
Information
When the infotainment system is applied, only the User’s Setting mode on the
infotainment system is supported but the User’s Setting mode on the instrument cluster is
not supported.
/&'',63/$<

Instrument Cluster4-50
8. Other
Items Explanation
Reset fuel
economy
[
At vehicle start : This displays the average fuel economy after
restarting.

[ After refueling : This displays the average fuel economy after
refueling.

[ Manually : You can calculate the accumulated average fuel
economy manually.
Fuel Econ. Reset
[
Off: The average fuel economy will not reset automatically
whenever refueling.

[ After ignition: When the engine has been OFF for 4 hours or longer
the average fuel economy will reset automatically.

[ After refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of fuel or more and after driving
speed exceeds 1 km/h (1 mph).
For more details, refer to “Trip Computer” in this chapter.
Speed Unit
(if equipped) To select the speed unit. (km/h, MPH)
Fuel Econ. Unit To select the fuel economy unit. (km/L, L/100km, MPG)
Temperature Unit To select the temperature unit. (°C,°F)
Tire Pressure Unit To select the tire pressure unit. (psi, kPa, bar)
9. Language (if equipped)
Items Explanation
LanguageChoose the language. You can choose the language in infotainment
system. (if equipped)
10. Reset
Items Explanation
ResetYou can reset the menus in the User Settings Mode. All menus in the
User Settings Mode are reset to factory settings, except language and
service interval.

Convenience Features5-30
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows.
System Personalization Item
USM Lamp
Blink number of one-touch signal lamps
Door Automatic door lock/unlock, Two Press Unlock
AVN Navigation
Preferred volume of the navigation system, Recent
destination
User preset Radio preset
Bluetooth Bluetooth preferential connect
Air conditioning (for automatic
climate control system) Operating
condition Latest operation setup of the following functions:
Temperature, AUTO, air flow direction, air volume,
air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
For more information of personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key after locking or unlocking the doors or starting up the
vehicle with the smart key, the doors can be locked by the central door lock. Please
carry the digital key at all times.

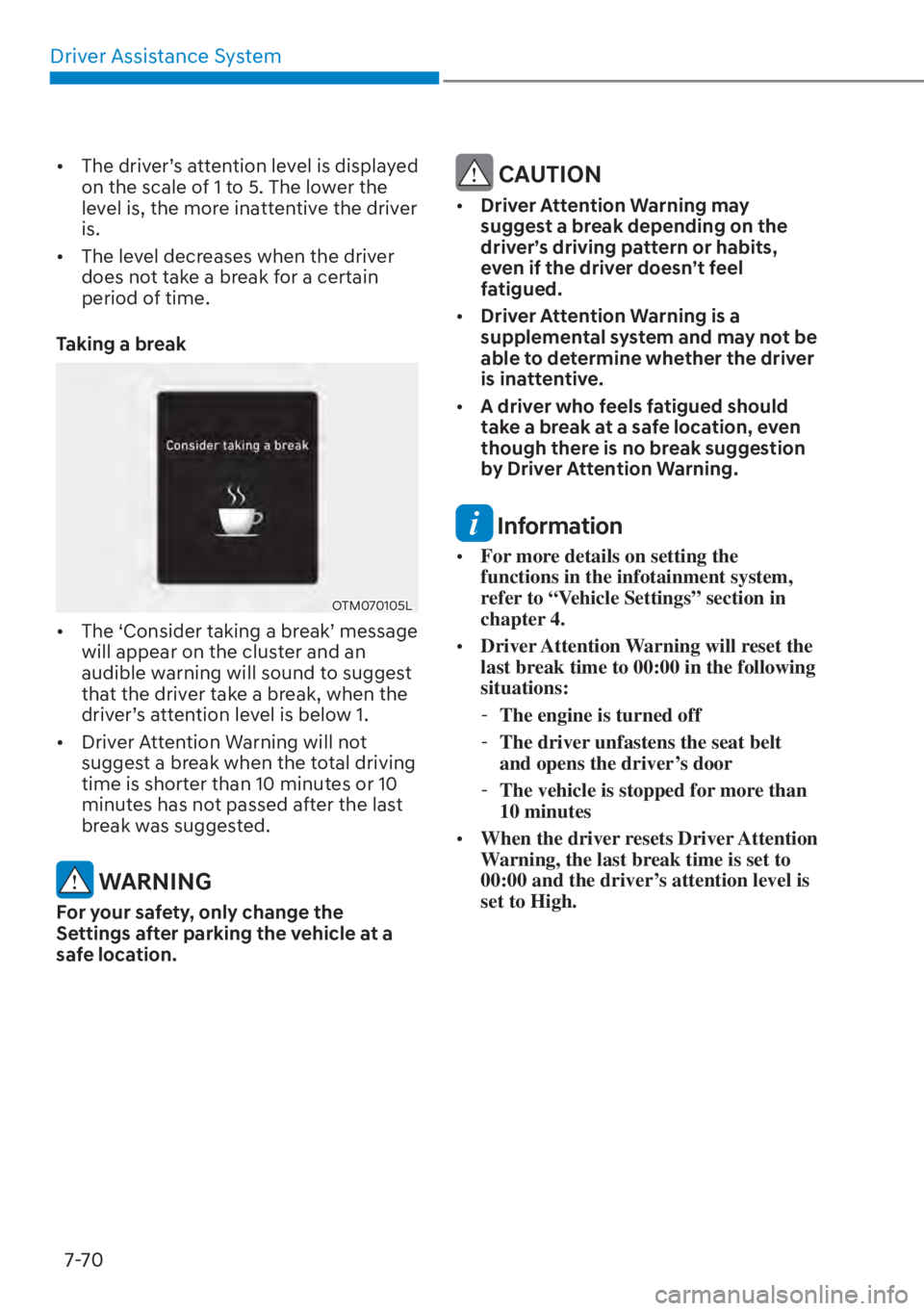

Driver Assistance System7-70

[ 7KHGULYHU
TVDWWHQWLRQOHYHOLVGLVSOD\HG on the scale of 1 to 5. The lower the
level is, the more inattentive the driver
is.

[ The level decreases when the driver
does not take a break for a certain
period of time.
Taking a break
OTM070105L

[ 7KH
S&RQVLGHUWDNLQJDEUHDN
TPHVVDJH will appear on the cluster and an
audible warning will sound to suggest
that the driver take a break, when the
GULYHU
TVDWWHQWLRQOHYHOLVEHORZ

[ Driver Attention Warning will not
suggest a break when the total driving
time is shorter than 10 minutes or 10
minutes has not passed after the last
break was suggested.
WARNING
For your safety, only change the
Settings after parking the vehicle at a
safe location.
CAUTION

[Driver Attention Warning may
suggest a break depending on the
driver’s driving pattern or habits,
even if the driver doesn’t feel
fatigued.

[ Driver Attention Warning is a
supplemental system and may not be
able to determine whether the driver
is inattentive.

[ A driver who feels fatigued should
take a break at a safe location, even
though there is no break suggestion
by Driver Attention Warning.
Information

[For more details on setting the
functions in the infotainment system,
refer to “Vehicle Settings” section in
chapter 4.

[ Driver Attention Warning will reset the
last break time to 00:00 in the following
situations:
- The engine is turned off
- The driver unfastens the seat belt
and opens the driver’s door
- The vehicle is stopped for more than
10 minutes

[ When the driver resets Driver Attention
Warning, the last break time is set to
00:00 and the driver’s attention level is
set to High.

Driver Assistance System7-98
Information

[ Highway Set Speed Auto Change
function only operates based on the
speed limits of the highway, it does not
work with speed cameras.

[ When Highway Set Speed Auto Change
function is operating, the vehicle
automatically accelerates or decelerates
when the highway speed limit changes.

[ The maximum set speed for Highway
Set Speed Auto Change function is 86
mph (140 km/h).

[ If the speed limit of a new road is not
updated in the navigation, Highway Set
Speed Auto Change function may not
operate properly.

[ If the speed unit is set to a unit other
than the speed unit used in your
country, Highway Set Speed Auto
Change function may not operate
properly.
Limitations of Navigation-Based
Smart Cruise Control
Navigation-based Smart Cruise Control
may not operate properly under the
following circumstances:

[The navigation is not working properly

[ Speed limit and road information in
the navigation is not updated

[ The map information and the actual
road is different because of real-time
GPS data or map information error

[ The navigation searches for a route
while driving

[ GPS signals are blocked in areas such
as a tunnel

[ The navigation is updated while
driving

[ Map information is not transmitted
due to infotainment system's
abnormal operation

[ A road that divides into two or more
roads and joins again

[ The driver goes off course the route
set in the navigation

[ The route to the destination is
changed or canceled by resetting the
navigation

[ The vehicle enters a service station or
rest area

[ The speed limit of some sections
changes according to the road
situations

[ Android Auto or Car Play is operating

[ The navigation cannot detect the
current vehicle position (for example,
elevated roads including overpass
adjacent to general roads or nearby
roads exist in a parallel way)

[ The navigation is being updated while
driving

[ The navigation is being restarted while
driving

[ There is bad weather, such as heavy
rain, heavy snow, etc.

[ Driving on a road under construction

Driver Assistance System7-112
Limitations of Highway Driving
Assist
Highway Driving Assist may not operate
properly, or may not operate under the
following circumstances:

[ The map information and the
actual road is different because the
navigation is not updated

[ The map information and the actual
road is different because of real-time
GPS data or map information error

[ The infotainment system is overloaded
by simultaneously performing
functions such as route search, video
playback, voice recognition, etc.

[ GPS signals are blocked in areas such
as a tunnel

[ The driver goes off course or the
route to the destination is changed or
canceled by resetting the navigation

[ The vehicle enters a service station or
rest area

[ Android Auto or Car Play is operating

[ The navigation cannot detect the
current vehicle position (for example,
elevated roads including overpass
adjacent to general roads or nearby
roads exist in a parallel way)

[ White single dotted lane line or road
edge cannot be detected

[ The road is temporarily controlled due
to construction, etc.

[ There is no structure, such as a
medium strip, guardrails, etc., on the
road

[ There is a changeable lane in the
direction of lane change
Information
For more details on the limitations of
the front view camera, front radar, front
corner radar and rear corner radar, refer
to “Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

Maintenance9-8
Information

[ As it is normal for engine oil to be consumed during driving, the engine oil level should
be checked on regular basis.

[ The engine oil change interval for normal operating conditions is based on the use of
the recommended engine specification.

[ The vehicle may be equipped with the Oil Life Management System that predicts
engine oil life based on the driver’s driving history and alerts the driver to change
engine oil.
- If the deterioration of the engine oil increases depending on the driver’s driving
severity, the remaining oil life alert appears on the instrument cluster before the
normal engine oil replacement interval. Have the engine oil and filter changed by an
authorized HYUNDAI dealer.
- Oil Life Management System works when the recommended engine oil is used.
So, if recommended engine oil is not used, replace the engine oil according to the
maintenance schedule under severe usage condition.
Also, check the amount of engine oil regularly as this system assumes that the engi
ne oil is being filled normally.
- Always reset the remaining engine oil life whenever the engine oil is changed.
Otherwise, the indication of remaining Oil life in the Oil Life Management System
may not be accurate. To reset the Engine Oil Change Reminder, select ‘RESET’ from
the infotainment system screen. Then, select ‘Yes’ when the message “Has the engine
oil been changed? Press [Yes] to reset the oil life.” appears on the screen.
- If there is no alert until the maximum maintenance interval, have the vehicle
checked by an authorized HYUNDAI dealer.
