Instrument Cluster4-6

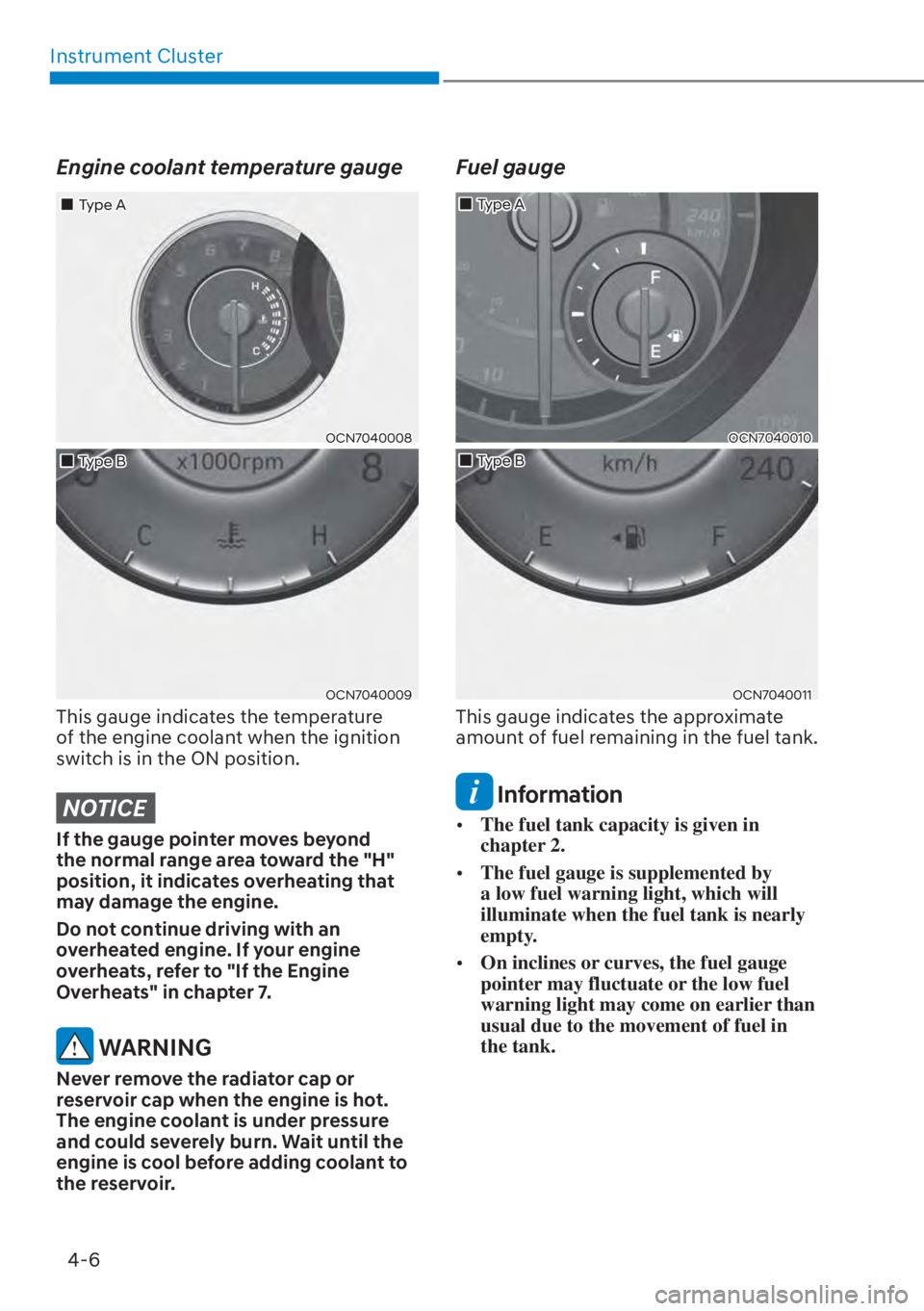

Engine coolant temperature gauge
OCN7040008
OCN7040009
„Type A

„Type B
This gauge indicates the temperature
of the engine coolant when the ignition
switch is in the ON position.
NOTICE
If the gauge pointer moves beyond
the normal range area toward the "H"
position, it indicates overheating that
may damage the engine.
Do not continue driving with an
overheated engine. If your engine
overheats, refer to "If the Engine
Overheats" in chapter 7.
WARNING
Never remove the radiator cap or
reservoir cap when the engine is hot.
The engine coolant is under pressure
and could severely burn. Wait until the
engine is cool before adding coolant to
the reservoir.
Fuel gauge
OCN7040010
OCN7040011
„Type B

„Type A
This gauge indicates the approximate
amount of fuel remaining in the fuel tank.
Information

[
The fuel tank capacity is given in
chapter 2.

[ The fuel gauge is supplemented by
a low fuel warning light, which will
illuminate when the fuel tank is nearly
empty.

[ On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier than
usual due to the movement of fuel in
the tank.

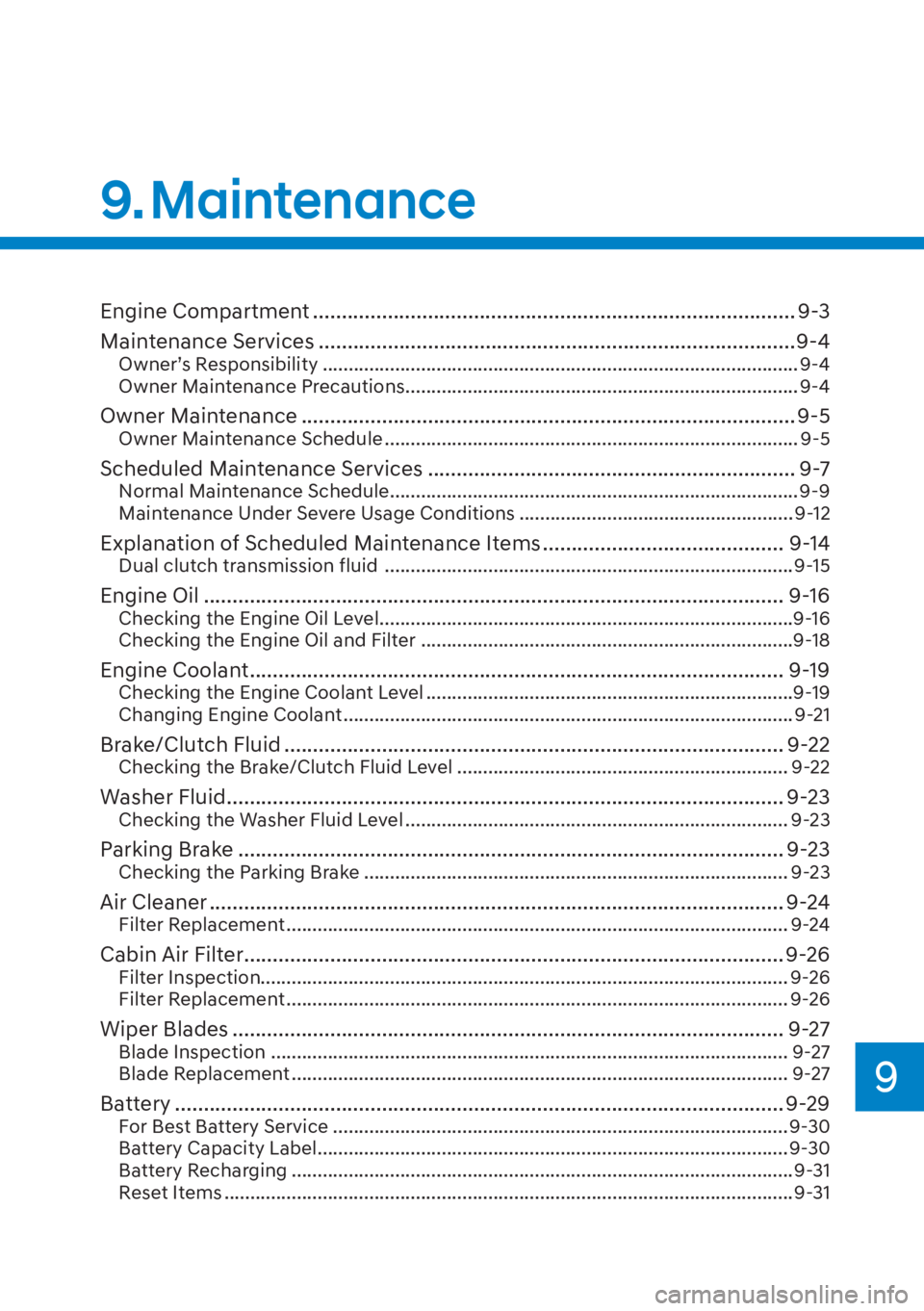

Engine Compartment ........................................................................\
............ 9-3
Maintenance Services ........................................................................\
...........9-4
Owner’s Responsibility ........................................................................\
.................... 9-4
Owner Maintenance Precautions ........................................................................\
.... 9-4
Owner Maintenance ........................................................................\
.............. 9-5Owner Maintenance Schedule ........................................................................\
........ 9-5
Scheduled Maintenance Services ................................................................ 9-7Normal Maintenance Schedule ........................................................................\
....... 9-9
Maintenance Under Severe Usage Conditions ..................................................... 9-12
Explanation of Scheduled Maintenance Items .......................................... 9-14Dual clutch transmission fluid ........................................................................\
....... 9-15
Engine Oil ........................................................................\
............................. 9-16Checking the Engine Oil Level ........................................................................\
........9-16
Checking the Engine Oil and Filter ........................................................................\
9-18
Engine Coolant ........................................................................\
..................... 9-19Checking the Engine Coolant Level .......................................................................9\
-19
Changing Engine Coolant ........................................................................\
............... 9-21
Brake/Clutch Fluid ........................................................................\
............... 9-22Checking the Brake/Clutch Fluid Level ................................................................ 9-22
Washer Fluid ........................................................................\
......................... 9-23Checking the Washer Fluid Level ........................................................................\
.. 9-23
Parking Brake ........................................................................\
....................... 9-23Checking the Parking Brake ........................................................................\
.......... 9-23
Air Cleaner ........................................................................\
............................ 9-24Filter Replacement ........................................................................\
......................... 9-24
Cabin Air Filter ........................................................................\
...................... 9-26Filter Inspection........................................................................\
.............................. 9-26
Filter Replacement ........................................................................\
......................... 9-26
Wiper Blades ........................................................................\
........................ 9-27Blade Inspection ........................................................................\
............................ 9-27
Blade Replacement ........................................................................\
........................ 9-27
Battery ....................................................................\
...................................... 9-29
For Best Battery Service ........................................................................\
................ 9-30
Battery Capacity Label ........................................................................\
................... 9-30
Battery Recharging ........................................................................\
.........................9-31
Reset Items ........................................................................\
......................................9-31
9. Maintenance
9

09
9-41

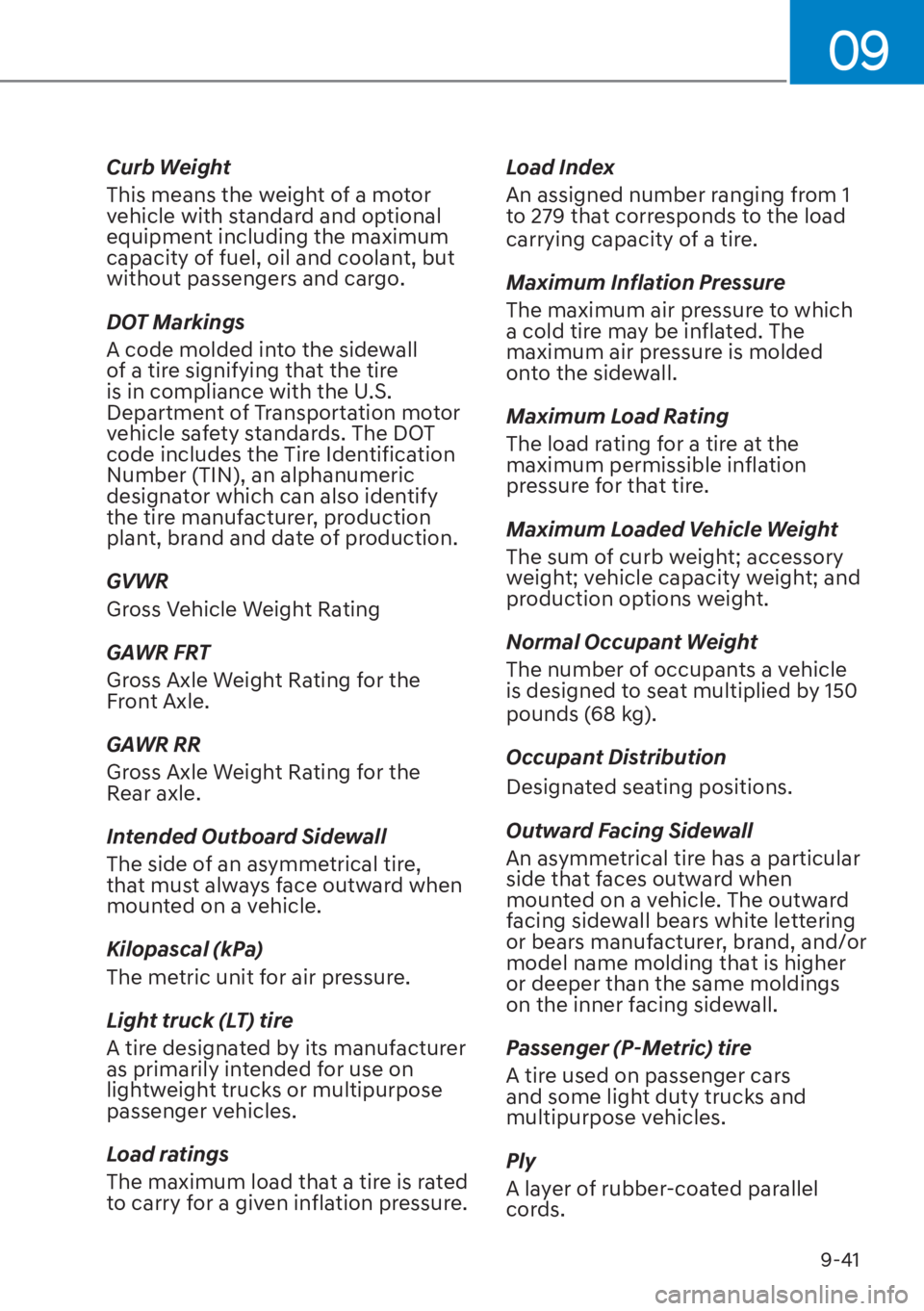

Curb Weight
This means the weight of a motor
vehicle with standard and optional
equipment including the maximum
capacity of fuel, oil and coolant, but
without passengers and cargo.
DOT Markings
A code molded into the sidewall
of a tire signifying that the tire
is in compliance with the U.S.
Department of Transportation motor
vehicle safety standards. The DOT
code includes the Tire Identification
Number (TIN), an alphanumeric
designator which can also identify
the tire manufacturer, production
plant, brand and date of production.
GVWR
Gross Vehicle Weight Rating
GAWR FRT
Gross Axle Weight Rating for the
Front Axle.
GAWR RR
Gross Axle Weight Rating for the
Rear axle.
Intended Outboard Sidewall
The side of an asymmetrical tire,
that must always face outward when
mounted on a vehicle.
Kilopascal (kPa)
The metric unit for air pressure.
Light truck (LT) tire
A tire designated by its manufacturer
as primarily intended for use on
lightweight trucks or multipurpose
passenger vehicles.
Load ratings
The maximum load that a tire is rated
to carry for a given inflation pressure.Load Index
An assigned number ranging from 1
to 279 that corresponds to the load
carrying capacity of a tire.
Maximum Inflation Pressure
The maximum air pressure to which
a cold tire may be inflated. The
maximum air pressure is molded
onto the sidewall.
Maximum Load Rating
The load rating for a tire at the
maximum permissible inflation
pressure for that tire.
Maximum Loaded Vehicle Weight
The sum of curb weight; accessory
weight; vehicle capacity weight; and
production options weight.
Normal Occupant Weight
The number of occupants a vehicle
is designed to seat multiplied by 150
pounds (68 kg).
Occupant Distribution
Designated seating positions.
Outward Facing Sidewall
An asymmetrical tire has a particular
side that faces outward when
mounted on a vehicle. The outward
facing sidewall bears white lettering
or bears manufacturer, brand, and/or
model name molding that is higher
or deeper than the same moldings
on the inner facing sidewall.
Passenger (P-Metric) tire
A tire used on passenger cars
and some light duty trucks and
multipurpose vehicles.
Ply
A layer of rubber-coated parallel
cords.
