2023 HONDA PILOT audio

425
uuCustomized Features u
Continued
Features
■List of customizable options
Press the MENU button.
*1:Default Setting
Customizable FeaturesDescriptionSelectable Settings
Sound Settings
Bass / TrebleAdjusts the settings of the audio speakers’
sound.
2 Adjusting the Sound P. 302
—Balance / Fader
Speed Volume
Compensation
Bluetooth Settings Connect New Device
Pairs a new phone to HFL.
2
Phone Setup P. 464—
Change Device Connects a paired phone.
2
Phone Setup P. 464—
Priority Device Sets a device as the priority device. ON
*1/OFF
Disconnect All Device Disconnects a paired phone from HFL. —
Delete Device Deletes a paired phone. —
Clock Settings
Automatic Time
Selects ON to have the GPS automatically
adjust the clock. Select OFF to cancel this
function.
ON*1/ OFF
Daylight Saving TimeSets the clock to update based on daylight
savings time.ON /OFF*1
Set TimeAdjusts time.
2 Adjusting the Clock P. 176—
Time ZoneChanges the time zone manually.
Smartphone Settings Apple CarPlay
Sets up the Apple CarPlay connection.
—
Android Auto Sets up the Android Auto connection.
RDS SettingsRDS InformationSelects whether the RDS information comes
on.ON*1/OFF
23 PILOT-31T906000_03.book 425 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

426
uuCustomized Features u
Features
*1:Default Setting
Customizable FeaturesDescriptionSelectable Settings
Display Adjustment Brightness
Changes the brightness of the audio/
information screen.
—
Contrast
Changes the contrast of the audio/
information screen.
Black Level Changes the black level of the audio/
information screen.
Day Changes between the daytime mode,
nighttime mode and display off mode.
Night
Display OFF
Touch Panel SensitivitySets the sensitivity of
the touch panel screen.Normal*1/High
Rear Camera Setting Fixed Guideline
Shows the guideline that does not move with
the steering wheel.
2
Multi-View Rear Camera* P. 672
ON*1/OFF
Dynamic Guideline Shows the guideline that moves with the
steering wheel.
2
Multi-View Rear Camera* P. 672
ON*1/OFF
Cross Traffic Monitor*Shows arrows on the rear camera image to
indicate vehicles approaching from the sides.
2 Cross Traffic Monitor* P. 668
ON*1/OFF
Language Changes the display language.English
*1/Español /Français
LicenseShows the legal information.—
Factory Data Reset Resets all the settings to their factory default.
2
Defaulting All the Settings P. 428—
* Not available on all models
23 PILOT-31T906000_03.book 426 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

429Continued
Features
Customized Features
Use the audio/information screen to customize certain features.
With the power mode in ON, pre ss the button, and then select General
Settings and select a setting item.
■How to Customize the General Settings
1Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Put the transmission into (P.
To customize features, refer to the following. 2 Customization flow P. 430
2 System P. 435
2 Smartphone Connection P. 438
2 Connections P. 439
2 Display P. 440
2 Sound P. 441
2 Camera P. 442
2 Voice Control P. 443
Models with 9-in. Color Touchscreen
Audio/Information Screen
23 PILOT-31T906000_03.book 429 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

433
uuCustomized Features u
Continued
Features
Treble
Midrange
Bass / Treble
Bass
Speed Volume
Compensation*2
Audio Zones & Balance / Fader*1Sound
Balance / Fader*2
Bose Centerpoint*1
Bose Dynamic Speed Compensation*1
*1 : Models with BOSE AMP
*2 : Models with Normal AMP
23 PILOT-31T906000_03.book 433 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

435
uuCustomized Features u
Continued
Features
■System
*1:Default Setting
*2:Default Setting for U.S. models
*3:Default Setting for Canadian models Customizable Features Description Selectable Settings
Date & Time
Set
Date &
Time
Automatic
Date & TimeSelects
ON to have the GPS auto matically adjust the
clock. Select OFF to cancel this function.ON*1/OFF
Set DateAdjusts date.
2 Adjusting the Clock P. 176Day/Month/ Year
Set TimeAdjusts time.
2Adjusting the Clock P. 176
Hour/Minute
AM /PM
Time
Zone
Automatic
Time Zone*Sets the audio system to au tomatically adjust the clock
when driving through different time zones.ON*1/ OFF
(Select time
zone)Changes the time zone manually.—
Auto Daylig ht Saving
TimeSets the clock to update based on daylight savings time.ON*1/ OFF
Date FormatSelect a date format.
MM/DD/YYYY*2/
DD/MM/YYYY*3/
YYYY/MM/DD
Time FormatSelect a time format.12H*1/ 24H
* Not available on all models
23 PILOT-31T906000_03.book 435 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

436
uuCustomized Features u
Features
*1:Default SettingCustomizable Features
Description Selectable Settings
LanguageChanges the driver information interface and audio/
information screen language separately.English*1/Español /
Français
Touch Panel
SensitivitySets the sensitivity of the touch panel screen.High /Normal*1
System Volumes
System SoundsSets the system sound volume level.—
Text-to-SpeechSets the text-to-speech volume level.—
Navigation
GuidanceSets the navigation guidance volume level.—
Phone CallsSets the phone call volume level.—
DefaultResets all System Volumes settings to default values.
Data Sharing
SettingTurns the data sharing setting on and off.
2Start Up P. 327ON*1/OFF
Refuel Recommend*Turns the refuel recommend function on and off.
2 Refuel Recommend P. 498ON*1/OFF
* Not available on all models
23 PILOT-31T906000_03.book 436 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

440
uuCustomized Features u
Features
■Display
Customizable Features Descri ption Selectable Settings
BrightnessChanges the brightness of the audio/information screen.—
Contrast Changes the contrast of the audio/information screen. —
Black LevelChanges the black level of the audio/information screen.—
Default Resets all customized settings for the brightness,
contrast, and black level.
—
23 PILOT-31T906000_03.book 440 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

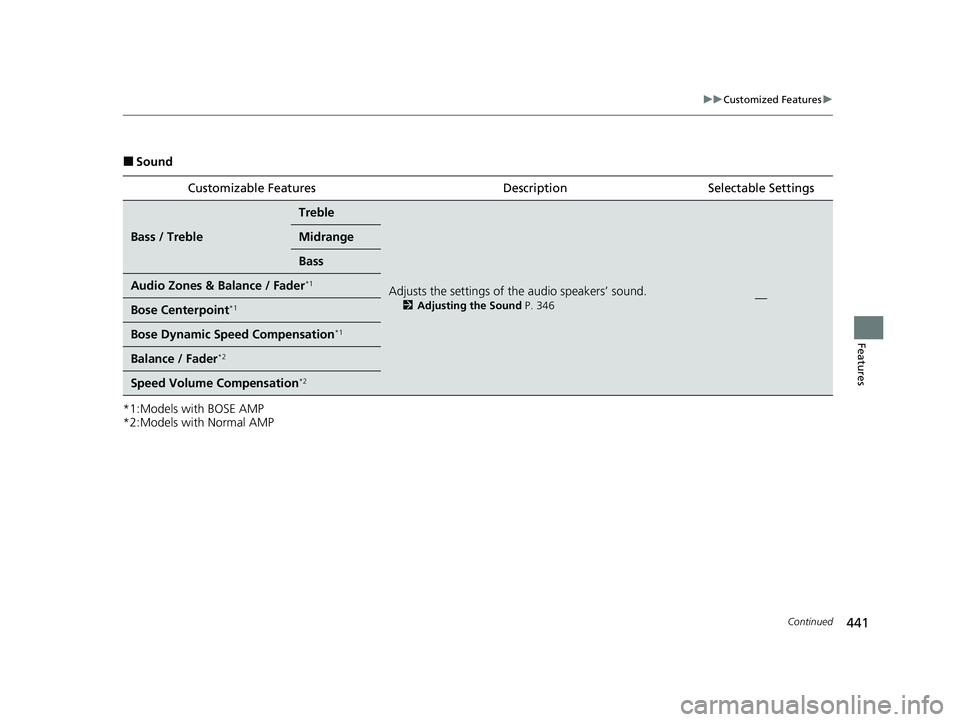

441
uuCustomized Features u
Continued
Features
■Sound
*1:Models with BOSE AMP
*2:Models with Normal AMP Customizable Features Description Selectable Settings
Bass / Treble
Treble
Adjusts the settings of the audio speakers’ sound.
2
Adjusting the Sound P. 346—
Midrange
Bass
Audio Zones & Balance / Fader*1
Bose Centerpoint*1
Bose Dynamic Speed Compensation*1
Balance / Fader*2
Speed Volume Compensation*2
23 PILOT-31T906000_03.book 441 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
