Page 500 of 690
![GENESIS GV60 2023 Owners Manual 7-86
Driver Assistance System
[ Changing lanes
OJWEV071065 [A] : Your vehicle,
[B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the](/manual-img/46/58826/w960_58826-499.png "GENESIS GV60 2023 Owners Manual 7-86
Driver Assistance System
[ Changing lanes
OJWEV071065 [A] : Your vehicle,
[B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the")
7-86
Driver Assistance System
[ Changing lanes
OJWEV071065 [A] : Your vehicle,
[B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the sensor until it is in the
sensor's detection range. Smart Cruise
Control may not immediately detect
the vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.[ Situations when detecting are limited
OJWEV071137
OJWEV071067
In the following cases, some vehicles
in your lane cannot be detected by the
sensor:
- Vehicles offset to one side
- Slow-moving vehicles or sudden-
decelerating vehicles
- Vehicles with higher ground
clearance or vehicles carrying loads
that stick out of the back of the
vehicle
- Vehicles that has the front lifted
dueto heavy loads
- Vehicles within approximately 6
feet(2 m) from your vehicle
- Oncoming vehicles
- Stopped vehicles
- Vehicles with small rear profile, such
as trailers
Page 501 of 690
7-87
07
- Narrow vehicles, such as
motorcycles or bicycles
- Special vehicles
- Animals and pedestrians
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
In the following cases, the vehicle
in front cannot be detected by the
sensor:
- You are steering your vehicle
- Driving on narrow or sharply curved
roads
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
OJWEV071138
[ When a vehicle ahead disappears
at an intersection, your vehicle may
accelerate.
Always pay attention to road and
driving conditions while driving.
OJWEV071139
[ When a vehicle in front of you merges
out of the lane, Smart Cruise Control
may not immediately detect the new
vehicle that is now in front of you.
Always pay attention to road and
driving conditions while driving.
OJWEV071140
[ Always look out for pedestrians when
your vehicle is maintaining a distance
with the vehicle ahead.
Page 516 of 690
7-102
Driver Assistance System
Detecting sensor
OJWEV051058N
OJWEV071054
OJWEV071341N[1] : Front view camera, [2]: Front radar,
[3] : Front corner radar (if equipped),
[4] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
CAUTION
For more details on the precautions of
W K H G H W H F W L Q J V H Q V R U V U H I H U W R U ) R U Z D U G
& R O O L V L R Q $ Y R L G D Q F H $ V V L V W ) & $ V
V H F W L R Q L Q W K L V F K D S W H U
+ L J K Z D \ ' U L Y L Q J $ V V L V W 6 H W W L Q J V
Setting features
OJWEV071265L
Highway Driving Assist
With the vehicle on, select or
G H V H O H F W S ' U L Y H U $ V V L V W D Q F H
Page 526 of 690
7-112
Driver Assistance System
[ , I W K H Y H K L F O H L V G U L Y H Q D W K L J K V S H H G
D E R Y H D F H U W D L Q V S H H G D W D F X U Y H
\ R X U Y H K L F O H P D \ G U L Y H W R R Q H V L G H R U
P D \ G H S D U W I U R P W K H G U L Y L Q J O D Q H
[ : K H Q \ R X D U H W R Z L Q J D W U D L O H U R U
D Q R W K H U Y H K L F O H W X U Q R I I + L J K Z D \
' U L Y L Q J $ V V L V W I R U V D I H W \ U H D V R Q V
[ The hands–off warning message
P D \ D S S H D U H D U O \ R U O D W H G H S H Q G L Q J
on how the steering wheel is held or
U R D G F R Q G L W L R Q V $ O Z D \ V K D Y H \ R X U
hands on the steering wheel while
G U L Y L Q J
[ ) R U \ R X U V D I H W \ S O H D V H U H D G W K H
R Z Q H U
V P D Q X D O E H I R U H X V L Q J W K H
+ L J K Z D \ ' U L Y L Q J $ V V L V W
[ + L J K Z D \ ' U L Y L Q J $ V V L V W Z L O O Q R W
R S H U D W H Z K H Q W K H Y H K L F O H L V V W D U W H G
or when the detecting sensors or
Q D Y L J D W L R Q L V E H L Q J L Q L W L D O L ] H G
Limitations of Highway Driving
Assist
Highway Driving Assist and Highway
Lane Change function may not operate
properly, or it may not operate under the
following circumstances:
[ The map information and the
actual road is different because the
navigation is not updated
[ The map information and the actual
road is different because of real-time
GPS data or map information error
[ The infotainment system is overloaded
by simultaneously performing
functions such as route search, video
playback, voice recognition, etc.[ GPS signals are blocked in areas such
as a tunnel
[ The driver goes off course or the
route to the destination is changed or
cancelled by resetting the navigation
[ The vehicle enters a service station or
rest area
[ Android Auto or Car Play is operating
[ The navigation cannot detect the
current vehicle position (for example,
elevated roads including overpass
adjacent to general roads or nearby
roads exist in a parallel way)
[ White single dotted lane line or road
edge cannot be detected
[ The road is temporarily controlled due
to construction, etc.
[ There is no structure, such as a
medium strip, guardrails, etc., on the
road
[ There is a changeable lane in the
direction of lane change
Information
For more details on the limitations of
the front view camera, front radar, front
corner radar and rear corner radar, refer
to “Forward Collision-Avoidance Assist
(FCA)” section in this chapter.
Page 534 of 690
7-120
Driver Assistance System
Surround View Monitor will assist in
parking by allowing the driver to see
around the vehicle.
Detecting sensor
OJWEV071103N
OJWEV071104
[1]: Surround-front view camera,
[2], [3]: Surround-side view camera
(below the side view mirror),
[4]: Surround-rear view camera
Refer to the picture above for the
detailed location of the detecting
sensors.
6 X U U R X Q G 9 L H Z 0 R Q L W R U V H W W L Q J V
Warning Volume
OJWEV071238N
With the vehicle on, select ‘Driver
$ V V L V W D Q F H

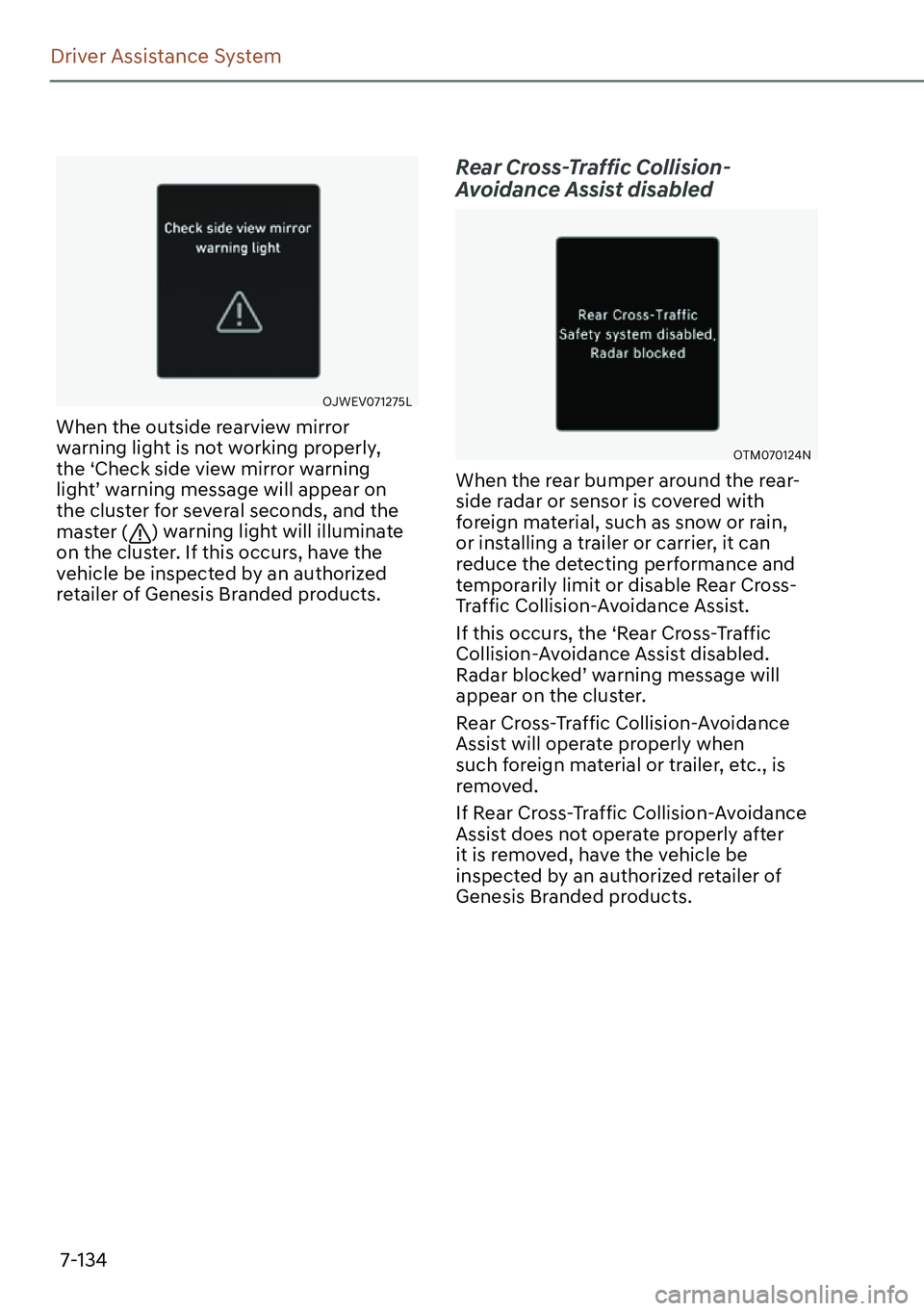

Page 548 of 690
7-134
Driver Assistance System
OJWEV071275L
When the outside rearview mirror
warning light is not working properly,
the ‘Check side view mirror warning
light’ warning message will appear on
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If this occurs, have the
vehicle be inspected by an authorized
retailer of Genesis Branded products.
Rear Cross-Traffic Collision-
Avoidance Assist disabled
OTM070124N
When the rear bumper around the rear-
side radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Rear Cross-
Traffic Collision-Avoidance Assist.
If this occurs, the ‘Rear Cross-Traffic
Collision-Avoidance Assist disabled.
Radar blocked’ warning message will
appear on the cluster.
Rear Cross-Traffic Collision-Avoidance
Assist will operate properly when
such foreign material or trailer, etc., is
removed.
If Rear Cross-Traffic Collision-Avoidance
Assist does not operate properly after
it is removed, have the vehicle be
inspected by an authorized retailer of
Genesis Branded products.
Page 555 of 690
7-141
07
Information
[ Forward Parking Distance Warning
does not operate when the vehicle's
forward speed is above 6 mph (10
km/h) even when the Parking Safety
(
) button indicator is on. Forward
Parking Distance Warning will operate
again when the vehicle's forward speed
decreases below 6 mph (10 km/h)
while the Parking Safety (
) button
indicator is on.
[ Forward Parking Distance Warning is
deactivated if the vehicle speed reaches
above 18mph (30km/h). It will not
reactivate although the vehicle speed
drops below 6mph (10km/h). (Only
when Parking Warning Auto On is not
selected)
Distance
I U R P R E M H F WWarning
indicator
when
G U L Y L Q J
forwardWarning
sound
24~40 in.
(60~100 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
within 12 in.
(30 cm)
Beeps
continuously
[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
[ When people, animals, or other
objects are not positioned directly
in front of the ultrasonic sensor,
the distance might be differently
detected.
[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
Page 556 of 690
7-142
Driver Assistance System
Reverse Parking Distance Warning
Rear Parking Distance Warning will
operate under following conditions.
- When the gear is shifted to R
(Reverse).
- When vehicle speed is below 6 mph
(10 km/h).
Information
Parking Distance Warning detects and
warns the driver of both rear and front
corners, when the vehicle speed is below 6
mph (10 km/h).
Distance
I U R P R E M H F WWarning
indicator
when
G U L Y L Q J
E D F N Z D U GWarning
sound
24~48 in.
(60~120 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more
frequently
within 12 in.
(30 cm)
Beeps
continuously
[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
[ When people, animals, or other
objects are not positioned directly
in front of the ultrasonic sensor,
the distance might be differently
detected.
[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
![GENESIS GV60 2023 Owners Manual 7-102
Driver Assistance System
Detecting sensor
OJWEV051058N
OJWEV071054
OJWEV071341N[1] : Front view camera, [2]: Front radar,
[3] : Front corner radar (if equipped),
[4] : Rear corner radar
Refer](/manual-img/46/58826/w960_58826-515.png "GENESIS GV60 2023 Owners Manual 7-102
Driver Assistance System
Detecting sensor
OJWEV051058N
OJWEV071054
OJWEV071341N[1] : Front view camera, [2]: Front radar,
[3] : Front corner radar (if equipped),
[4] : Rear corner radar
Refer")
![GENESIS GV60 2023 Owners Manual 7-120
Driver Assistance System
Surround View Monitor will assist in
parking by allowing the driver to see
around the vehicle.
Detecting sensor
OJWEV071103N
OJWEV071104
[1]: Surround-front view came](/manual-img/46/58826/w960_58826-533.png "GENESIS GV60 2023 Owners Manual 7-120
Driver Assistance System
Surround View Monitor will assist in
parking by allowing the driver to see
around the vehicle.
Detecting sensor
OJWEV071103N
OJWEV071104
[1]: Surround-front view came")
