7-173
07
[ Remote Smart Parking Assist
searches parking lines or parking
spaces that are next to parked
vehicles, or parking spaces with
parked vehicles in front or rear.
[ While searching for a parking space,
when vehicle speed is above 12 mph
(20 km/h), a message will appear
on the infotainment system screen
informing you to slow down. When
vehicle speed is above 18 mph (30
km/h), Parking function will turn off.
[ Searching for a parking space will
be completed when there is enough
space to move the vehicle in
addition to the parking space.
[ Even if an audible sound is heard
to notify that searching for a
parking space is complete, search
completion can be cancelled
immediately depending on
surroundings. Information
OJWEV071125N[A] : Searching for parking space
[ If the distance is below 20 in. (50 cm)
or over 59 in. (150 cm), Remote Smart
Parking Assist may not be able to
search for a parking space.
[ If you do not maintain a certain
distance from the parked vehicle, the
performance to search for a parking
space may reduce.
[ Due to abnormal performance of the
ultrasonic sensor or the influence of
the surroundings, Parking function
may not be able to search for a parking
space even if there is a parking space,
or may search for a space that is not
suitable for parking.
[ If the parking space is on a incline or
is diagonal, the parking type displayed
may be different from the actual
parking type which should be selected.
If this occurs, do not select the parking
type, and search for another parking
space.
Page 595 of 690
7-181
07
& K H F N L Q J V S D F H
OJWEV071283L
(1) When the vehicle is stopped by
depressing the brake pedal, the
vehicle sensors will detect the
distance from nearby objects and
check for space to exit.
(2) When checking for space is
complete, a message will appear
on the infotainment system screen
with an audible sound to notify the
search is complete.
: $ 5 1 , 1 *
[ : K L O H F K H F N L Q J I R U V S D F H L I W K H U H L V
D U L V N R I F R O O L V L R Q Z L W K S H G H V W U L D Q
D Q L P D O R U R E M H F W L Q W K H G L U H F W L R Q R I
Y H K L F O H H [ L W I R U \ R X U V D I H W \ 6 P D U W
( [ L W I X Q F W L R Q F D Q E H W X U Q H G R I I
[ ( Y H Q L I F K H F N I R U V S D F H L V F R P S O H W H G
R E M H F W V L Q W K H E O L Q G V S R W D U H D F D Q Q R W
E H G H W H F W H G E \ W K H V H Q V R U V 7 K H
G U L Y H U P X V W G L U H F W O \ F K H F N W K H E O L Q G
spot area and continue using the
I X Q F W L R Q
Information
Due to abnormal performance of the
ultrasonic sensor or the influence of the
surroundings, Parking function may not
be able to search for a parking space even
if there is a parking space, or may search
for a space that is not suitable for parking.
-The parked vehicle has objects attached
to the bumper such as bumper guard,
trailer hitch, etc.
6 H O H F W H [ L W G L U H F W L R Q
OJWEV071284L
(1) With the vehicle stopped by
depressing the brake pedal, the
infotainment system screen
displays the possible directions for
parallel exit.
(2) Touch the infotainment system
screen or use the central controller
to select the desired exit direction.
CAUTION
[ % H I R U H V H O H F W L Q J W K H ( [ L W ' L U H F W L R Q
W K H G U L Y H U V K R X O G F K H F N Z K H W K H U W K H
V S D F H I R U H [ L W L V V X L W D E O H
[ , I W K H V H D U F K H G H [ L W V S D F H E \ 5 H P R W H
Smart Parking Assist is narrow or
X Q V X L W D E O H V X U U R X Q G L Q J Y H K L F O H V D U H
S D U N H G Y H U W L F D O O \ H W F G R Q R W X V H
W K H 6 P D U W ( [ L W I X Q F W L R Q

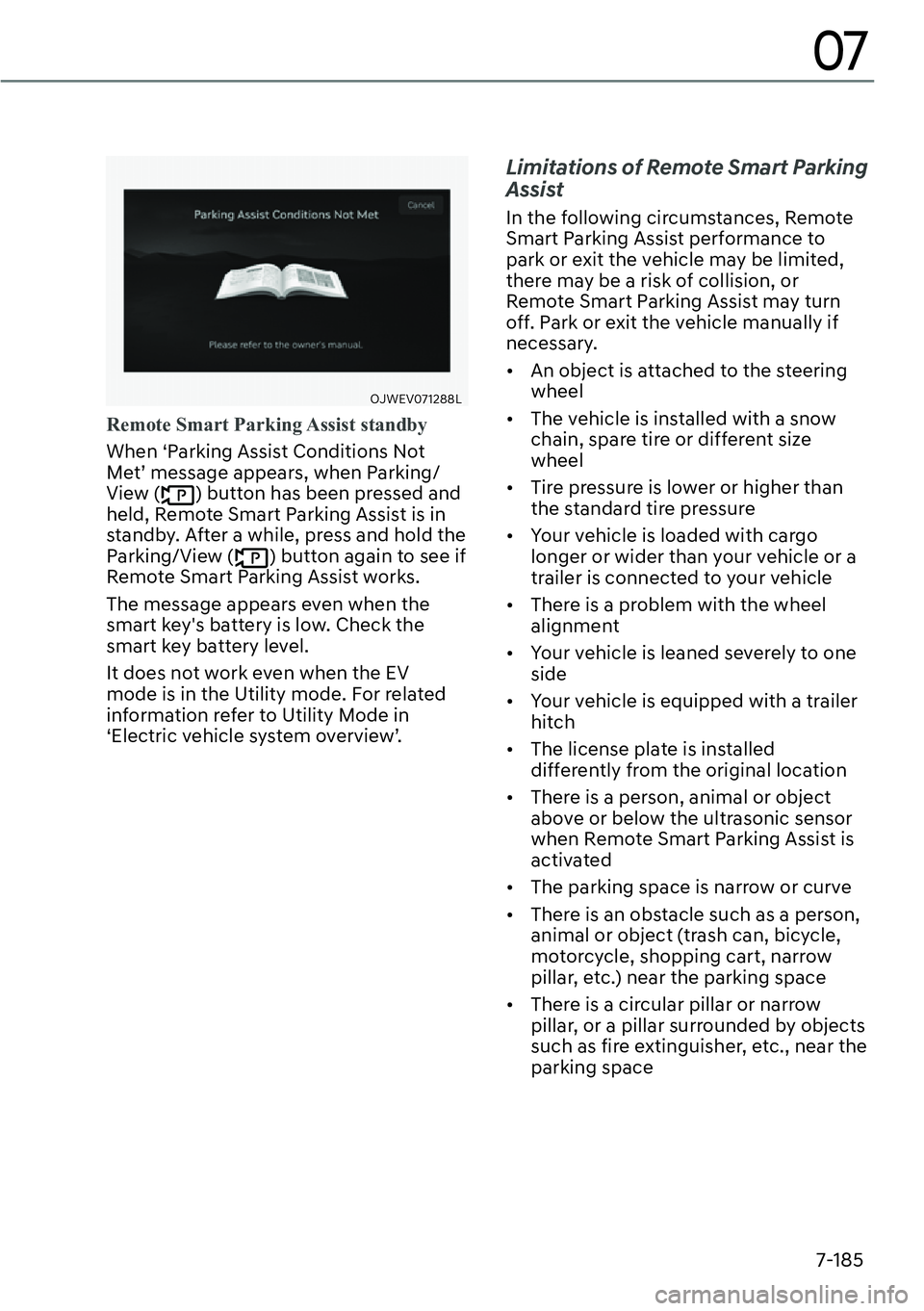

Page 599 of 690
7-185
07
OJWEV071288L
Remote Smart Parking Assist standby
When ‘Parking Assist Conditions Not
Met’ message appears, when Parking/
View (
) button has been pressed and
held, Remote Smart Parking Assist is in
standby. After a while, press and hold the
Parking/View (
) button again to see if
Remote Smart Parking Assist works.
The message appears even when the
smart key's battery is low. Check the
smart key battery level.
It does not work even when the EV
mode is in the Utility mode. For related
information refer to Utility Mode in
‘Electric vehicle system overview’.
Limitations of Remote Smart Parking
Assist
In the following circumstances, Remote
Smart Parking Assist performance to
park or exit the vehicle may be limited,
there may be a risk of collision, or
Remote Smart Parking Assist may turn
off. Park or exit the vehicle manually if
necessary.
[ An object is attached to the steering
wheel
[ The vehicle is installed with a snow
chain, spare tire or different size
wheel
[ Tire pressure is lower or higher than
the standard tire pressure
[ Your vehicle is loaded with cargo
longer or wider than your vehicle or a
trailer is connected to your vehicle
[ There is a problem with the wheel
alignment
[ Your vehicle is leaned severely to one
side
[ Your vehicle is equipped with a trailer
hitch
[ The license plate is installed
differently from the original location
[ There is a person, animal or object
above or below the ultrasonic sensor
when Remote Smart Parking Assist is
activated
[ The parking space is narrow or curve
[ There is an obstacle such as a person,
animal or object (trash can, bicycle,
motorcycle, shopping cart, narrow
pillar, etc.) near the parking space
[ There is a circular pillar or narrow
pillar, or a pillar surrounded by objects
such as fire extinguisher, etc., near the
parking space
Page 600 of 690
7-186
Driver Assistance System
[ The road surface is bumpy (curbstone,
speed bump, etc.)
[ The road is slippery
[ The parking space is near a vehicle
with higher ground clearance or big,
such as a truck, etc.
[ The parking space is Inclined
[ The road surface of parking space
with lines is wet due to snow, puddles,
or there is a road marker inside the
parking space
[ The road surface of the parking space
with lines is bumpy due to road cracks
[ The parking line is too thin or thick
[ The parking line is partially erased or
blurred
[ The parking line is obscured by
people, animals, or objects such as
snow, boxes, etc.
[ There is heavy wind
[ Operating Remote Smart Parking
Assist on uneven roads, gravel roads,
bushes, etc.
[ The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather
[ The ultrasonic sensor is covered with
snow or water
[ An object that generates ultrasonic
waves is nearby
[ A wireless device with a transmission
function operates near the ultrasonic
sensors
[ Your vehicle is affected by another
vehicle’s Parking Distance Warning
[ The sensor is mounted or positioned
incorrectly by an impact to the
bumper
[ The cameras is improperly mounted
or out of position due to outside
rearview mirror damage[ The ultrasonic sensor cannot detect
the following objects when:
- Sharp or slim objects, such as ropes,
chains or small poles
- Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter
- Objects which tend to absorb
sensor frequency, such as clothes,
spongy material or snow
- A narrow object such as a corner of
a square pillar
- Person, animal or object near the
ultrasonic sensor
[ The cameras may not properly
recognize or may not recognize the
parking line and objects when:
- There are small objects (curb, etc.),
sharp objects, or thin objects (rope,
etc.) around
- People, animals or objects are too
close or too far from the vehicle
- Objects are on a higher position,
such as pickup trucks
- The camera is obscured by dirt or
moisture
- The camera is exposed to strong
light
- The surrounding is too dark
- The light is reflected from the
surface
Page 601 of 690
7-187
07
Remote Smart Parking Assist may not
operate properly under the following
circumstances:
[ Parking on inclines
OJWEV071158
Park manually when parking on
inclines.
[ Parking in snow
OJWEV071129
Snow may interfere with sensor
operation, or Remote Smart Parking
Assist may cancel if the road is
slippery while parking.[ Parking on uneven road
OJWEV071159
Remote Smart Parking Assist may
cancel when the vehicle slips, or
the vehicle cannot move due to
road conditions such as pebbles or
fragmented stones.
[ Parking behind a truck
OJWEV071128
Do not use Remote Smart Parking
Assist around vehicles with higher
ground clearance, such as a bus,
truck, etc. It may lead to an accident.
Page 603 of 690
7-189
07
[ Abnormal parking space
OJWEV071321N
Remote Smart Parking Assist does not
work properly when the parking lines
are not parallel. Do not park although
the parking space is recognized by the
sensor.
[ Inclined parking space
OJWEV071322N
Remote Smart Parking Assist does not
work properly on a inclined or curved
road surface. Do not park although
the parking space is recognized by the
sensor.
: $ 5 1 , 1 *
Take the following precautions when
using Remote Smart Parking Assist:
[ 7 K H G U L Y H U L V U H V S R Q V L E O H I R U V D I H
S D U N L Q J D Q G H [ L W Z K H Q X V L Q J 5 H P R W H
6 P D U W 3 D U N L Q J $ V V L V W
[ When using Remote Smart Parking
$ V V L V W V W D \ R X W R I W K H Z D \ L Q W K H
G L U H F W L R Q W K H Y H K L F O H P R Y H V I R U \ R X U
V D I H W \
[ $ O Z D \ V F K H F N V X U U R X Q G L Q J V Z K H Q
X V L Q J 5 H P R W H 6 P D U W 3 D U N L Q J $ V V L V W
< R X P D \ F R O O L G H Z L W K S H G H V W U L D Q V
D Q L P D O V R U R E M H F W V L I W K H \ D U H Q H D U
W K H V H Q V R U R U D U H L Q W K H V H Q V R UT V E O L Q G
V S R W D U H D
[ $ F R O O L V L R Q P D \ R F F X U L I D S H G H V W U L D Q
D Q L P D O R U R E M H F W V X G G H Q O \ D S S H D U V
while Remote Smart Parking Assist is
R S H U D W L Q J
[ Do not use Remote Smart Parking
Assist when under the influence of
D O F R K R O
[ Do not let children or other people to
X V H W K H V P D U W N H \
[ If Remote Smart Parking Assist is
X V H G F R Q W L Q X R X V O \ I R U D O R Q J S H U L R G
L W P D \ D G Y H U V H O \ D I I H F W 5 H P R W H
6 P D U W 3 D U N L Q J $ V V L V W S H U I R U P D Q F H
[ 5 H P R W H 6 P D U W 3 D U N L Q J $ V V L V W P D \
Q R W R S H U D W H S U R S H U O \ L I W K H Y H K L F O H
Q H H G V Z K H H O D O L J Q P H Q W D G M X V W P H Q W
V X F K D V Z K H Q W K H Y H K L F O H W L O W V W R R Q H
V L G H + D Y H W K H Y H K L F O H E H L Q V S H F W H G
E \ D Q D X W K R U L ] H G U H W D L O H U R I * H Q H V L V
% U D Q G H G 3 U R G X F W V
Page 617 of 690
8-11
08
TPMS (Tire Pressure
Monitoring System)
malfunction indicator
The TPMS Malfunction Indicator
will illuminate after it blinks for
approximately one minute when there
is a problem with the Tire Pressure
Monitoring System.
Have the system be checked by an
authorized retailer of Genesis Branded
products as soon as possible.
NOTICE
If there is a malfunction with the TPMS,
the Low Tire Pressure Position Telltale
will not be displayed even though the
vehicle has an under-inflated tire.
NOTICE
The TPMS Malfunction Indicator may
illuminate after blinking for one minute
if the vehicle is near electric power
supply cables or radio transmitters
such as police stations, government
and public offices, broadcasting
stations, military installations, airports,
transmitting towers, etc.
Additionally, the TPMS Malfunction
Indicator may illuminate if snow chains
are used or electronic devices such as
computers, chargers, remote starters,
navigation, etc. This may interfere with
normal operation of the TPMS.
Changing a Tire with TPMS
If you have a flat tire, the Low Tire
Pressure and Position telltales will
come on. Have the flat tire be repaired
by an authorized retailer of Genesis
Branded products as soon as possible or
replace the flat tire with the spare tire (if
equipped).
NOTICE
It is recommended that you do not use a
puncture-repairing agent not approved
by an authorized retailer of Genesis
Branded products or the equivalent
specified for your vehicle to repair
and/or inflate a low pressure tire. Tire
sealant not approved by an authorized
retailer of Genesis Branded products or
the equivalent specified for your vehicle
may damage the tire pressure sensor.
The spare tire (if equipped) does not
come with a tire pressure monitoring
sensor. When the low pressure tire or
the flat tire is replaced with the spare
tire, the Low Tire Pressure Telltale will
remain on. Also, the TPMS Malfunction
Indicator will illuminate after blinking
for one minute if the vehicle is driven
at speed above 15.5 mph (25 km/h) for
approximately 10 minutes.
Once the original wheel equipped with
a tire pressure monitoring sensor is
reinflated to the recommended pressure
and reinstalled on the vehicle, the
Low Tire Pressure Telltale and TPMS
Malfunction Indicator will go off within a
few minutes of driving.
Page 618 of 690
8-12
Emergency Situations
If the indicators do not extinguish after
a few minuates, consult an authorized
retailer of Genesis Branded products.
Each wheel is equipped with a tire
pressure sensor mounted inside the tire
behind the valve stem (except for the
spare tire). You must use TPMS specific
wheels. Have your tires serviced by an
authorized retailer of Genesis Branded
products.
You may not be able to identify a tire
with low pressure by simply looking at it.
Always use a good quality tire pressure
gauge to measure. Please note that a tire
that is hot (from being driven) will have a
higher pressure measurement than a tire
that is cold.
A cold tire means the vehicle has been
sitting for 3 hours and driven for less
than 1 mile (1.6 km) in that 3 hour period.
Allow the tire to cool before measuring
the inflation pressure. Always be sure
the tire is cold before inflating to the
recommended pressure.
WARNING
[ The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors such as nails or road
debris.
[ If you feel any vehicle instability,
immediately take your foot off
the accelerator, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
WARNING
Tampering with, modifying, or disabling
the Tire Pressure Monitoring System
(TPMS) components may interfere
with the system’s ability to warn the
driver of low tire pressure conditions
and/or TPMS malfunctions. Tampering
with, modifying, or disabling the Tire
Pressure Monitoring System (TPMS)
components may void the warranty for
that portion of the vehicle.
WARNING
This device complies with Part 15 of the
FCC rules.Operation is subject to the
following three conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the device.
3. Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the device.
