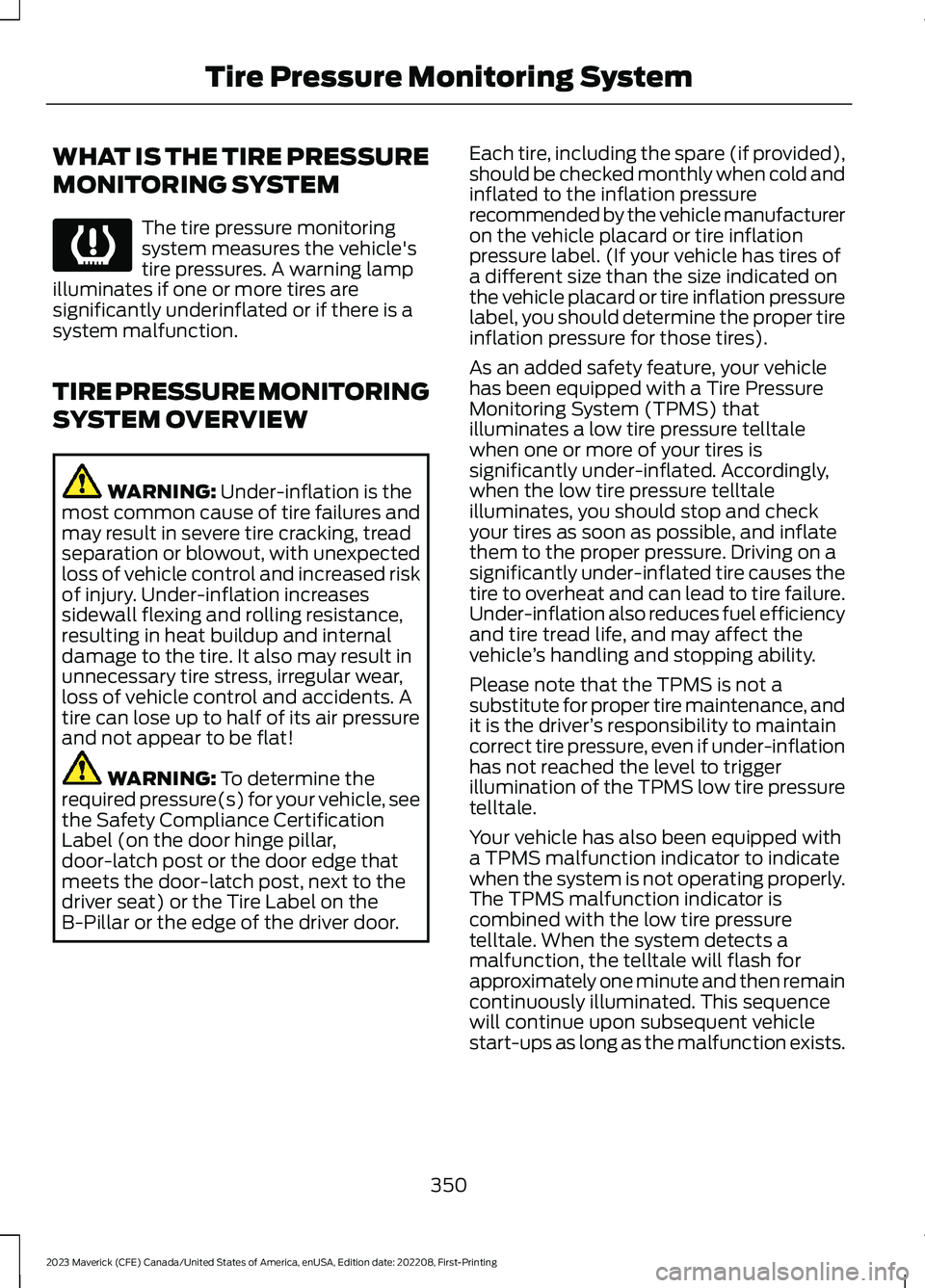

WHAT IS THE TIRE PRESSURE
MONITORING SYSTEM
The tire pressure monitoringsystem measures the vehicle'stire pressures. A warning lampilluminates if one or more tires aresignificantly underinflated or if there is asystem malfunction.
TIRE PRESSURE MONITORING
SYSTEM OVERVIEW
WARNING: Under-inflation is themost common cause of tire failures andmay result in severe tire cracking, treadseparation or blowout, with unexpectedloss of vehicle control and increased riskof injury. Under-inflation increasessidewall flexing and rolling resistance,resulting in heat buildup and internaldamage to the tire. It also may result inunnecessary tire stress, irregular wear,loss of vehicle control and accidents. Atire can lose up to half of its air pressureand not appear to be flat!
WARNING: To determine therequired pressure(s) for your vehicle, seethe Safety Compliance CertificationLabel (on the door hinge pillar,door-latch post or the door edge thatmeets the door-latch post, next to thedriver seat) or the Tire Label on theB-Pillar or the edge of the driver door.
Each tire, including the spare (if provided),should be checked monthly when cold andinflated to the inflation pressurerecommended by the vehicle manufactureron the vehicle placard or tire inflationpressure label. (If your vehicle has tires ofa different size than the size indicated onthe vehicle placard or tire inflation pressurelabel, you should determine the proper tireinflation pressure for those tires).
As an added safety feature, your vehiclehas been equipped with a Tire PressureMonitoring System (TPMS) thatilluminates a low tire pressure telltalewhen one or more of your tires issignificantly under-inflated. Accordingly,when the low tire pressure telltaleilluminates, you should stop and checkyour tires as soon as possible, and inflatethem to the proper pressure. Driving on asignificantly under-inflated tire causes thetire to overheat and can lead to tire failure.Under-inflation also reduces fuel efficiencyand tire tread life, and may affect thevehicle’s handling and stopping ability.
Please note that the TPMS is not asubstitute for proper tire maintenance, andit is the driver’s responsibility to maintaincorrect tire pressure, even if under-inflationhas not reached the level to triggerillumination of the TPMS low tire pressuretelltale.
Your vehicle has also been equipped witha TPMS malfunction indicator to indicatewhen the system is not operating properly.The TPMS malfunction indicator iscombined with the low tire pressuretelltale. When the system detects amalfunction, the telltale will flash forapproximately one minute and then remaincontinuously illuminated. This sequencewill continue upon subsequent vehiclestart-ups as long as the malfunction exists.
350
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingTire Pressure Monitoring SystemE139232

Clock
Select this tile to adjust the clock settings.
Bluetooth®
Select this tile to switch Bluetooth® onand off and adjust the settings.
Phone
Select this tile to connect, disconnect, andmanage the connected device settings.
Audio
Select this tile to adjust the audio settings.
Driver Assist (If Equipped)
Select this tile to adjust Driver Assistfeatures like Parking Aids, Lane KeepingSystem, Pedestrian Detection, andAuto-Start-Stop.
Vehicle
Select this tile to adjust vehicle settingslike windows, alarm, lighting, and MyKeysettings.
FordPass (If Equipped)
Select this tile to adjust the FordPasssettings
General
Select this tile to adjust settings likelanguage, measurement units, or to resetthe system.
911 Assist (If Equipped)
Select this tile to switch 911 Assist on andoff.
Automatic Updates
Select this tile to adjust the automaticupdate settings.
Mobile Apps
Select this tile to adjust permissions,enable, disable, and update mobile apps.
Display
Select this tile to adjust display settingslike brightness and auto dim.
Charge Settings (If Equipped)
Select this tile to adjust the electric vehiclecharge settings.
Voice Control
Select this tile to adjust voice controlsettings like command confirmations anddisplayed lists.
Navigation (If Equipped)
Select this tile to adjust navigation settingslike map preferences and route guidance.
Seats (If Equipped)
Select this tile to adjust the lumbarfunction and massage function of yourmulti contour seats.
Message Center (If Equipped)
Select this tile to view vehicle messages.
Personal Profiles (If Equipped)
Select this tile to adjust recalled memoryfeatures when using personal profiles.
Valet Mode (If Equipped)
Select this tile to enable and disable valetmode.
Ambient Lighting (If Equipped)
Select this tile to change the color orintensity of the interior lighting.
431
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingSYNC™ 3 (If Equipped)

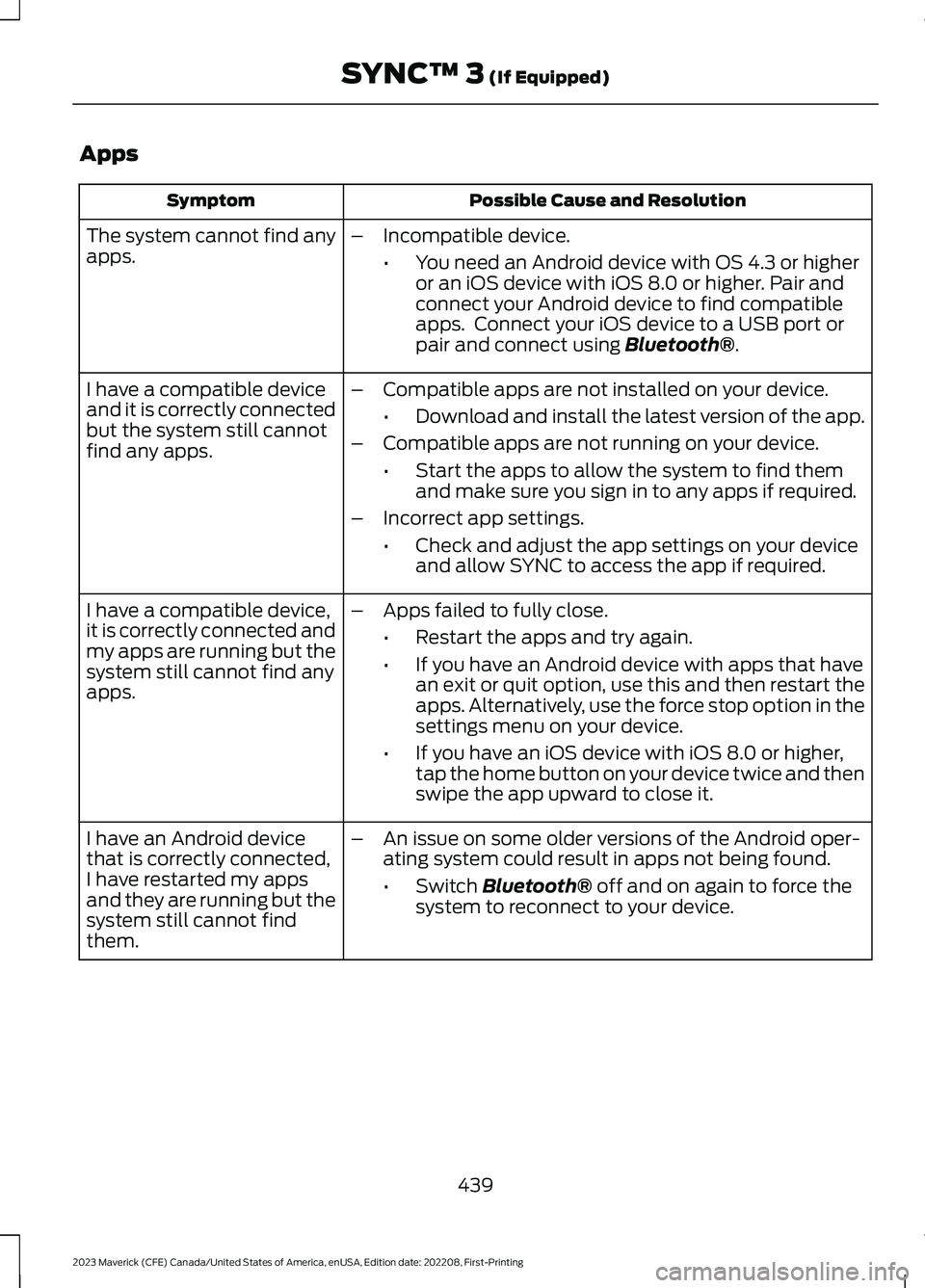

Apps
Possible Cause and ResolutionSymptom
The system cannot find anyapps.–Incompatible device.
•You need an Android device with OS 4.3 or higheror an iOS device with iOS 8.0 or higher. Pair andconnect your Android device to find compatibleapps. Connect your iOS device to a USB port orpair and connect using Bluetooth®.
I have a compatible deviceand it is correctly connectedbut the system still cannotfind any apps.
–Compatible apps are not installed on your device.
•Download and install the latest version of the app.
–Compatible apps are not running on your device.
•Start the apps to allow the system to find themand make sure you sign in to any apps if required.
–Incorrect app settings.
•Check and adjust the app settings on your deviceand allow SYNC to access the app if required.
I have a compatible device,it is correctly connected andmy apps are running but thesystem still cannot find anyapps.
–Apps failed to fully close.
•Restart the apps and try again.
•If you have an Android device with apps that havean exit or quit option, use this and then restart theapps. Alternatively, use the force stop option in thesettings menu on your device.
•If you have an iOS device with iOS 8.0 or higher,tap the home button on your device twice and thenswipe the app upward to close it.
I have an Android devicethat is correctly connected,I have restarted my appsand they are running but thesystem still cannot findthem.
–An issue on some older versions of the Android oper-ating system could result in apps not being found.
•Switch Bluetooth® off and on again to force thesystem to reconnect to your device.
439
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingSYNC™ 3 (If Equipped)

What Is Automatic Return to Park(P).......................................................................184Automatic Transmission AudibleWarnings.......................................................187Automatic Transmission............................182Automatic Return to Park (P).......................184Automatic Transmission Positions..............182Automatic Transmission –Troubleshooting.............................................188Grade Assist - Hybrid Electric Vehicle(HEV).................................................................185Manual Park Release - Gasoline...................185Temporary Neutral Mode................................183Automatic Transmission PositionIndicators......................................................183Automatic Transmission Positions........182Drive (D).................................................................183Low (L)...................................................................183Neutral (N)............................................................182Park (P)..................................................................182Reverse (R)...........................................................182Automatic TransmissionPrecautions..................................................182Automatic Transmission –Troubleshooting........................................188Automatic Transmission – InformationMessages..........................................................188Auto Mode.......................................................126Auto Mode Indicators........................................126Switching Auto Mode On and Off................126Switching Dual Mode On and Off................128Auto-Start-Stop...........................................168Auto-Start-Stop – Troubleshooting...........169Auto-Start-Stop Indicators......................168Auto-Start-Stop Precautions..................168Auto-Start-Stop –Troubleshooting.........................................169Auto-Start-Stop – Frequently AskedQuestions..........................................................170Auto-Start-Stop – InformationMessages..........................................................169Autounlock........................................................73Autounlock Requirements................................73Switching Autounlock On and Off.................73What Is Autounlock.............................................73AWDSee: All-Wheel Drive.........................................189
B
BatterySee: Changing the 12V Battery......................315See: Changing the 12V Battery - Hybrid ElectricVehicle (HEV).................................................318Blind Spot Information System...............241Blind Spot Information System –Troubleshooting............................................243Blind Spot Information SystemIndicators.....................................................242Blind Spot Information SystemLimitations...................................................241Blind Spot Information SystemPrecautions..................................................241Blind Spot Information SystemRequirements..............................................241Blind Spot Information System –Troubleshooting........................................243Blind Spot Information System –Information Messages................................243Body Control Module Fuse Box..............301Accessing the Body Control Module FuseBox......................................................................301Identifying the Fuses in the Body ControlModule Fuse Box...........................................301Locating the Body Control Module FuseBox......................................................................301Bonnet LockSee: Opening and Closing the Hood..........304Booster Seats..................................................39Brake Coach - Hybrid Electric Vehicle(HEV)..............................................................119Brake Fluid Specification...........................192Brake Over Accelerator................................191Brake Precautions.........................................191Brakes................................................................191Anti-Lock Braking System................................191Brakes – Troubleshooting...............................193Brakes – Troubleshooting.........................193Brakes – Frequently AskedQuestions.........................................................193Brakes – Warning Lamps................................193Breaking-In.....................................................278
C
Calculating Payload....................................259
537
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingIndex

Switching Evasive Steering Assist On andOff.......................................................................252What Is Evasive Steering Assist....................252EV Coach - Hybrid Electric Vehicle(HEV)..............................................................118Event Data.........................................................23Export Unique Options..............................529Extending the Remote StartDuration.........................................................122Exterior Bulbs.................................................321Changing a Front Side Marker LampBulb....................................................................323Changing a Front Turn Signal LampBulb....................................................................323Changing a High Mounted StoplampBulb....................................................................326Changing a Rear Lamp Bulb..........................324Changing a Rear Turn Signal LampBulb....................................................................325Changing a Reversing Lamp Bulb................325Changing a Stoplamp Bulb............................324Exterior Bulb Specification Chart.................321Removing a Rear Lamp Assembly..............322Exterior Lamps................................................94Exterior Lamp Indicators...................................95Exterior Lamps On Audible Warning............95Switching the Daytime Running Lamps Onand Off................................................................94Using the Turn Signal Lamps..........................94Exterior Lighting Control..............................92Exterior Lighting..............................................92Autolamps..............................................................93Automatic High Beam Control........................95Automatic High Beam Control –Troubleshooting...............................................97Exterior Lamps......................................................94Headlamps.............................................................92Headlamps – Troubleshooting.......................93Exterior Mirrors..............................................103
F
Fastening and Unfastening theSeatbelts........................................................43Federal Highway AdministrationRegulation...................................................503Flat TireSee: Changing a Flat Tire................................354
Floor Mats......................................................280Folding the Exterior Mirrors - VehiclesWith: Manual Folding Mirrors...............104Ford Power-UpSee: Vehicle Software Updates...................445Ford Protect..................................................448Front Exterior...................................................29Front Passenger Sensing System............54Front Passenger Sensing SystemIndicators............................................................56Front Passenger Sensing SystemPrecautions.......................................................56How Does the Front Passenger SensingSystem Work.....................................................54What Is the Front Passenger SensingSystem................................................................54Front Seat Precautions...............................135Front Seats......................................................135Heated Seats.......................................................140Manual Seats.......................................................136Power Seats..........................................................138Fuel and Refueling.........................................171Fuel and Refueling –Troubleshooting.............................................178Fuel Quality...........................................................172Refueling................................................................174Running Out of Fuel...........................................173Fuel and Refueling Precautions...............171Fuel and Refueling –Troubleshooting.........................................178Fuel and Refueling – InformationMessages..........................................................178Fuel and Refueling – Warning Lamps.........178Fuel Economy Display - Gasoline............118Fuel Economy Display - Hybrid ElectricVehicle (HEV)..............................................118Fuel Gauge........................................................111Fuel Gauge Limitations.......................................111Locating the Fuel Filler Door.............................111What Is Distance to Empty...............................111What Is the Fuel Gauge......................................111What Is the Low Fuel Reminder......................111Fuel Quality.....................................................172Selecting the Correct Fuel...............................172Fuel Tank Capacity - Excluding: HybridElectric Vehicle (HEV)..............................371Fuel Tank Capacity.......................................178
541
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingIndex

Fuel Tank Capacity - Hybrid ElectricVehicle (HEV).............................................372Fuse Precautions.........................................295Fuses................................................................295Body Control Module Fuse Box.....................301Fuses – Troubleshooting................................303Under Hood Fuse Box......................................295Fuses – Troubleshooting..........................303Fuses – Frequently Asked Questions........303
G
General Maintenance Information.......450Glasses Holder..............................................154Locating the Glasses Holder..........................154Glossary of Tire Terminology...................341Glove Compartment....................................153Opening the Glove Compartment................153Grade Assist - Hybrid Electric Vehicle(HEV).............................................................185What Is Grade Assist.........................................185
H
Headlamp AdjustingSee: Adjusting the Headlamps.....................320Headlamps.......................................................92Headlamp Indicators..........................................92Switching Headlamp Exit Delay On andOff.........................................................................92Using the High Beam Headlamps.................92Headlamps – Troubleshooting.................93Headlamps – Frequently AskedQuestions...........................................................93Heated Seats.................................................140Heated Seat Precautions................................140Switching the Heated Seats On andOff.......................................................................140HeatingSee: Climate Control - Vehicles With: DualAutomatic Temperature Control(DATC)...............................................................125See: Climate Control - Vehicles With:Electronic Automatic Temperature Control(EATC)...............................................................130High Voltage Battery....................................181High Voltage Battery Precautions...........181
High Voltage Battery VehiclePrecautions - Hybrid Electric Vehicle(HEV)............................................................283Hill Descent Control...................................206Hill Descent Control –Troubleshooting............................................207Hill Descent Control Indicator................206Hill Descent Control Precautions..........206Hill Descent Control –Troubleshooting........................................207Hill Descent Control – InformationMessages.........................................................207Hill Start Assist..............................................197Hill Start Assist – Troubleshooting..............197Hill Start Assist Precautions.....................197Hill Start Assist – Troubleshooting........197Hill Start Assist – InformationMessages..........................................................197Hood LockSee: Opening and Closing the Hood..........304Horn....................................................................88How Does 911 Assist Work..........................59How Does Adaptive Cruise Control WithStop and Go Work.....................................219How Does a Hybrid Electric VehicleWork...............................................................166How Does All-Wheel Drive Work -Excluding: FX4 Off Road/Tremor........189How Does All-Wheel Drive Work - FX4Off Road/Tremor.......................................189How Does Auto Hold Work.......................198How Does Blind Spot InformationSystem Work...............................................241How Does Cross Traffic AlertWork..............................................................244How Does Drive Mode ControlWork..............................................................230How Does Driver Alert Work....................255How Does Hill Descent ControlWork..............................................................206How Does Hill Start Assist Work.............197How Does Pre-Collision AssistWork...............................................................247How Does Stability Control Work.........202How Does the Lane Keeping SystemWork...............................................................234How Does the Personal Safety SystemWork.................................................................49
542
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingIndex

Preparing Your Vehicle forStorage.........................................................333Programming a MyKey................................69Programming the Remote Control.........66Properly Adjusting the Driver and FrontPassenger Seats..........................................53PunctureSee: Changing a Flat Tire................................354Push Button Ignition Switch.....................157
R
Radio Frequency CertificationLabels...........................................................463Blind Spot Information SystemSensors.............................................................463Body Control Module.......................................469Cruise Control Module.....................................473Keys and Remote Controls.............................477Radio Transceiver Module..............................482SYNC......................................................................483Telematics Control Unit..................................487Tire Pressure Monitoring SystemSensors............................................................488Wireless Accessory ChargingModule.............................................................496Rear Exterior....................................................30Rear Occupant Alert System AudibleWarnings.......................................................146Rear Occupant Alert SystemIndicators......................................................146Rear Occupant Alert SystemLimitations...................................................145Rear Occupant Alert SystemPrecautions..................................................145Rear Occupant Alert System...................145Rear Parking Aid.............................................211Locating the Rear Parking AidSensors..............................................................212Rear Parking Aid Audible Warnings..............212Rear Parking Aid Limitations...........................211What is the Rear Parking Aid...........................211Rear Seats.......................................................142Manual Seats.......................................................142Rear View Camera Guide Lines...............214Rear View Camera Object DistanceIndicators......................................................215Rear View Camera Precautions..............214
Rear View Camera........................................214Rear View Camera Settings............................215Rear View Camera Settings......................215Switching Rear View Camera Delay On andOff........................................................................216Zooming the Rear View Camera In andOut.......................................................................215Recovery Towing..........................................289Accessing the Front Towing Point...............289Recreationally Towing Your Vehicle -Gasoline, AWD...........................................292Recreationally Towing Your Vehicle -Gasoline, FWD...........................................292Recreationally Towing Your Vehicle -Hybrid Electric Vehicle (HEV)..............292Refueling..........................................................174Manually Opening the Fuel Filler Door........177Refueling System Overview............................174Refueling Your Vehicle.......................................174Releasing the Electric Parking Brake ifthe Vehicle Battery Has Run Out ofCharge...........................................................195Remote Control Limitations.......................61Remotely Starting and Stopping theVehicle............................................................122Remote Start Limitations..........................122Remote Start Precautions.........................122Remote Start Remote ControlIndicators......................................................123Remote Start..................................................122Remote Start Settings................................123Removing and Installing theTailgate............................................................82Removing the Key Blade - Vehicles With:Push Button Start.......................................62Removing Your Vehicle FromStorage.........................................................334Repairing Minor Paint Damage...............332Replacement PartsRecommendation....................................502Replacing a Lost Key or RemoteControl............................................................65Replacing the Cabin Air Filter...................134Replacing the Front Wiper Blades..........89Reporting Safety Defects inCanada..........................................................461Reporting Safety Defects in the UnitedStates.............................................................461
547
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingIndex

Resetting the Individual Trip Values -Vehicles With: 4.2 Inch Screen.............120Resetting the Trip Computer....................120Restarting the Engine.................................168Resuming the Set Speed...........................218Roadside Assistance..................................282Rollover Warning.........................................459Running-InSee: Breaking-In.................................................278Running Out of Fuel.....................................173Adding Fuel From a Portable FuelContainer...........................................................173Filling a Portable Fuel Container...................173
S
Satellite Radio..............................................396Locating the Satellite Radio IdentificationNumber............................................................396Satellite Radio Limitations............................396What Is Satellite Radio...................................396Scheduled Maintenance..........................450Seatbelt Extensions......................................48Seatbelt Precautions....................................42Seatbelt Reminder........................................46How Does the Seatbelt ReminderWork.....................................................................46Seatbelt Reminder Audible Warnings..........47Seatbelt Reminder Indicators.........................46Switching the Seatbelt Reminder On andOff..........................................................................47Seatbelts...........................................................42Automatic Locking Mode..................................44Seatbelt Reminder..............................................46Sensitive Locking Mode.....................................44Security..............................................................84Anti-Theft Alarm System.................................84Anti-Theft Alarm System Settings................85Passive Anti-Theft System..............................84Security – Troubleshooting..............................86Security – Troubleshooting.......................86Security – Frequently AskedQuestions...........................................................87Security – Information Messages..................86Selecting a Drive Mode.............................230Selecting the Audio Source.....................392
Sensitive Locking Mode...............................44How Does Sensitive Locking ModeWork.....................................................................44What is Sensitive Locking Mode....................44Service Data.....................................................23Setting a Memory Preset..........................393Settings Data...................................................24Settings...........................................................430Setting the Adaptive Cruise ControlGap.................................................................223Setting the Adaptive Cruise ControlSpeed............................................................222Setting the Blower Motor Speed............126Setting the Clock and Date......................393Setting the Cruise Control Speed...........217Setting the Hill Descent Speed.............206Setting the Temperature...........................126Setting the Trail Control Speed.............204Shifting Your Immobile Vehicle Out ofPark (P) - Gasoline....................................187Shifting Your Vehicle Into Gear...............183Sitting in the Correct Position..................135Software UpdateSee: Vehicle Software Updates...................445Sounding the Panic Alarm..........................62Special Notices.................................................17Special Operating Conditions ScheduledMaintenance..............................................456Speed ControlSee: Cruise Control.............................................217Speedometer...................................................111Stability Control Indicator........................203Stability Control...........................................202Stability Control – Troubleshooting...........203Stability Control –Troubleshooting........................................203Stability Control – Warning Lamps............203Starter SwitchSee: Ignition Switch...........................................156Starting and Stopping the Engine –Precautions..................................................156Starting and Stopping the Engine.........156Automatic Engine Stop.....................................161Engine Block Heater..........................................159Starting and Stopping the Engine –Troubleshooting.............................................162Starting the Engine.............................................157Stopping the Engine.........................................160
548
2023 Maverick (CFE) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingIndex
