2023 FORD F650/750 Owners Manual

Page 97 of 378

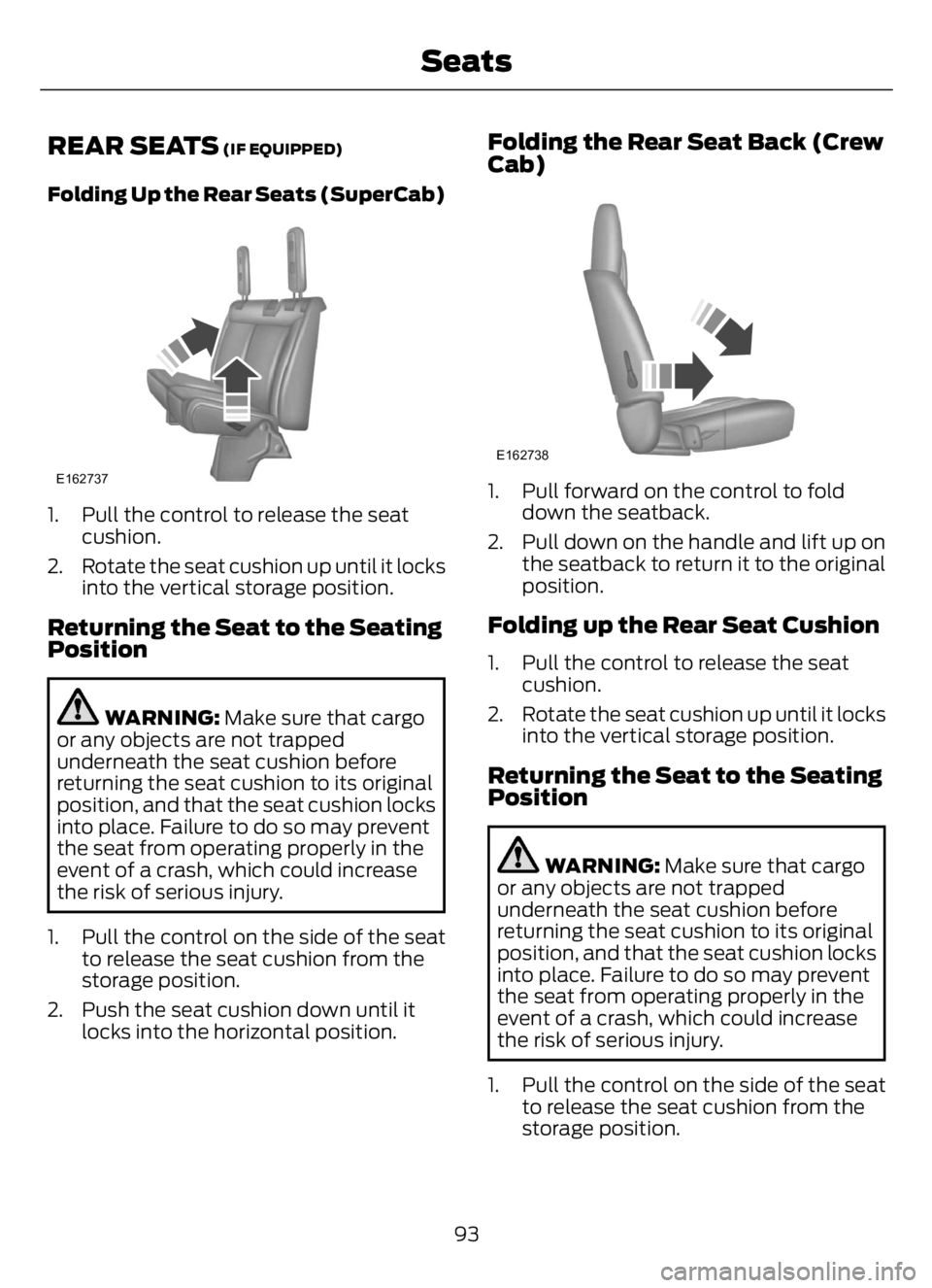

FORD F650/750 2023  Owners Manual REAR SEATS (IF EQUIPPED)
Folding Up the Rear Seats (SuperCab)
E162737
1. Pull the control to release the seat
cushion.
2. Rotate the seat cushion up until it locks
into the vertical storage position.

Page 98 of 378

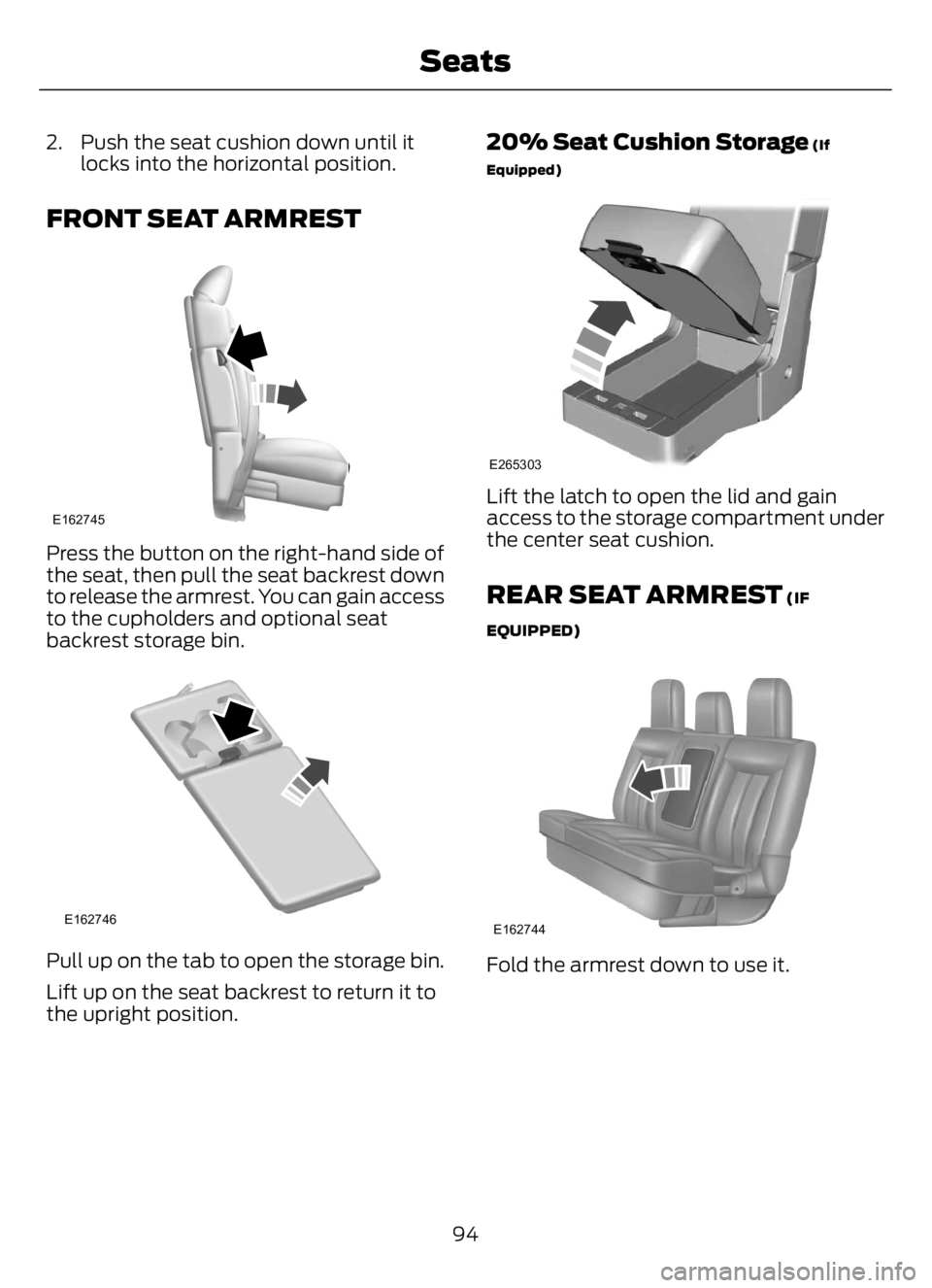

FORD F650/750 2023  Owners Manual 2. Push the seat cushion down until it
locks into the horizontal position.
FRONT SEAT ARMREST
E162745
Press the button on the right-hand side of
the seat, then pull the seat backrest down
to release t

Page 99 of 378

FORD F650/750 2023  Owners Manual 12 Volt DC Power Point
WARNING: Do not plug optional
electrical accessories into the cigar
lighter socket. Incorrect use of the cigar
lighter can cause damage not covered
by the vehicle warranty, and

Page 100 of 378

FORD F650/750 2023  Owners Manual When the indicator light on the power point
is:
• On: The power point is working, the
ignition is on and a device is plugged
in.
• Off: The power point is off, the ignition
is off or no device is

Page 101 of 378

FORD F650/750 2023  Owners Manual LOCATING THE USB PORTS
Data Transfer USB Ports
The USB ports could be in the following
locations:
• On the lower instrument panel below
the climate control.
• Inside the center console.
Note: Thes

Page 102 of 378

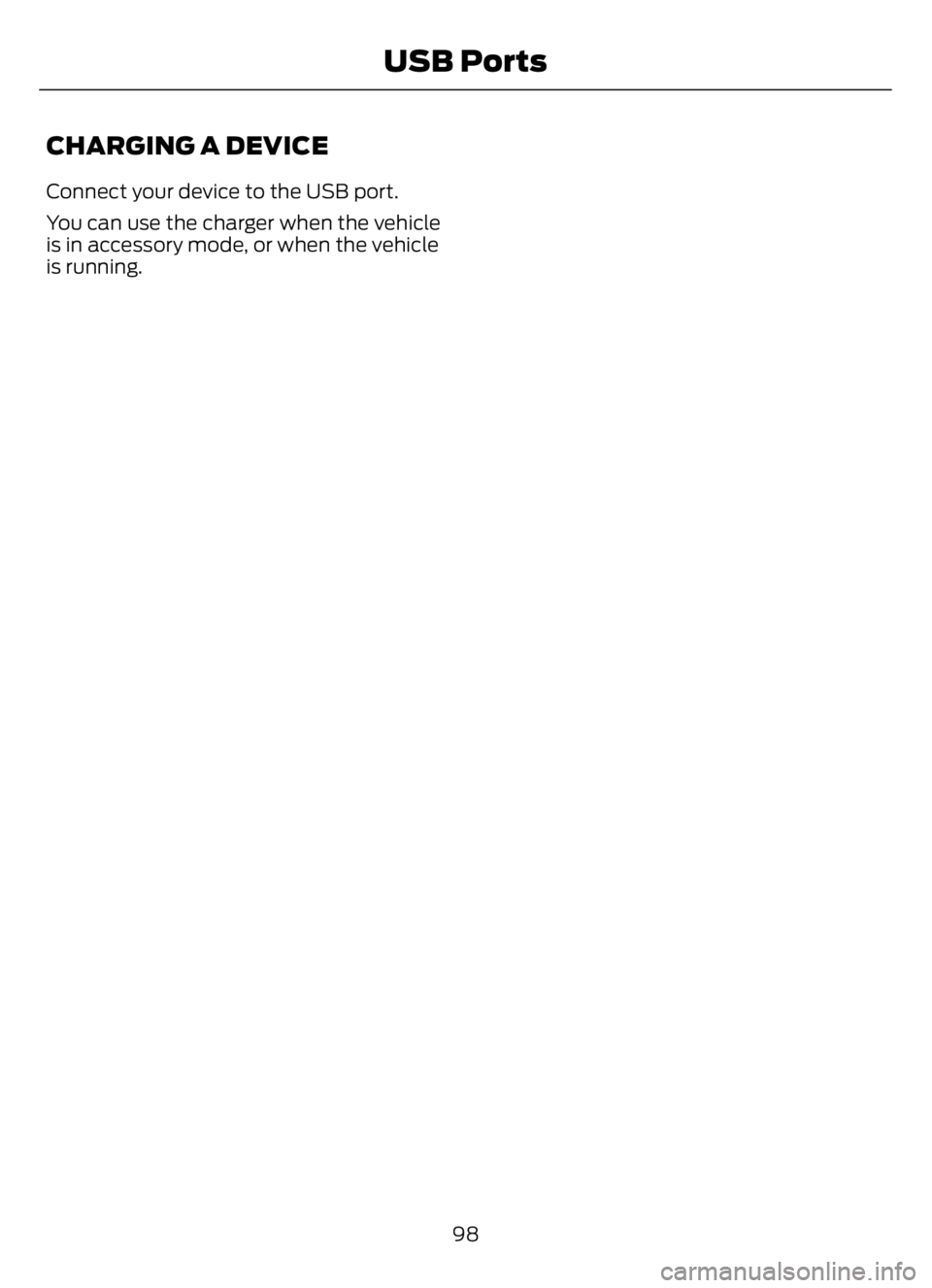

FORD F650/750 2023  Owners Manual CHARGING A DEVICE
Connect your device to the USB port.
You can use the charger when the vehicle
is in accessory mode, or when the vehicle
is running.
98
USB Ports

Page 103 of 378

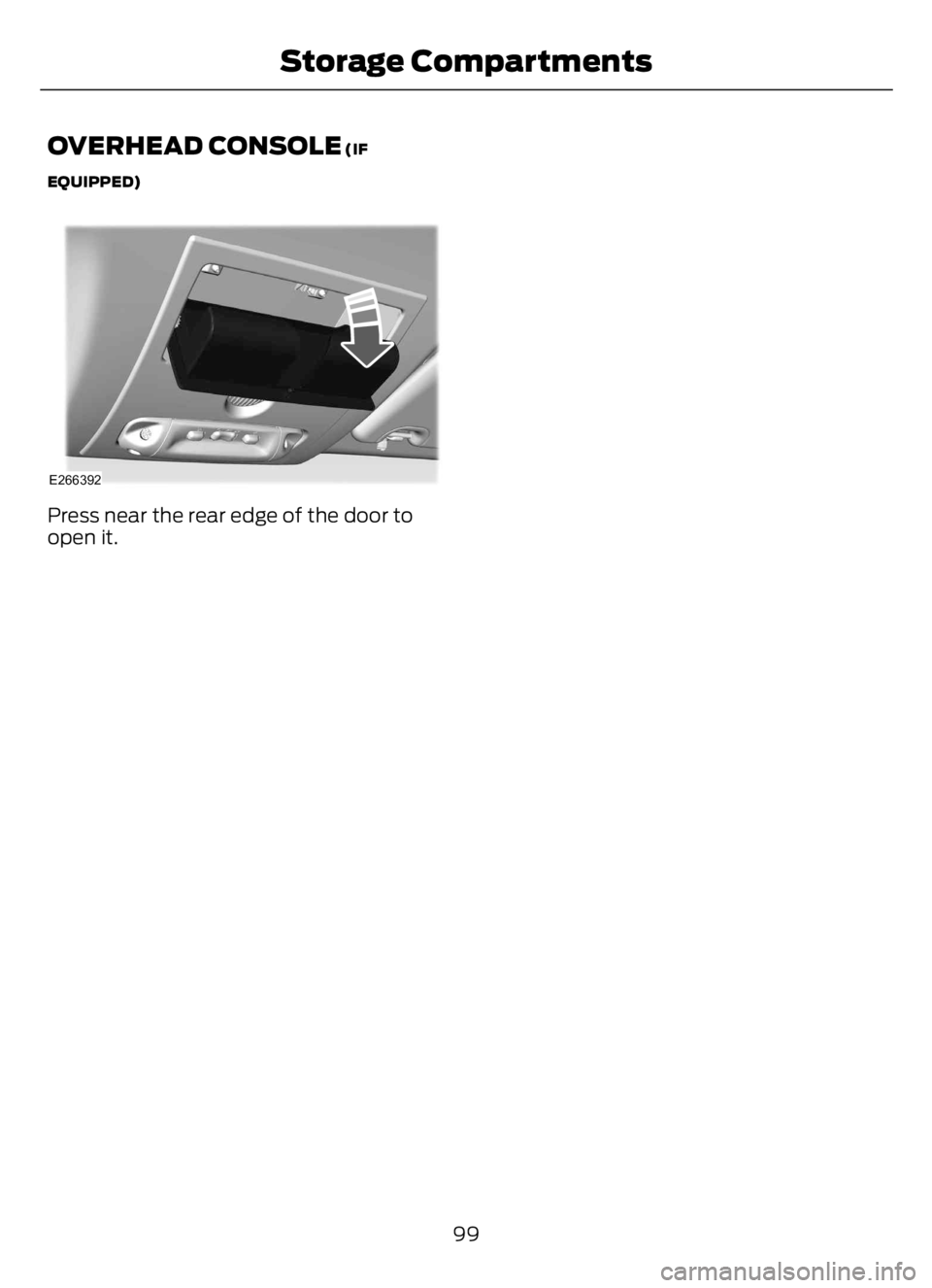

FORD F650/750 2023  Owners Manual OVERHEAD CONSOLE (IF
EQUIPPED)
E266392
Press near the rear edge of the door to
open it.
99
Storage Compartments

Page 104 of 378

FORD F650/750 2023  Owners Manual GENERAL INFORMATION
WARNING: Extended idling at high
engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage.
WARNING: Do not park,
