2023 FORD F150 fuel tank capacity

Accessing the Passive Key BackupPosition - Vehicles With: Keyless Entryand Push Button Start.........................240
Starting and Stopping the Engine –Troubleshooting.....................................240
Hybrid Electric VehicleInformation - Hybrid ElectricVehicle (HEV)
What is a Hybrid Electric Vehicle..........244
How Does a Hybrid Electric Vehicle Work........................................................................244
Hybrid Electric Vehicle DrivingCharacteristics........................................244
Hybrid Electric Vehicle Indicators.........244
Hybrid Electric Vehicle Information –Troubleshooting......................................245
Power Flow...................................................245
Eco Idle...........................................................246
Eco Idle – Troubleshooting.....................247
Auto-Start-Stop
What Is Auto-Start-Stop.........................248
Auto-Start-Stop Precautions................248
Switching Auto-Start-Stop On and Off........................................................................248
Stopping the Engine..................................248
Restarting the Engine...............................248
Auto-Start-Stop Indicators....................248
Auto-Start-Stop – Troubleshooting........................................................................249
Fuel and Refueling
Fuel and Refueling Precautions.............251
Fuel Quality...................................................252
Locating the Fuel Filler Funnel..............254
Running Out of Fuel...................................254
Refueling........................................................255
Fuel Tank Capacity - Excluding: HybridElectric Vehicle (HEV)..........................259
Fuel Tank Capacity - Hybrid ElectricVehicle (HEV)..........................................259
Fuel and Refueling – Troubleshooting.......................................................................260
Catalytic Converter
What Is the Catalytic Converter............262
Catalytic Converter Precautions...........262
Catalytic Converter – Troubleshooting........................................................................262
High Voltage Battery - HybridElectric Vehicle (HEV)
What Is the High Voltage Battery.........263
High Voltage Battery Precautions........263
Automatic Transmission
Automatic Transmission Precautions........................................................................264
Automatic Transmission Positions......264
Shifting Your Vehicle Into Gear.............265
Shifting Your Vehicle Into Gear - Raptor........................................................................265
Shifting Your Vehicle Into Gear - PoliceResponder................................................266
Manually Shifting Gears..........................266
Temporary Neutral Mode........................268
Using Progressive Range Selection......269
Automatic Return to Park (P)...............269
Stowing the Selector Lever - Excluding:Raptor.........................................................270
Stowing the Selector Lever - Raptor........................................................................270
Manual Park Release..................................271
Automatic Transmission AudibleWarnings....................................................273
Four-Wheel Drive
How Does Four-Wheel Drive Work -Excluding: Raptor....................................274
How Does Four-Wheel Drive Work -Raptor.........................................................274
Four-Wheel Drive Precautions...............275
Four-Wheel Drive Limitations................275
8
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMTable of Contents

Using Snow Chains....................................546
Using Bead-Lock Wheels - Raptor......547
Tire Care
Checking the Tire Pressures...................550
Inflating the Tires.......................................550
Inspecting the Tire for Wear....................551
Inspecting the Tire for Damage..............551
Inspecting the Wheel Valve Stems......552
Tire Rotation.................................................552
Tire Pressure MonitoringSystem
What Is the Tire Pressure MonitoringSystem.......................................................554
Tire Pressure Monitoring SystemOverview....................................................554
Tire Pressure Monitoring SystemPrecautions...............................................555
Tire Pressure Monitoring SystemLimitations................................................555
Viewing the Tire Pressures......................556
Resetting Tire Pressure MonitoringSystem.......................................................556
Tire Pressure Monitoring System –Troubleshooting.....................................559
Changing a Road Wheel
Changing a Flat Tire - Excluding: Raptor.........................................................................561
Changing a Flat Tire - Raptor................568
Wheel Nuts...................................................576
Capacities and Specifications
Engine Specifications - 5.2L...................578
Engine Specifications - 2.7L EcoBoost™........................................................................579
Engine Specifications - 3.3L..................580
Engine Specifications - 3.5L Ecoboost™.........................................................................581
Engine Specifications - 3.5L, HybridElectric Vehicle (HEV)..........................582
Engine Specifications - 5.0L..................583
Motorcraft Parts - 5.2L.............................584
Motorcraft Parts - 2.7L EcoBoost™.....585
Motorcraft Parts - 3.3L.............................586
Motorcraft Parts - 3.5L Ecoboost™.....587
Motorcraft Parts - 3.5L, Hybrid ElectricVehicle (HEV)..........................................588
Motorcraft Parts - 5.0L............................589
Motorcraft Parts - Raptor.......................590
Engine Oil Capacity and Specification -5.2L...............................................................591
Engine Oil Capacity and Specification -2.7L EcoBoost™......................................592
Engine Oil Capacity and Specification -3.3L..............................................................594
Engine Oil Capacity and Specification -3.5L Ecoboost™.....................................596
Engine Oil Capacity and Specification -3.5L, Hybrid Electric Vehicle (HEV).......................................................................598
Engine Oil Capacity and Specification -5.0L.............................................................600
Cooling System Capacity andSpecification - 5.2L...............................602
Cooling System Capacity andSpecification - 2.7L EcoBoost™.......603
Cooling System Capacity andSpecification - 3.3L...............................603
Cooling System Capacity andSpecification - 3.5L Ecoboost™,Vehicles Without: Police Pack..........604
Cooling System Capacity andSpecification - 3.5L, Hybrid ElectricVehicle (HEV)..........................................605
Cooling System Capacity andSpecification - 5.0L...............................605
Cooling System Capacity andSpecification - 3.5L Ecoboost™,Raptor........................................................606
Fuel Tank Capacity - Excluding: HybridElectric Vehicle (HEV)..........................607
Fuel Tank Capacity - Hybrid ElectricVehicle (HEV).........................................608
16
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMTable of Contents

Note:To close the fuel filler door, press thecenter rear edge of the fuel filler door andthen release.
Complete the refueling process within 20minutes. If 20 minutes elapses, press thebutton on the left side of the instrumentpanel again. Fuel pump nozzle automaticshut off could occur if you do not press thebutton on the left side instrument panel.
Note: Do not attempt to start the engineif you have filled the fuel tank with incorrectfuel. Incorrect fuel use could cause damagenot covered by the vehicle Warranty. Haveyour vehicle immediately checked.
MANUALLY OPENING THE FUELFILLER DOOR - HYBRID ELECTRICVEHICLE (HEV)
Pull the cable under the rear fender tomanually release the fuel filler door.
FUEL TANK CAPACITY -
EXCLUDING: HYBRID
ELECTRIC VEHICLE (HEV)
Advertised Capacity
The advertised capacity is the maximumamount of fuel that you can add to the fueltank after running out of fuel. Included inthe advertised capacity is an emptyreserve. The empty reserve is anunspecified amount of fuel that remainsin the fuel tank when the fuel gaugeindicates empty.
Note:The amount of fuel in the emptyreserve varies and should not be relied uponto increase driving range.
FUEL TANK CAPACITY -
HYBRID ELECTRIC VEHICLE
(HEV)
Advertised Capacity
The advertised capacity is the maximumamount of fuel that you can add to the fueltank when the fuel gauge indicates empty.
In addition, the fuel tank contains an emptyreserve. The empty reserve is anunspecified amount of fuel that remainsin the fuel tank when the fuel gaugeindicates empty.
Note:The amount of fuel in the emptyreserve varies and should not be relied uponto increase driving range.
259
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMFuel and RefuelingE374572

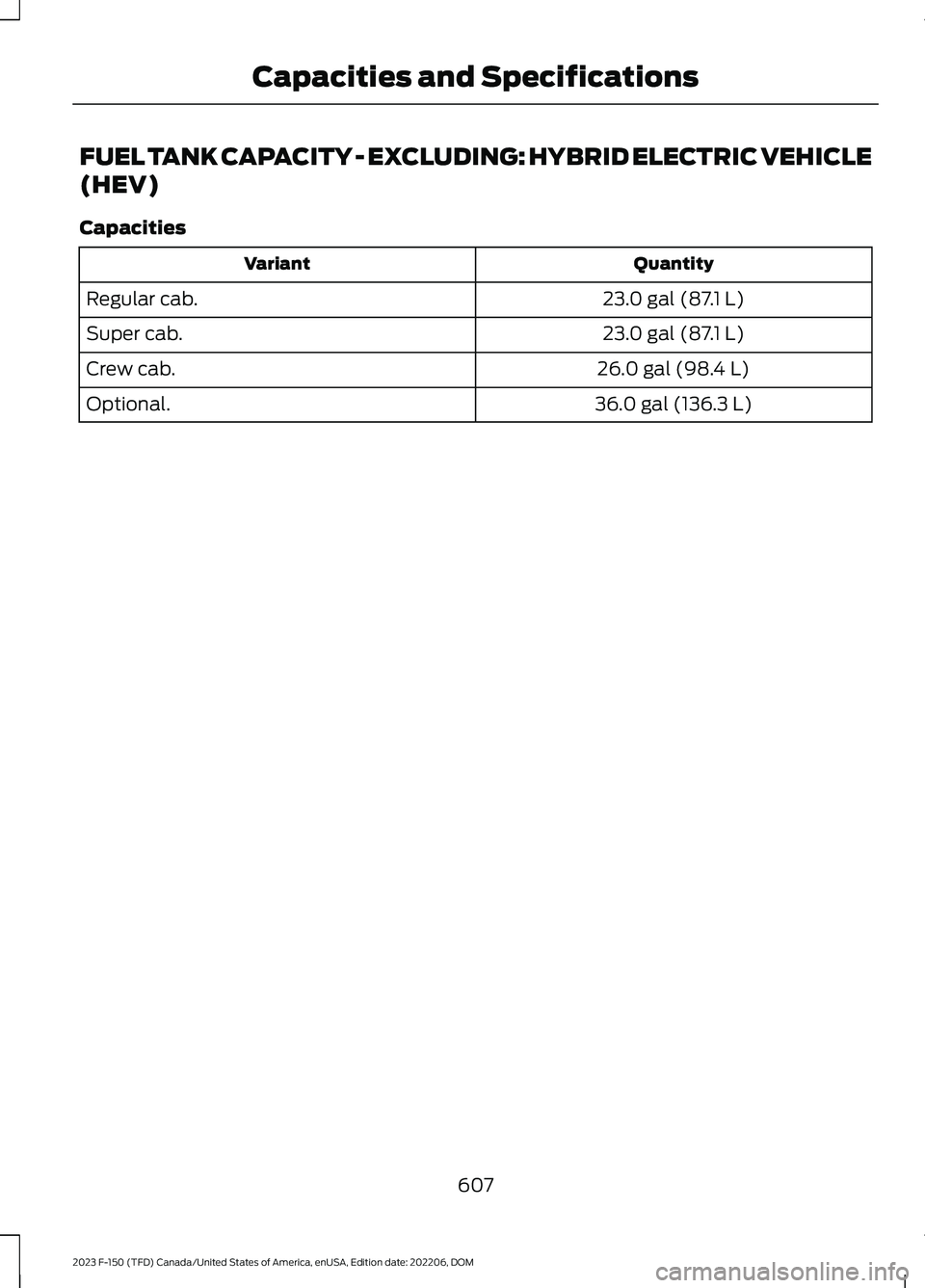

FUEL TANK CAPACITY - EXCLUDING: HYBRID ELECTRIC VEHICLE
(HEV)
Capacities
QuantityVariant
23.0 gal (87.1 L)Regular cab.
23.0 gal (87.1 L)Super cab.
26.0 gal (98.4 L)Crew cab.
36.0 gal (136.3 L)Optional.
607
2023 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202206, DOMCapacities and Specifications

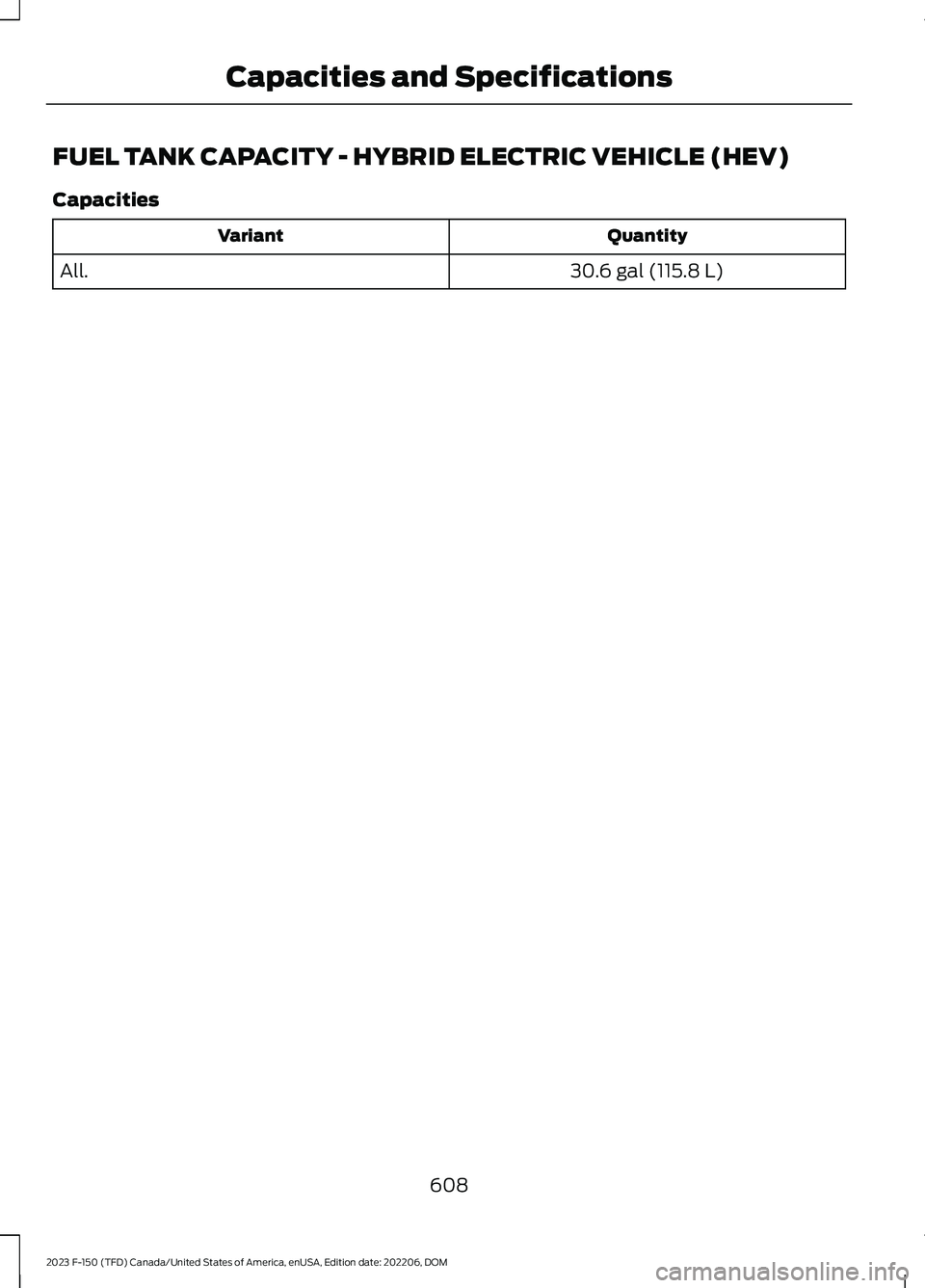

FUEL TANK CAPACITY - HYBRID ELECTRIC VEHICLE (HEV)
Capacities
QuantityVariant
30.6 gal (115.8 L)All.
608
