Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . .1
Keys, Doors, and Windows . . . . .8
Seats and Restraints . . . . . . . . . . .47
Storage . . . . . . . . . . . . . . . . . . . . . . . . . .103
Instruments and Controls . . . .111
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . .151
Infotainment System . . . . . . . . . .159
Climate Controls . . . . . . . . . . . . . . .223
Driving and Operating . . . . . . . .233
Vehicle Care . . . . . . . . . . . . . . . . . . . .337
Service and Maintenance . . .427
Technical Data . . . . . . . . . . . . . . . . .437
Customer Information . . . . . . . .441
Reporting Safety Defects . . .453
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . .457
Connected Services . . . . . . . . . .464
Index . . . . . . . . . . . . . . . . . . . . . . . . 467
Introduction
California Proposition 65 Warning
Litho in U.S.A.
Part No. 85116241 A First Printing©2022 General Motors LLC. All Rights Reserved.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
2 Introduction
Introduction
The names, logos, emblems,
slogans, vehicle model names,
and vehicle body designs
appearing in this manual
including, but not limited to,
GM, the GM logo, CADILLAC,
the CADILLAC Emblem, and
XT5 are trademarks and/or
service marks of General
Motors LLC, its subsidiaries,
affiliates, or licensors.
For vehicles first sold in
Canada, substitute the name
“General Motors of Canada
Company”for Cadillac Motor
Car Division wherever it
appears in this manual.
This manual describes
features that may or may not
be on the vehicle because of
optional equipment that was not purchased on the vehicle,
model variants, country
specifications, features/
applications that may not be
available in your region,
or changes subsequent to the
printing of this owner’s
manual, including changes in
standard or optional content.
Refer to the purchase
documentation relating to
your specific vehicle to
confirm the features.
Keep this manual in the vehicle
for quick reference.
Canadian Vehicle
Owners
A French language manual can
be obtained from your dealer,
at www.helminc.com, or from:
Propriétaires Canadiens
On peut obtenir un exemplaire
de ce guide en français auprès
du concessionnaire ou à
l'adresse suivante:
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
USA
Using this Manual
To quickly locate information
about the vehicle, use the
Index in the back of the
manual. It is an alphabetical list
of what is in the manual and
the page number where it can
be found.
Danger, Warning, and
Caution
Warning messages found on
vehicle labels and in this
manual describe hazards and
what to do to avoid or
reduce them.
{Danger
Danger indicates a hazard
with a high level of risk
which will result in serious
injury or death.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Introduction 3
{Warning
Warning indicates a hazard
that could result in injury or
death.
Caution
Caution indicates a hazard
that could result in property
or vehicle damage.
A circle with a slash through it
is a safety symbol which
means“Do not,” “Do not do
this,” or“Do not let this
happen.”
Symbols
The vehicle has components
and labels that use symbols
instead of text. Symbols are
shown along with the text describing the operation or
information relating to a
specific component, control,
message, gauge, or indicator.
M:
Shown when the owner’s
manual has additional
instructions or information.
*: Shown when the service
manual has additional
instructions or information.
0: Shown when there is more
information on another page —
“see page.”
Vehicle Symbol Chart
Here are some additional
symbols that may be found on
the vehicle and what they
mean. See the features in this
manual for information.
u: Air Conditioning System
G:Air Conditioning
Refrigerant Oil
9: Airbag Readiness Light
!:Antilock Brake
System (ABS)
$: Brake System Warning
Light
9: Dispose of Used
Components Properly
P: Do Not Apply High
Pressure Water
B: Engine Coolant
Temperature
_: Flame/Fire Prohibited
H: Flammable
[:Forward Collision Alert
R:Fuse Block Cover Lock
Location
+: Fuses
j:ISOFIX/LATCH System
Child Restraints
Q: Keep Fuse Block Covers
Properly Installed
|: Lane Change Alert
@:Lane Departure Warning
A:Lane Keep Assist

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
4 Introduction
*:Malfunction
Indicator Lamp
:: Oil Pressure
X:Park Assist
~:Pedestrian Ahead Indicator
O:Power
7:Rear Cross Traffic Alert
I:Registered Technician
/:Remote Vehicle Start
h:Risk of Electrical Fire
>:Seat Belt Reminders
I:Side Blind Zone Alert
h:Stop/Start
7:Tire Pressure Monitor
d:Traction Control/
StabiliTrak/Electronic Stability
Control (ESC)
a: Under Pressure
k: Vehicle Ahead Indicator

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Introduction 5
Instrument Panel Overview

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
6 Introduction
1. Air Vents0231.
2. Exterior Lamp Controls 0151.
Turn Signal Lever. See
Turn and Lane-Change
Signals 0155.
IntelliBeam System Button
(If Equipped). See Exterior
Lamp Controls 0151.
3. Tap Shift Controls. See Manual Mode 0266 (If
Equipped).

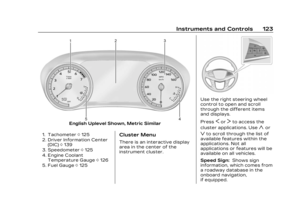

4. Instrument Cluster 0122.
Driver Information Center
(DIC) Display. See Driver
Information Center (DIC)
0 139.
5. Windshield Wiper/Washer 0113.
Rear Window Wiper/
Washer 0116.
6. ENGINE START/STOP Button. See Ignition
Positions 0252.
7. Park Assist Button. See Park Assist 0294. Automatic Parking Assist
(APA) Button. See Park
Assist
0294.
Auto Stop Disable Switch.
See Stop/Start System
0 255.
8. Light Sensor. See Automatic Headlamp
System 0154.
9. Hazard Warning Flashers 0155.
10. Infotainment Controls. See Overview 0160.
11. Heated and Ventilated Front Seats 054 (If
Equipped).
12. MODE Switch. See Driver Mode Control 0273.
Traction Control/
Electronic Stability Control
0 271.
All-Wheel Drive 0267 (If
Equipped).
13. Dual Automatic Climate Control System 0223.
14. Wireless Charging 0118 (If
Equipped). 15. Infotainment Controls. See
Overview 0160.
16. Shift Lever. See Automatic Transmission 0261.
17. Steering Wheel Controls 0162.
Driver Information Center
(DIC) Controls. See Driver
Information Center (DIC)
0 139.
18. Steering Wheel Controls 0162.
19. Horn 0113.
20. Forward Collision Alert (FCA) System 0303 (If
Equipped).
Lane Keep Assist (LKA)
0 315 (If Equipped).
Heated Steering Wheel
0 113 (If Equipped).
21. Cruise Control 0275.
Adaptive Cruise Control
(Advanced) 0277 (If
Equipped).
Phone Button. See
Steering Wheel Controls
0 162.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16406251) - 2023 - CRC - 3/25/22
Introduction 7
22. Steering WheelAdjustment 0112 (Out
of View).
23. Head-Up Display (HUD) 0142 (If Equipped).
24. Hood Release. See Hood 0340.
Data Link Connector (DLC)
(Out of View). See
Malfunction Indicator
Lamp (Check Engine Light)
0 129.
25. Instrument Panel Illumination Control 0156.
26. Electric Parking Brake 0269.
