Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/10/22
Driving and Operating 271
Parking over Things
That Burn
{Warning
Things that can burn could
touch hot exhaust parts
under the vehicle and ignite.
Do not park over papers,
leaves, dry grass, or other
things that can burn.
Extended Parking
It is best not to park with the
vehicle running. If the vehicle is
left running, be sure it will not
move and there is adequate
ventilation.
See Shifting Into Park
(Mechanical Shifter)0267 or
Shifting Into Park (Electronic
Shifter) 0268 and
Engine Exhaust 0271.
If the vehicle is left parked and
running with the remote key
outside the vehicle, it will
continue to run for up to
15 minutes. If the vehicle is left parked and
running with the remote key
inside the vehicle, it will
continue to run for up to
30 minutes.
The vehicle could turn off
sooner if it is parked on a hill,
due to lack of available fuel.
Automatic Transmission
The timer will reset if the
vehicle is taken out of P (Park)
while it is running.
Manual Transmission
The timer will reset if vehicle
speed exceeds 4
km/h (2.5 mph).
Engine Exhaust
{
Warning
Engine exhaust contains
carbon monoxide (CO),
which cannot be seen or
smelled. Exposure to CO can
cause unconsciousness and
even death. (Continued)
Warning (Continued)
Exhaust may enter the
vehicle if:
.The vehicle idles in areas
with poor ventilation
(parking garages, tunnels,
deep snow that may block
underbody airflow or tail
pipes).
.The exhaust smells or
sounds strange or
different.
.The exhaust system leaks
due to corrosion or
damage.
.The vehicle exhaust
system has been modified,
damaged, or improperly
repaired.
.There are holes or
openings in the vehicle
body from damage or
aftermarket modifications
that are not completely
sealed.(Continued)

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
370 Vehicle Care
California Perchlorate
Materials
Requirements
Certain types of automotive
applications, such as airbag
initiators, seat belt
pretensioners, and lithium
batteries contained in
electronic keys, may contain
perchlorate materials.
Perchlorate Material–special
handling may apply. See
www.dtsc.ca.gov/
hazardouswaste/perchlorate.
Accessories and
Modifications
Adding non-dealer accessories
or making modifications to the
vehicle can affect vehicle
performance and safety,
including such things as
airbags, braking, stability, ride
and handling, emissions
systems, aerodynamics,
durability, Driver Assistance
Systems, and electronic
systems like antilock brakes, traction control, and stability
control. These accessories or
modifications could even
cause malfunction or damage
not covered by the vehicle
warranty.
Damage to suspension
components caused by
modifying vehicle height
outside of factory settings will
not be covered by the vehicle
warranty.
Damage to vehicle
components resulting from
modifications or the
installation or use of non-GM
certified parts, including
control module or software
modifications, is not covered
under the terms of the vehicle
warranty and may affect
remaining warranty coverage
for affected parts.
GM Accessories are designed
to complement and function
with other systems on the
vehicle. See your dealer to
accessorize the vehicle using
genuine GM Accessories
installed by a dealer
technician.
Also, see Adding Equipment to
the Airbag-Equipped Vehicle
0
70.
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work
on your vehicle if you do not
have the proper knowledge,
service manual, tools,
or parts. Always follow
owner’s manual procedures
and consult the service
manual for your vehicle
before doing any
service work.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
408 Vehicle Care
Fuses Usage
1 Long Range RadarFront Sensor
2 Park/Daytime Running Lamps
3 Exterior Lighting Module 4
4 Exterior Lighting Module 7
5 Headlamp Level
6 –
Fuses Usage
7 Electronic Brake
Control Module
8 Washer Pump
9 –
10 –
11 –
12 Horn
13 Front Wiper
Fuses Usage
14 Exterior Lighting Module 6
15 Exterior Lighting Module 1
16 Exterior Lighting Module 5
17 Exterior Lighting Module 3
18 Aero Shutter
19 –
20 –
21 Virtual Key System/ Power Sounder
Module
22 Engine Control Module Battery
23 Transmission Control Module
24 Active Engine Mount
25 –
26 Engine Control Module
27 Injectors/Ignition 2
28 Charged Air Cooler/ Not Used
29 Transmission Aux Oil Pump/Transmission
Reverse Lock Out

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
410 Vehicle Care
Fuses Usage
1–
2 Heating, Ventilation, and Air Conditioning
Blower
3 –
4 –
5 Theft Deterrent/ Universal Garage Door
Opener/Overhead
Console/Rain Sensor
6 –
Fuses Usage
7 Air Quality Ionizer
8 Heated Steering Wheel
9 –
10 Electronic Steering Column Lock 1
11 –
12 –
13 –
Fuses Usage
14–
15 –
16 –
17 –
18 Display/Infotainment/ USB/Multi-function
Control Module
19 Sensing and Diagnostic Module/
Automatic Occupant
Sensing/Data Link
Connection/Wireless
Charging Module/
Virtual Key Module
20 Power Steering Column Module/
Electronic Steering
Column Lock 2
21 Driver Monitor System/Performance
Data Recorder
22 –
23 –
24 –
25 USB
26 –
27 –
28 –

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22

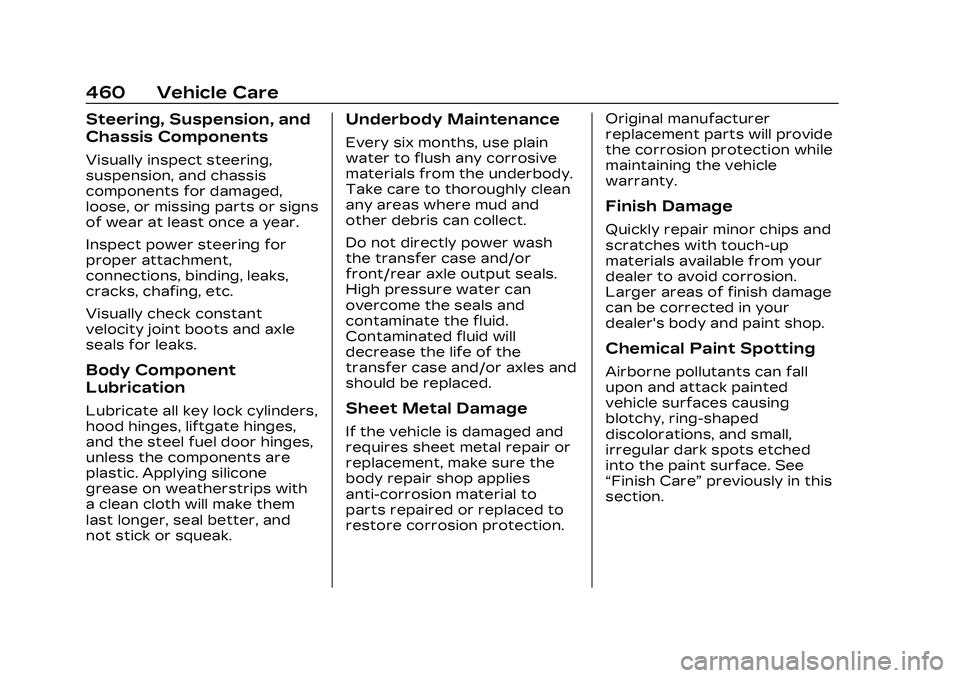

460 Vehicle Care
Steering, Suspension, and
Chassis Components
Visually inspect steering,
suspension, and chassis
components for damaged,
loose, or missing parts or signs
of wear at least once a year.
Inspect power steering for
proper attachment,
connections, binding, leaks,
cracks, chafing, etc.
Visually check constant
velocity joint boots and axle
seals for leaks.
Body Component
Lubrication
Lubricate all key lock cylinders,
hood hinges, liftgate hinges,
and the steel fuel door hinges,
unless the components are
plastic. Applying silicone
grease on weatherstrips with
a clean cloth will make them
last longer, seal better, and
not stick or squeak.
Underbody Maintenance
Every six months, use plain
water to flush any corrosive
materials from the underbody.
Take care to thoroughly clean
any areas where mud and
other debris can collect.
Do not directly power wash
the transfer case and/or
front/rear axle output seals.
High pressure water can
overcome the seals and
contaminate the fluid.
Contaminated fluid will
decrease the life of the
transfer case and/or axles and
should be replaced.
Sheet Metal Damage
If the vehicle is damaged and
requires sheet metal repair or
replacement, make sure the
body repair shop applies
anti-corrosion material to
parts repaired or replaced to
restore corrosion protection.Original manufacturer
replacement parts will provide
the corrosion protection while
maintaining the vehicle
warranty.
Finish Damage
Quickly repair minor chips and
scratches with touch-up
materials available from your
dealer to avoid corrosion.
Larger areas of finish damage
can be corrected in your
dealer's body and paint shop.
Chemical Paint Spotting
Airborne pollutants can fall
upon and attack painted
vehicle surfaces causing
blotchy, ring-shaped
discolorations, and small,
irregular dark spots etched
into the paint surface. See
“Finish Care”
previously in this
section.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
474 Service and Maintenance
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name or specification, including fluids or lubricants not
listed here, can be obtained from your dealer.Usage Fluid/Lubricant
Automatic Transmission (8-SpeedTransmission) DEXRON-HP Automatic Transmission Fluid.
Automatic Transmission (10-Speed Transmission) DEXRON ULV Automatic Transmission Fluid.
Chassis Lubrication Chassis lubricant meeting requirements of NLGI #2, Category LB or GC-LB. Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant. See Cooling System0386.
Engine Oil Engine oil meeting the dexos1 specification of the proper SAE viscosity grade.
ACDelco dexos1 full synthetic is recommended. See Engine Oil 0378.
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Hydraulic Brake System DOT 4 Hydraulic Brake Fluid.
Key Lock Cylinders, Hood and Door Hinges Multi-Purpose Lubricant, Superlube. See your dealer.
Manual Transmission DEXRON III Automatic Transmission Fluid.
Rear Axle/Front Axle (All-Wheel Drive) See your dealer.
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection
requirements.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
500 OnStar
Press=to:
.Open the OnStar app on the
infotainment display.
If equipped, the infotainment
system has OnStar controls
in the embedded OnStar app
on the Home Page. Most
OnStar functions that can be
performed with the buttons
can be done using the app.
To open the app, touch the
OnStar icon on the Home
Page. App updates require a
corresponding service plan.
Features vary by region and
model. Features are subject
to change. For more
information, see
my.cadillac.com/learn or
press
Q.
Or
.Give OnStar Turn-by-Turn
Navigation voice commands.
.Obtain and customize the
Wi-Fi hotspot name or SSID
and password, if equipped. Press
Qto connect to an
Advisor to:
.Verify account information
or update contact
information.
.Get driving directions.
.Receive a Diagnostic check
of the vehicle's key
operating systems.
.Receive Roadside
Assistance.
.Manage Wi-Fi Settings,
if equipped.
Press
>to get a priority
connection to an OnStar
Advisor available 24/7 to:
.Get help for an emergency.
.Be a Good Samaritan or
respond to an AMBER Alert.
.Get assistance in severe
weather or other crisis
situations and find
evacuation routes.
OnStar Services
Emergency
Emergency Services require
an active safety and security
plan. With Automatic Crash
Response, built-in sensors can
automatically alert a specially
trained OnStar Advisor who is
immediately connected in to
the vehicle to help.
Press
>for a priority
connection to an OnStar
Advisor who can contact
emergency service providers,
direct them to your exact
location, and relay important
information.
With OnStar Crisis Assist,
specially trained Advisors are
available 24 hours a day,
7 days a week, to provide a
central point of contact,
assistance, and information
during a crisis.

Cadillac CT4 Owner Manual (GMNA-Localizing-U.S./Canada-16500442) -
2023 - CRC - 5/4/22
508 Connected Services
vehicles, Wi-Fi can also be
managed from the Wi-Fi
Hotspot menu.
MyCadillac Mobile App (If
Available)
Download the myCadillac
mobile app to compatible
Apple and Android
smartphones. Cadillac users
can access the following
services from a smartphone:
.Remotely start/stop the
vehicle, if factory-equipped.
.Lock/unlock doors,
if equipped with automatic
locks.
.Activate the horn and lamps.
.Check the vehicle fuel level,
oil life, or tire pressure,
if factory-equipped with the
Tire Pressure Monitor
System.
.Send destinations to the
vehicle.
.Locate the vehicle on a map
(U.S. market only).
.Turn the vehicle's Wi-Fi
hotspot on/off, manage
settings, and monitor data
consumption, if equipped.
.Locate a dealer and
schedule service.
.Request Roadside
Assistance.
.Set a parking reminder with
pin drop, take a photo, make
a note, and set a timer.
.Connect with Cadillac on
social media.
Features are subject to
change. For myCadillac mobile
app information and
compatibility, see
my.cadillac.com.
An active OnStar or
connected service plan may be
required. A compatible device,
factory-installed remote start,
and power locks are required.
Data rates apply. See
www.onstar.com for details
and system limitations.
Remote Services
Contact an OnStar Advisor to
unlock the doors or sound the
horn and flash the lamps.
Marketplace
OnStar Advisors can provide
offers from restaurants and
retailers on your route, help
locate hotels, or book a room.
These services vary by
market.
Diagnostics
By monitoring and reporting
on the vehicle’s key systems,
OnStar Advanced Diagnostics,
if equipped, provides a way to
keep up on maintenance.
Capabilities vary by model. See
www.onstar.com for details
and system limitations.
Features are subject to
change. For updates on
feature capabilities, see
my.cadillac.com. Message and
data rates may apply.
