2023 ACURA RDX Owners Manual

679
uuFuses uFuse Locations
Continued
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the battery. Push the tabs to
open the box.
■Engine Compartment Fuse
Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(50 A)
ABS/VSA MTR40 A
F/B MAIN 250 A
F/B MAIN60 A
ABS VSA FSR40 A
WIPER30 A
IDLE STOP30 A
IDLE STOP30 A
2−−
3−−
44WD*(30 A)
5IG MAIN 220 A
6 IG MAIN 30 A
7−−
8 DR P/SEAT 3 30 A
9EBB40 A
10 TRL SMALL*(7.5 A)
*1:Models without seat ventilator
*2:Models with seat ventilator
11PTG CLOSER MTR20 A
12 RR ACC SOCKET (20 A)
13DR P/SEAT 130 A
14 AS P/SEAT 2 30 A
15AS P/SEAT 130 A
16 RR DEF 40 A
17AMP30 A*1
40 A*2
18 SUNSHADE 20 A
19DR P/SEAT 230 A
20 AS P/SEAT 3 30 A
21SBW10 A
22 TRL HAZARD*(7.5 A)
23BMS10 A
24 PTG MTR 40 A
Circuit ProtectedAmps
* Not available on all models
23 ACURA RDX-31TJB6400.book 679 ページ ２０２２年８月４日　木曜日　午後１時５１分

680
uuFuses uFuse Locations
Handling the Unexpected
Located near the + terminal on the battery.
Remove the cover on the + terminal (as
shown).
Replacement of this fuse should be done by
a dealer.
■Engine Compartment Fuse
Box Type C
Positive Battery
Terminal Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
aMAIN150 A
b−70 A
cR/B 170 A
dR/B 270 A
eEPS70 A
fFET60 A
23 ACURA RDX-31TJB6400.book 680 ページ ２０２２年８月４日　木曜日　午後１時５１分

681
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type A
Fuse Label
Fuse Box
AB
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BACK-UP LIGHT10 A
2STARTER MOTOR10 A
3OPTION10 A
4−−
5−−
6−(10 A)
7−−
8−−
9IG1 R/B15 A
10 DR REAR DOOR LOCK 10 A
11DR DOOR LOCK10 A
12 AS SIDE DOOR LOCK 10 A
13AS SIDE DOOR UNLOCK10 A
14 DR DOOR UNLOCK 10 A
15OPTION 210 A
16 SMART 10 A
17SUNROOF20 A
18
HEATED STRG WHEEL*(10 A)
19REAR LEFT P/W20 A
20 SRS 10 A
21FUEL PUMP20 A
22 FRONT ACC SOCKET 20 A
23LEFT H/L HI10 A
24 RIGHT H/L HI 10 A
25DRIVER P/W20 A
26 DR REAR DOOR UNLOCK 10 A
27ACCESSORY10 A
28 PASS SRS IND 10 A
29PDM10 A
30 ADS*(15 A)
31REAR RIGHT P/W20 A
32 − −
33TRANSMISSION10 A
34 ACG 10 A
35DRL10 A
36 A/C 10 A
37AUDIO15 A
38 DOOR LOCK 20 A
39AS P/W20 A
AREAR SEAT HEATER*20 A
B−−
Circuit ProtectedAmps
* Not available on all models
23 ACURA RDX-31TJB6400.book 681 ページ ２０２２年８月４日　木曜日　午後１時５１分

682
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type B
Fuse Label
Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
AMETER10 A
BVSA10 A
COPTION10 A
DBCM10 A
EAUDIO20 A
FBACKUP10 A
GACCESSORY(10 A)
23 ACURA RDX-31TJB6400.book 682 ページ ２０２２年８月４日　木曜日　午後１時５１分

683
uuFuses uFuse Locations
Handling the Unexpected
Located inside the driver’s side outer panel.
Replacement of this fuse should be done by
a dealer.
■Interior Fuse Box Type C
Fuse Box C
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2−−
3A/C MG CL10 A
4−−
5FR H/SEAT20 A
23 ACURA RDX-31TJB6400.book 683 ページ ２０２２年８月４日　木曜日　午後１時５１分

684
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 678
Replace a fuse with a spare fuse of the same specified
amperage.
There is a fuse puller on the back of the cover of the
engine compartment fuse box type A.
Combined
Fuse Blown Fuse
Fuse Puller
23 ACURA RDX-31TJB6400.book 684 ページ ２０２２年８月４日　木曜日　午後１時５１分

685
Handling the Unexpected

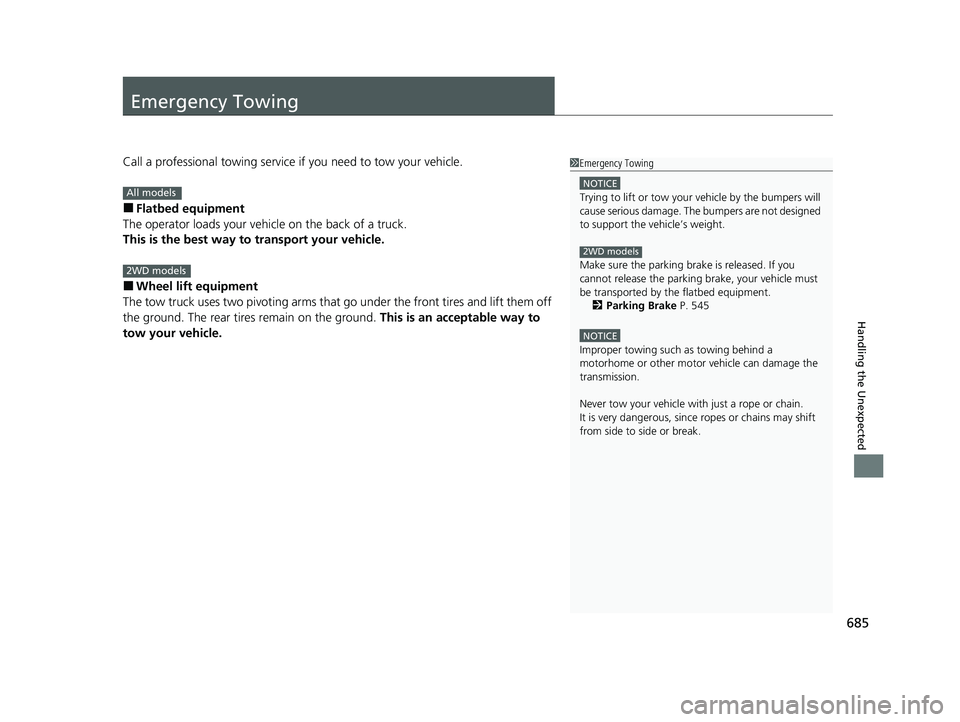

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flatbed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flatbed equipment.
2 Parking Brake P. 545
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
2WD models
All models
2WD models
23 ACURA RDX-31TJB6400.book 685 ページ ２０２２年８月４日　木曜日　午後１時５１分

686
Handling the Unexpected
If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate.
2. Push the tabs to open the cover on the left
side of cargo area.
3. Pull the release cord toward you.
u The release cord unlocks the fuel fill door
when it is pulled.
■What to Do If Unable to Unlock the Fuel Fill Door1What to Do If Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Tab
Tab
Release Cord
