2023 ACURA RDX Owners Manual

639
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
Tools.................................................. 640
If a Tire Goes Flat
Changing a Flat Tire ......................... 641
Temporarily Repairi ng a Flat Tire....... 649
Handling of the Jack ......................... 663
Engine Does Not Start Checking the Engine ........................ 664
If the Keyless Remote Battery is Weak ...665
Emergency Engine Stop ................... 666
Vehicles with a compact spare tire
Vehicles with temporary tire repair kit
Models with temporary tire repair kit
If the Battery Is DeadJump Starting Procedure .................. 667
Overheating ...................................... 669
Indicator, Coming On/Blinking
If the Engine Oil Pressure Low Warning
Appears ............................................. 671
If the Charging System Indicator Comes On .. 672If the Malfunction Indicator Lamp Comes On or Blinks ................................... 672
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 673
If the Electric Power Steering (EPS) System
Indicator Comes On ........................... 674
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .....675
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 676
If the Transmission System Indicator Blinks along with the Warning Message .... 677
Fuses .................................................. 678
Emergency Towing ........................... 685
If You Cannot Unlock the Fuel Fill Door.. 686If You Cannot Open the Tailgate .... 687
Refueling ........................................... 688
23 ACURA RDX-31TJB6400.book 639 ページ ２０２２年８月４日　木曜日　午後１時５１分

640
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/
Jack HandleJack
Jack Handle Bar
Vehicles with a compact spare tire
Vehicles with temporary tire repair kit
FunnelFunnel
23 ACURA RDX-31TJB6400.book 640 ページ ２０２２年８月４日　木曜日　午後１時５１分

641Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
Vehicles with a compact spare tire
1Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
23 ACURA RDX-31TJB6400.book 641 ページ ２０２２年８月４日　木曜日　午後１時５１分

uuIf a Tire Goes Flat uChanging a Flat Tire
642
Handling the Unexpected
1. Push the rear edge of the handle on the
floor lid and open the lid.
2. Push the tabs to open the tool box lid.
3. Take the jack, wheel nut wrench, and jack
handle bar out of the tool box.
■Getting Ready to Replace the Flat Tire1Changing a Flat Tire
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
The wheel nut wrench supplied with your vehicle is
specially adapted to fit th e holder shaft. Do not use
any other tool.
Handle
Tool Box Lid
Tab
Tool Box
23 ACURA RDX-31TJB6400.book 642 ページ ２０２２年８月４日　木曜日　午後１時５１分

643
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
4. Remove the cover and the rubber plug on
the cargo area lining to access the shaft
for the spare tire hoist.
5. Put the wheel nut wrench with the jack
handle bar on the hoist shaft.
Turn the wrench to the left to lower the
spare tire to the ground.
6. Keep turning the wh eel nut wrench to
create slack in the cable.
7. Remove the bracket from the spare tire.Cover
Rubber plug
Jack Handle Bar
Wheel Nut Wrench
Bracket
23 ACURA RDX-31TJB6400.book 643 ページ ２０２２年８月４日　木曜日　午後１時５１分

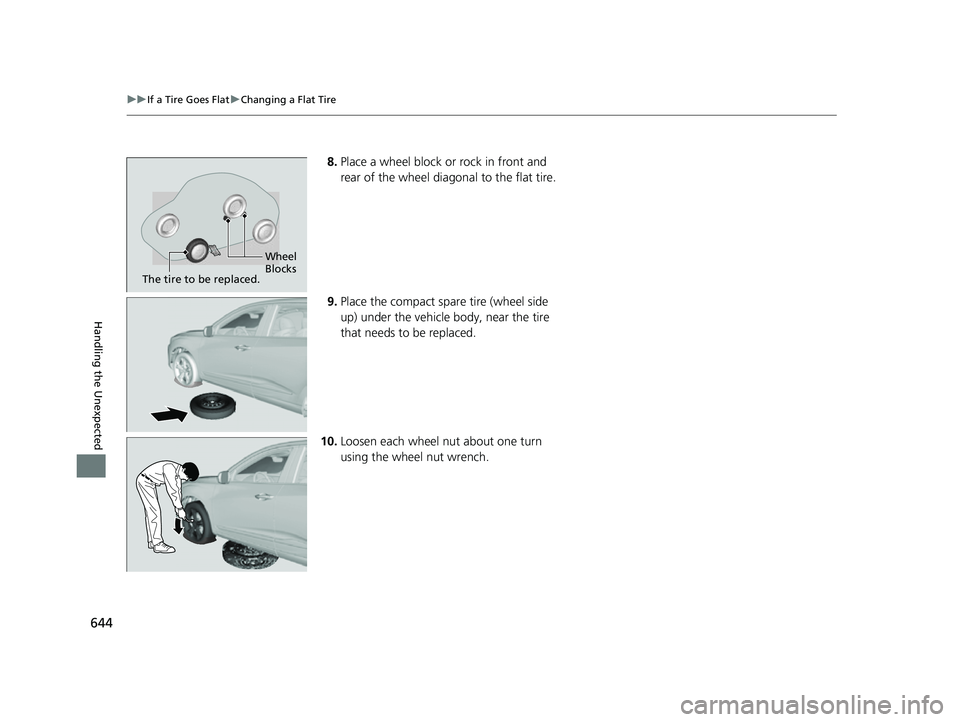

644
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
8. Place a wheel block or rock in front and
rear of the wheel diagonal to the flat tire.
9. Place the compact spare tire (wheel side
up) under the vehicle body, near the tire
that needs to be replaced.
10. Loosen each wheel nut about one turn
using the wheel nut wrench.
Wheel
Blocks
The tire to be replaced.
23 ACURA RDX-31TJB6400.book 644 ページ ２０２２年８月４日　木曜日　午後１時５１分

Continued645
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jack
Handle Bar
Wheel Nut Wrench as Jack Handle
23 ACURA RDX-31TJB6400.book 645 ページ ２０２２年８月４日　木曜日　午後１時５１分

uuIf a Tire Goes Flat uChanging a Flat Tire
646
Handling the Unexpected
1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around
tightening the nuts two to three times in
this order.
Wheel nut torque:
80 lbf∙ft (108 N∙m, 11 kgf∙m)
■Replacing the Flat Tire1Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
23 ACURA RDX-31TJB6400.book 646 ページ ２０２２年８月４日　木曜日　午後１時５１分
