Tyre damage
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Damage to tyres and rims is often not readily visible. Any unusual vibrations or signs that the car is
pulling to one side may indicate that one of the tyres is damaged ⇒.
\f

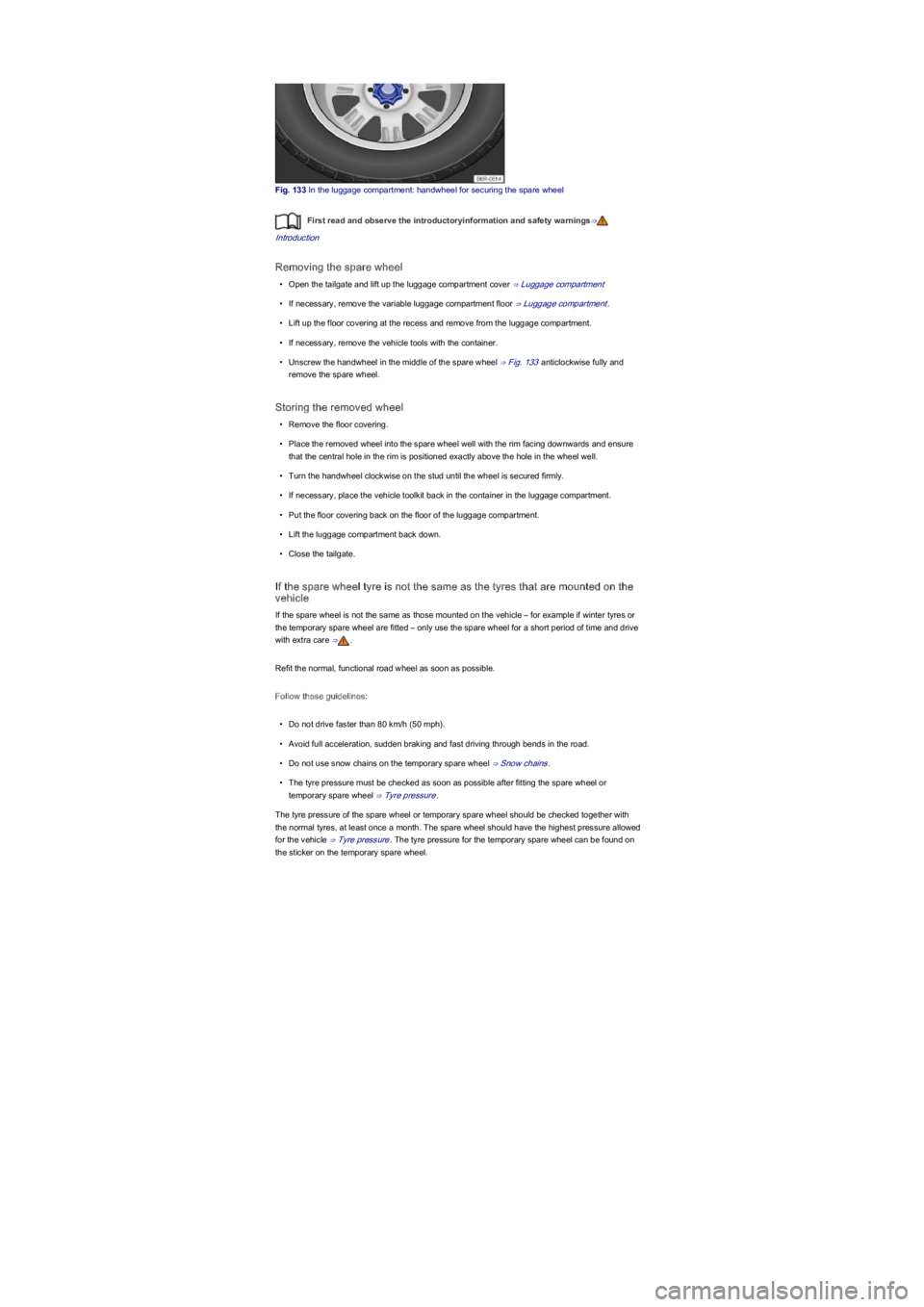

Fig. 133 In the luggage compartment: handwheel for securing the spare wheel
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Removing the spare wheel
\f

If possible, stow the spare wheel, temporary spare wheel or the removed wheel safely in the
luggage compartment. In vehicles with a breakdown set, the removed wheel cannot be secured.
Tyre lettering
Fig. 134 International tyre lettering
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Tyre lettering (exampleyfMeaning
Brand name, logoManufacturer
Product nameIndividual tyre lettering from manufacturer.
P215 / 55 R 18
Size designation:
PIdentification for passenger vehicle.
255Tyre width from wall to wall in mm.
55Height/width ratio in yb.
RTyre construction: radial.
18Rim diameter in inches.
109 HLoad capacity index ⇒ Tyre load and speed index ⇒ Speed
index.
XLHeavy-duty tyres (reinforcedyf.
M+S or M/S orDenotes winter tyres (mud and snow tyresyf ⇒ Winter tyres.
RADIAL TUBELESSTubeless radial tyres.
E4 ...Certification of conformity with international regulations. The
number following (EyfLVWKHFRGHQXPEHURIWKHFRXQWU\WKDW
Incorrect use of the spare wheel or temporary spare wheel can lead to a loss of control of the
vehicle, to collisions or other accidents and cause serious injuries.
\f

Tyre lettering (exampleyfMeaning
granted approval. This is followed by the number of the type
approval certificate.
DOT BT RA TY5 1709
Tyre identification number (TIN \f

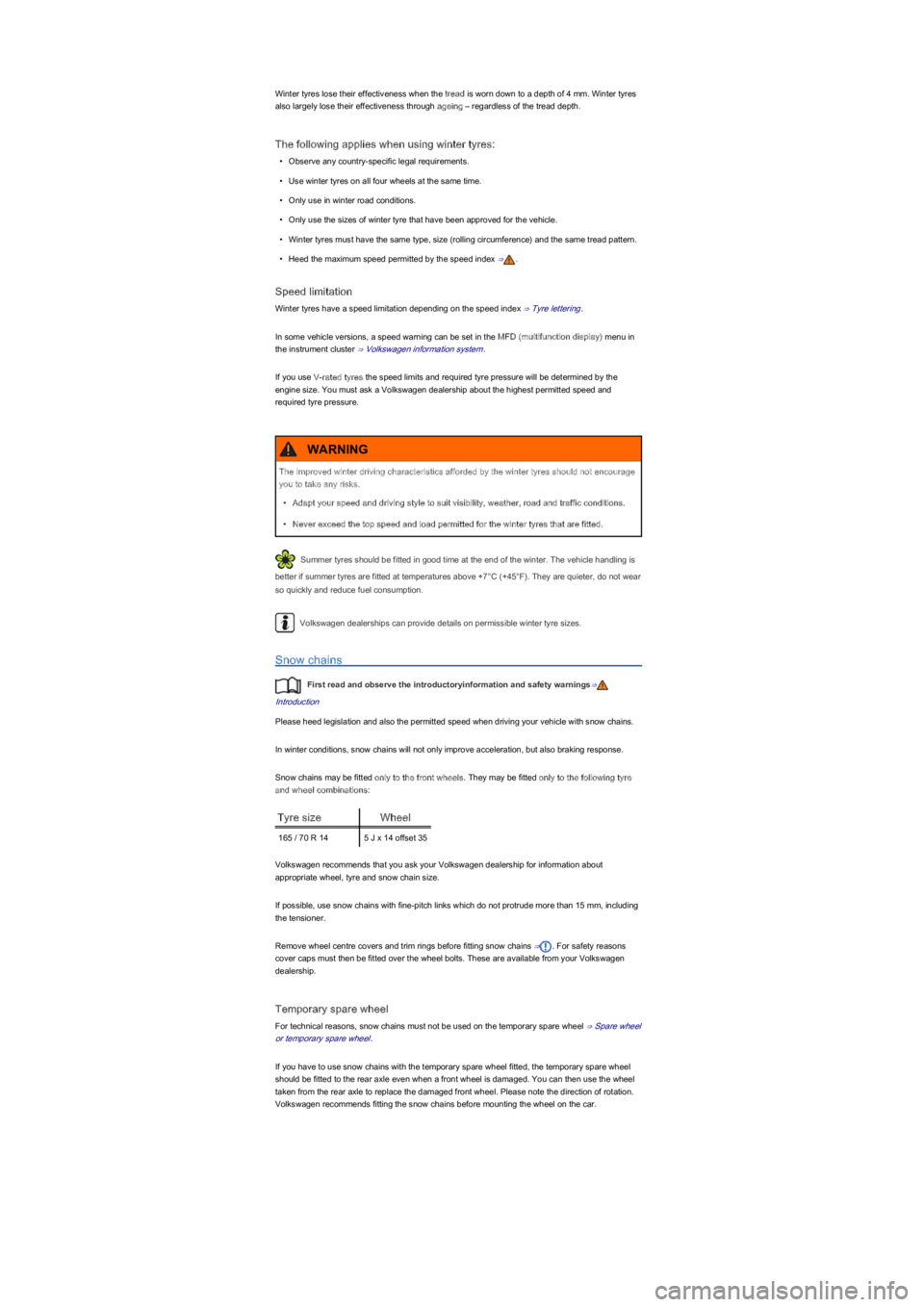

Winter tyres lose their effectiveness when the tread is worn down to a depth of 4 mm. Winter tyres
also largely lose their effectiveness through ageing \f

Snow chains are available in a range of sizes for a vehicle type.
Accessories, modifications, repairs and renewal of
parts
 Introduction
This chapter contains information on the followingsubjects:
⇒ Running-in
⇒ Accessories and parts
⇒ Service fluids and consumables
⇒ Repairs and technical modifications
⇒ Repairs and faults in the airbag system
⇒ Retrofitting two-way radios
⇒ Information stored in the control units
⇒ Using a mobile telephone in the vehicle without a connection to the external aerial
⇒ Portable navigation device
⇒ Vehicle lifting points
Additional information and warnings:
