2022 VOLKSWAGEN ID.5 fluid

x
Curv ed mirrors (convex or aspheric) en-
large the field of vision and can make
objects in the mirror seem smaller and
further away than they actually are.
x Using curved mirrors to estimate the
distance from other vehicles behind you
when changing lanes can provide inac-
curate results and can lead to accidents
and severe injuries.
x Whenever possible, use the interior mir-
ror to check the exact distance between
your vehicle and following traffic or oth-
er objects.
x Ensure that you have a good view to the
rear of the vehicle. NOTICE
If the glass of an automatic anti-dazzle mirror
is broken, electrolyte fluid can leak from the mirror. This fluid attacks plastic surfaces. Re-
mo ve the fluid as soon as possible, e.g. using
a wet sponge. Interior mirror
Fig. 94
On the windscreen: automatic anti-daz-
zle interior mirror.
Automatic anti-dazzle interior mirror
When the ignition is switched on, the sensors
measure the incident light from the rear

x
Damage to the v ehicle or to the high-
voltage battery could lead to a leak of
toxic gases or fluids, either immediately
or at a later time. These emitted gases
could also potentially cause a fire. Do
not inhale these gases.
x Never touch the fluids that leak from the
high-voltage battery.
x In the event of a fire, move away from
the hazard area and call the fire service.
x Always inform any attending fire and
emergency services that the vehicle is
fitted with a high-voltage battery. NOTICE
After an accident, or after the underside of
the v
ehicle has struck an obstacle, the high-
voltage battery must be checked by appropri-
ately qualified and trained experts. Warning signs for the high-
v

oltage system Please refer to , and at the start
of the chapter on page 273.
Where can warning signs be located?
The f

ollowing components may be marked
with the illustrated warning signs

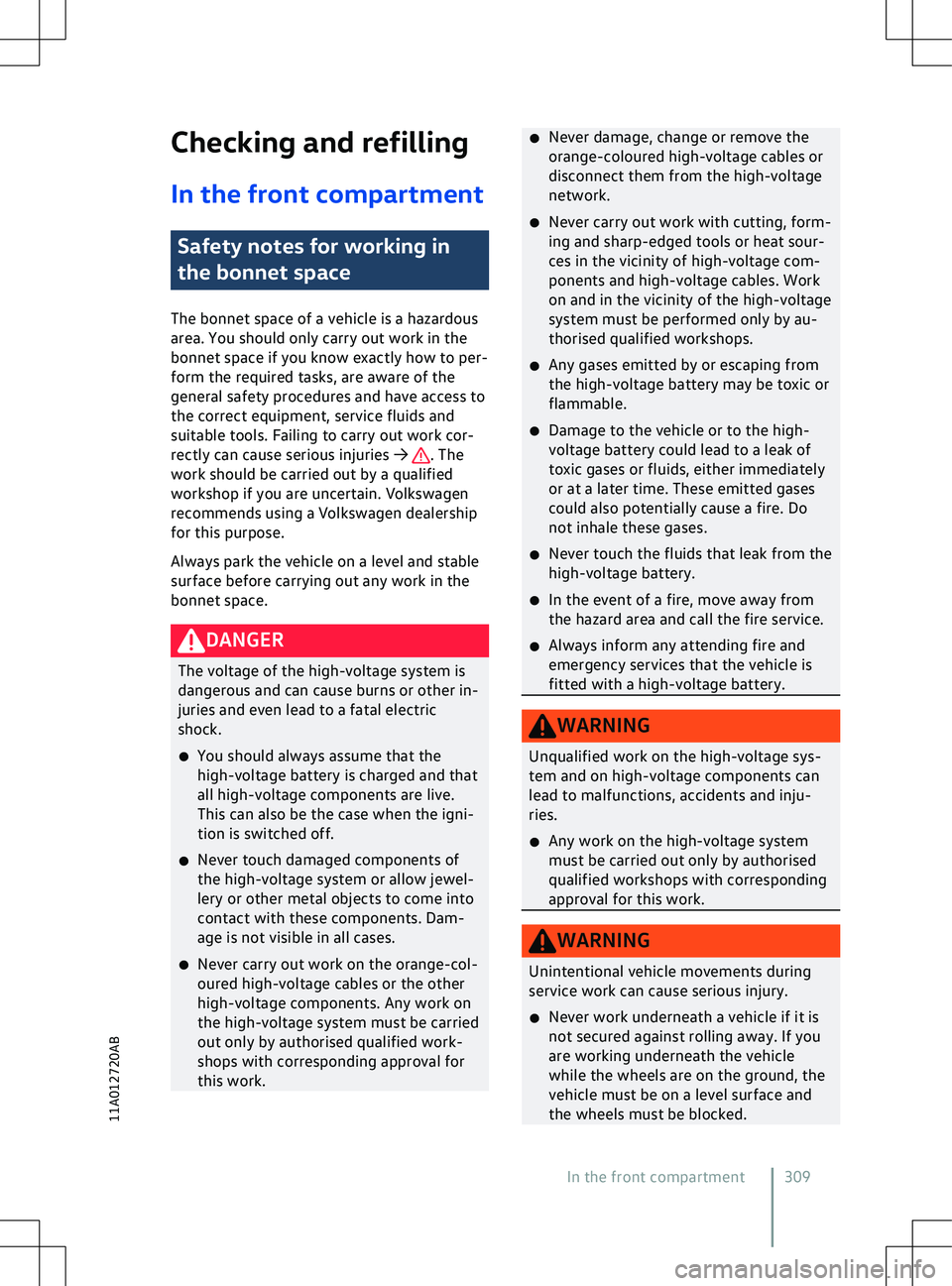

Checking and refilling
In the front compartment Safety notes for working in
the bonnet space
The bonnet space of a v
ehicle is a hazardous
area. You should only carry out work in the
bonnet space if you know exactly how to per-
form the required tasks, are aware of the
general safety procedures and have access to
the correct equipment, service fluids and
suitable tools. Failing to carry out work cor-
rectly can cause serious injuries

oped. This also applies to engine oils in the
case of combustion engines. F or this reason,
service fluids and consumables should be re-
placed at a qualified workshop. Volkswagen
dealerships are kept up to date on all
changes. NOTICE
x Only use suitable service fluids f
or refilling.
Never use the wrong service fluid. Failure
to observe this warning can result in seri-
ous malfunctions and engine damage. Leaking service fluids can pollute the
en

vironment. Spilt service fluids must
be collected in suitable containers and dis-
posed of properly and in an environmentally
responsible way. Washer fluid

fluid. These may leave an oily film on the
window, considerably restricting the field
of vision.
NOTICE
x Ne ver mix suitable cleaning agents with
other cleaning agents. This can cause the
ingredients to separate and block the
washer jets. Coolant
Introduction to the topic
Do not work on the cooling system unless
you are familiar with the task, aware of the
general saf

ety procedures and have the cor-
rect equipment, service fluids and suitable
tools. Failing to carry out work correctly can
cause serious injuries

cooling system when the engine is hot and
could cause damage.
x If a large amount of coolant has been lost,
do not refill the coolant until the engine
has cooled completely. Hea
vy coolant loss
is an indication of leaks in the cooling sys-
tem. The cooling system should be
checked by a qualified workshop as soon
as possible. Failure to do so can result in
engine damage.
x Do not refill coolant if there is no more
coolant in the coolant expansion tank. Air
could have entered the cooling system. Do
not drive on! Seek expert assistance. Fail-
ure to do so can result in engine damage.
x When refilling service fluids, please ensure
that you pour the correct service fluids in-
to the correct openings. The use of incor-
rect service fluids can result in serious
malfunctions and damage to the electric
drive. Troubleshooting
Please refer to , and on page 309
and at the start of the chapter on page
315. Coolant
The indicator lamp flashes red.
Engine coolant temperature too high or en-
gine coolant le

vel too low. Do not driv

e on!
Stop the vehicle as soon as possible and
when safe to do so.

Brake fluid specification
V
olkswagen has developed a brake fluid that
has been optimised for the brake system in
the vehicle. To ensure the best possible oper-
ation of the brake system, Volkswagen ex-
pressly recommends the use of brake fluid
compliant with VW standard 501 14.
Before using a particular brake fluid, check
that the specifications printed on the con-
tainer correspond to the vehicle require-
ments.
Brake fluid that is compliant with VW stand-
ard 501 14 is available from Volkswagen
dealerships.
If this brake fluid is not available and it is
necessary to use another high-quality brake
fluid instead, brake fluid that is compliant
with DIN ISO 4925 or US standard
FMVSS 116 DOT 4 CLASS 6 can be used.
Not all brake fluids that are compliant with
DIN ISO 4925 or US standard FMVSS 116
DOT 4 CLASS 6 have the same chemical com-
position. Some of these brake fluids may con-
tain chemicals that can damage or destroy
brake system components over time.
Volkswagen therefore recommends the use
of brake fluid that is compliant with
VW standard 501 14 to ensure sustained op-
timal operation of the brake system.
Brake fluid that is compliant with VW stand-
ard 501 14 fulfils the requirements of
DIN ISO 4925 or US standard
FMVSS 116 DOT 4 CLASS 6.
Brake fluid level
The brake fluid level must always be between
the MIN and MAX markings on the brake fluid
reservoir

x

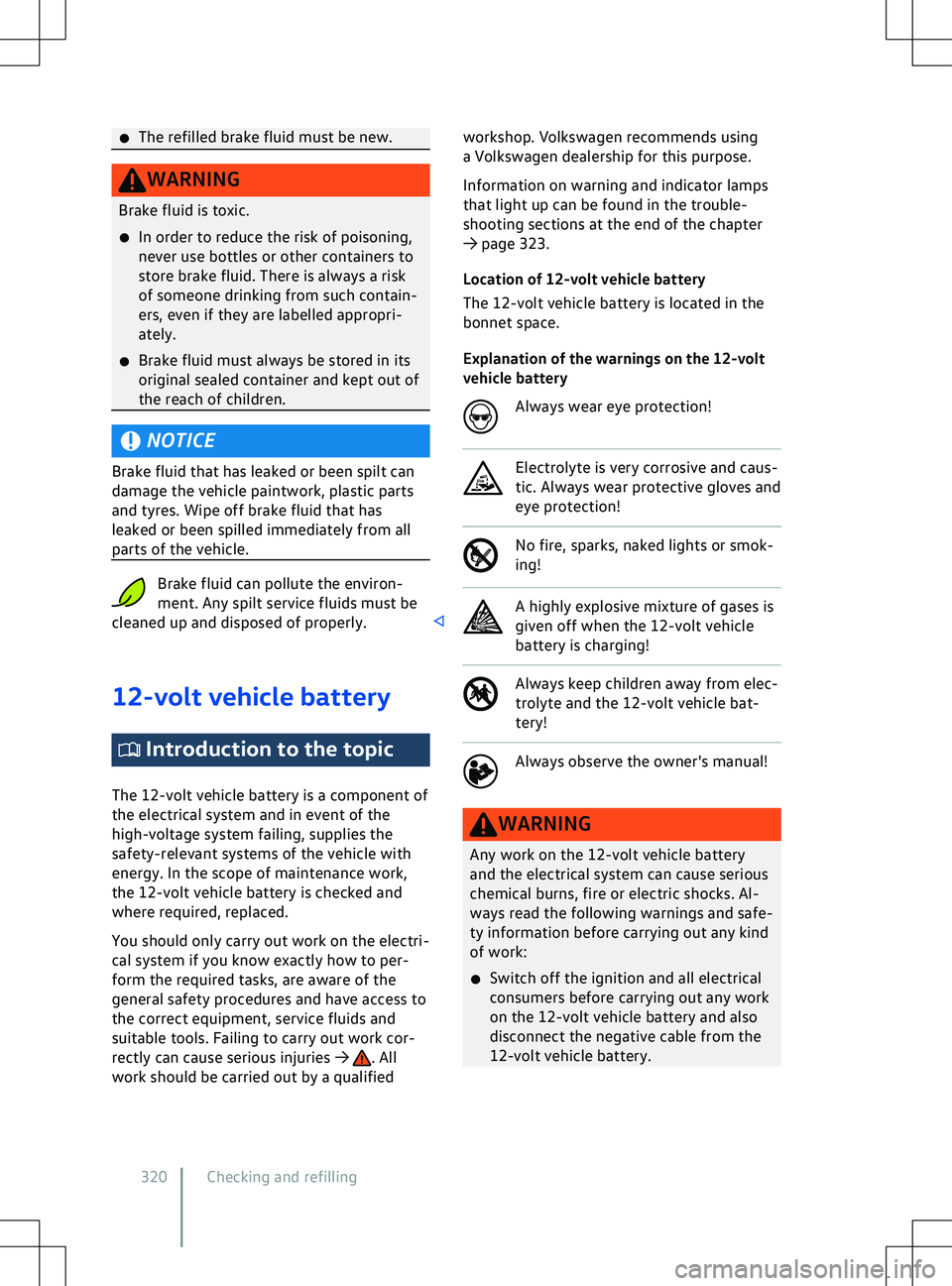

The refilled brake fluid must be new. NOTICE
Brake fluid that has leaked or been spilt can
damage the v ehicle paintwork, plastic parts
and tyres. Wipe off brake fluid that has
leaked or been spilled immediately from all
parts of the vehicle. Brake fluid can pollute the environ-
ment. Any spilt service fluids must be
cleaned up and disposed of properly. 12-volt vehicle battery
Introduction to the topic
The 12-
volt vehicle battery is a component of
the electrical system and in event of the
high-voltage system failing, supplies the
safety-relevant systems of the vehicle with
energy. In the scope of maintenance work,
the 12-volt vehicle battery is checked and
where required, replaced.
You should only carry out work on the electri-
cal system if you know exactly how to per-
form the required tasks, are aware of the
general safety procedures and have access to
the correct equipment, service fluids and
suitable tools. Failing to carry out work cor-
rectly can cause serious injuries
