2022 VOLKSWAGEN ID.4 System Service

WARNING
Insufficient anti-freeze in the cooling sys-
tem of the v ehicle can cause the electric
drive to break down and thereby cause se-
rious injuries.
x The amount of correct coolant additive
used must be sufficient for the lowest
ambient temperature that you expect
the vehicle to be exposed to.
x Coolant can freeze at extremely cold
outside temperatures, causing the vehi-
cle to break down. Vehicle occupants
with inadequate winter clothing could
then freeze to death as the heating will
also no longer function. NOTICE
Never mix genuine coolant additives with
other coolants that ha
ve not been approved
by Volkswagen.
x If the liquid in the coolant expansion tank
is not pink (colouring results from mixing
the purple coolant additive with distilled
water) but for example brown instead of
purple, the suitable coolant has been
mixed with an unsuitable coolant additive.
The coolant must be changed as soon as
possible if this is the case. Failure to ob-
serve this warning can result in serious
malfunctions or damage to the electric
drive and cooling system. Coolant and coolant additives can pol-
lute the en

vironment. Spilt service flu-
ids must be collected and disposed of proper-

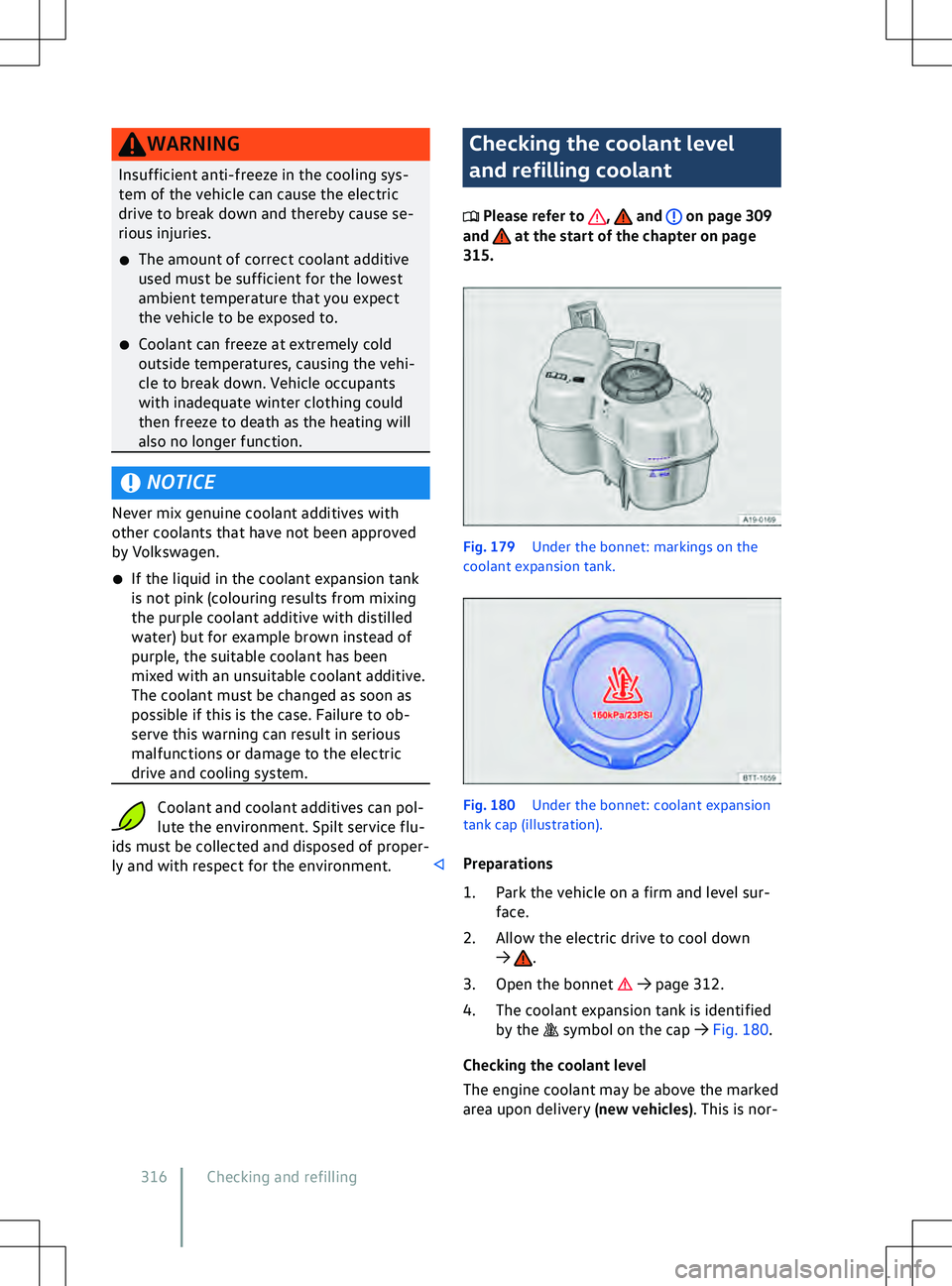

ly and with respect for the environment. Checking the coolant level
and refilling coolant
Please refer to , and on page 309
and at the start of the chapter on page
315. Fig. 179
Under the bonnet: markings on the
coolant e
xpansion tank. .
3.

Open the bonnet

cooling system when the engine is hot and
could cause damage.
x If a large amount of coolant has been lost,
do not refill the coolant until the engine
has cooled completely. Hea
vy coolant loss
is an indication of leaks in the cooling sys-
tem. The cooling system should be
checked by a qualified workshop as soon
as possible. Failure to do so can result in
engine damage.
x Do not refill coolant if there is no more
coolant in the coolant expansion tank. Air
could have entered the cooling system. Do
not drive on! Seek expert assistance. Fail-
ure to do so can result in engine damage.
x When refilling service fluids, please ensure
that you pour the correct service fluids in-
to the correct openings. The use of incor-
rect service fluids can result in serious
malfunctions and damage to the electric
drive. Troubleshooting
Please refer to , and on page 309
and at the start of the chapter on page
315. Coolant
The indicator lamp flashes red.
Engine coolant temperature too high or en-
gine coolant le

vel too low. Do not driv

e on!
Stop the vehicle as soon as possible and
when safe to do so.

x

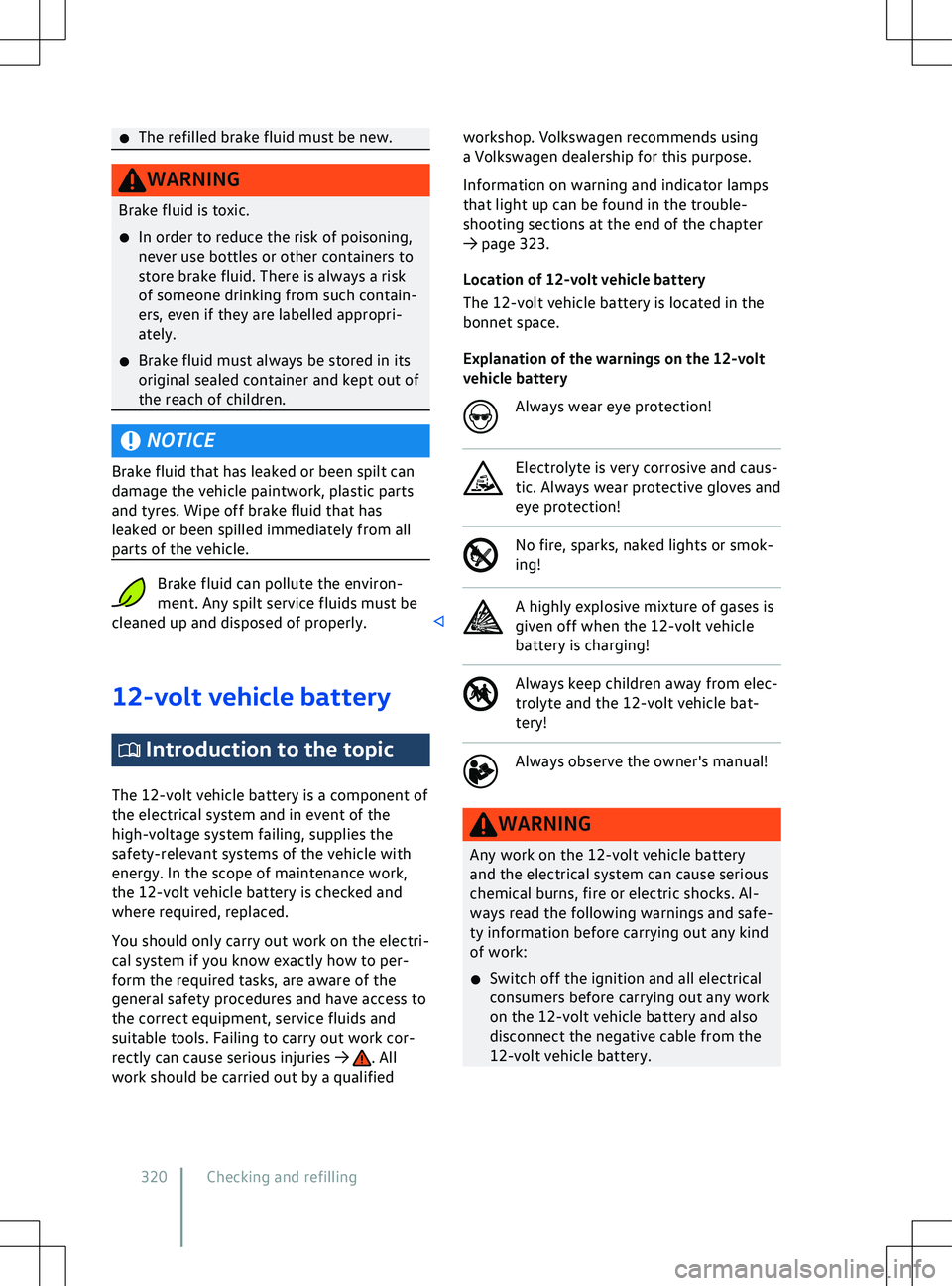

The refilled brake fluid must be new. NOTICE
Brake fluid that has leaked or been spilt can
damage the v ehicle paintwork, plastic parts
and tyres. Wipe off brake fluid that has
leaked or been spilled immediately from all
parts of the vehicle. Brake fluid can pollute the environ-
ment. Any spilt service fluids must be
cleaned up and disposed of properly. 12-volt vehicle battery
Introduction to the topic
The 12-
volt vehicle battery is a component of
the electrical system and in event of the
high-voltage system failing, supplies the
safety-relevant systems of the vehicle with
energy. In the scope of maintenance work,
the 12-volt vehicle battery is checked and
where required, replaced.
You should only carry out work on the electri-
cal system if you know exactly how to per-
form the required tasks, are aware of the
general safety procedures and have access to
the correct equipment, service fluids and
suitable tools. Failing to carry out work cor-
rectly can cause serious injuries

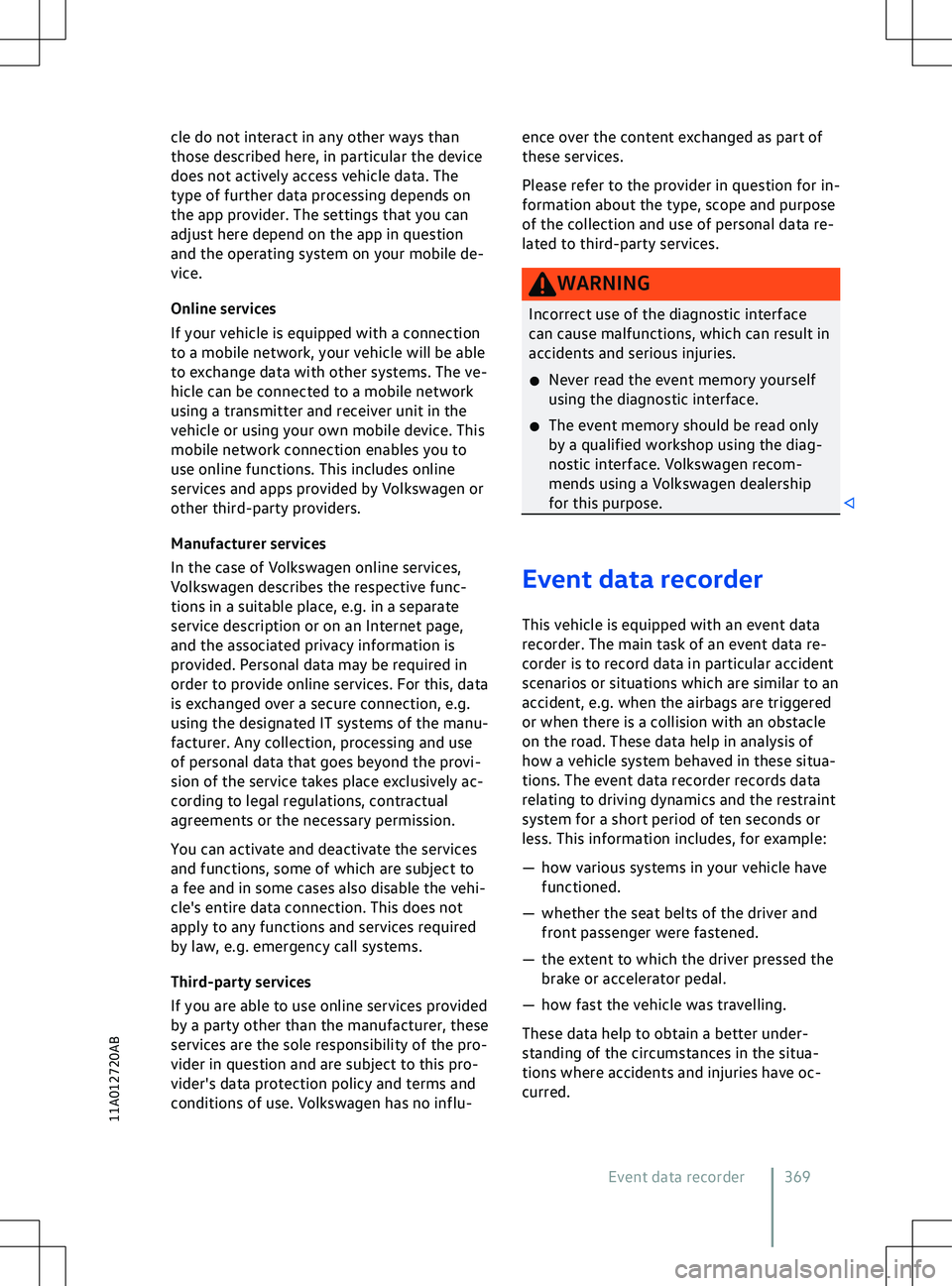

cle do not interact in any other ways than
those described here, in particular the de
vice
does not actively access vehicle data. The
type of further data processing depends on
the app provider. The settings that you can
adjust here depend on the app in question
and the operating system on your mobile de-
vice.
Online services
If your vehicle is equipped with a connection
to a mobile network, your vehicle will be able
to exchange data with other systems. The ve-
hicle can be connected to a mobile network
using a transmitter and receiver unit in the
vehicle or using your own mobile device. This
mobile network connection enables you to
use online functions. This includes online
services and apps provided by Volkswagen or
other third-party providers.
Manufacturer services
In the case of Volkswagen online services,
Volkswagen describes the respective func-
tions in a suitable place, e.g. in a separate
service description or on an Internet page,
and the associated privacy information is
provided. Personal data may be required in
order to provide online services. For this, data
is exchanged over a secure connection, e.g.
using the designated IT systems of the manu-
facturer. Any collection, processing and use
of personal data that goes beyond the provi-
sion of the service takes place exclusively ac-
cording to legal regulations, contractual
agreements or the necessary permission.
You can activate and deactivate the services
and functions, some of which are subject to
a fee and in some cases also disable the vehi-
cle

Group
2 3 4 5 6 7
Posi- tion: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
Example W V W Z Z Z C B Z L E 4 0 0 9 5 3 Fig. 201
In the windscreen: v ehicle identifica-
tion number.
The vehicle identification number can be read
from outside the vehicle through a viewer in
the windscreen. The viewer is located in the
lower corner of the windscreen.
For some models, depending on the Infotain-
ment system version, the vehicle identifica-
tion number can be displayed in the
Servicemenu or in the vehicle settings. The vehicle
identification number can also be found on
the type plate. Technical data

Abbreviation Definition
MP4 Format for compressing audio files.
MPEG Moving Picture Experts Group.
NFC Near Field Communication: standard for data transmission in the near range using radio technology.
OBD On-Board Diagnostic System.
OCU On-Board Connectivity Unit: control unit with emergency call module, com- munication unit and embedded eSIM.
PBAP Phone Book Access Profile: manufacturer-independent technology for trans- mission of mobile telephone phone book data.
PIN Personal Identification Number.
POI Point of Interest.
QR Code Quick Response Code: binary representation of coded data. RDS Radio Data System: Radio data system for additional services.SIM Subscriber Identity Module
SPP Serial Port Profile: serial data transmission via Bluetooth

Index
A Abroad Extended trips with your vehicle 134
Selling the vehicle 134
ABS see Brake support systems 190
AC charging Charging power 391, 392
ACC see Adaptive Cruise Control(ACC) 151
Accessing service schedules 30
Accessories 362
Accident What to do 67
Acoustic warnings Seat belt not fastened 37
Warning and indicator lamps 15
Activating functions 206
Troubleshooting 207
Activating the vehicle

Battery charge limits
277
Belt retractor 44
Belt status display see Seat belts 37
Belt tension limiter 44
Belt tensioner 44
Disposal 45
Service and disposal 45
Bench seat 97
Bicycle carrier Fitting on the ball coupling 267
Black ice warning 23
Bluetooth 216
Profile 216
Bonnet Closing 312
Display 313
Opening 312
Warning lamp 313
Bonnet space Preparations 311
Safety notes 309
Boot see Luggage compartment 254
Boot lid 84
Closing 88
Closing automatically 88
Driving with an open boot lid 133
Electrically closing 86
Electrically opening 86
Opening 87
Opening automatically 87
Brake Assist system 190
Brake blending 191
Brake energy recuperation (energy recov-
ery) 134
ECO assistance 136
Brake fluid 318
Specification 319
Brake servo 189, 190
Brake support systems 189
ABS 189
BAS 189
EDL 189
ESC 189
TCS 189
XDS 189
Brake system Malfunction 134
Brakes 189
Brake fluid 318Brake fluid level
319
Brake pads 131, 134
Brake support systems 189
Changing the brake fluid 319
Electromechanical brake servo 190
Electronic parking brake 177
Emergency braking function 178
Parking brake 177
Running in brake pads 131
Braking intervention Automatic 182
Damage minimisation 182
Break recommendation Switching on and off 25
Breakdown Making your vehicle safe 66
Breakdown set 348
Check after driving for 10 mi- nutes 351
Contents 349
Inflating the tyre 350
Preparations 350
Sealing the tyre 350
When not to use 348
Buckle-up request see Seat belts 37
Bulb failure see Changing bulbs 295
Button cell Replacing in the vehicle key 74
C
Camera 159
Cameras Add-on parts 363
Damage 363
Repairs 363
Car wash Parking brake 177
Vehicle care 355
Car2X communication 198
Switching on and off 199
System limits 199
Troubleshooting 200
Care see Vehicle care 355
CCS see Cruise control system 145
Central airbag see Airbag system 56
Central locking
Index 39711A012720AB
