5528-1. Specifications
Owners Manual_USA_M0C031_enAn all season tire has
“M+S” on the sidewal l. A tire not marked “M+S” is a
summer tire.
Ty p e A
DOT symbol
*
Tire Identification Number
(TIN)
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Tire manufacturer’s identifi-
cation mark
Manufacturing week
Manufacturing year
*: The DOT symbol certifies that the tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.
Type B
DOT symbol
*
Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Manufacturer’s code
Manufacturing week
Manufacturing year
*: The DOT symbol ce rtifies that the
tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.
■Typical tire size information
The illustration indicates typical
tire size.
Typical DOT and Tire
Identification Number
(TIN)
Tire size
5568-1. Specifications
Owners Manual_USA_M0C031_en

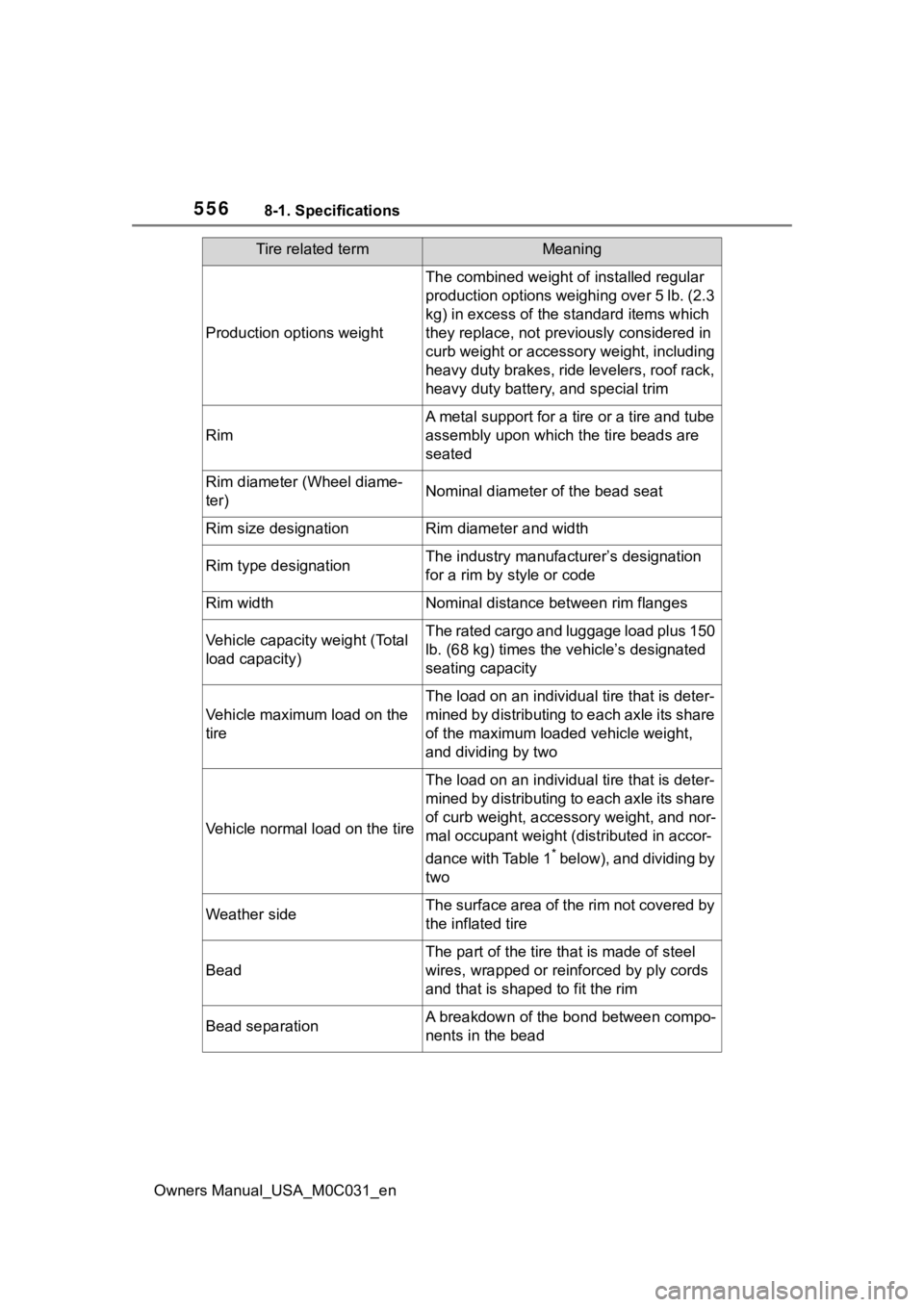

Production options weight
The combined weight of installed regular
production options weighing over 5 lb. (2.3
kg) in excess of the standard items which
they replace, not previously considered in
curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated
Rim diameter (Wheel diame-
ter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation
for a rim by style or code
Rim widthNominal distance between rim flanges
Vehicle capacity weight (Total
load capacity)The rated cargo and luggage load plus 150
lb. (68 kg) times the vehicle’s designated
seating capacity
Vehicle maximum load on the
tire
The load on an individua l tire that is deter-
mined by distributing to each axle its share
of the maximum loaded vehicle weight,
and dividing by two
Vehicle normal load on the tire
The load on an individua l tire that is deter-
mined by distributing to each axle its share
of curb weight, accessory weight, and nor-
mal occupant weight (distributed in accor-
dance with Table 1
* below), and dividing by
two
Weather sideThe surface area of the rim not covered by
the inflated tire
Bead
The part of the tire that is made of steel
wires, wrapped or reinforced by ply cords
and that is shaped to fit the rim
Bead separationA breakdown of the bond between compo-
nents in the bead
Tire related termMeaning
Owners Manual_USA_M0C031_en
Alphabetical Index599
Engine coolant temperature gauge....................................... 91
Engine oil Capacity ............................... 543
Checking .............................. 458
Warning light ........................ 502
Engine oil pressure gauge ...... 91
Engine switch (power switch)195 Auto power off function ........ 198
Changing the power switch modes ................................ 198
If your vehicle has to be stopped in an emergency................. 494
Starting the hybrid system.... 195
Enhanced Vehicle Stability Con- trol (Enhanced VSC) ............ 375
Enhanced VSC (Enhanced Vehi- cle Stability Control) ............ 375
EPS (Electric Power Steering) ............................................... 375Warning light ........................ 503
Event data recorder (EDR)......... 8
F
Flat tire .................................... 515 Tire pressure warning system........................................... 468
Floor mats ................................. 26
Fluid Automatic transmission ........ 545
Brake .................................... 546
Washer ................................. 462
Fog light Replacing light bulbs ............ 490
Switch................................... 214
Footwell lights ..... ................... 410
Four-wheel drive system ....... 361
Front fog light Replacing light bulbs ............ 490
Front passenger occupant clas- sification system .................... 46 Front seats ..............................133
Adjustment ...........................133
Cleaning ...............................445
Correct driving posture ...........27
Driving position memory .......137
Head restraints .....................140
Memory recall function .........139
Power easy access system ..137
Seat heaters ....... ..................407
Seat position memory...........137
Seat ventilators.....................407
Front tray light ........................410
Front turn signal lights ..........204 Turn signal lever ...................204
Front turn signal/parking lights Replacing light bulbs ....490, 491
Wattage ................................548
Fuel Capacity ...............................542
Fuel gauge .............................91
Information ......... ..................549
Opening the fuel tank cap ....222
Type......................................542
Warning light.........................507
Fuel consumption Average fuel economy ............97
Current fuel consumption .......97
Fuel door When the fuel door cannot be opened ...............................526
Fuel economy ...........................97
Fuel gauge.................................91
Fuses .......................................487
G
Garage door opene r ...............433
Gauges ......................................91
Glove box ................................413
Glove box light........................410
620
Owners Manual_USA_M0C031_en

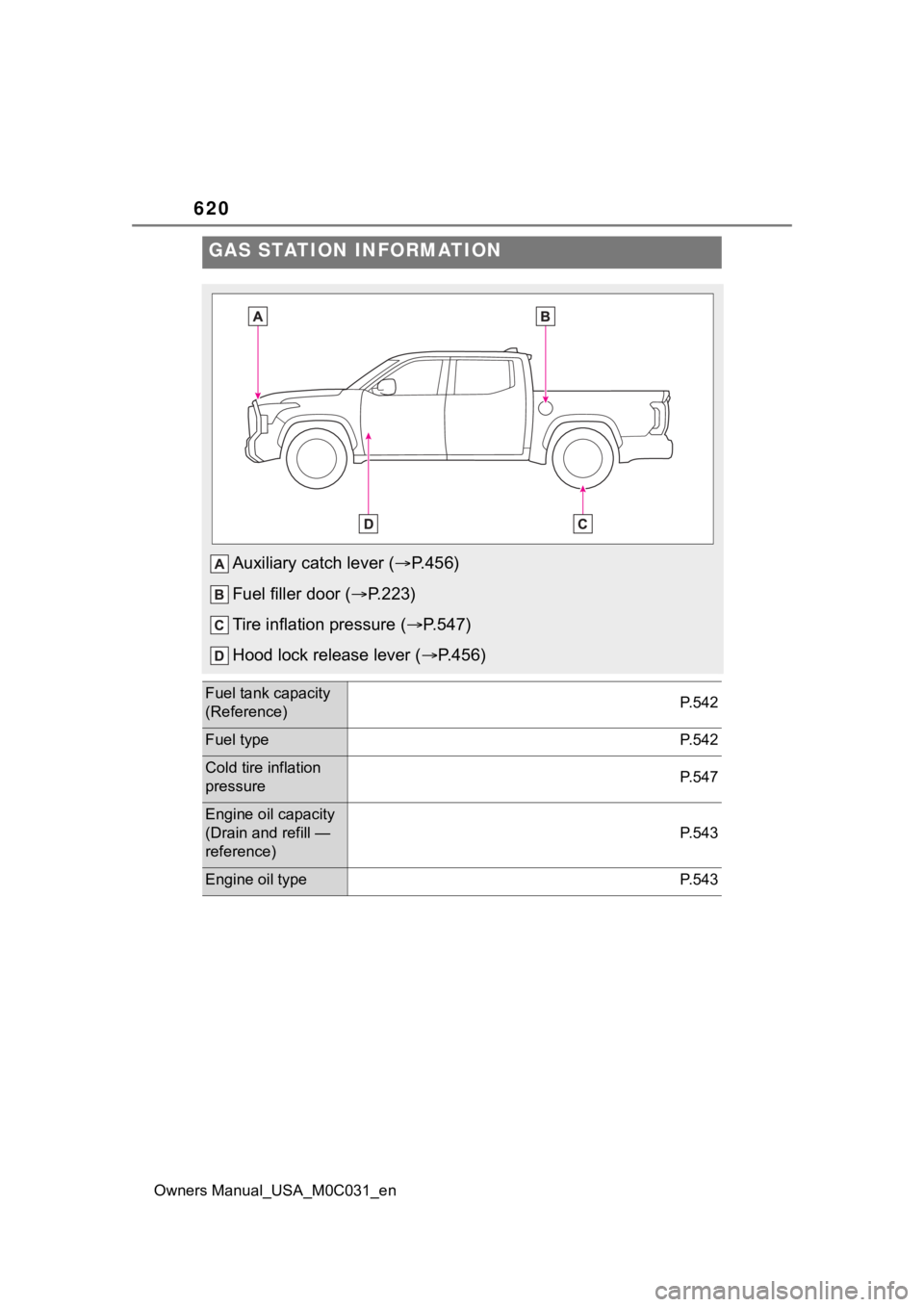

GAS STATION INFORMATION
Auxiliary catch lever (P.456)
Fuel filler door ( P.223)
Tire inflation pressure ( P.547)
Hood lock release lever ( P.456)
Fuel tank capacity
(Reference)P.542
Fuel typeP.542
Cold tire inflation
pressureP.547
Engine oil capacity
(Drain and refill —
reference)
P.543
Engine oil typeP.543
