2022 TOYOTA SUPRA seat memory

125
3
3-1. CONTROLS
CONTROLS
Follow the information on the front
passenger sun visor.
NEVER use a rearwa rd facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to
the CHILD can occur.
Except for ASEAN countries, South
Africa, Australia and New Zealand
without ISOFIX lower anchorage
and airbag manual on-off switch:
After installing a universal child
restraint system, move the front
passenger seat as fa r back as it will
go and adjust it to the upper most
position. This seat position and
height achieves the best possible
routing of the belt and protection in
the event of an accident.
If the upper attachment point of the
seat belt is located ahead of the
child seat's belt guide, carefully
move the front passenger seat for-
wards until the best possible belt
guidance is achieved.
With adjustable backrest width:
before fitting a child restraint sys-
tem on the front passenger seat,
fully open the backrest width. Do
not change the backrest width from
this point on and do not call up a
memory position.
Follow the informat ion on the front
passenger sun visor.
Rear-facing child restraint sys-
tems
WA R N I N G
If triggered, active front passenger
airbags can fatally injure a child in a child restraint system which is
mounted facing backwards. There is
a risk of injury or even death. Make
sure that the front passenger airbags are deactivated and the PASSEN-
GER AIRBAG OFF indicator lamp is
illuminated.
Seat position and height
Backrest width
For Taiwan: On the front pas-
senger seat
General

1263-1. CONTROLS
Before fitting a child restraint on the
front passenger seat, make sure
that the front and side airbags on
the passenger side are disabled.
Deactivating the front passenger
airbags with key switch, see page
202.
After installing a universal child
restraint system, move the front
passenger seat as far back as it will
go and adjust to a mid-height posi-
tion. This seat position and height
achieves the best possible routing
of the belt and protection in the
event of an accident.
If the upper attachment point of the
seat belt is located ahead of the
child seat's belt guide, carefully
move the front passenger seat for-
wards until the best possible belt
guidance is achieved.
With adjustable backrest width:
before fitting a child restraint sys-
tem on the front passenger seat,
fully open the backrest width. Do
not change the backrest width from
this point on and do not call up a
memory position.
Note for Australia: ISOFIX child
seats are not permitted for road use
in Australia at the time of printing.
However, also since a change of
the respective regulations is also
expected in the future, lower
ISOFIX anchorages are supplied in
line with applicable ADRs also for
WA R N I N G
Attention: follow the information on
the front passenger sun visor. Accord-
ing to road traffic safety regulations, children must be transported in the
rear. It is strictly prohibited for infants,
small children and children to be transported on the front passenger
seat. Attention: this regulation applies
to vehicles intended for sale in Tai-
wan.
Deactivating airbags
WA R N I N G
Active front passenger airbags can
injure a child in a child restraint sys- tem if they are deployed. There is a
danger of injury. Make sure that the
front passenger airbags are deacti- vated and the PASSENGER AIRBAG
OFF indicator lamp is illuminated.
Rearward-facing child restraints
WA R N I N G
If triggered, active front passenger
airbags can fatally injure a child in a
child restraint system which is
mounted facing backwards. There is a danger of injury or even death.
Make sure that the front passenger
airbags are deactivated and the PAS- SENGER AIRBAG OFF indicator
lamp is illuminated.
Seat position and height
Backrest width
ISOFIX child seat mountings
General

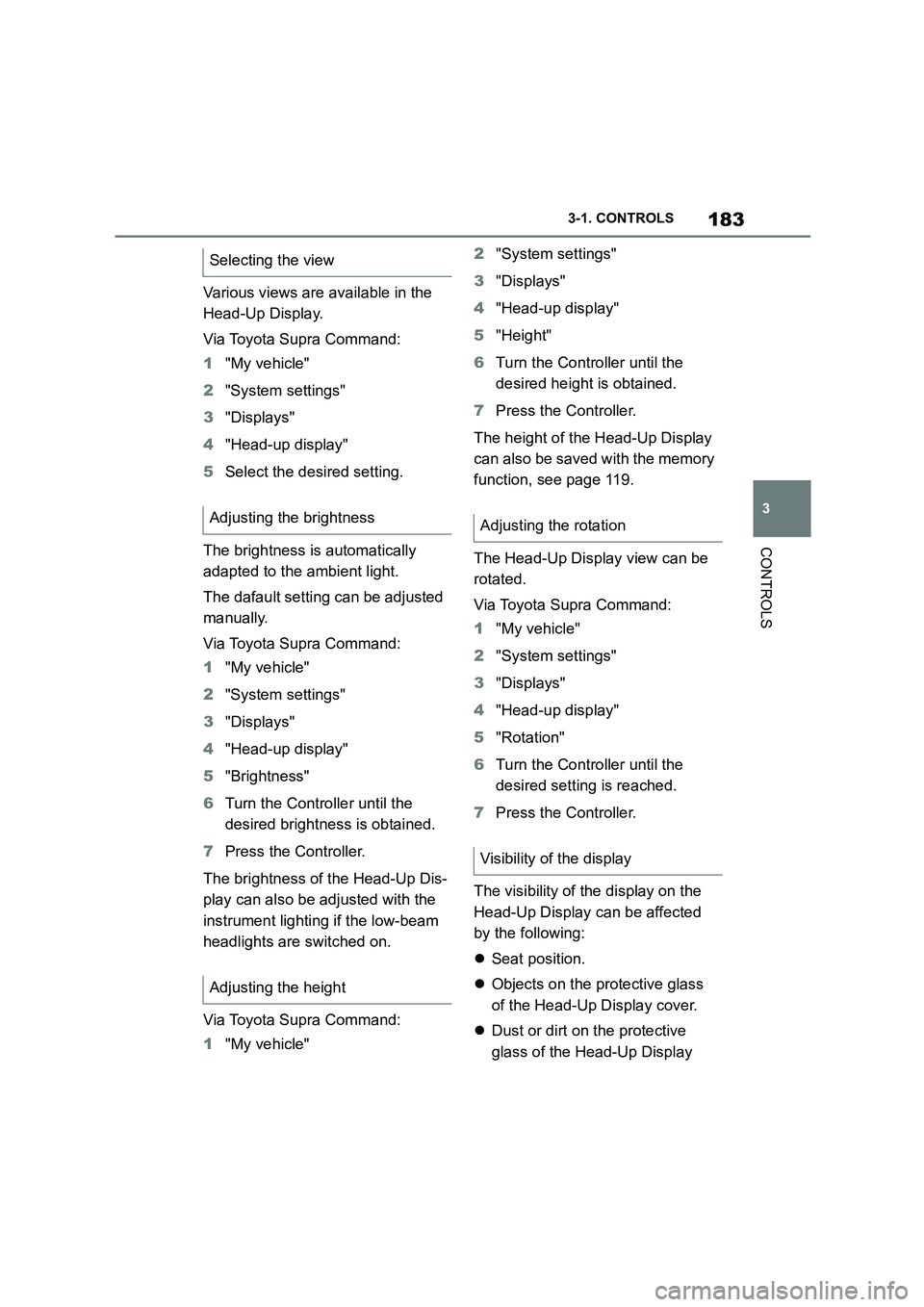

183
3
3-1. CONTROLS
CONTROLS
Various views are available in the
Head-Up Display.
Via Toyota Supra Command:
1 "My vehicle"
2 "System settings"
3 "Displays"
4 "Head-up display"
5 Select the desired setting.
The brightness is automatically
adapted to the ambient light.
The dafault setting can be adjusted
manually.
Via Toyota Supra Command:
1 "My vehicle"
2 "System settings"
3 "Displays"
4 "Head-up display"
5 "Brightness"
6 Turn the Controller until the
desired brightness is obtained.
7 Press the Controller.
The brightness of the Head-Up Dis-
play can also be adjusted with the
instrument lighting if the low-beam
headlights are switched on.
Via Toyota Supra Command:
1 "My vehicle"
2 "System settings"
3 "Displays"
4 "Head-up display"
5 "Height"
6 Turn the Controller until the
desired height is obtained.
7 Press the Controller.
The height of the Head-Up Display
can also be saved with the memory
function, see page 119.
The Head-Up Display view can be
rotated.
Via Toyota Supra Command:
1 "My vehicle"
2 "System settings"
3 "Displays"
4 "Head-up display"
5 "Rotation"
6 Turn the Controller until the
desired setting is reached.
7 Press the Controller.
The visibility of the display on the
Head-Up Display can be affected
by the following:
 Seat position.
 Objects on the protective glass
of the Head-Up Display cover.
 Dust or dirt on the protective
glass of the Head-Up Display
Selecting the view
Adjusting the brightness
Adjusting the height
Adjusting the rotation
Visibility of the display

488Alphabetical Index
Filler neck for engine oil .............. 325
Filter, see Microfilter/activated car-
bon filter ...................................... 266
Fire extinguisher .......................... 356
Flank protection without Surround
View ............................................. 252
Flat tyre message, TPM ............... 308
Flat tyre warning lamp, TPM ........ 308
Flat tyre, continuing a journey .... 311
Flat tyre, see Tyre Pressure Monitor
..................................................... 304
Flat tyre, wheel change ................ 313
Flooding ........................................ 284
Floor carpet, care ......................... 367
Fog lights, see Bulbs and lights . 340
Fold-out position of windscreen wip-
ers ................................................ 153
Foot brake ..................................... 284
Foot mats, care ............................. 367
Front airbags ................................ 193
Front head restraints.................... 116
Front lights, see Bulbs and lights340
Front neck supports, see Head
restraints ..................................... 116
Front passenger airbags, deactivat-
ing/activating .............................. 202
Front passenger airbags, indicator
lamp ............................................. 204
Front passenger's mirror, tilting
down, see Automati c parking func-
tion............................................... 118
Front seats .................................... 107
Front-end collision warning with City
braking function ......................... 207
Fuel ................................................ 322
Fuel filler flap ................................ 290
Fuel gauge .................................... 168
Fuel quality ................................... 322
Fuel recommendation .................. 322
Fuel tank cap ................................ 290
Fuel, tank capacity ....................... 372
Fuses ............................................. 343
G
Gearbox, see Automatic transmis-
sion ..............................................154
General driving information.........281
General settings.............................. 71
Glare protection, see Sun visor... 269
Glove box ......................................274
Go function.................................... 238
Go function ACC ...........................238
GPS positioning, vehicle position. 73
H
Handbrake, see Parking brake .... 148
Hazard warning lights ..................352
Headlight cleaning system, see
Wiper system ..............................151
Headlight courtesy delay feature 187
Headlight flasher...........................150
Headlight glass .............................340
Headlights, care ............................ 363
Headlights, see Bulbs and lights 340
Head-Up Display ...........................182
Head-Up Display, care ..................368
Head-Up Display, see Memory func-
tion ............................................... 119
Head-Up Display, standard view . 182
Height, vehicle ..............................370
Help in driving off, see Hill-start
assist control .............................. 229
High-beam headlights ..................150
Hill Start Assist, see Hill-start assist
control .........................................229
Hill-start assist control ................. 229
Holder for beverages .................... 275
Horn ................................................. 46
Hot exhaust system ...................... 281
I
Ice warning, see Outside tempera-
ture warning ................................169
Identification number, see Vehicle
identification number ................... 22

492Alphabetical Index
RES CNCL button, see Cruise Con-
trol ............................................... 234
RES CNCL button, see Dynamic
radar cruise control ................... 238
Reset, Tyre Pressure Monitor TPM
..................................................... 307
Restraint systems for children, see
Carrying children safely ............ 122
Retreaded tyres ............................ 297
Reuse, recycling ........................... 333
Reversing light, replacing Bulbs, see
Bulbs and lights ......................... 340
Revolution counter....................... 168
Right-hand tra ffic, light setting ... 190
Rim cleaner, light alloy wheels ... 366
RON, petrol grade......................... 323
Roof lining....................................... 49
Roof load ....................................... 371
Rope for tow-starting/towing....... 360
RSC Runflat System Component,
see Run-flat tyres ....................... 298
Rubber parts, care........................ 366
Run Flat tyres, see Run-flat tyres 298
Run-flat tyres ................................ 298
Running in..................................... 280
Running in brake discs, see Brake
system ......................................... 281
Running in brake pads, see Brake
system ......................................... 281
Run-on of fan, see Exhaust gas parti-
cle filter ....................................... 281
S
Safe seating position ................... 107
Safety systems, see Airbags ....... 192
Safety systems, see Toyota Supra
Safety .......................................... 205
Saving energy, see Shift position
indicator ...................................... 171
Saving fuel .................................... 286
Screen Mirroring, connection........ 85
Screen, see Control Display .......... 59
Screwdriver, see On-board tool kit
..................................................... 339
Sealant, see Mobility System.......299
Seat belt reminder for driver and
front passenger seat .................. 116
Seat belts ....................................... 111
Seat belts, care .............................367
Seat heating .................................. 120
Seat, see Memory function .......... 119
Seats, front .................................... 107
Securing a transported load ........ 276
Selection list in the instrument clus-
ter .................................................177
Selector lever, Automatic transmis-
sion ..............................................154
Sensors of the vehicle.................... 50
Sensors, care ................................367
Service requirement, see CBS Con-
dition Based Service ..................330
Service requirements ................... 170
Service, see Breakdown assistance
..................................................... 353
Settings on the Control Display .... 71
Settings, locking/unlocking .........101
Shift Lights, revolu tion counter .. 168
Shift paddles on the steering wheel
..................................................... 154
Shift position indicator................. 171
Side airbag .................................... 193
Side lights......................................186
Side nozzles, see Ventilation .......266
Signal horn, horn ............................ 46
Signals on unlocking, see
Acknowledgement signals ........ 102
Sizes, see Dimensions ................. 370
Smallest turning circle ................. 370
Smart Key System .......................... 96
Snow chains .................................. 304
Socket for on-board diagnosis OBD
..................................................... 332
Sockets, connecting electrical appli-
ances, see Sockets .................... 269
Soot particle filter, see Exhaust gas
particle filter ................................281
SOS button, see Automatic emer-
gency call .................................... 355
Spanner, see On-board tool kit.... 339
