6217-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care

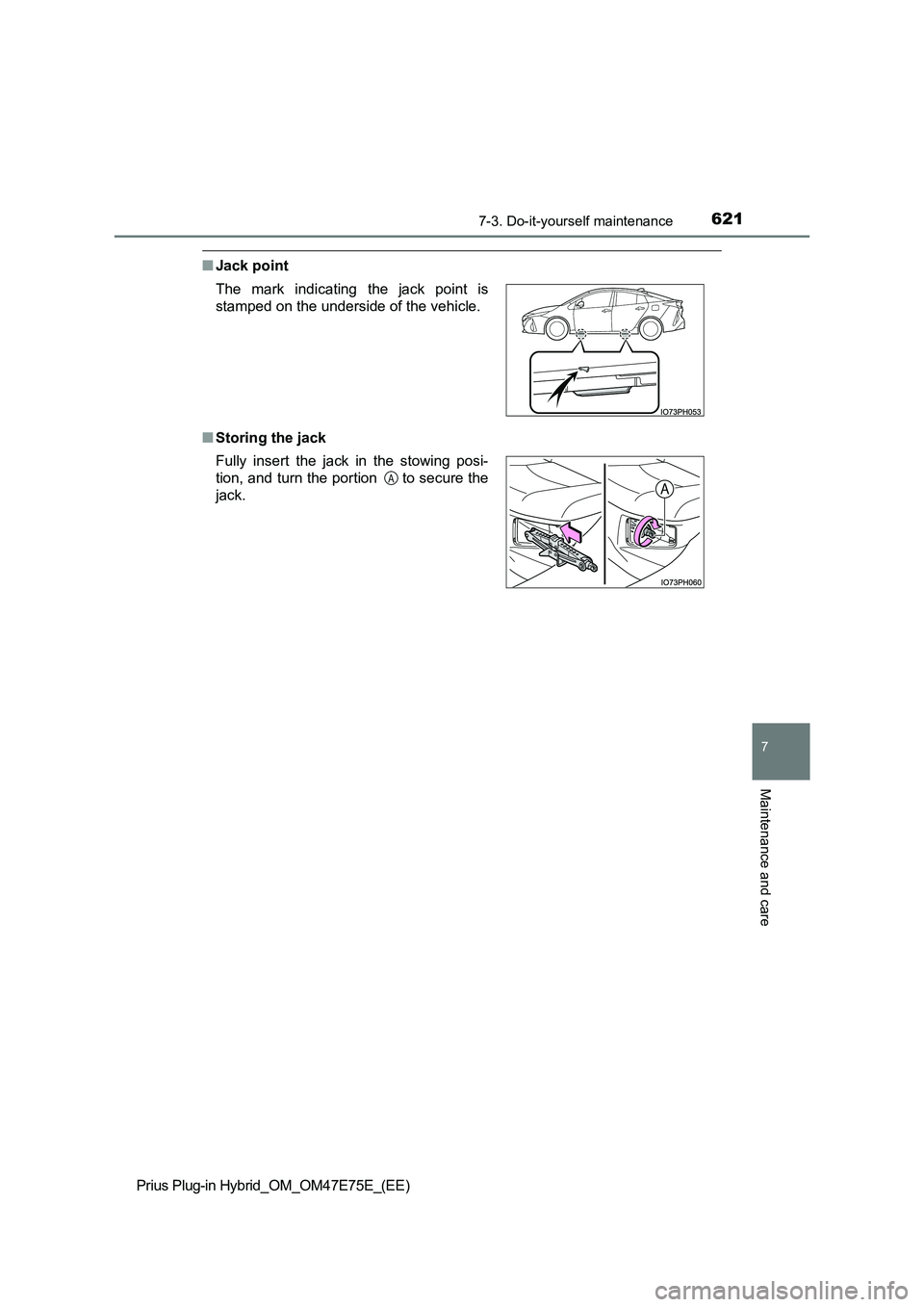

QJack point
QStoring the jack The mark indicating the jack point is
stamped on the underside of the vehicle.
Fully insert the jack in the stowing posi-
tion, and turn the portion to secure the
jack.
A

6257-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care
With the glove box fully open,
slightly lift up the glove box and
pull toward the seat to detach
the bottom of the glove box.
Do not use excessive force if the
glove box does not detach when
lightly pulled. Instead, pull toward
the seat while slightly adjusting the
height of the glove box.
Remove the filter cover.
Unlock the filter cover.
Move the filter cover in the direction of the arrow, and then p ull it
out of the claws.
Remove the filter case.
5
6
1
2
Left-hand drive vehiclesRight-hand drive vehicles
7

6337-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
7
Maintenance and care
WARNING
QBattery precautions
Observe the following precautions.
Failure to do so may result in death or serious injury.
O Do not swallow the battery. Doing so may cause chemical burns.
O A coin battery or button battery is used in the electronic key. If a battery is
swallowed, it may cause severe chemical burns in as little as 2 hours and
may result in death or serious injury.
O Keep away new and removed batteries from children.
O If the cover cannot be firmly closed, stop using the electronic key and stow
the key in the place where children cannot reach, and then cont act any
authorized Toyota retailer or Toyota authorized repairer, or an y reliable
repairer as soon as possible.
O If you accidentally swallow a battery or put a battery into a part of your
body, get emergency medical attention immediately.
Q To prevent battery explosion or leakage of flammable liquid or gas
O Replace the battery with a new battery of the same type. If a wrong type of
battery is used, it may explode.
O Do not expose batteries to extremely low pressure due to high altitude or
extremely high temperatures.
O Do not burn, break or cut a battery.
Q Certification for the smart entry & start system
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
NOTICE
Q For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
O Always work with dry hands.
Moisture may cause the battery to rust.
O Do not touch or move any other component inside the remote control.
O Do not bend either of the battery terminals.

6407-3. Do-it-yourself maintenance
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Remove the cover end and
pull the cover toward the
front of the vehicle to make a
gap between the cover and
rear bumper.
Remove the clip inside of the cover, and remove the cover.
Pull out the center portion of
the clip to unlock using a flat-
head screwdriver, and then
pull it to remove.
Turn the bulb base counter-
clockwise, and then remove
the light bulb.
To remove the light bulb, insert a
hand from the gap between the
rear tire and rear bumper.
3
4
5

645
8When trouble arises
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8-1. Essential information
Emergency flashers ........... 646
If your vehicle has to
be stopped in an
emergency ....................... 647
If the vehicle is submerged
or water on the road
is rising ............................ 648
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ...................... 650
If you think something is
wrong ............................... 656
If a warning light turns on
or a warning buzzer
sounds ............................. 657
If a warning message is
displayed ......................... 665
If you have a flat tire .......... 673
If the hybrid system will
not start............................ 691
If the electronic key does
not operate properly ........ 693
If the 12-volt battery is
discharged ....................... 697
If your vehicle
overheats ......................... 703
If the vehicle becomes
stuck ................................ 708

6508-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
If your vehicle needs to be towed
In the following situations, it is not possible to be towed by another
vehicle using cables or chains, as the front wheels may be lock ed due
to the parking lock. Contact any authorized Toyota retailer or To y o t a
authorized repairer, or any reliable repairer or commercial tow ing ser-
vice.
O There is a malfunction in the shift control system. (P. 326, 672)
O There is a malfunction in the immobilizer system. (P. 74)
O There is a malfunction in the smart entry & start system. (P. 693)
O The 12-volt battery is discharged. (P. 697)
The following may indicate a problem with your hybrid transmiss ion.
Contact any authorized Toyota retailer or Toyota authorized rep airer,
or any reliable repairer or commercial towing service before to wing.
O The hybrid system warning message is displayed and the vehicle
does not move.
O The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer or commercial towing service ,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all stat e/
provincial and local laws.
Situations when it is not possible to be towed by another vehic le
Situations when it is necessary to contact dealers before towing

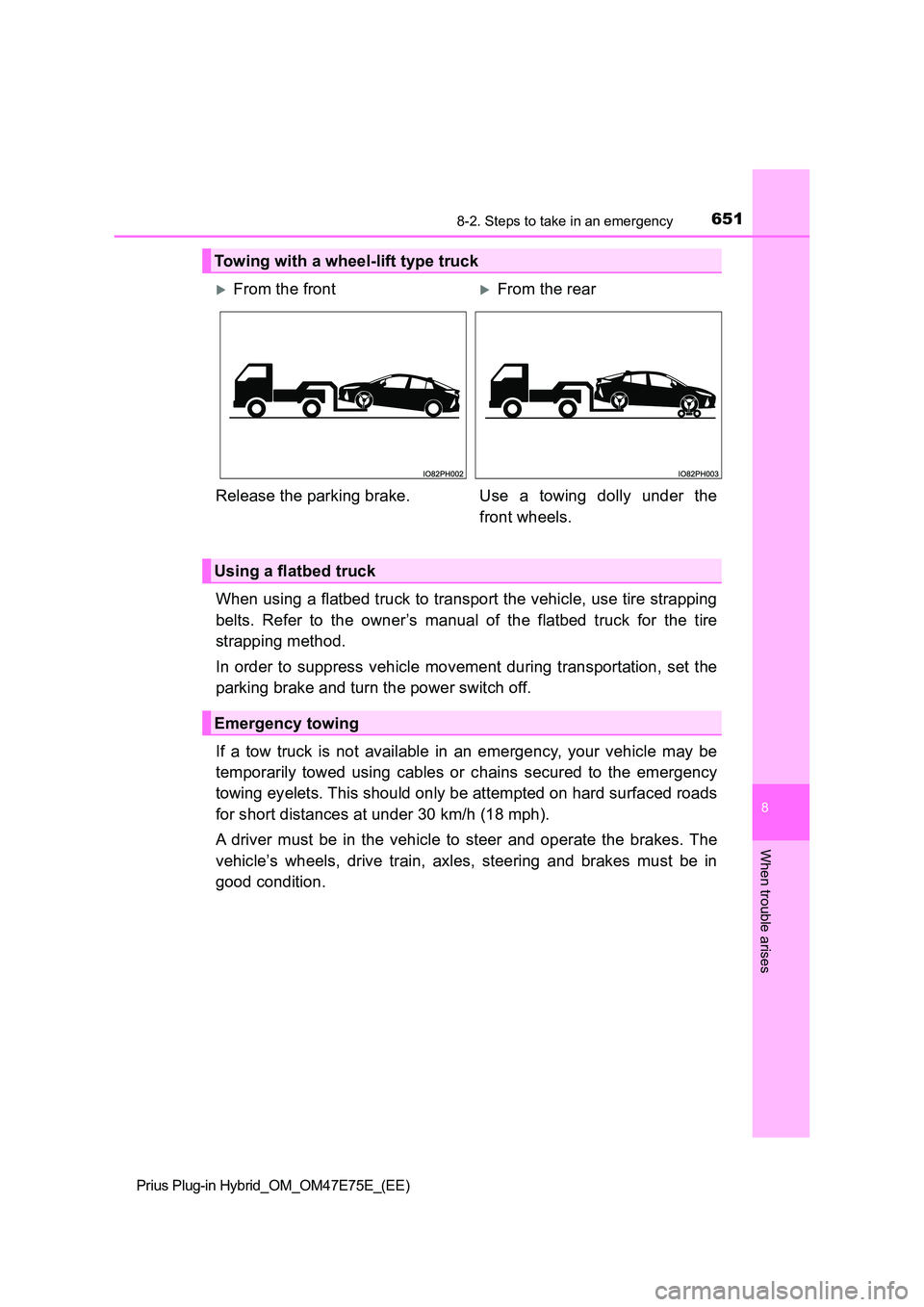

6518-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
8
When trouble arises
When using a flatbed truck to transport the vehicle, use tire strapping
belts. Refer to the owner’s manual of the flatbed truck for the tire
strapping method.
In order to suppress vehicle movement during transportation, se t the
parking brake and turn the power switch off.
If a tow truck is not available in an emergency, your vehicle m ay be
temporarily towed using cables or chains secured to the emergen cy
towing eyelets. This should only be attempted on hard surfaced roads
for short distances at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes . The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Towing with a wheel-lift type truck
From the frontFrom the rear
Release the parking brake. Use a towing dolly under the
front wheels.
Using a flatbed truck
Emergency towing

6528-2. Steps to take in an emergency
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
To have your vehicle towed by another vehicle, the towing eyelet must
be installed to your vehicle. Install the towing eyelet using t he follow-
ing procedure.
Take out the wheel nut wrench and towing eyelet. ( P. 613)
Remove the eyelet cover using
a flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench or hard metal bar.
When tightening with a wheel nut
wrench or hard metal bar, make
sure not to damage the vehicle
body.
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Enter the vehicle being towed and start the hybrid system.
If the hybrid system does not start, turn the power switch to O N mode.
Turn off the Parking Support Brake function. (if equipped): P. 464
Emergency towing procedure
1
2
3
4
5
6
