2022 TOYOTA HILUX maintenance

5107-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)

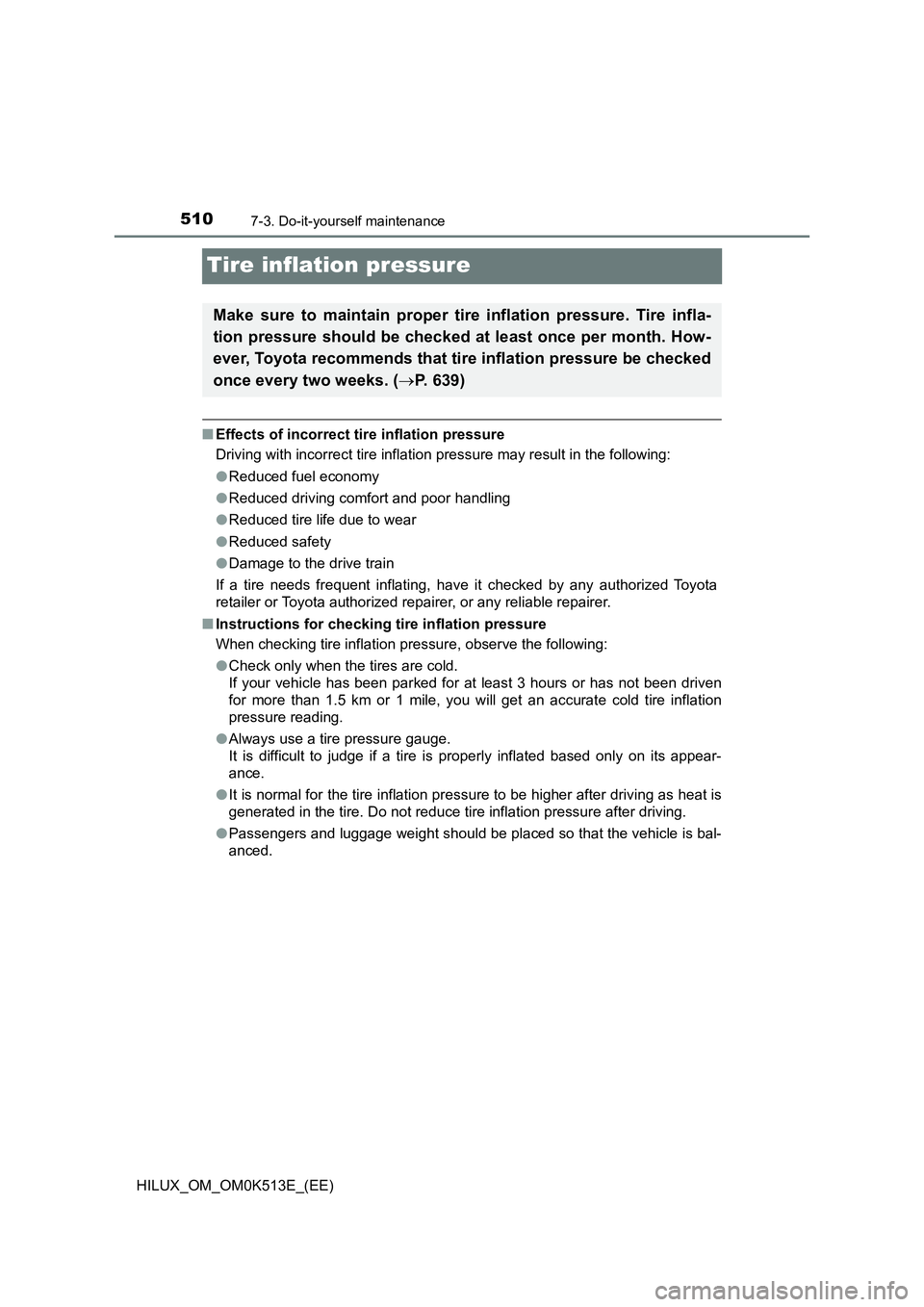

Tire inflation pressure
QEffects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
O Reduced fuel economy
O Reduced driving comfort and poor handling
O Reduced tire life due to wear
O Reduced safety
O Damage to the drive train
If a tire needs frequent inflating, have it checked by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
Q Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
O Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven
for more than 1.5 km or 1 mile, you will get an accurate cold tire inflation
pressure reading.
O Always use a tire pressure gauge.
It is difficult to judge if a tire is properly inflated based only on its appear-
ance.
O It is normal for the tire inflation pressure to be higher after driving as heat is
generated in the tire. Do not reduce tire inflation pressure after driving.
O Passengers and luggage weight should be placed so that the vehicle is bal-
anced.
Make sure to maintain proper tire inflation pressure. Tire infla-
tion pressure should be checked at least once per month. How-
ever, Toyota recommends that tire inflation pressure be checked
once every two weeks. ( P. 639)

5117-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care

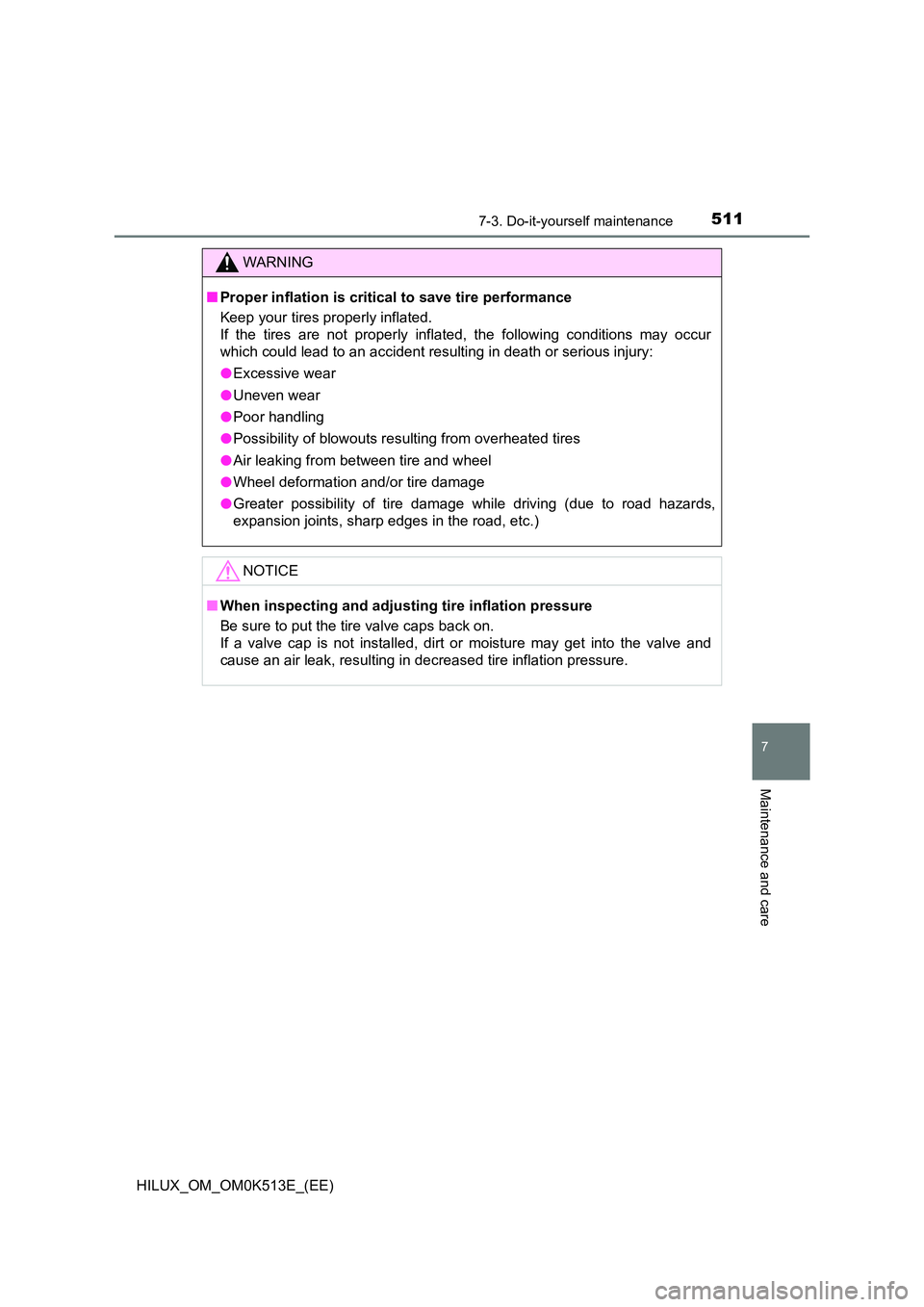

WARNING
QProper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated, the following conditions may occur
which could lead to an accident resulting in death or serious injury:
O Excessive wear
O Uneven wear
O Poor handling
O Possibility of blowouts resulting from overheated tires
O Air leaking from between tire and wheel
O Wheel deformation and/or tire damage
O Greater possibility of tire damage while driving (due to road hazards,
expansion joints, sharp edges in the road, etc.)
NOTICE
Q When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
If a valve cap is not installed, dirt or moisture may get into the valve and
cause an air leak, resulting in decreased tire inflation pressure.

5127-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
Wheels
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset*.
Replacement wheels are available at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
*: Conventionally referred to as “offset”.
Toyota does not recommend using the following:
O Wheels of different sizes or types
O Used wheels
O Bent wheels that have been straightened
O Use only Toyota wheel nuts and wrenches designed for use with
your aluminum wheels.
O When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1600 km (1000 miles).
O Be careful not to damage the aluminum wheels when using tire
chains.
O Use only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.
If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or
cause a loss of handling control.
Wheel selection
Aluminum wheel precautions (if equipped)

5137-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
WARNING
QWhen replacing wheels
O Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
O Never use an inner tube in a leaking wheel which is designed for a tube-
less tire. Doing so may result in an accident, causing death or serious
injury.
Q When installing the wheel nuts
O Be sure to install the wheel nuts with the tapered ends facing inward.
( P. 592) Installing the nuts with the tapered ends facing outward can
cause the wheel to break and eventually cause the wheel to come off
while driving, which could lead to an accident resulting in death or seri-
ous injury.
O Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an acci-
dent and resulting in death or serious injury. Remove any oil or grease
from the wheel bolts or wheel nuts.
Q Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an
accident.

5147-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
Air conditioning filter
Vehicles without smart entry & start system: Turn the engine switch
to the “LOCK” position.
Vehicles with smart entry & start system: Turn the engine switch off.
Open the glove box. Turn the
claws as shown in the illustra-
tion.
Pull out the claws.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
2
3

5157-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
Pull out the damper (if
equipped) as shown in the illus-
tration, and then remove the
glove box.
Remove the filter cover.
Remove the air conditioning fil-
ter and replace it with a new
one.
The “ UP” marks shown on the fil-
ter should be pointing up.
Q Changing interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Toyota Service Booklet” or “Toyota Warranty Booklet”.)
Q If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
4
5
6
NOTICE
Q When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditi oning system without a filter may cause damage to the
system.

5167-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)

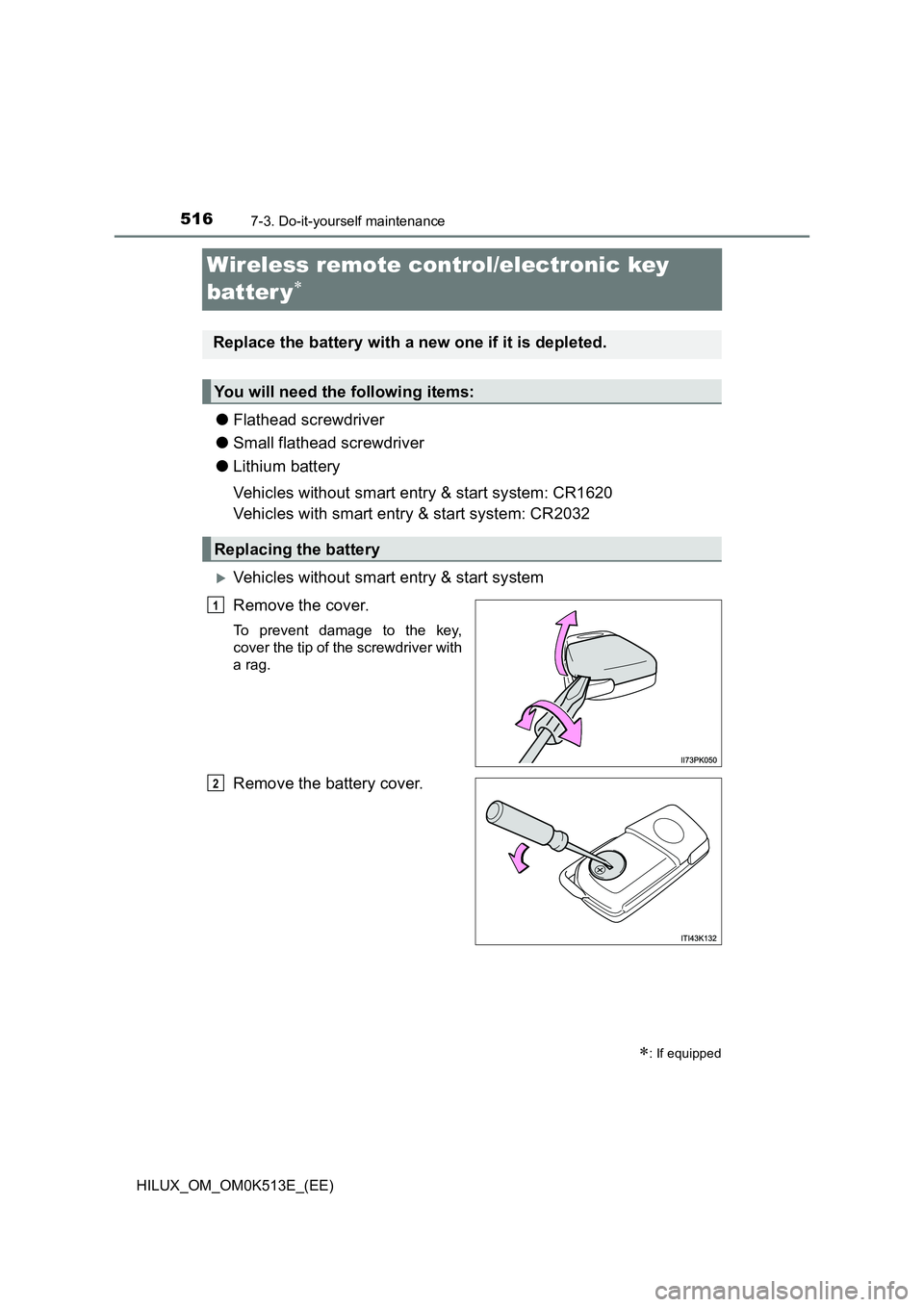

Wireless remote control/electronic key
batter y
O Flathead screwdriver
O Small flathead screwdriver
O Lithium battery
Vehicles without smart entry & start system: CR1620
Vehicles with smart entry & start system: CR2032
Vehicles without smart entry & start system
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the battery cover.
: If equipped
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2

5177-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care

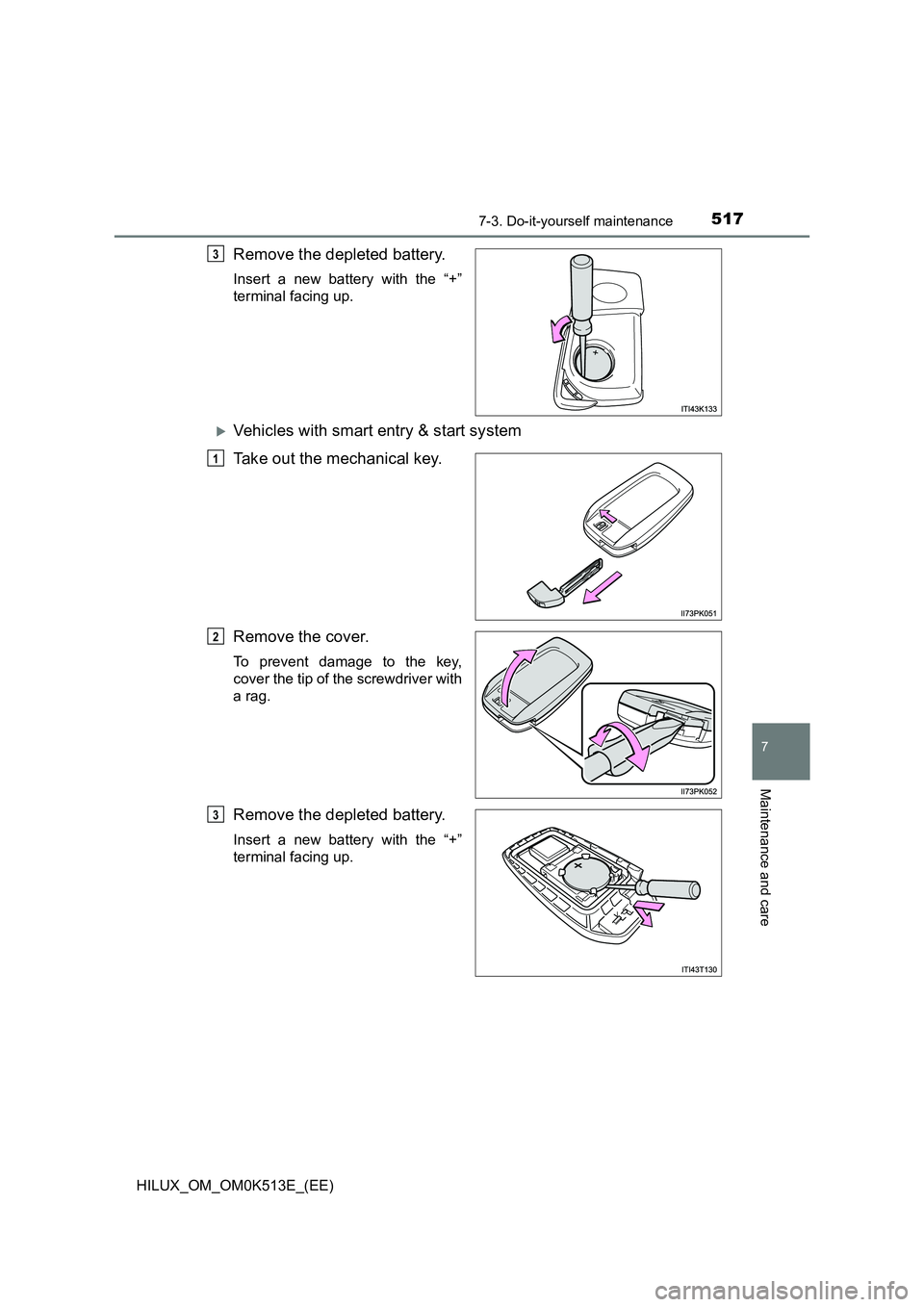

Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
Vehicles with smart entry & start system
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
3
1
2
3
