QStop/tail lights, rear turn signal lights, back-up lights and rear
fog light (if equipped) (without LED stop lights)
Remove the securing bolts
and pull the unit sideways to
remove.
Turn the bulb base counter-
clockwise.
Stop/tail light
Rear turn signal light
Back-up light or rear fog
light
Remove the light bulb.
Stop/tail light
Rear turn signal light
Back-up light or rear fog
light
When installing, reverse the steps listed.
1
2
1
2
3
3
1
2
3
4

5437-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
QRear turn signal lights (with LED stop lights)
Remove the securing bolts
and pull the unit sideways to
remove.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

5447-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
QLicense plate light
Remove the unit.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

5457-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
QOuter foot lights (if equipped)
Press the upper part of the
outside rear view mirror to tilt
the mirror face upward, and
apply protective tape to the
lower part of the mirror cover.
Insert 2 flathead screw-
drivers wrapped in protective
tape, and disconnect the tabs
behind the mirror.
Pry the mirror out toward you,
disconnecting the 2 tabs at a
time.
Work carefully, ensuring that
you do not drop the mirror.
Disconnect the tab as shown
in the illustration.
Remove the upper cover and
screws.
1
2
3
4

5467-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
Fold the mirror forward.
Remove the lower cover.
Remove the side turn signal
light lens.
Remove the bulb base.
5
6
7
8

5477-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care

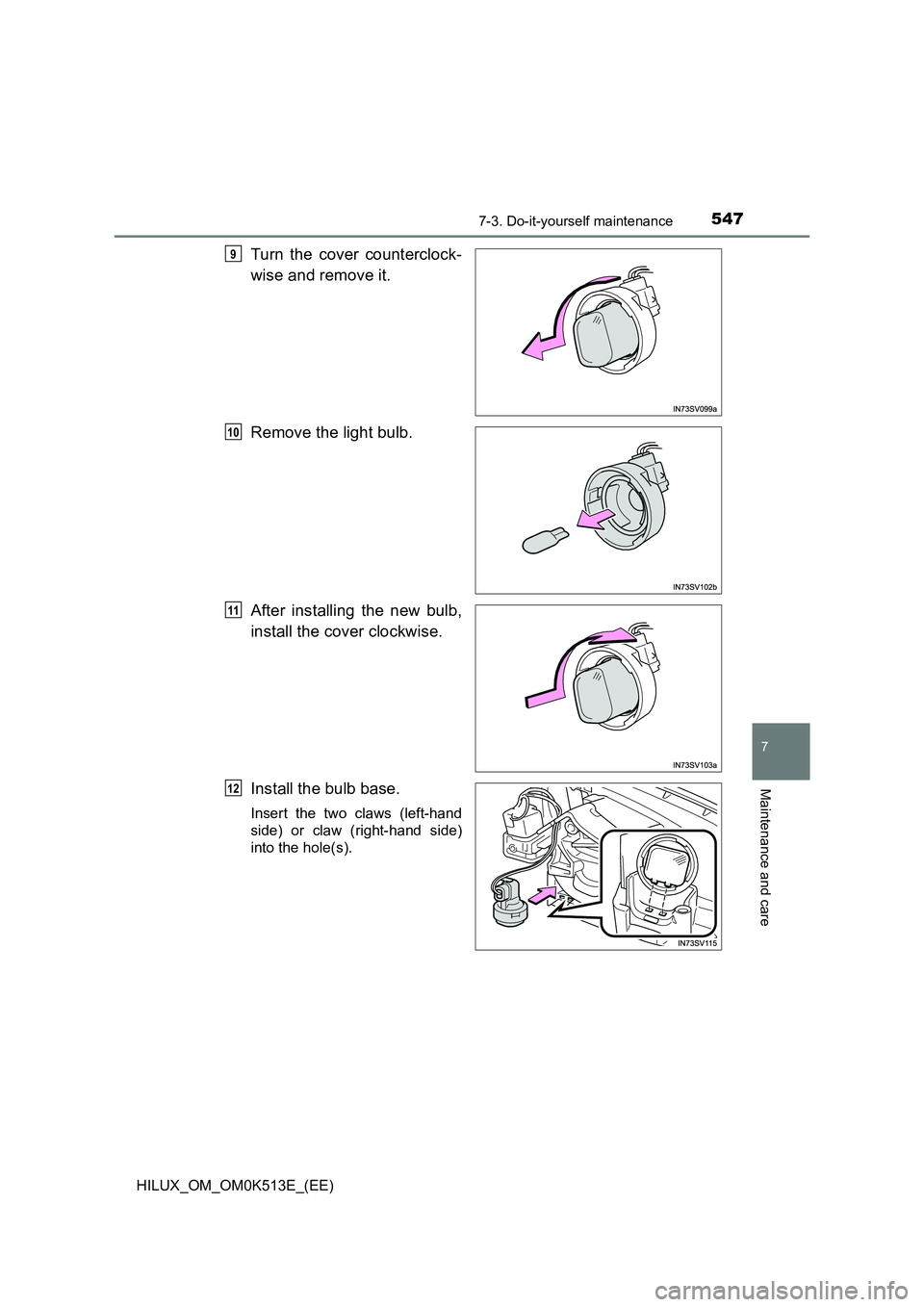

Turn the cover counterclock-
wise and remove it.
Remove the light bulb.
After installing the new bulb,
install the cover clockwise.
Install the bulb base.
Insert the two claws (left-hand
side) or claw (right-hand side)
into the hole(s).
9
10
11
12

5487-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)

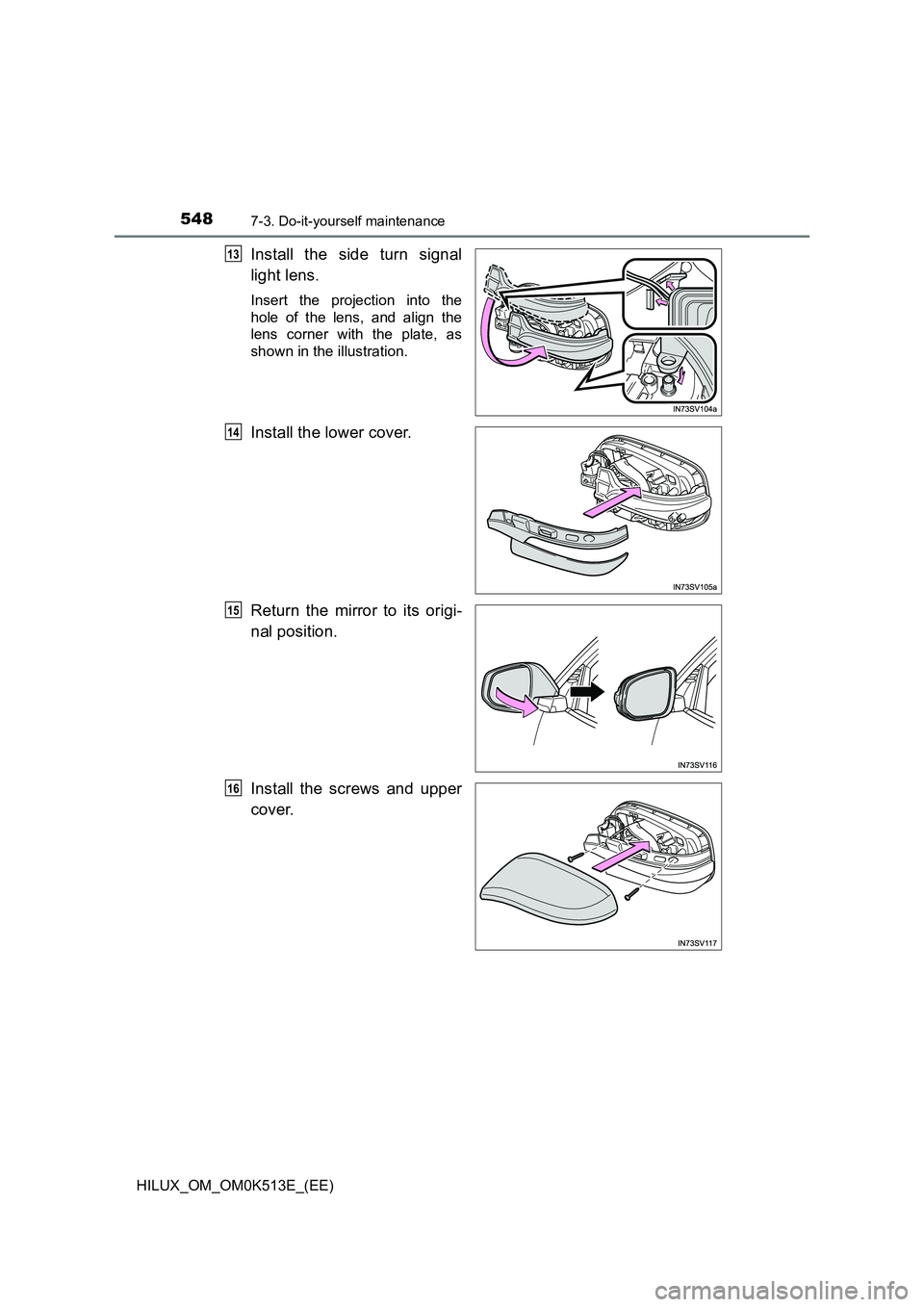

Install the side turn signal
light lens.
Insert the projection into the
hole of the lens, and align the
lens corner with the plate, as
shown in the illustration.
Install the lower cover.
Return the mirror to its origi-
nal position.
Install the screws and upper
cover.
13
14
15
16

5497-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
Align the tabs, and secure
the mirror by pushing in each
diagonally-opposite pair of
tabs in order.
Make sure to insert the tabs in
order as shown in the illustra-
tion, and push them in until a
click is heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check
that the tabs are aligned.
QReplacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
O Headlights (high/low beams) (LED headlights)
O Front position lights/daytime running lights (if equipped) (LED
headlights)
O Front turn signal lights (LED headlights)
O Side turn signal lights
O LED front fog lights (if equipped)
O LED stop lights
O Tail lights (LED stop lights)
O Rear fog lights (if equipped) or back-up lights (LED stop lights)
O High mounted stoplight (if equipped)
17
