2022 TOYOTA HILUX Owners Manual

415
5
5-7. “SETUP” menu
Audio system
HILUX_OM_OM0K513E_(EE)
Using the “SETUP” menu (“Bluetooth”
menu)
Select “Pairing” using the “TUNE•SELECT” knob, and perform the
procedure for registering a device. ( P. 414)
Select “List phone” using the “TUNE•SELECT” knob. The list of regis-
tered cellular phones will be displayed.
O Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected using the
“TUNE•SELECT” knob.
Select “Select” using the knob.
O Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using the
“TUNE•SELECT” knob.
Select “Delete” using the knob.
Press (YES).
O Disconnecting the registered cellular phone from the audio system
Select the name of the cellular phone to be disconnected using
the “TUNE•SELECT” knob.
Select “Disconnect” using the knob.
Press (YES).
Registering a Bluetooth® device in the system allows the system
to function. The following functions can be used for registered
devices. To enter the set up menu, press the “TUNE•SELECT”
knob and select “Bluetooth®” using the knob.
Registering a Bluetooth® device
Listing the registered cellular phones
1
2
1
2
3
1
2
3

4165-7. “SETUP” menu
HILUX_OM_OM0K513E_(EE)
Select “List audio” using the “TUNE•SELECT” knob. The list of regis-
tered portable players will be displayed.
O Connecting the registered portable player to the audio system
Select the name of the portable player to be connected using the
“TUNE•SELECT” knob.
Select “Select” using the knob.
O Deleting the registered portable player
Select the name of the portable player to be deleted using the
“TUNE•SELECT” knob.
Select “Delete” using the knob.
Press (YES).
O Disconnecting the registered portable player from the audio system
Select the name of the portable player to be disconnected using
the “TUNE•SELECT” knob.
Select “Disconnect” using the knob.
Press (YES).
O Selecting the connection method
Select the name of the desired portable player using the
“TUNE•SELECT” knob.
Select “Connection Method” using the knob.
Select “From vehicle” or “From audio” using the knob.
Listing the registered portable players
1
2
1
2
3
1
2
3
1
2
3

4175-7. “SETUP” menu
5
Audio system
HILUX_OM_OM0K513E_(EE)
Select “Passkey” using the “TUNE•SELECT” knob.
Select a 4 to 8-digit passkey using the knob.
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press (ENTER).
If the passkey to be registered has 8 digits, pressing (ENTER) is not
necessary.
If “BT power” is set to on, the registered device will be connected
automatically when the engine switch is turned to the “ACC” position
(vehicles without smart entry & start system) or ACCESSORY mode
(vehicles with smart entry & start system).
Select “BT power ON” or “BT power OFF” using the “TUNE•SELECT”
knob.
Select “Bluetooth info” using the “TUNE•SELECT” knob.
O Displaying the device name
Select “Device name” using the “TUNE•SELECT” knob.
O Displaying the device address
Select “Device address” using the “TUNE•SELECT” knob.
Changing the passkey
Setting automatic connection of the device on or off
Displaying the device status
1
2
3

4185-7. “SETUP” menu
HILUX_OM_OM0K513E_(EE)
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC”
position (vehicles without smart entry & start system) or ACCESSORY
mode (vehicles with smart entry & start system).
Select “Display setting ON” or “Display setting OFF” using the
“TUNE•SELECT” knob.
Select “Initialize” or “Reset” using the “TUNE•SELECT” knob.
O Initializing the HF sound settings
Select “HF sound setting” using the “TUNE•SELECT” knob and
press (YES).
For details about HF sound settings: P. 4 2 2
OInitializing the device information
Select “Car device info” using the “TUNE•SELECT” knob and press
(YES).
Automatic connection of a portable device, automatic connection confirma-
tion display and the passkey will be initialized.
O Initializing all settings
Select “All initialize” or “Reset all” using the “TUNE•SELECT” knob
and press (YES).
Setting the automatic connection confirmation display to on or off
Initialization

419
5
5-7. “SETUP” menu
Audio system
HILUX_OM_OM0K513E_(EE)
Using the “SETUP” menu (“TEL” menu)
The automatic transfer function is available for PBAP compatible
Bluetooth® phones only.
Select “Phonebook” using the “TUNE•SELECT” knob.
Select “Auto transfer ON” or “Auto transfer OFF” using the knob.
When set to on, the phone’s contact data and call history are automatically
transferred.
Select “Phonebook” using the “TUNE•SELECT” knob, and select “Add
contacts” using the knob.
O Transferring all contacts from the cellular phone
Select “Overwrite all” using the “TUNE•SELECT” knob and press
(YES).
O Transferring one contact from the cellular phone
Select “Add one contact” using the “TUNE•SELECT” knob and
press (YES).
Select “Phonebook” using the “TUNE•SELECT” knob.
Select “Delete contacts” using the knob.
Select the desired phone number using the knob and press
(YES).
To delete all the registered phone numbers, press (ALL) and then
press (YES).
Press (A-Z) to display the registered names in alphabetical order of the
initial.
To enter the set up menu, press the “TUNE•SELECT” knob and
select “TEL” using the knob.
Setting automatic contact/call history transfer
Adding a new phone number
Deleting a registered phone number
1
2
1
2
3

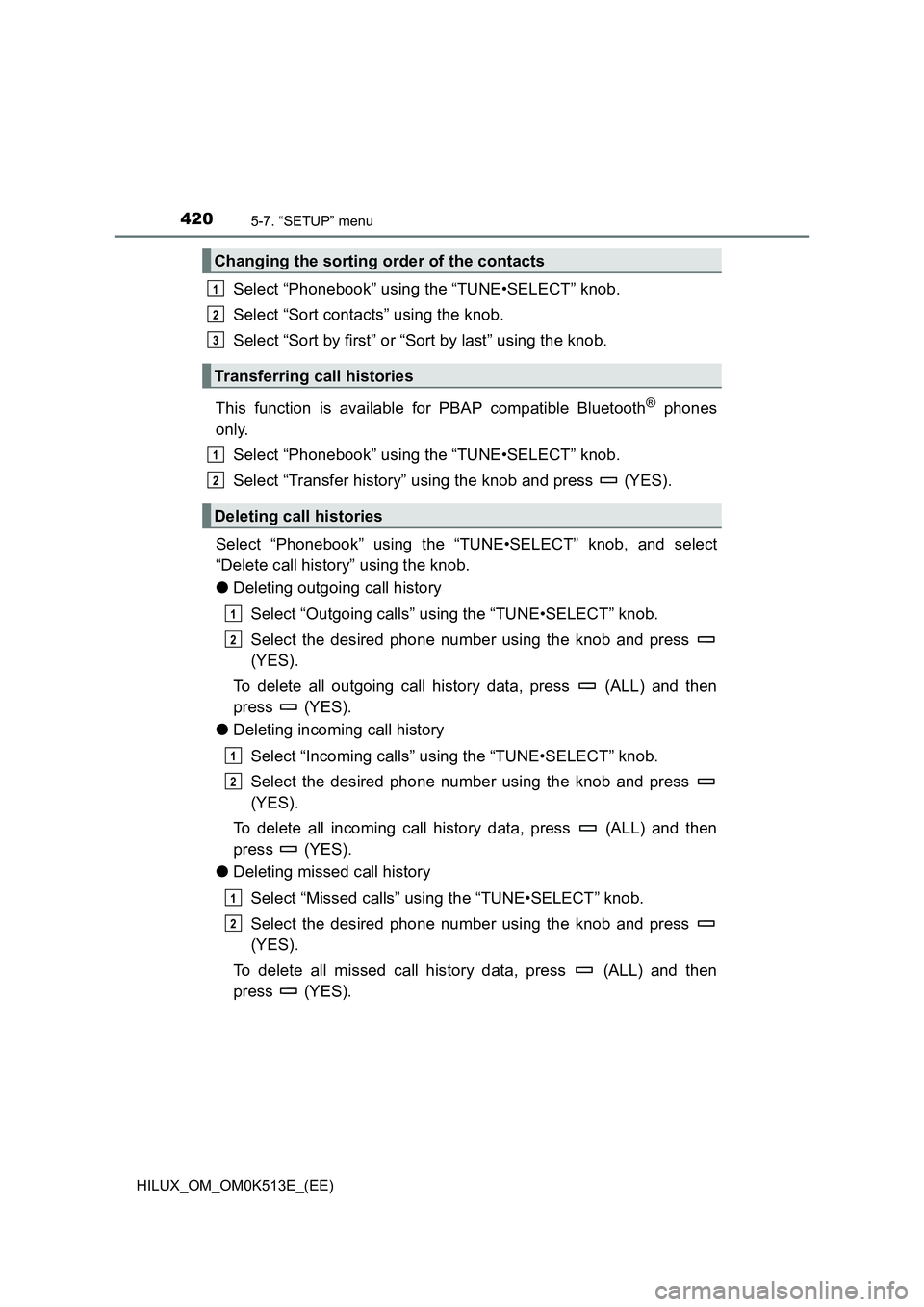

4205-7. “SETUP” menu
HILUX_OM_OM0K513E_(EE)
Select “Phonebook” using the “TUNE•SELECT” knob.
Select “Sort contacts” using the knob.
Select “Sort by first” or “Sort by last” using the knob.
This function is available for PBAP compatible Bluetooth® phones
only.
Select “Phonebook” using the “TUNE•SELECT” knob.
Select “Transfer history” using the knob and press (YES).
Select “Phonebook” using the “TUNE•SELECT” knob, and select
“Delete call history” using the knob.
O Deleting outgoing call history
Select “Outgoing calls” using the “TUNE•SELECT” knob.
Select the desired phone number using the knob and press
(YES).
To delete all outgoing call history data, press (ALL) and then
press (YES).
O Deleting incoming call history
Select “Incoming calls” using the “TUNE•SELECT” knob.
Select the desired phone number using the knob and press
(YES).
To delete all incoming call history data, press (ALL) and then
press (YES).
O Deleting missed call history
Select “Missed calls” using the “TUNE•SELECT” knob.
Select the desired phone number using the knob and press
(YES).
To delete all missed call history data, press (ALL) and then
press (YES).
Changing the sorting order of the contacts
Transferring call histories
Deleting call histories
1
2
3
1
2
1
2
1
2
1
2

4215-7. “SETUP” menu
5
Audio system
HILUX_OM_OM0K513E_(EE)
ODeleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All calls” using the “TUNE•SELECT” knob.
Select the desired phone number using the knob and press
(YES).
To delete all of the call histories data, press (ALL) and then
press (YES).
Up to 15 contacts can be registered in the favorites list.
QRegistering the contacts from the “SETUP” mode
Press the “TUNE•SELECT” knob.
Select “TEL” using the knob.
Select “Favourites” using knob.
Select “Add favourites” using the knob.
Press (A-Z) to display the registered names in alphabetical
order of the initial.
Select desired contact using the knob.
QRegistering the contacts from the “TEL” mode
Press the off-hook button.
Select “Phonebook”, “All calls”, “Missed calls”, “Incoming calls” or
“Outgoing calls” using the “TUNE•SELECT” knob.
Select a desired number using the knob
Press (Add favourite).
O When 15 contacts have already been registered to the favorites
list, a registered contact needs to be replaced.
Select the contact to be replaced using the “TUNE•SELECT”
knob.
Select (YES) when the confirmation screen appears.
Registering favorites
1
2
1
2
3
4
5
1
2
3
4
1
2

4225-7. “SETUP” menu
HILUX_OM_OM0K513E_(EE)
QDeleting the contacts from the “SETUP” mode
Press the “TUNE•SELECT” knob.
Select “TEL” using the knob.
Select “Favourites” using the knob.
Select “Delete favourites” using the knob.
Select desired contact using the knob.
You can select all contacts by selecting (ALL).
Select (YES) when the confirmation screen appears.
QDeleting the contacts from the “TEL” mode
Press the off-hook button.
Select “Favourites” using the “TUNE•SELECT” knob.
Select a desired contact using the knob
Press (Delete favourite).
Select (YES) when the confirmation screen appears.
Select “HF sound setting” using the “TUNE•SELECT” knob.
Select “Call volume” using the knob.
Change the call volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (BACK).
Select “HF sound setting” using the “TUNE•SELECT” knob.
Select “Ringtone volume” using the knob.
Change the ring tone volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (BACK).
Deleting favorites
Setting call volume
Setting ring tone volume
1
2
3
4
5
6
1
2
3
4
5
1
2
3
1
2
3
