641-2. Child safety
HILUX_OM_OM0K513E_(EE)
Riding with children
OIt is recommended that children sit in the rear seats (if equipped) to
avoid accidental contact with the shift lever, wiper switch etc.
O Use the rear door child-protector lock (double-cab models only) or
the window lock switch (vehicles with power windows) to avoid chil-
dren opening the door while driving or operating the power window
accidentally.
O Do not let small children operate equipment which may catch or
pinch body parts, such as the power window (if equipped), hood,
tailgate (if equipped), seats etc.
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

147
3
Operation of
each component
HILUX_OM_OM0K513E_(EE)
3-1. Key information
Keys ................................... 148
3-2. Opening, closing and
locking the doors
Side doors.......................... 153
Access panels (smart-cab
models only) .................... 159
Tailgate .............................. 160
Smart entry & start
system ............................. 163
3-3. Adjusting the seats
Front seats ......................... 170
Rear seats ......................... 172
Head restraints .................. 175
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 178
Inside rear view mirror ....... 180
Outside rear view
mirrors ............................. 182
3-5. Opening and closing
the windows
Power windows .................. 185
Quarter windows
(smart-cab models).......... 189

1483-1. Key information
HILUX_OM_OM0K513E_(EE)
Keys
The following keys are provided with the vehicle.
Ty pe A
Master keys
Va l e t k e y
Key number plate
Ty pe B
Master keys
Operating the wireless remote con-
trol function ( P. 149)
Va l e t k e y
Key number plate
Type C (vehicles with smart entry & start system)
Electronic keys
• Operating the smart entry & start
system ( P. 163)
• Operating the wireless remote
control function ( P. 149)
Mechanical keys
Key number plate
Mechanical keys (supplemen-
tary keys)
Locking and unlocking the tailgate
( P. 160)
The keys
1
2
3
1
2
3
1
2
3
4

1603-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)

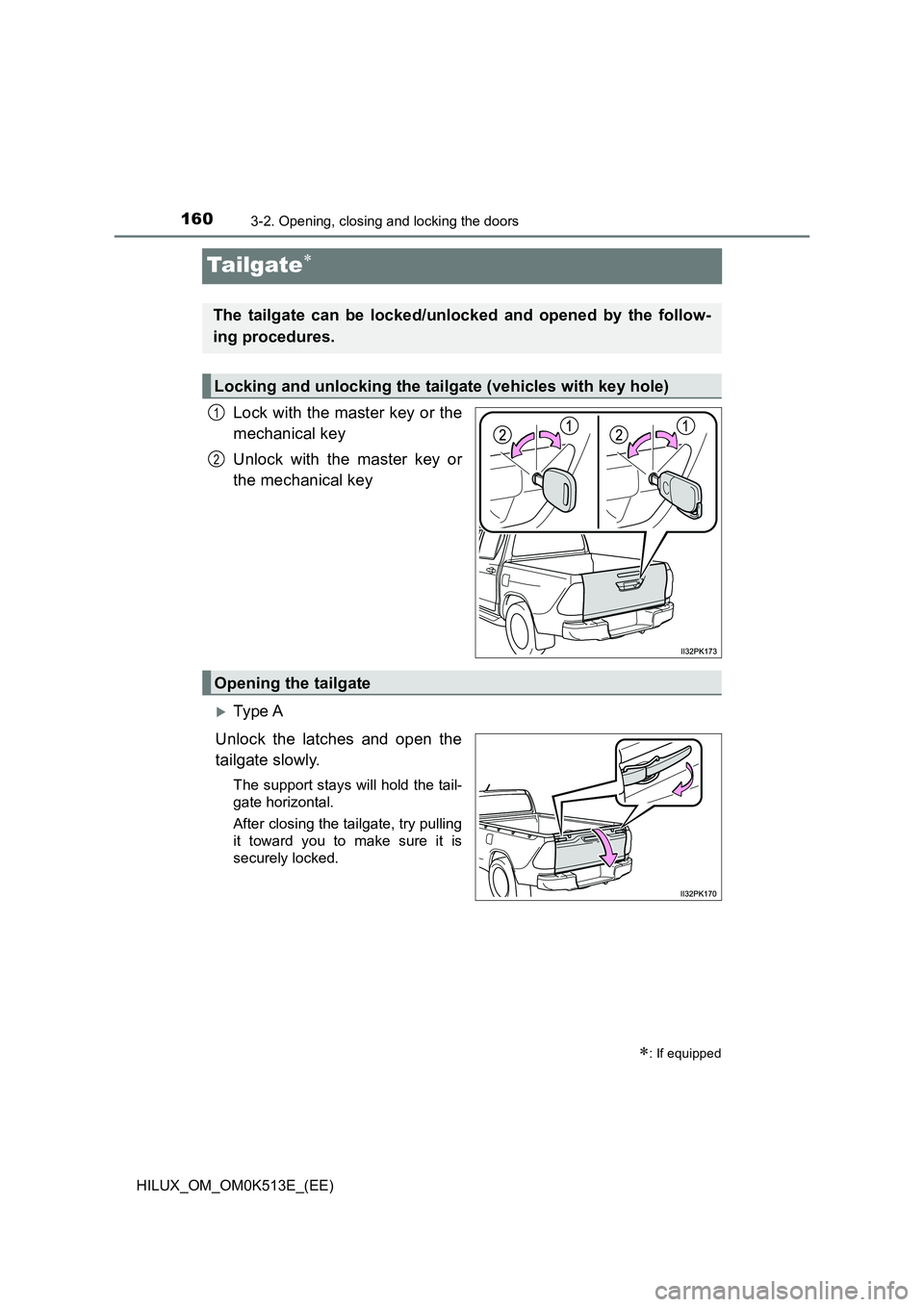

Ta i lg at e
Lock with the master key or the
mechanical key
Unlock with the master key or
the mechanical key
Ty pe A
Unlock the latches and open the
tailgate slowly.
The support stays will hold the tail-
gate horizontal.
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
: If equipped
The tailgate can be locked/unlocked and opened by the follow-
ing procedures.
Locking and unlocking the tailgate (vehicles with key hole)
1
2
Opening the tailgate

1613-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K513E_(EE)
Ty pe B
Pull the handle and open the tail-
gate slowly.
The support stays will hold the tail-
gate horizontal.
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
Release the brackets on the sup-
port stays from the lugs on both
sides as shown in the illustration.
The rear step bumper is for rear
end protection and easier step-up
loading.
Lowering the tailgate (vehicles without rear bumper)
Rear step bumper (if equipped)

1623-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)

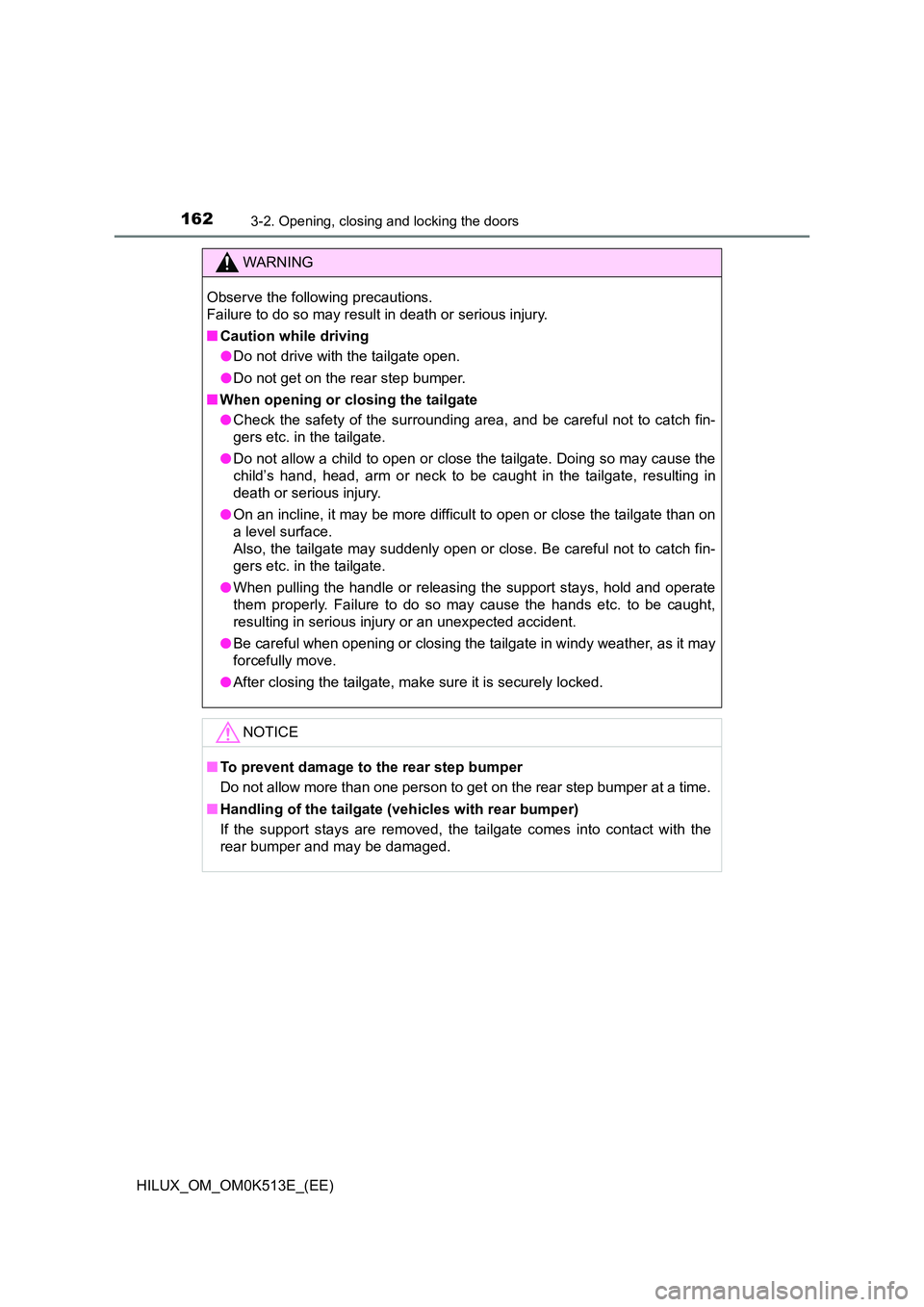

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
Q Caution while driving
O Do not drive with the tailgate open.
O Do not get on the rear step bumper.
Q When opening or closing the tailgate
O Check the safety of the surrounding area, and be careful not to catch fin-
gers etc. in the tailgate.
O Do not allow a child to open or close the tailgate. Doing so may cause the
child’s hand, head, arm or neck to be caught in the tailgate, resulting in
death or serious injury.
O On an incline, it may be more difficult to open or close the tailgate than on
a level surface.
Also, the tailgate may suddenly open or close. Be careful not to catch fin-
gers etc. in the tailgate.
O When pulling the handle or releasing the support stays, hold and operate
them properly. Failure to do so may cause the hands etc. to be caught,
resulting in serious injury or an unexpected accident.
O Be careful when opening or closing the tailgate in windy weather, as it may
forcefully move.
O After closing the tailgate, make sure it is securely locked.
NOTICE
QTo prevent damage to the rear step bumper
Do not allow more than one person to get on the rear step bumper at a time.
Q Handling of the tailgate (vehicles with rear bumper)
If the support stays are removed, the tailgate comes into contact with the
rear bumper and may be damaged.
